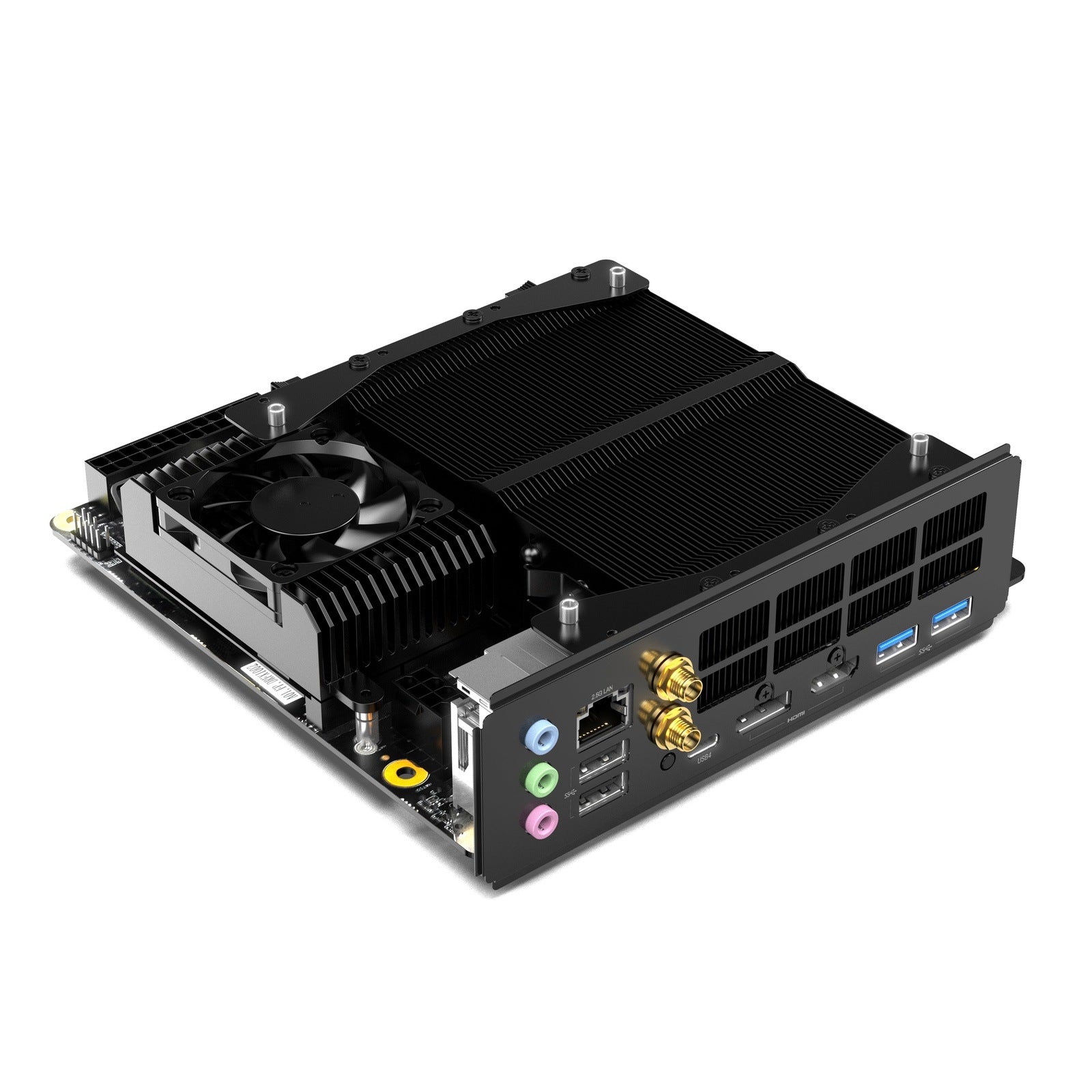

MINISFORUM BD770i
The mini-ITX M/B is the first MoDT (Mobile on Desktop) board powered by built-in AMD Ryzen 7 7745HX CPU with dual PCIe5.0 M.2 slots.This MoDT board features an integrated advanced cooling system, ensuring that both the processor and the dual PCIe5.0 SSDs maintain optimal performance temperatures. Crafted in the standard ITX form factor and equipped with a wealth of interfaces. Whether you're assembling a compact gaming system, a home theater, or a content creation workstation, the BD770i provides a solid, future-proof base for your projects.
MINISFORUM BD770i
The mini-ITX M/B is the first MoDT (Mobile on Desktop) board powered by built-in AMD Ryzen 7 7745HX CPU with dual PCIe5.0 M.2 slots.This MoDT board features an integrated advanced cooling system, ensuring that both the processor and the dual PCIe5.0 SSDs maintain optimal performance temperatures. Crafted in the standard ITX form factor and equipped with a wealth of interfaces. Whether you're assembling a compact gaming system, a home theater, or a content creation workstation, the BD770i provides a solid, future-proof base for your projects.
- BD770i
- Spec
- FAQ
Motherboard Detail
- 1.Motherboard Power Connector
2.Chassis Fan Headers
3.System Control Panel Header
4.USB 3.2 Connector
5.PCIe 5.0 x16 Slot
6.CPU Fan Header
7.SSD Fan Header - 8.M.2 Slots
- 9.CPU Power Connector
Unleashed Performance
The onboard CPU offers a straightforward assembly process. It also delivers robust desktop-level performance, but with the advantages of reduced power consumption and quieter operation.
Harness the raw power of the AMD Ryzen 7 7745HX. With its 8 cores and 16 threads, this processor delivers desktop-level performance, optimized for power efficiency—making it the perfect heart for any compact build.
Onboard CPU
PCIe5.0 Ready
3A Gaming
Design/Video editing
Advanced Cooling System
Stay cool, even under intense workloads. The BD770i features a custom cooling solution, specifically designed for mobile chips, ensuring consistent peak performance.
*Note: A 12cm fan must be purchased separately.
DIYer's Dream: Comprehensive Connectivity
The BD770i is a playground for tech enthusiasts. With multiple fan headers, a wide range of USB ports, and various video outputs, it provides extensive customization options. Dive into a world of connectivity with HDMI, DisplayPort, USB-C, and more, ensuring seamless integration of multiple devices and peripherals.
Support up to 8K display
What's in the Box?
Motherboard
Mounting Screw Set
User Manual
Matched Cases
Click to view chassis(for your reference)
MINISFORUM BD770i
Processor
AMD Ryzen™ 7 7745HX, 8 Cores/16 Threads
(32M Cache, up to 5.1 GHz)
GPU
AMD Radeon™ 610M
Memory
DDR5 Dual channel (SODIMM Slots×2, up to 5200 MT/s, Max 64GB)
Storage
2×M.2 2280 PCIe5.0 SSD Slots
Expansion Slot
PCIe 5.0 X16 connector ×1
Wireless Connectivity
M.2 2230 Key E Slot
Video Output
HDMI2.0 ×1；DisplayPort1.4 ×1；USB-C ×1
Audio Output
HDMI2.0 ×1；DisplayPort1.4 ×1；USB-C ×1；Line Out ×1
Ethernet
RJ45 2.5G Ethernet Port×1
USB Ports
USB3.2 Gen2 Type-C Port ×1(Alt DP)
USB3.2 Gen1 Type-A Port ×2
USB2.0 Type-A Port ×2
I/O Ports
4-pin CPU Fan header ×1
4-pin System Fan header ×2
4-pin SSD Fan header ×1
USB 3.2 Gen 1 header ×1
Front Panel Audio header ×1
System Panel header ×1
Form Factor
Mini-ITX Form Factor(170x170x1.6mm)
Q:Does CPU and memory support overclocking (PBO, EXPO)?
A:No support.
Q:Does it support fan control?
A:Fan control: Currently, there is no software support. Fan adjustment can be done in the BIOS.
Q:Can it be installed and used in any size of chassis?
A:Chassis compatibility: Without a fan, the maximum thickness of the motherboard and heatsink is 37mm.
Q:Can the CPU be replaced?
A:The CPU cannot be replaced.
Q:Does it support any type of power supply?
A:Power supply: It only supports desktop power supplies.
Q:What are the BD770i CPU fan size and power requirements?
A:Size: 120*120*25 or 120*120*15 (mm) / Voltage and current specification: 12v within 1A, we recommend 0.5A.
- BD770i
- Spec
- FAQ
Motherboard Detail
- 1.Motherboard Power Connector
2.Chassis Fan Headers
3.System Control Panel Header
4.USB 3.2 Connector
5.PCIe 5.0 x16 Slot
6.CPU Fan Header
7.SSD Fan Header
8.M.2 Slots
9.CPU Power Connector
Unleashed Performance
The onboard CPU offers a straightforward assembly process. It also delivers robust desktop-level performance, but with the advantages of reduced power consumption and quieter operation.
Harness the raw power of the AMD Ryzen 7 7745HX. With its 8 cores and 16 threads, this processor delivers desktop-level performance, optimized for power efficiency—making it the perfect heart for any compact build.
Onboard CPU
PCIe5.0 Ready
Support Nvidia RTX4090/AMD RX 7900 XTX
The board comes equipped with a built-in PCIe 5.0 x16 slot, unlocking the full potential of high-performance components. Fit multiple scenarios demanding high performance for graphics.
Advanced Cooling System
Stay cool, even under intense workloads. The BD770i features a custom cooling solution, specifically designed for mobile chips, ensuring consistent peak performance.
*Note: A 12cm fan must be purchased separately.
DIYer's Dream: Comprehensive Connectivity
The BD770i is a playground for tech enthusiasts. With multiple fan headers, a wide range of USB ports, and various video outputs, it provides extensive customization options. Dive into a world of connectivity with HDMI, DisplayPort, USB-C, and more, ensuring seamless integration of multiple devices and peripherals.
Support up to 8K display
What's in the Box?
Matched Cases
Click to view chassis(for your reference)
MINISFORUM BD770i
Processor
AMD Ryzen™ 7 7745HX, 8 Cores/16 Threads
(32M Cache, up to 5.1 GHz)
GPU
AMD Radeon™ 610M
Memory
DDR5 Dual channel (SODIMM Slots×2, up to 5200 MT/s, Max 64GB)
Storage
2×M.2 2280 PCIe5.0 SSD Slots
Expansion Slot
PCIe 5.0 X16 connector ×1
Wireless Connectivity
M.2 2230 Key E Slot
Video Output
HDMI2.0 ×1；DisplayPort1.4 ×1；USB-C ×1
Audio Output
HDMI2.0 ×1；DisplayPort1.4 ×1；USB-C ×1；Line Out ×1
Ethernet
RJ45 2.5G Ethernet Port×1
USB Ports
USB3.2 Gen2 Type-C Port ×1(Alt DP)
USB3.2 Gen1 Type-A Port ×2
USB2.0 Type-A Port ×2
I/O Ports
4-pin CPU Fan header ×1
4-pin System Fan header ×2
4-pin SSD Fan header ×1
USB 3.2 Gen 1 header ×1
Front Panel Audio header ×1
System Panel header ×1
Form Factor
Mini-ITX Form Factor(170x170x1.6mm)
Q: Does CPU and memory support overclocking (PBO, EXPO)?
A: No support.
Q: Does it support fan control?
A: Fan control: Currently, there is no software support. But Fan adjustment can be done in the BIOS.
Q: Can it be installed and used in any size of chassis?
A: Chassis compatibility: Without a fan, the maximum thickness of the motherboard and heatsink is 37mm.
Q: Can the CPU be replaced?
A: The CPU cannot be replaced.
Q: Does it support any type of power supply?
A: Power supply: It only supports desktop power supplies.
Q:What are the BD770i CPU fan size and power requirements?
A:Size: 120*120*25 or 120*120*15 (mm) / Voltage and current specification: 12v within 1A, we recommend 0.5A.
