EliteMini UM700
Powerful EliteMini backed up by the Ryzen™ 7 3750H and Radeon™ RX Vega 10 graphics. Upgrade-friendly & windows 11 pro pre-installed, BT5.1 and triple output. which allows you to freely enjoy unparalleled fluency and unbelievable quick response speed.
EliteMini UM700
Powerful EliteMini backed up by the Ryzen™ 7 3750H and Radeon™ RX Vega 10 graphics. Upgrade-friendly & windows 10 pro pre-installed, intel®Wi-Fi6, BT5.1 and triple output. which allows you to freely enjoy unparalleled fluency and unbelievable quick response speed.
- Meet UM700
- Features
- Specification
- FAQs & Reviews
Video Reviews & Media Reviews
Video Reviews & Media Reviews
EliteMini UM700 is a powerful mini PC which comes with the AMD Ryzen™ 7 3750H CPU up to 4.0 GHz, 4 cores 8 threads, total cache 4MB, equipped with Radeon™ RX Vega 10 10 cores Graphics with frequency up to 1400 MHz.
EliteMini UM700 is a powerful mini PC which comes with the AMD Ryzen™ 7 3750H CPU up to 4.0 GHz, 4 cores 8 threads, total cache 4MB, equipped with Radeon™ RX Vega 10 10 cores Graphics with frequency up to 1400 MHz.
- AMD Ryzen™ 7 3750H
- Radeon™ RX Vega 10 Graphics
- 1×2.5 inch SATA HDD Slot (SATA 3.0 6.0Gb/s)
- M.2 2230 WIFI Support
- AMD Ryzen™ 7 3750H
- Radeon™ RX Vega 10 Graphics
- 1×2.5 inch SATA HDD Slot (SATA 3.0 6.0Gb/s)
- M.2 2230 WIFI Support
Professional Design
EliteMini UM700 backed up by AMD Ryzen™ 7 3750H CPU with powerful GPU Radeon™ RX Vega 10, For most advanced content creators, it lets you finish the work smoothly, easily and effectively.
Professional Design
EliteMini UM700 backed up by AMD Ryzen™ 7 3750H CPU with powerful GPU Radeon™ RX Vega 10, For most advanced content creators, it lets you finish the work smoothly, easily and effectively.
Game Performance Test
Backed up by Radeon™ RX Vega 10 Graphics, Minisforum EliteMini UM700 can be a high-performing pro-gaming mini PC, which can run games at significantly higher frame rates, enjoy the game without hindrance.
The following table shows the benchmarking results in some games (1920 × 1080 resolution):
Testing Environment：CPU: AMD Ryzen™ 7 3750H; Monitor: 1920*1080 60Hz; RAM: DDR4 8G x2; Radeon™ RX Vega 10 Graphics.
The following table shows the benchmarking results in some games (1920 × 1080 resolution):
Testing Environment：CPU: AMD Ryzen™ 7 3750H; Monitor: 1920*1080 60Hz; RAM: DDR4 8G x2; Radeon™ RX Vega 10 Graphics.
Game Performance Test
Backed up by Radeon™ RX Vega 10 Graphics, Minisforum EliteMini UM700 can be a high-performing pro-gaming mini PC, which can run games at significantly higher frame rates, enjoy the game without hindrance.
The following table shows the benchmarking results in some games (1920 × 1080 resolution):
Testing Environment：CPU: AMD Ryzen™ 7 3750H; Monitor: 1920*1080 60Hz; RAM: DDR4 8G x2; Radeon™ RX Vega 10 Graphics.
The following table shows the benchmarking results in some games (1920 × 1080 resolution):
Testing Environment：CPU: AMD Ryzen™ 7 3750H; Monitor: 1920*1080 60Hz; RAM: DDR4 8G x2; Radeon™ RX Vega 10 Graphics.
EliteMini UM700 drives up to three independent displays with incredible clarity and maximum productivity in your workflow with excellent triple display solutions using HDMI, DisplayPort as well as USB-C output.
EliteMini UM700 drives up to three independent displays with incredible clarity and maximum productivity in your workflow with excellent triple display solutions using HDMI, DisplayPort as well as USB-C output.
EliteMini UM700 supports different types of storage expansions — 2.5 inch SATA HDD Slot (SATA 3.0 6.0Gb/s) and M.2 2280 NVMe SSD Slot (support up to 2TB), you can mix and match between HDD and SSD to enjoy the fun of DIY.
EliteMini UM700 supports different types of storage expansions — 2.5 inch SATA HDD Slot (SATA 3.0 6.0Gb/s) and M.2 2280 NVMe SSD Slot (support up to 2TB), you can mix and match between HDD and SSD to enjoy the fun of DIY.
a. Dual channel (SODIMM Slots×2)
b. M.2 2280 NVMe SSD Slot ×1
c. 2.5 inch SATA HDD Slot ×1
Unleashing Higher Performance
The AMD Ryzen™ 7 3750H processor has a default TDP of 15W, and the power consumption of 15W limits its performance. AMD® officially allows a maximum power consumption of 35W. Of course, extremely clever optimization is required to achieve this goal. Therfore, we have made the following efforts:
a. Use a larger turbofan. b. Add a thick thermally conductive copper tube and spray graphene on the heat dissipation module. C. Equipped with power adapter, the maximum power consumption is 65W.Unleashing Higher Performance
The AMD Ryzen™ 7 3750H processor has a default TDP of 15W, and the power consumption of 15W limits its performance. AMD® officially allows a maximum power consumption of 35W. Of course, extremely clever optimization is required to achieve this goal. Therfore, we have made the following efforts:
a. Use a larger turbofan. b. Add a thick thermally conductive copper tube and spray graphene on the heat dissipation module. C. Equipped with power adapter, the maximum power consumption is 65W.Product Pictures
Real Shot
Teardown Figure
Production Diagram
What's in the Box?
Features & Functions for UM700
High Definition 4K Triple Displays
UM700 Mini PC brings you ultra-realistic 4K UHD visuals with incredible clarity and maximum productivity in your workflow with excellent triple display solutions using HDMI, DisplayPort as well as USB-C output. You can connect multiple screens in the same time for more efficiency.
Flexible DIY Upgrade-Friendly
Our Mini PC is designed with a press and pop-up clasp, which makes it easy to install additional memory, SSD, HDD and Wi-Fi.
Multiple Application Options
Great choice for multiple commercial and industrial network activities. It's a ideal helper which can be widely used for Home Theater, Office Work, Meeting, Education, Projector Monitoring, Host, Printer, Media Equipment, Digital Signboard etc.

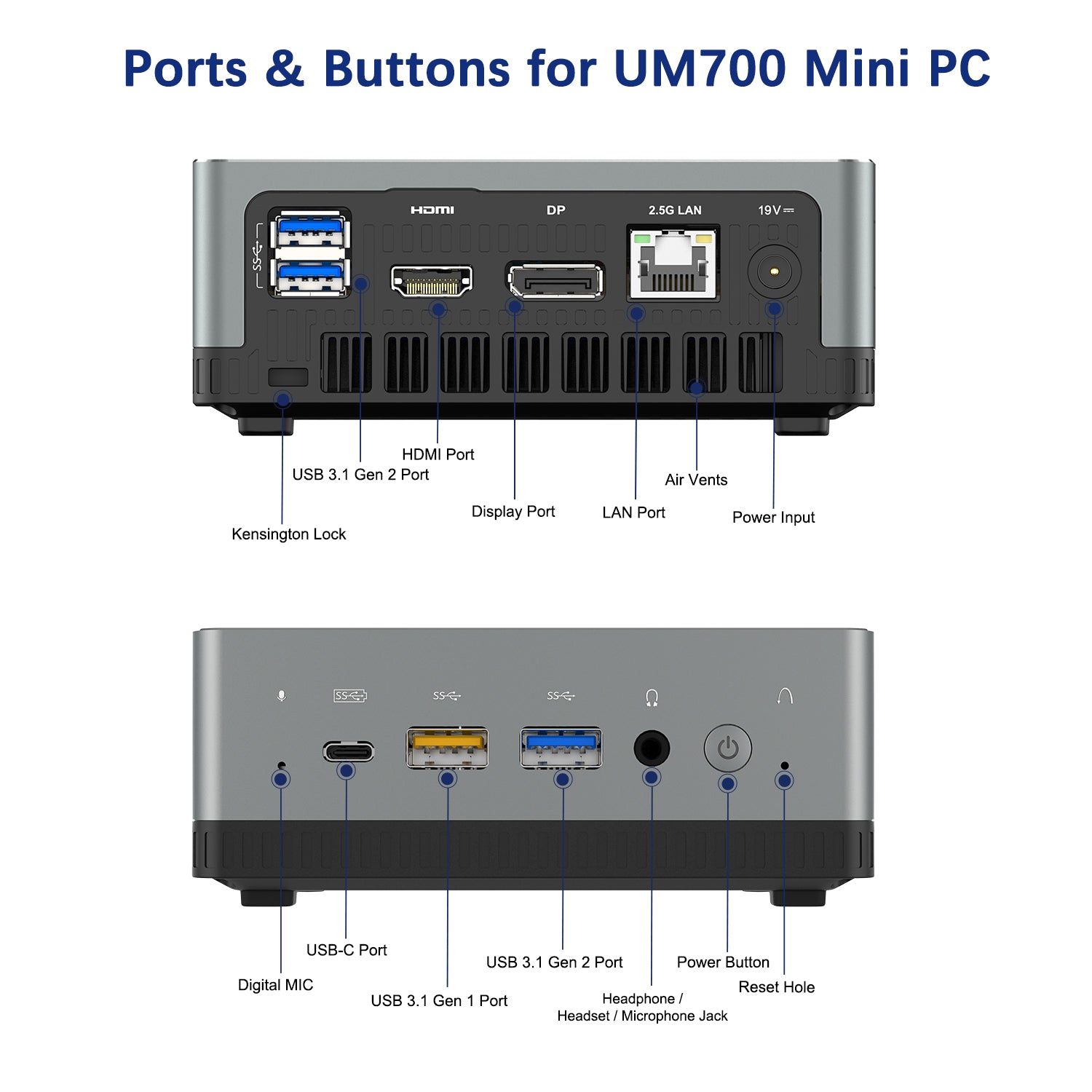

Ports & Button for UM700:
- RJ45 Gigabit Ethernet Port×1
- USB3.0 Port×1 (Gen1, Yellow)
- USB3.1 Port×3 (Gen2 , Blue)
- USB-C Port×1(Gen2)
- HDMI 2.0×1
- Display Port×1
- Audio Jack x 1
- Digital MIC×1
- Clear CMOS
Small but Powerful Mini PC
- AMD Ryzen™ 7 3750H
- Radeon™ RX Vega 10 Graphics
- Silent fan & Unlock TDP 25W/35W
- Windows 10 Pro & Wi-Fi 6 pre-installed
- DDR4 8GB×1 Dual channel (SODIMM Slots×2)
- Upgrade-friendly
- Support 3 monitors at the same time streaming in 4K@60Hz
- 2.5-inch SATA SSD
- M.2 2280 NVMe SSD (PCle 4X)
Wall Mount Support
The wall mount bracket is already included in the package. And it's easy to be fixed on the back of the monitor or TV. Saving your space and keep your desk tidy.
Minisforum DeskMini UM700
Processor
AMD Ryzen™ 7 3750H , 4 Cores/8 Threads
(Total L2 Cache 2MB , Total L3 Cache 4MB , Base Clock 2.3 GHz , up to 4.0 GHz)
GPU
Radeon™ RX Vega 10 Graphics (Graphics Frequency 1400 MHz)
Memory
DDR4 8×2 Dual channel (SODIMM Slots×2)
Supports a maximum of 64GB(32GB x 2) of DDR4
Storage
M.2 2280 256GB/512GB PCle SSD
Storage Expansion
1×2.5 inch SATA HDD Slot (SATA 3.0 6.0Gb/s)
Wireless Connectivity
M.2 2230 WIFI Support (Intel® BT5.1 pre-install)
Video Output
① HDMI 2.0 (4K@60Hz)
② DisplayPort (4K@60Hz)
③ USB-C Port (4K@60Hz)
Audio Output
HDMI 2.0, DisplayPort, USB-C Port, 3.5mm Audio Jack
Ports & Buttons
1 * RJ45 Gigabit Ethernet Port
1 * USB3.0 Port×1(Gen1 , 2.0A Max output , shutdown charging , Yellow)
3 * SB3.1 Port(Gen2 , Blue)
1 * USB-C Port(Gen2)
1 * HDMI 2.0
1 * DisplayPort
1 * Audio Jack
1 * Digital MIC
1 * Clear CMOS
Power
DC 19V/3.42A (adapter included)
Consumes Power : 64.98W
System
Windows 11 Pro
Luanch Time
December-20
Product Dimension
128×127×46mm
Package Dimension
158×158×100mm
Net Weight
0.50/KGS
Gross Weight
1.40/KGS
Package Content
1 * Minisforum DeskMini UM700
1 * Power Adapter
1 * HDMI Cable
1 * USB Cable
1 * Mounting Bracket
1 * User Manual
FAQs
Q1. What's the max RAM and speed of UM700?
A: Hi, the max RAM for UM700 is 64GB -- 2x32GB stick, and the max speed is 2400MHz.
Q2. When will UM700 be shipped and how long to ship to me?
A: Hi, UM700 is in stock now. It usually takes 3~7 business day to deliver. (Ps: UM700 16 +256 and 16+512 will be available in EU warehouse in late of March 2021)
Q3. If it's Windows OS pre-installed?
A: Hi, yes, UM700 is Windows 10 Pro pre-installed.
Q4. Do I need to pay the shipping fee or tax for the product?
A: Whether to collect tax depends on the local customs. If you are concerned about tax, you can select "Free Shipping + Tariff insurance" delivery method on the checkout page.
Q5. How many monitors does UM700 support?
A: Hi, UM700 can connect with 3 monitors at the same time.
Q6. If it comes with a wall mount?
A: Hi, yes. UM700 comes with a vesa, you can fix it on the back of the monitor.
