Deskmini U820
Minisforum U820/U850 are mini PCs specially designed for home entertainment, routine work, and even simple content creation. Adopting the latest 8th gen Intel Core™ i5 8279U processor.
Deskmini U820
Minisforum U820/U850 are mini PCs specially designed for home entertainment, routine work, and even simple content creation. Adopting the latest 8th gen Intel Core™ i5 8279U processor.
-
U820
-
Features
-
Specification
-
FAQs
Media Reviews & Coverage
Video Reviews
Media Reviews & Coverage
Video Reviews

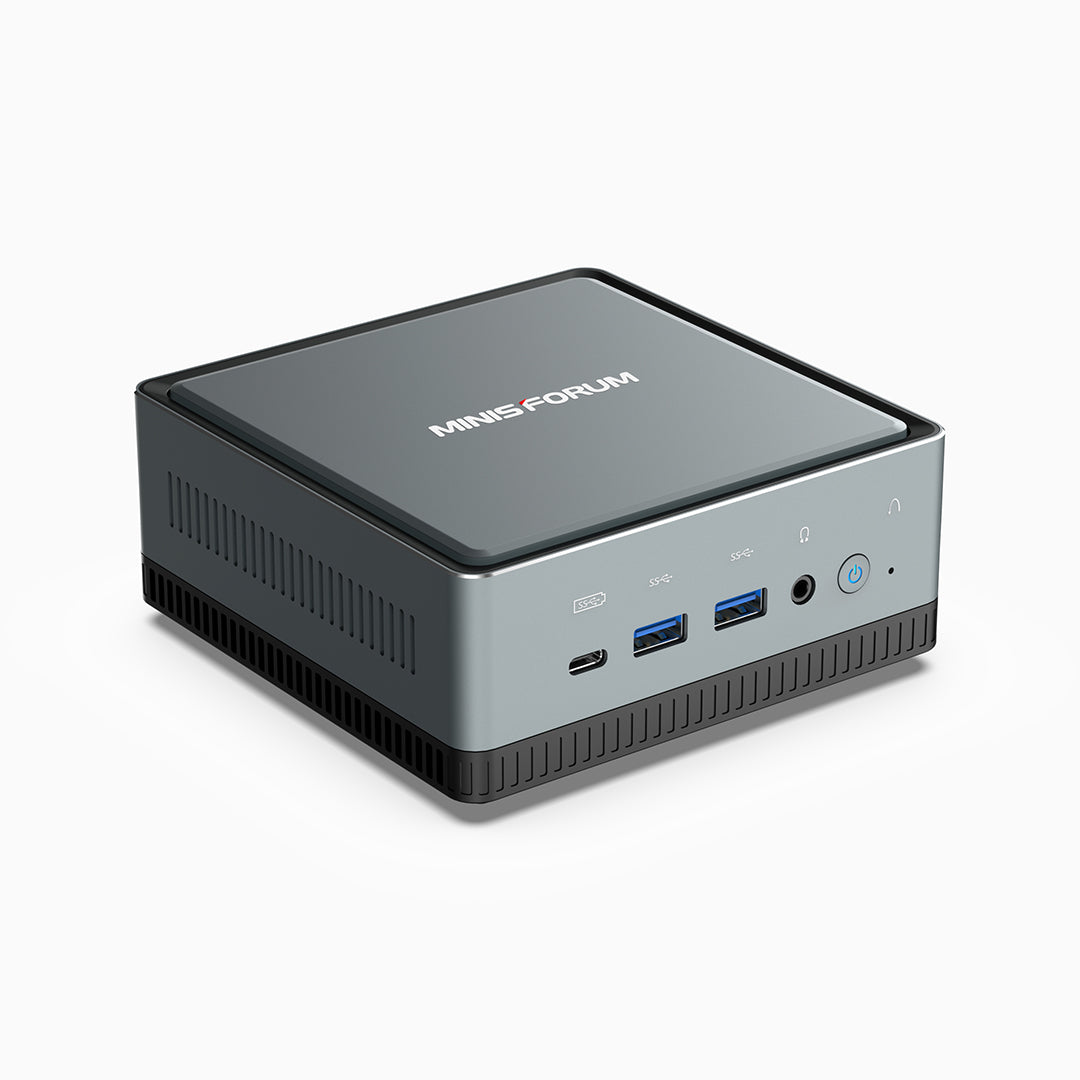

Deskmini U820/U850 are powerful mini PCs that feature an Intel Core™ i5 8279U processor with a clock speed of up to 3.80GHz, 4 cores, 8 threads, a total cache of 6MB, and Intel® Iris®Plus Graphics 655 (300MHz-1.05GHz).
Deskmini U820/U850 are powerful mini PCs that feature an Intel Core™ i5 8279U processor with a clock speed of up to 3.80GHz, 4 cores, 8 threads, a total cache of 6MB, and Intel® Iris®Plus Graphics 655 (300MHz-1.05GHz).
Deskmini U820/U850
- Intel Core ™ i5 8279U
- Intel®Iris®Plus Graphics 655
- M.2 2280 256GB PCle SSD
- 2.5 inch SATA HDD Slot×2
- M.2 2230 WIFI Support
Deskmini U820/U850
- Intel Core ™ i5 8259U / 10210U
- Intel®Iris®Plus Graphics 655 / Intel® UHD Graphics
- M.2 2280 256GB PCle SSD
- 2.5 inch SATA HDD Slot×2
- M.2 2230 WIFI Support
Designed to be ultra-small for a low-profile placement. The U820 brings powerful performance computing to the office and home. At the same time, this computer also supports small games. You'll enjoy entertainment after work. All the office software can be installed so that you can complete your work more efficiently.
For those who would like to upgrade the configurations, U820 adopts a flexible case design and allows easy upgrades. You can upgrade the RAM (Dual-channel DDR4, up to 64 GB), M.2 2280 PCIe SSD, and 2.5-inch SATA 3.0 HDD as needed.
For those who would like to upgrade the configurations, U820 adopts a flexible case design and allows easy upgrades. You can upgrade the RAM (Dual-channel DDR4, up to 64 GB), M.2 2280 PCIe SSD, and 2.5-inch SATA 3.0 HDD as needed.
U820 supports Gigabit Ethernet, 2.4G/5Ghz Dual-Band Wi-Fi, and Bluetooth 5.1. The dual-band WiFi gadget provides the advantage of having a stronger and more reliable WiFi wireless signal. It offers reliable and smooth connections for peripherals and Ethernet.
U820 supports Gigabit Ethernet, 2.4G/5Ghz Dual-Band Wi-Fi, and Bluetooth 5.1. The dual-band WiFi gadget provides the advantage of having a stronger and more reliable WiFi wireless signal. It offers reliable and smooth connections for peripherals and Ethernet.
The small Mini PC is equipped with a mounting bracket in the package, which can be easily fixed on the back of the monitor to save a lot of space. Super space-saving!
The small Mini PC is equipped with a mounting bracket in the package, which can be easily fixed on the back of the monitor to save a lot of space. Super space-saving!
Overview
Features & Functions for U820
HD Graphics & Triple Display
Supports 4K easily connecting three monitors, Which can simplify and double your work efficiency. The mini desktop computer built-in Intel HD Graphics support 4K HD Graphics, giving you a best-in-class television experience with true-to-life picture quality.
Flexible DIY Upgrade-Friendly
Multiple Application Options
Ports & Button for U820/U850:
Super mini and wisdom
Wall Mount Support
The wall VESA Bracket is already included in the package. And it's easy to be fixed on the back of the monitor or TV. Saving your space and keep your desk tidy.
Minisforum DeskMini U820
Processor
Intel Core ™ i5 8279U processor,4 Cores/8Threads
(6M Cache, up to 4.10 GHz)
GPU
Intel®Iris®Plus Graphics 655(300MHz-1.05GHz)
Memory
DDR4 Dual channel (SODIMM Slots×2)
Supports a maximum of 64GB(32GB x 2) of DDR4
Storage
M.2 2280 256GB PCle SSD
Storage Expansion
2.5 inch SATA HDD Slot×2 (SATA 3.0 6.0Gb/s)
Wireless Connectivity
M.2 2230 WIFI Support (Dual-Band Wi-Fi , BT 5.1 pre-install)
Video Output
① HDMI (4K@30Hz)
② DisplayPort (4K@60Hz)
③ USB-C Port (4K@60Hz)
Audio Output
HDMI , DisplayPort , 3.5mm Audio Jack
Ports & Buttons
1 * RJ45 Gigabit Ethernet Port
1 * RJ45 2.5 Gigabit Ethernet Port
4 * USB3.0 Port (Gen1, Blue)
1 * USB-C Port (Full Feature,In Front)
1 * USB-C Port (Power Supply Only,The Back)
1 * HDMI 2.0
1 * DisplayPort
1 * Audio Jack
1 * Clear CMOS
Power
DC 19V (adapter included) , via USB-C
System
Windows 10 Pro

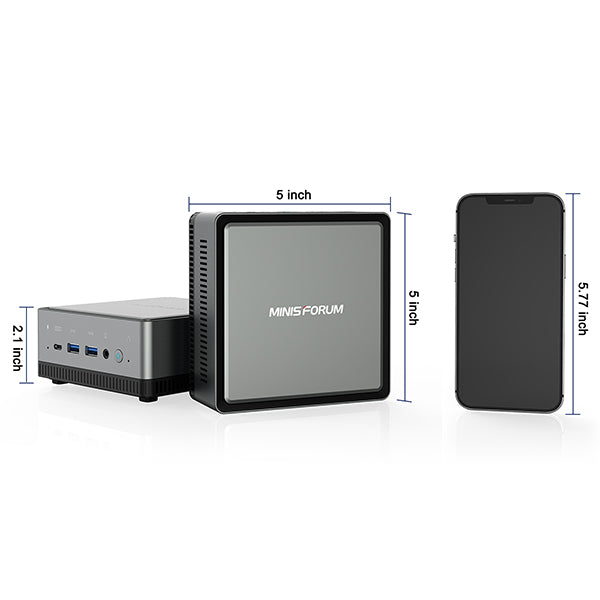

Product Dimension
127×127×53.1mm
Package Dimension
158×158×100mm
Net Weight
0.50/KGS
Launch Date
January-20

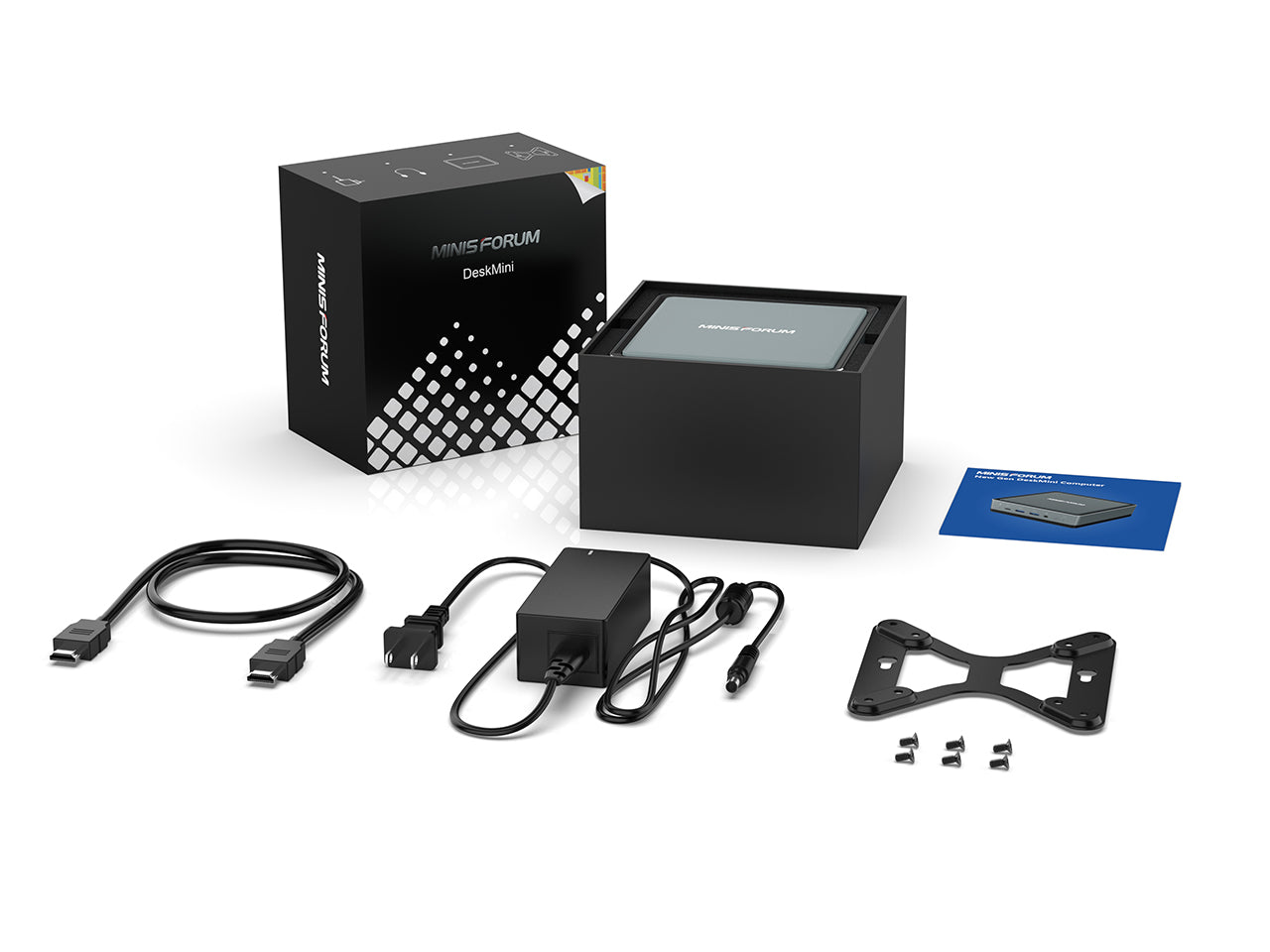

Package Content
1 * Minisforum DeskMini U820/U850
1 * Power Adapter
1 * HDMI Cable
1 * USB Cable
1 * Mounting Bracket
1 * User Manual
FAQs
Q1. If it's Windows OS pre-installed?
A: Hi, yes, U820 is Windows 10 Pro pre-installed.
Q2. Do I need to pay the shipping fee or tax for the product?
A: Whether to collect tax depends on the local customs. If you are concerned about tax, you can select "Free Shipping + Tariff insurance" delivery method on the checkout page.
Q3. How many monitors does U820 support?
A: Hi, U820 can connect with 3 monitors at the same time.
Q4. If it comes with a wall mount?
A: Hi, yes. U820 comes with a vesa, you can fix it on the back of the monitor.
Q5. What's the max RAM of U820? And what's the speed?
A: Hi, the max RAM of U820 is 32GB -- 2x16GB stick, and that of U850 is 64GB -- 2x32GB stick.
