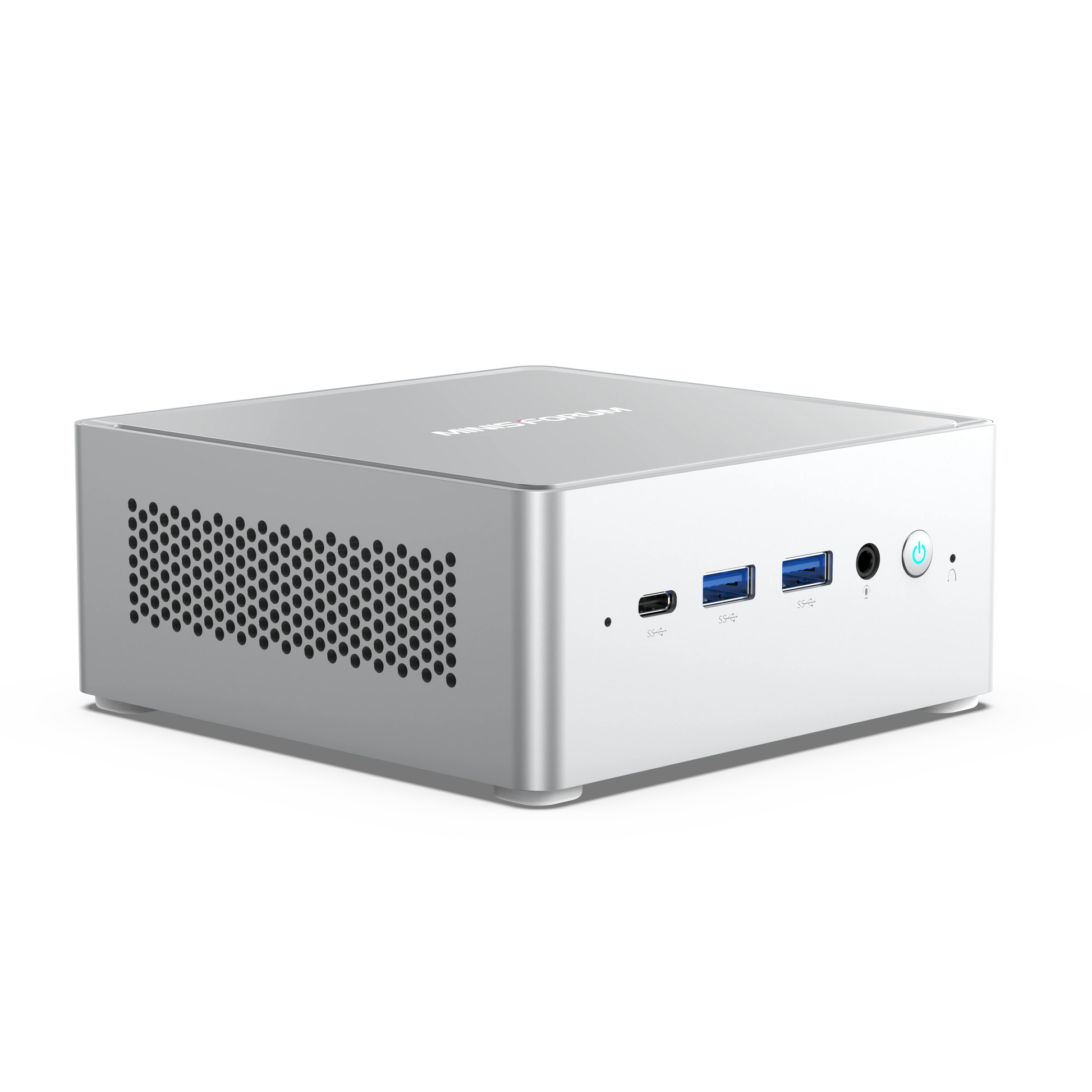

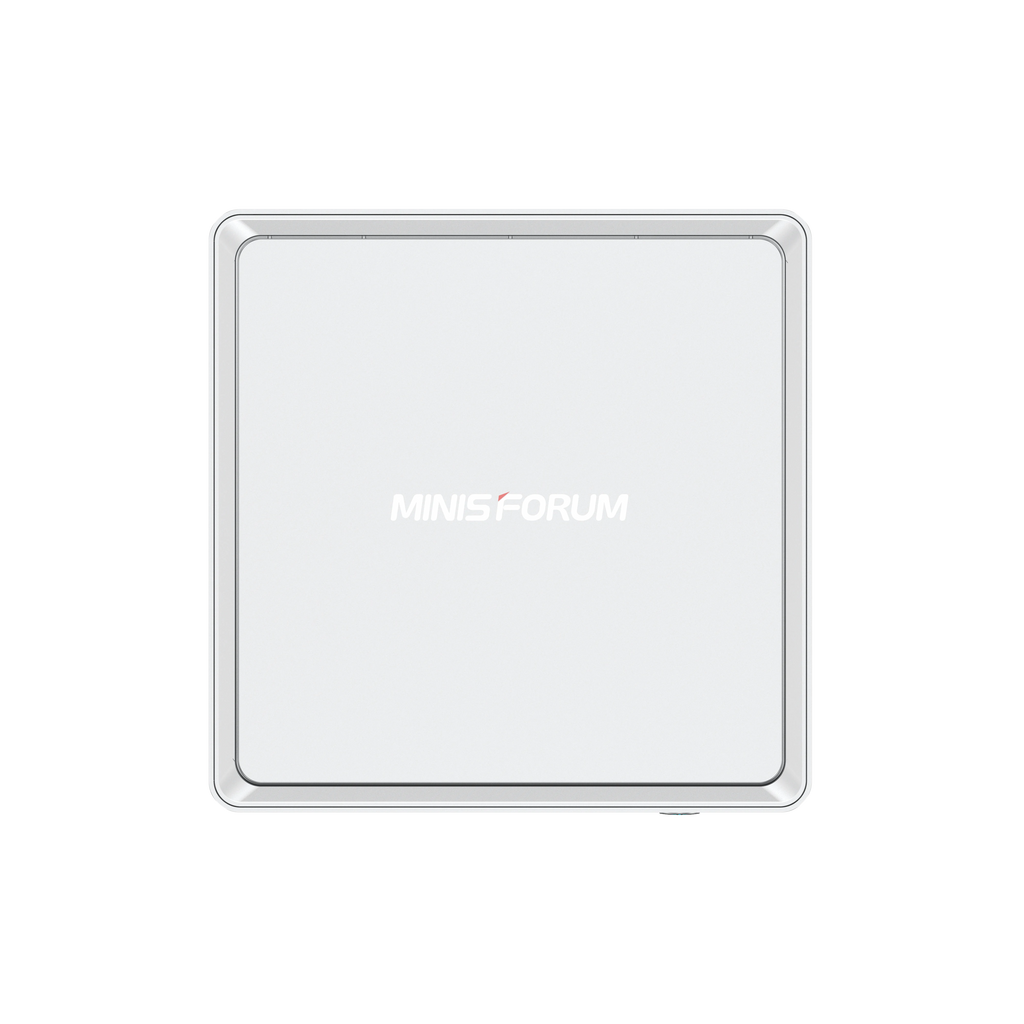

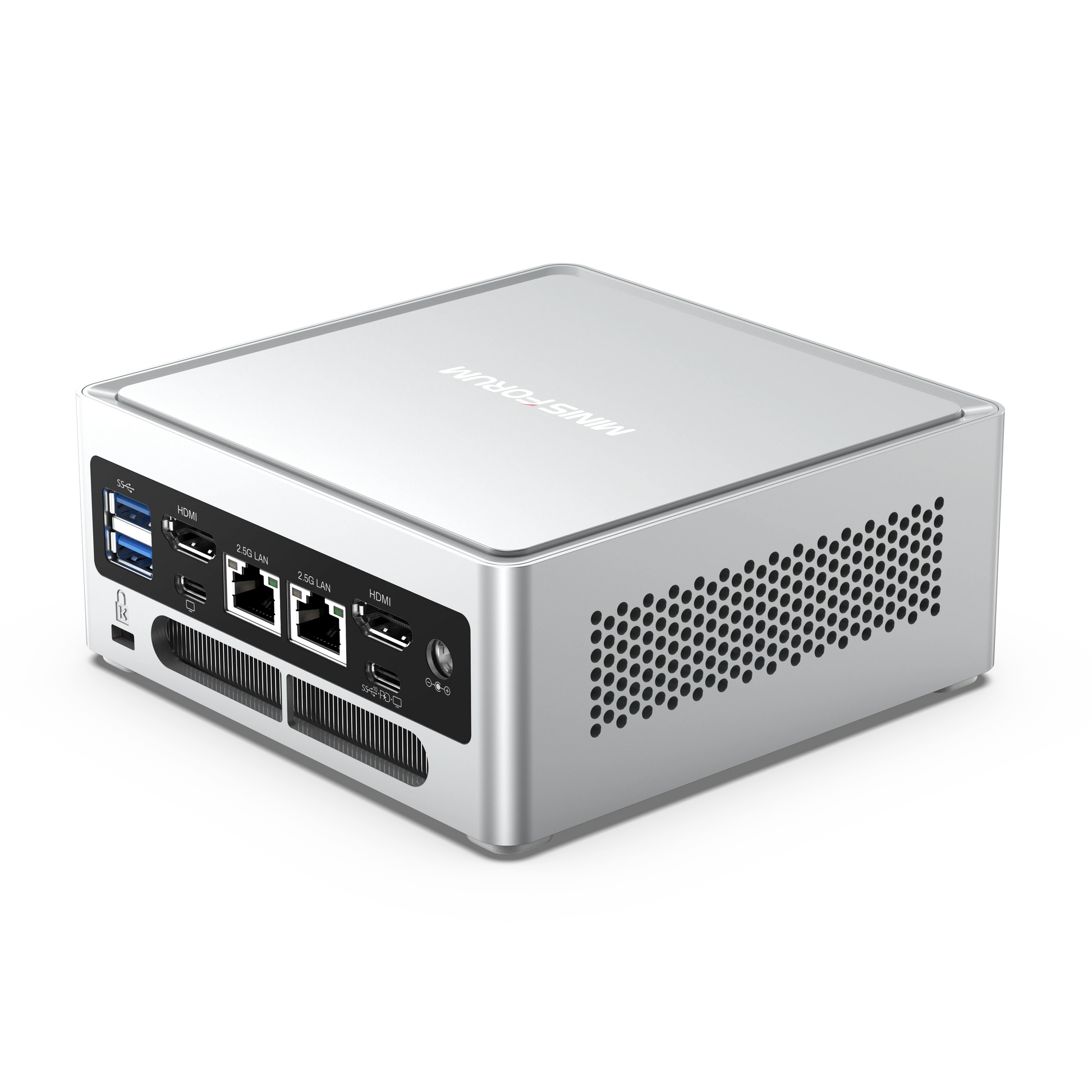

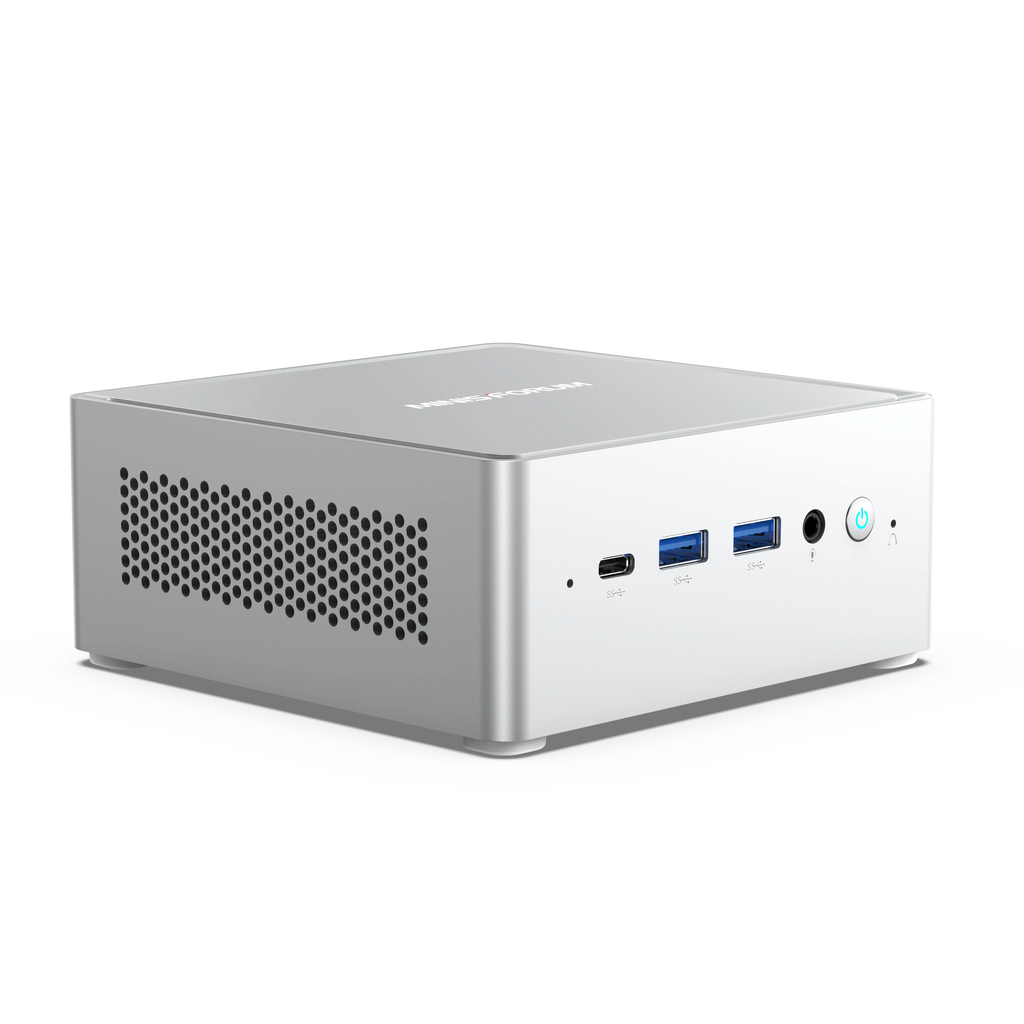

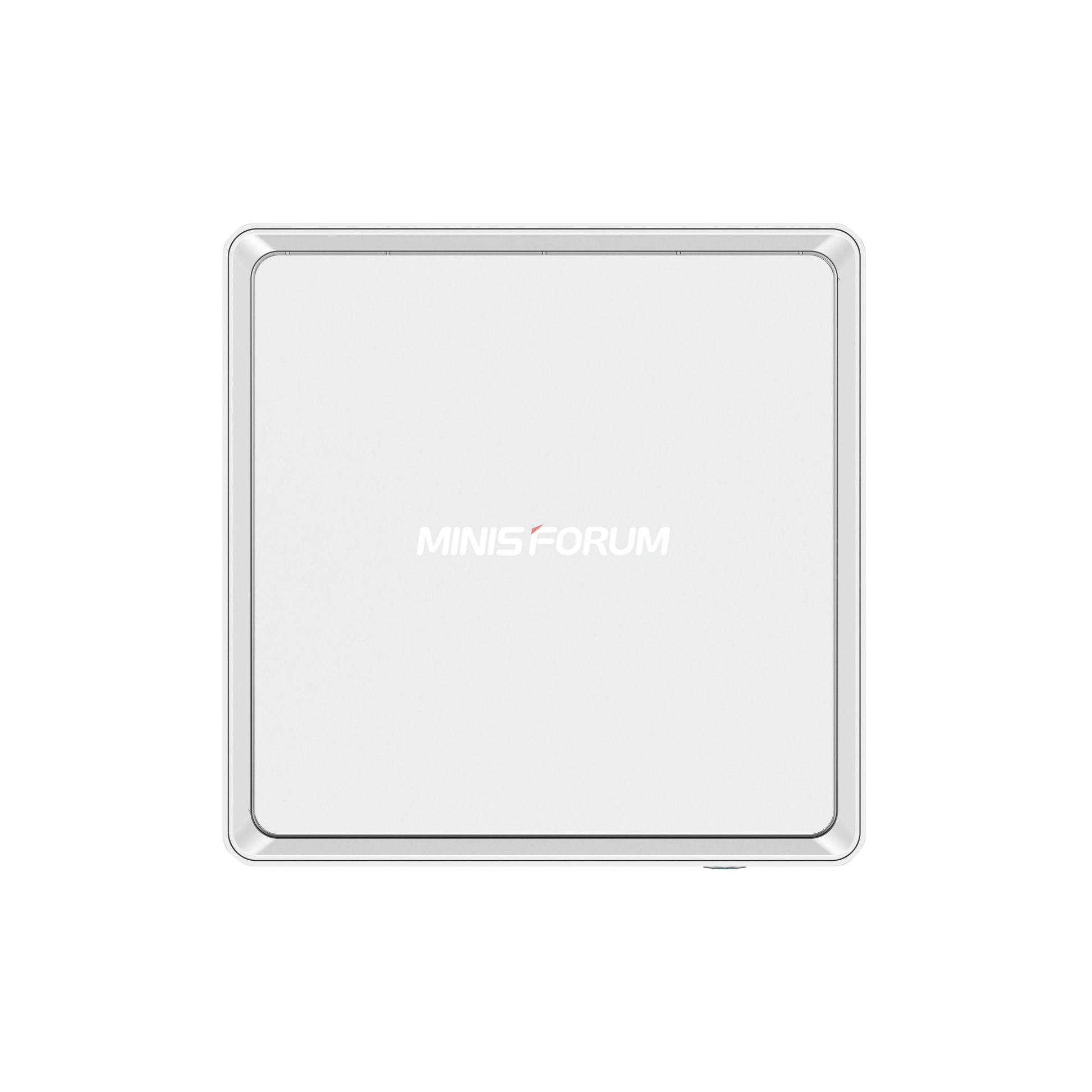

MINISFORUM NAB9S
Sale price
$578.52
Regular price
$723.52
For bulk discount inquiries, please contact elsa@minisforum.com
- Intel® Core™ i9-13900HX, 24 Cores, 32 Threads, up to 5.4GHz
- Intel® UHD Graphics
- 2 × SO-DIMM DDR4, up to 3200MHz, up to 32GB
- 1 × M.2 2280 NVMe SSD Slot, PCIe 4.0, up to 4TB
- 1 × 2.5-inch SATA HDD Slot, SATA 3.0
Payment Methods:
Trusted Delivery:
Compare Specs
13th Gen Intel® Core™ i9
Powerful Performance, A New Leap Forward
Built on the Raptor Lake architecture, its revolutionary hybrid design of Performance-cores and Efficient-cores delivers an efficient, high-performance experience.
14
Cores
20
Threads
24MB
Cache
5.4GHz
Turbo Frequency

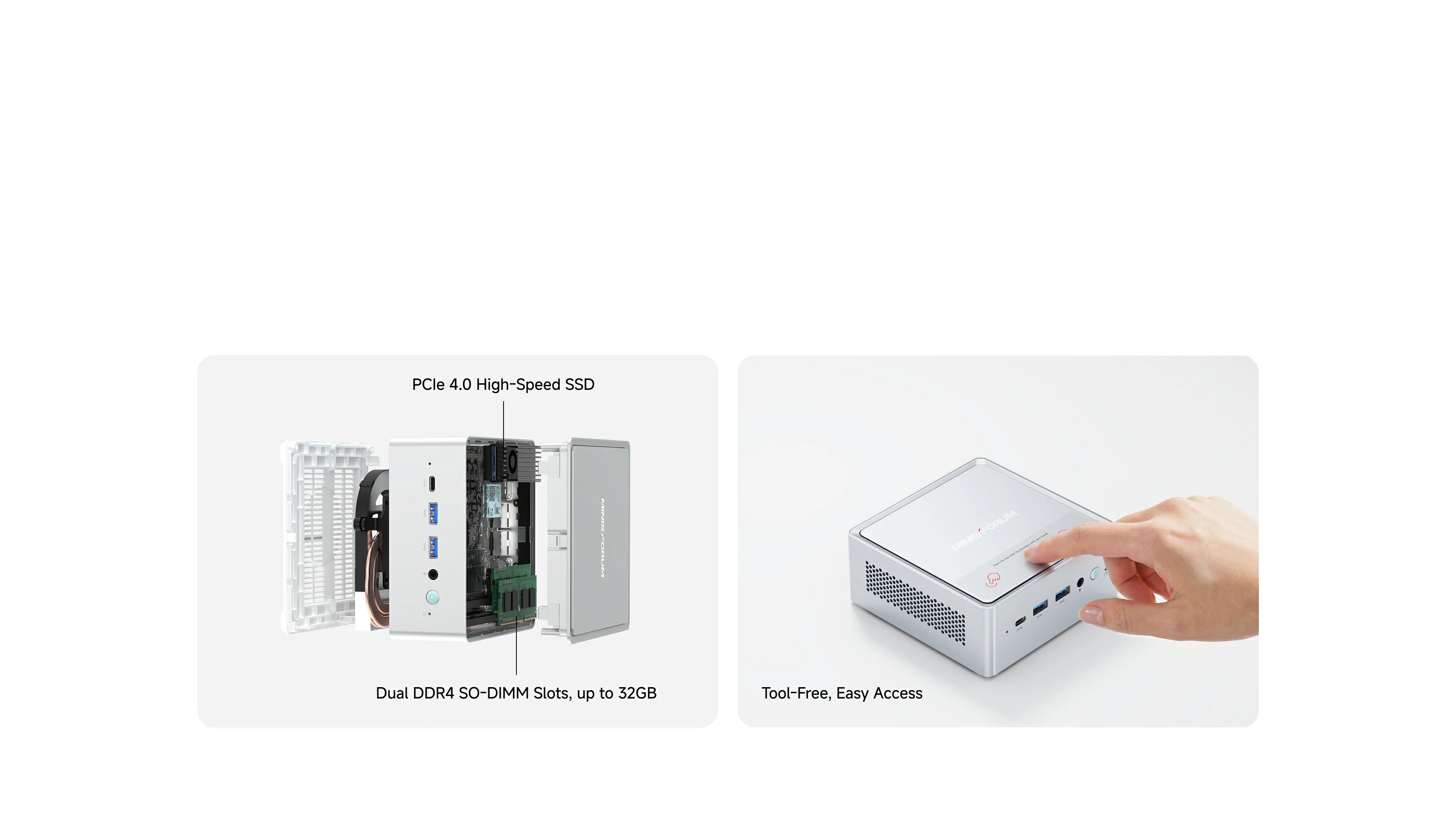

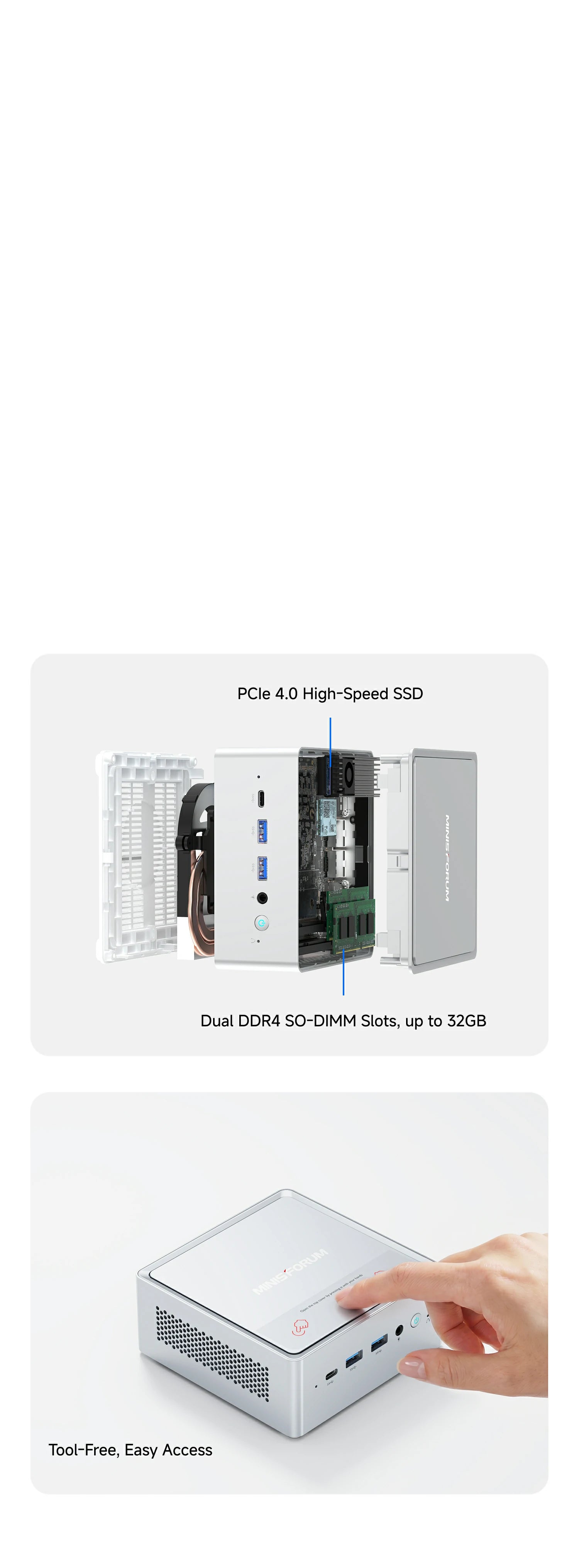

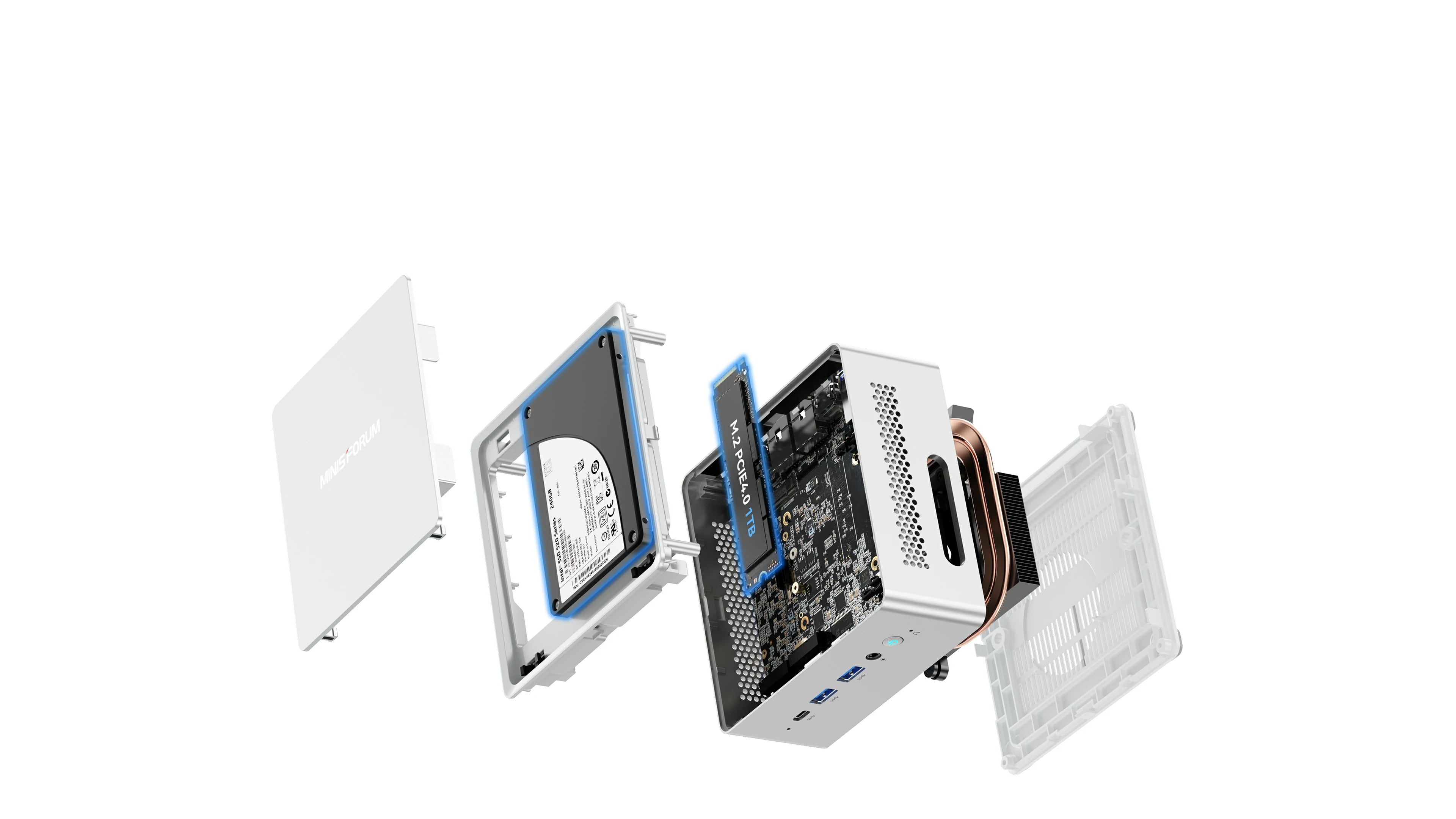

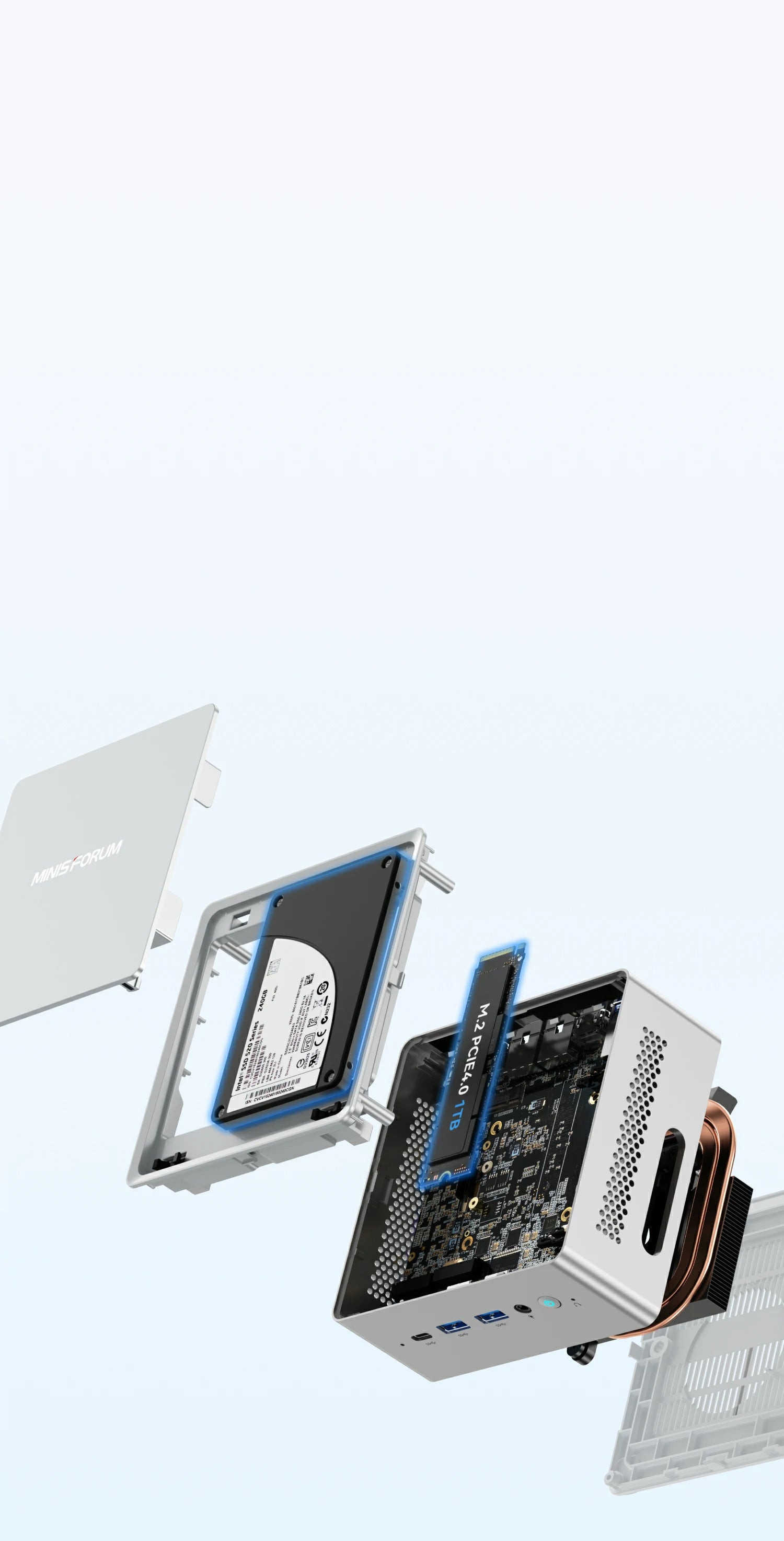

Easy Upgrades with Tool-Free Access
The classic push-to-open design returns. Simply press the top cover to pop it open—no tools required—making it easier to add or replace memory, storage, and other components.
Dual-Drive Support
In addition to M.2 SSD support, it also supports a 2.5-inch SATA SSD/HDD, giving you more flexible storage combinations.

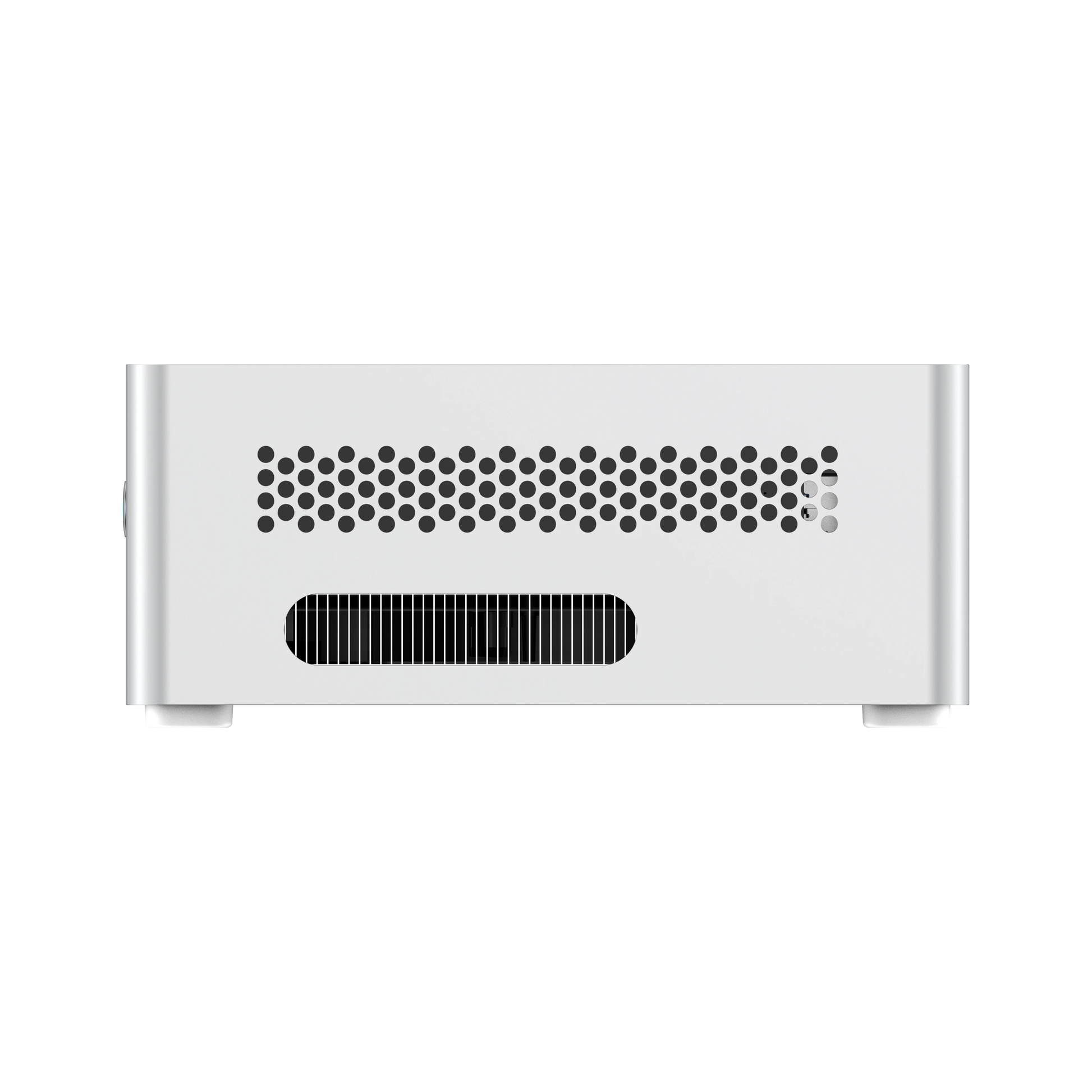

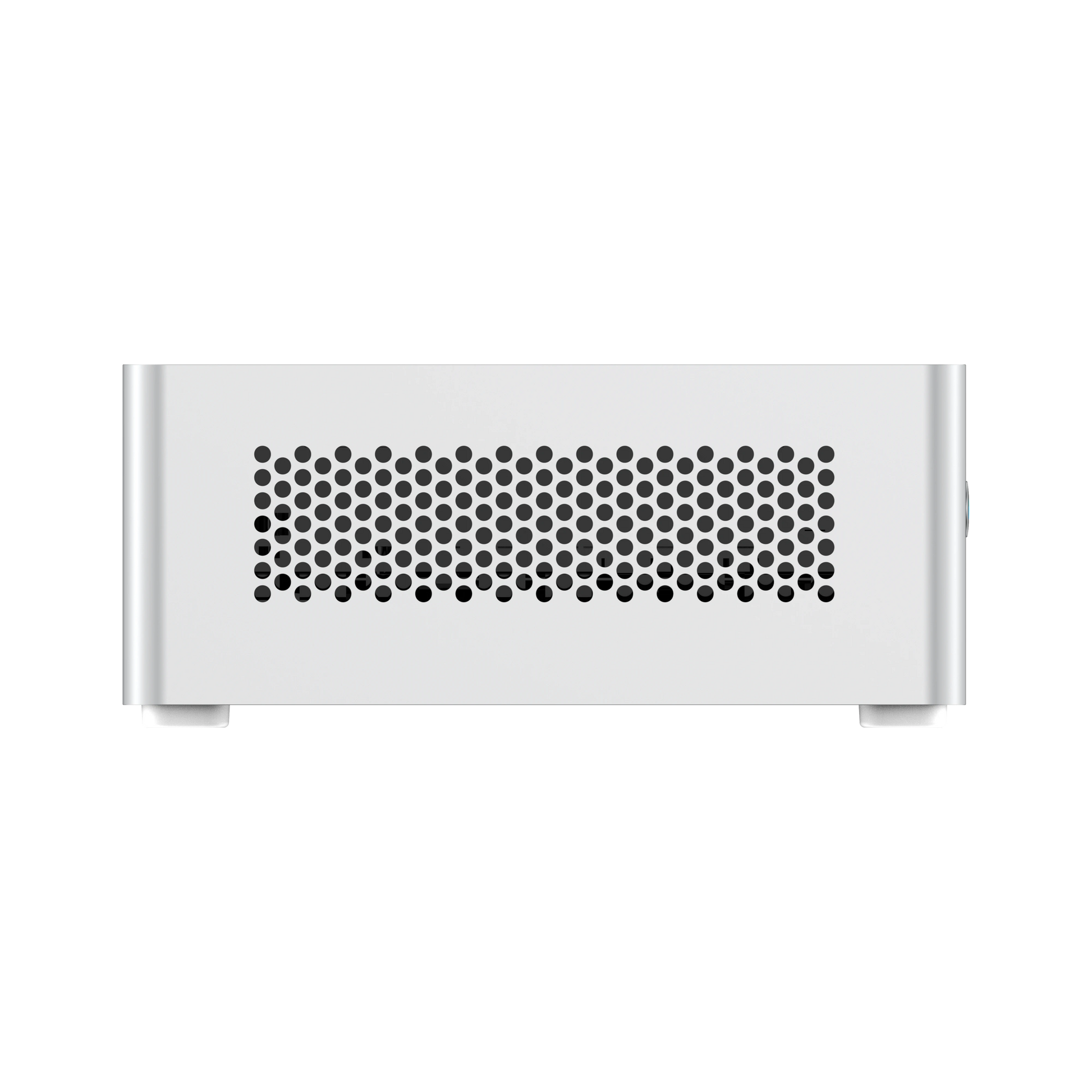

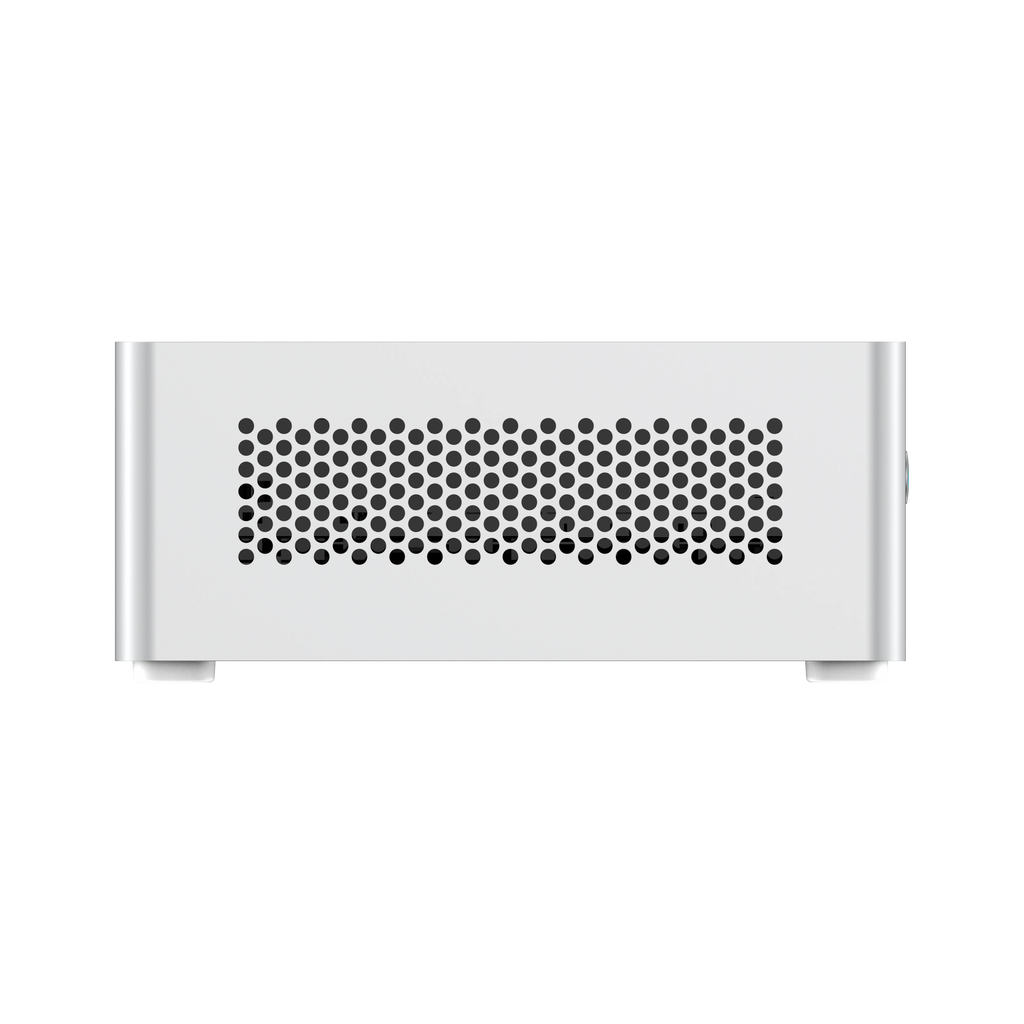

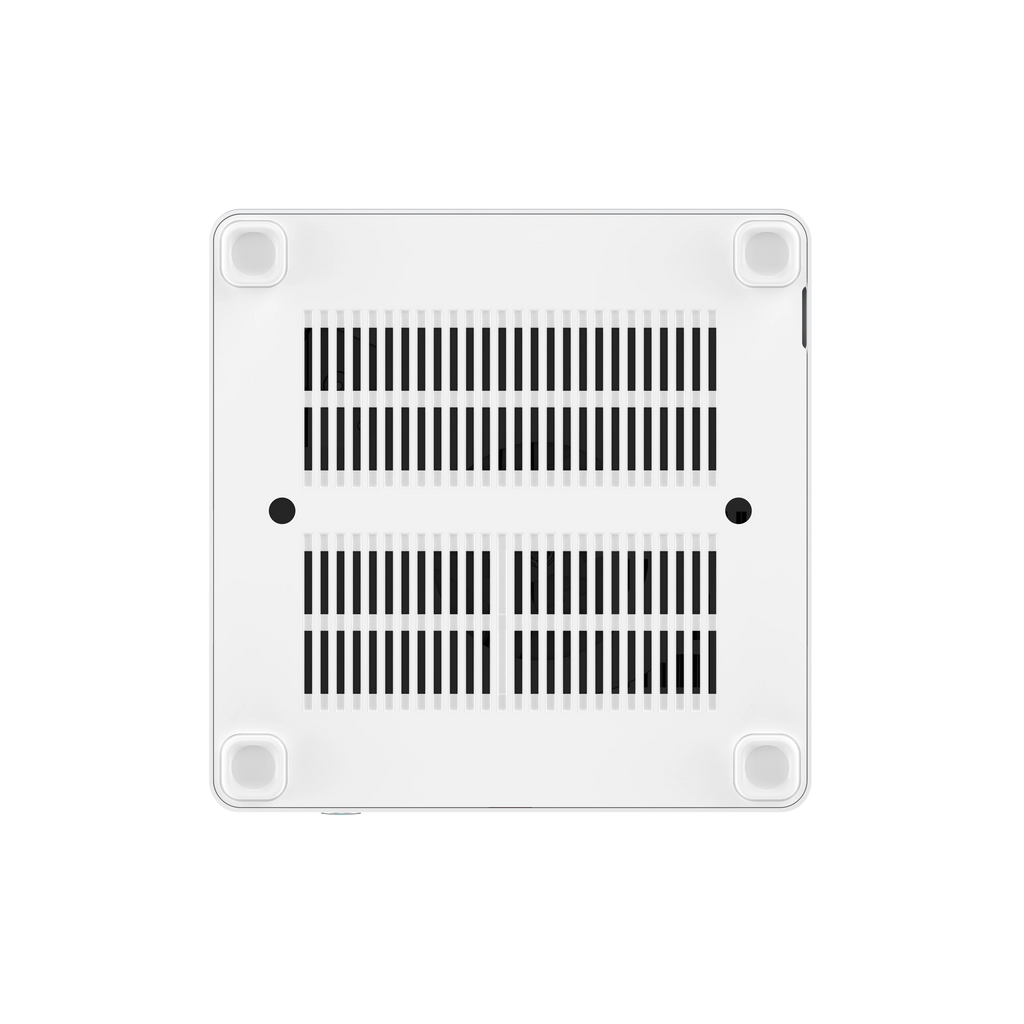

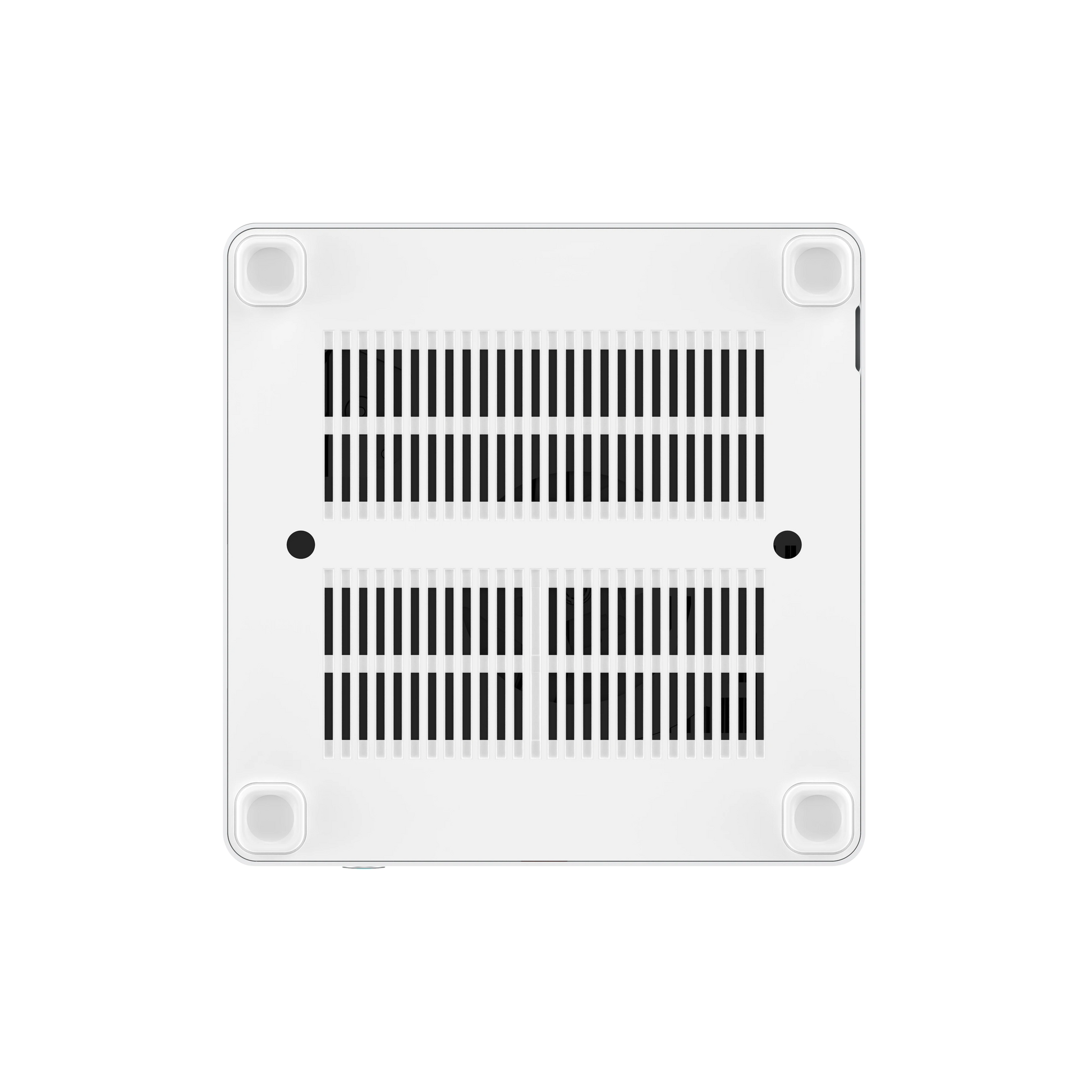

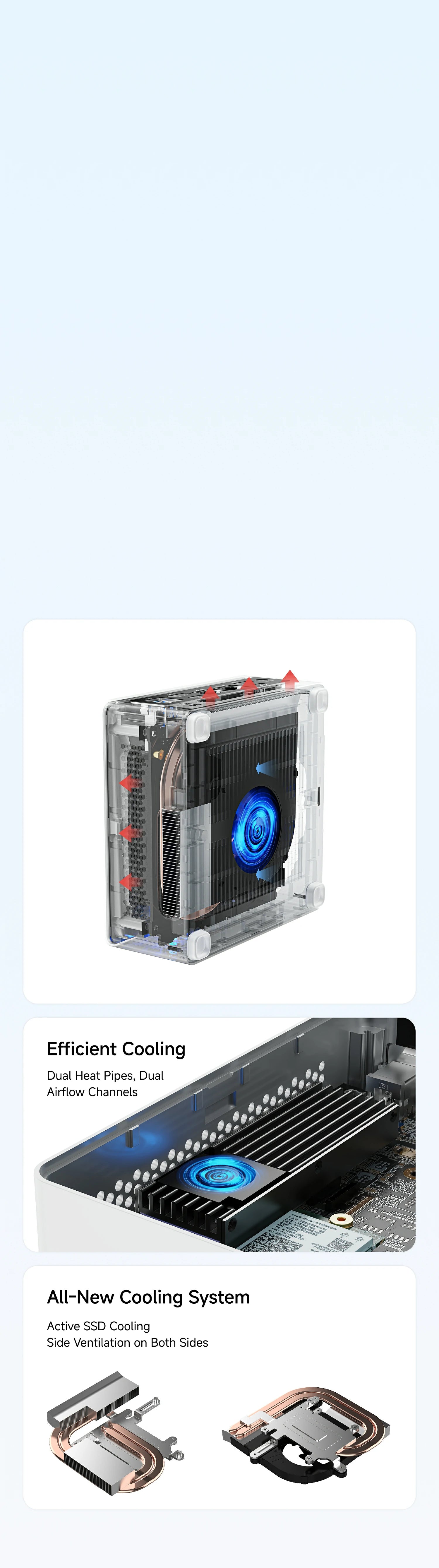

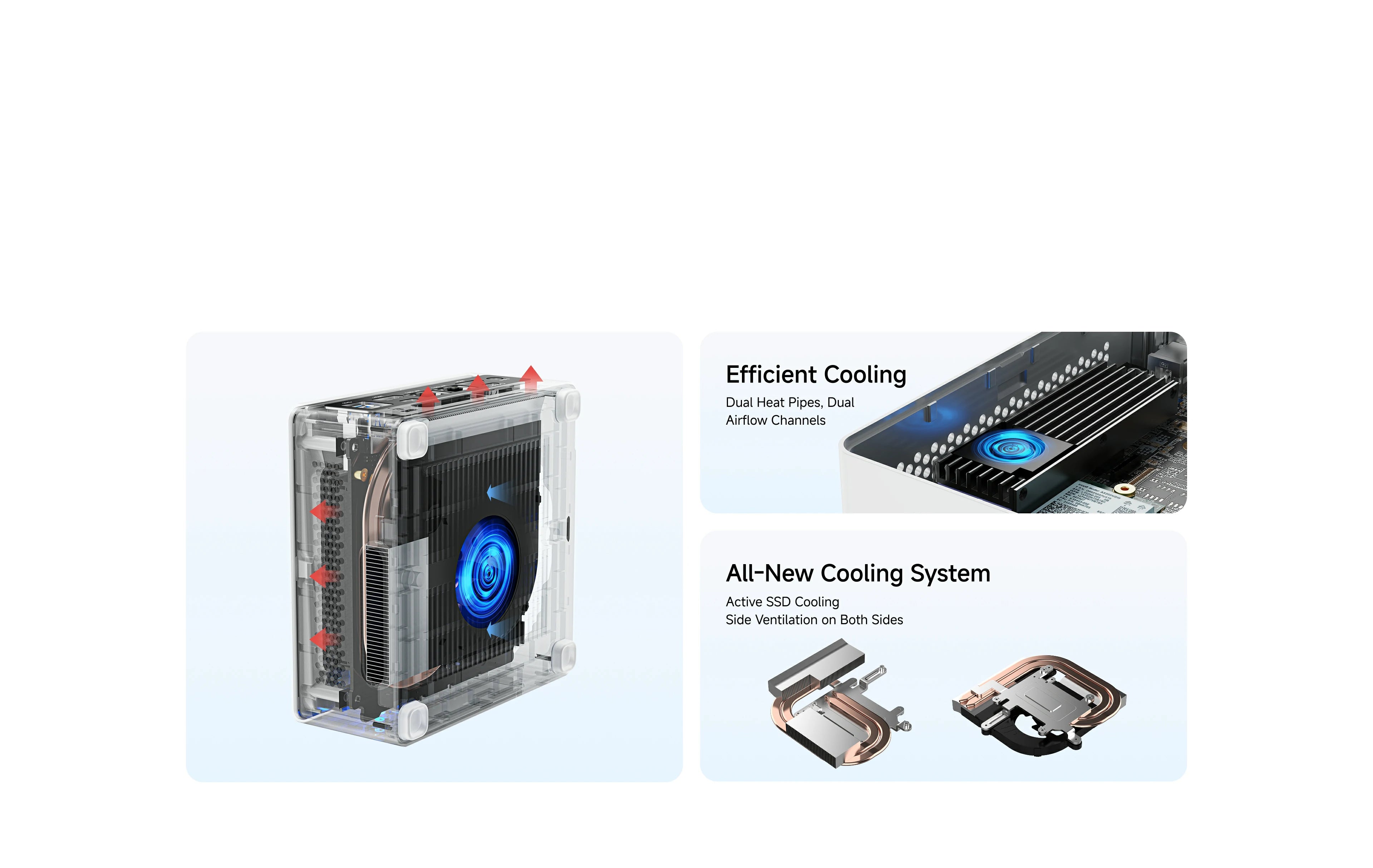

All-New Cooling System with Dual Heat Pipes and Dual Airflow Channels
The redesigned cooling system features dual heat pipes and side ventilation on both sides, delivering powerful heat dissipation for consistently stable performance.
Versatile Usage Scenarios
Business & Office
Dual LAN ports allow internal and external networks to stay online simultaneously. With wall-mount support, a compact space-saving design, and rich connectivity, it easily handles multi-screen multitasking and remote video meetings for a major boost in productivity.
Light Content Creation
Ideal for video editing, photo retouching, drawing, audio processing, and copywriting. Multiple displays show different workspaces for a stable and comfortable experience.
Entertainment & Learning
Perfect for HD media playback, online gaming, online courses, and information browsing—showcasing the advantages of its compact size, low noise, and high energy efficiency.
Rich Connectivity, Doubled Efficiency

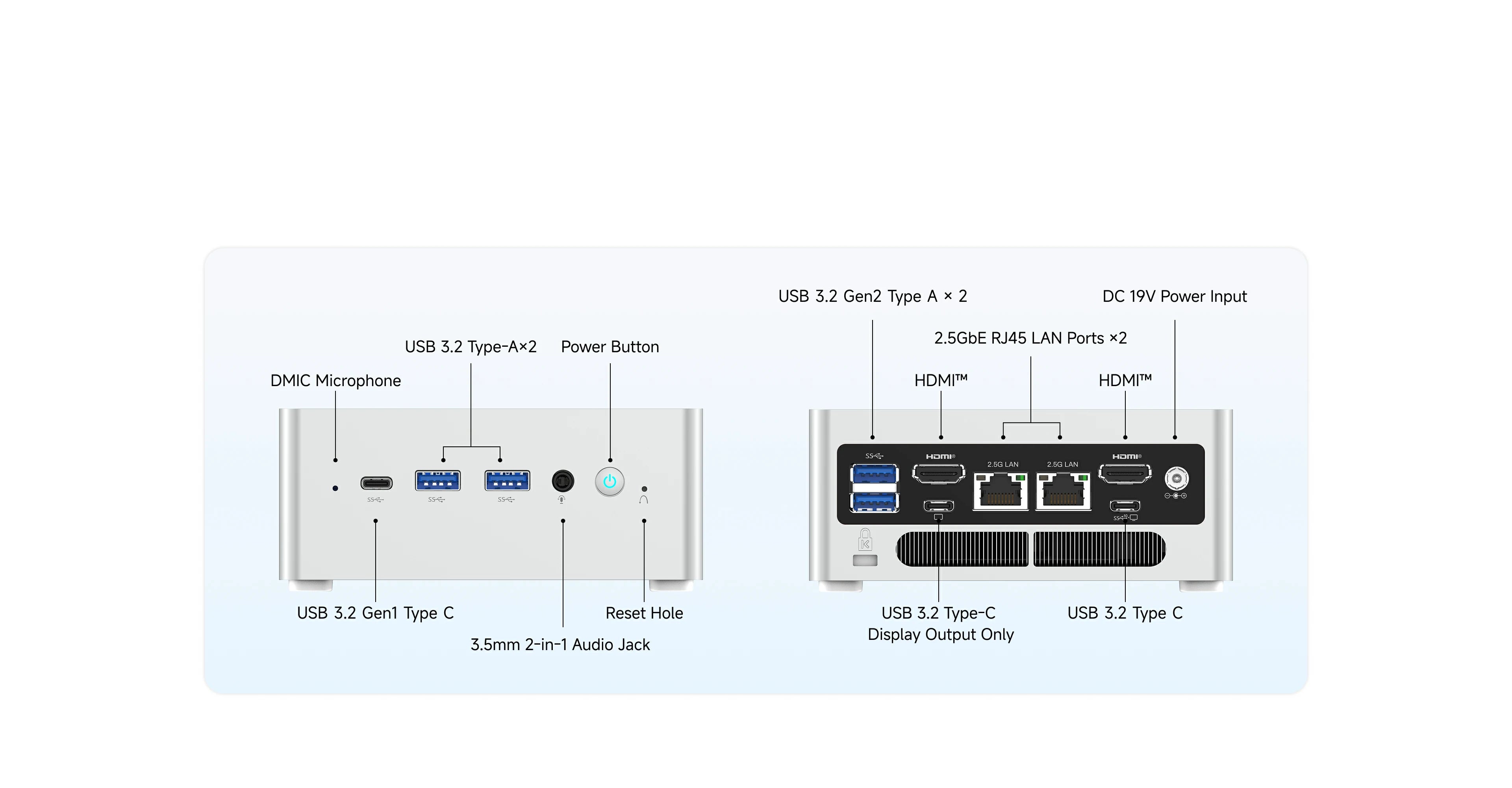

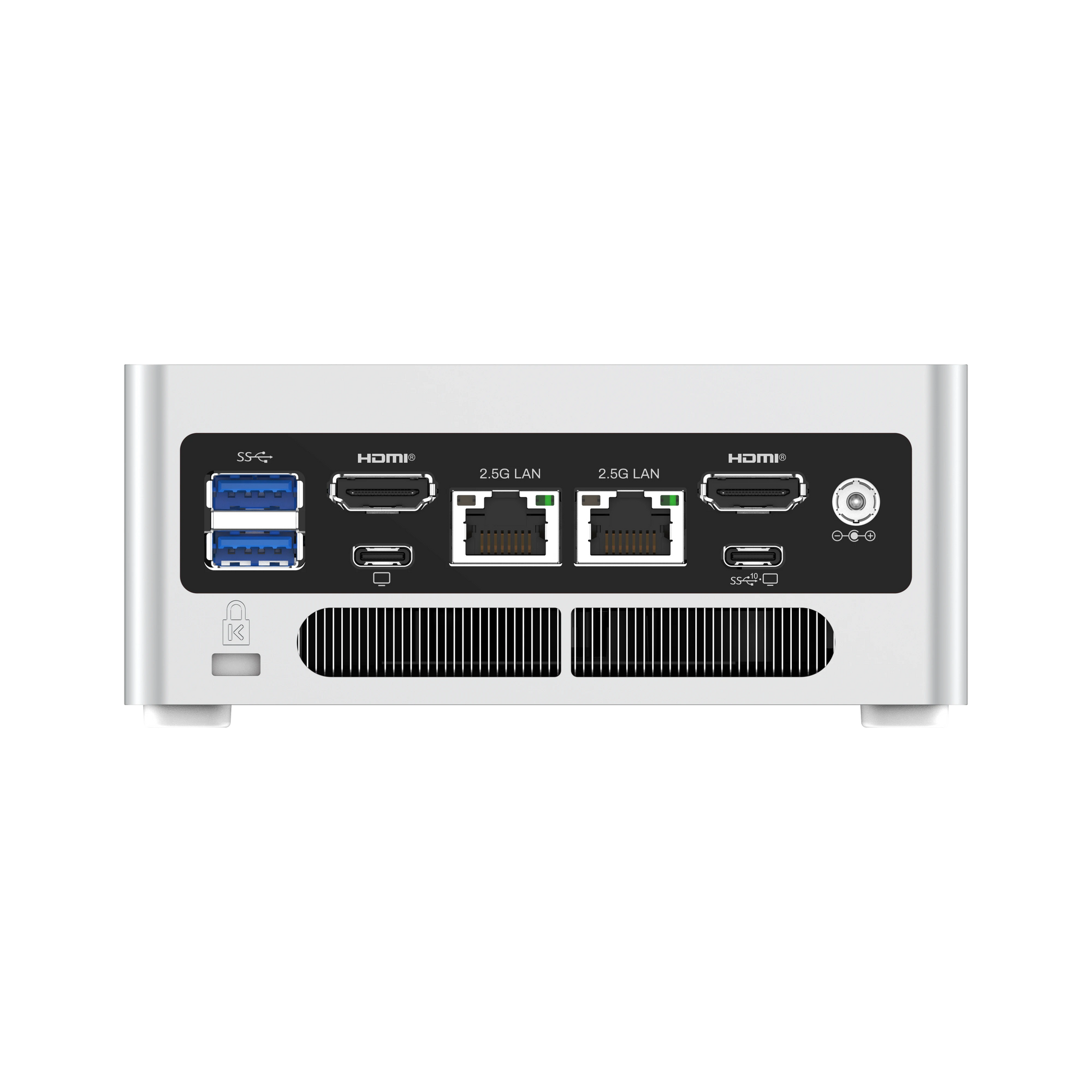

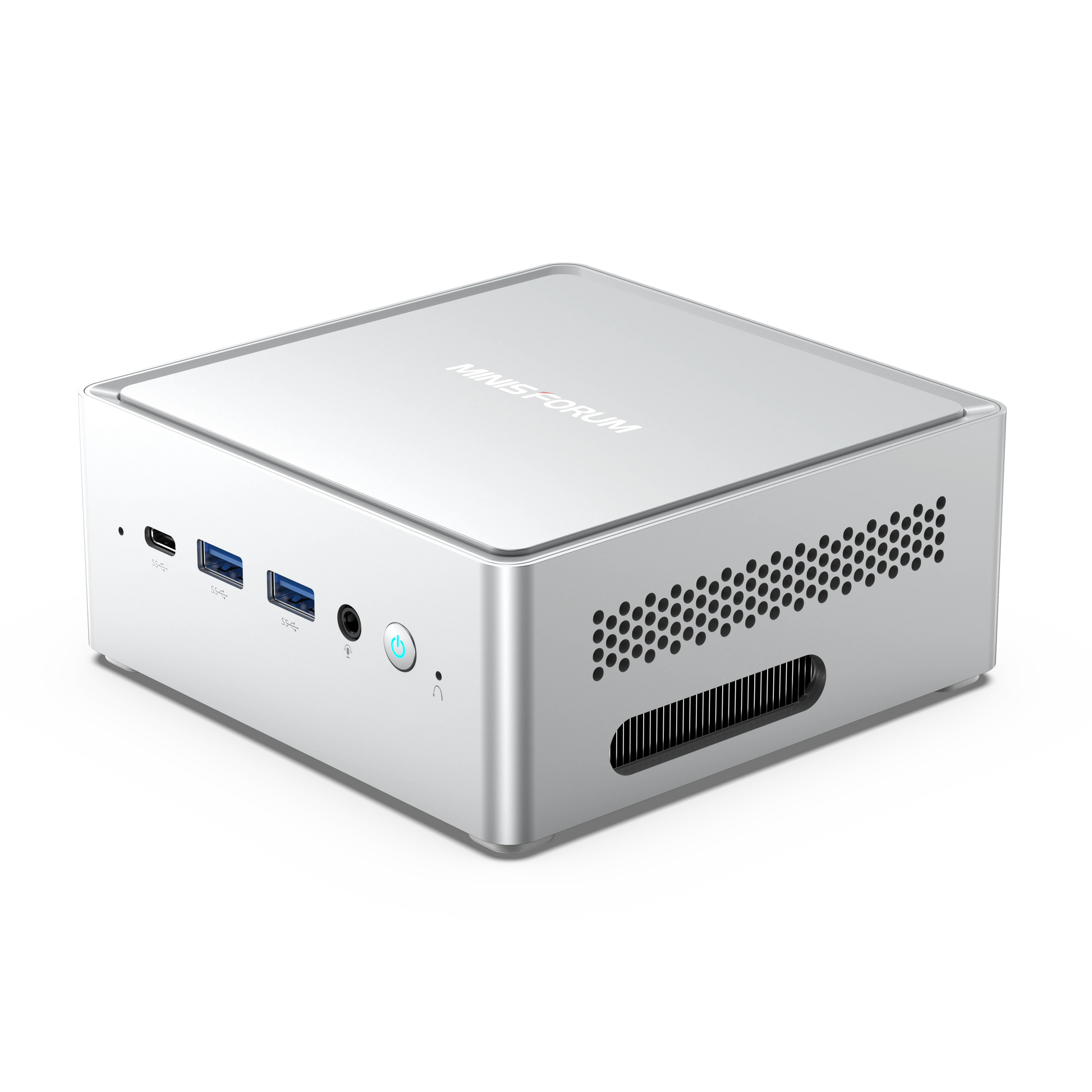

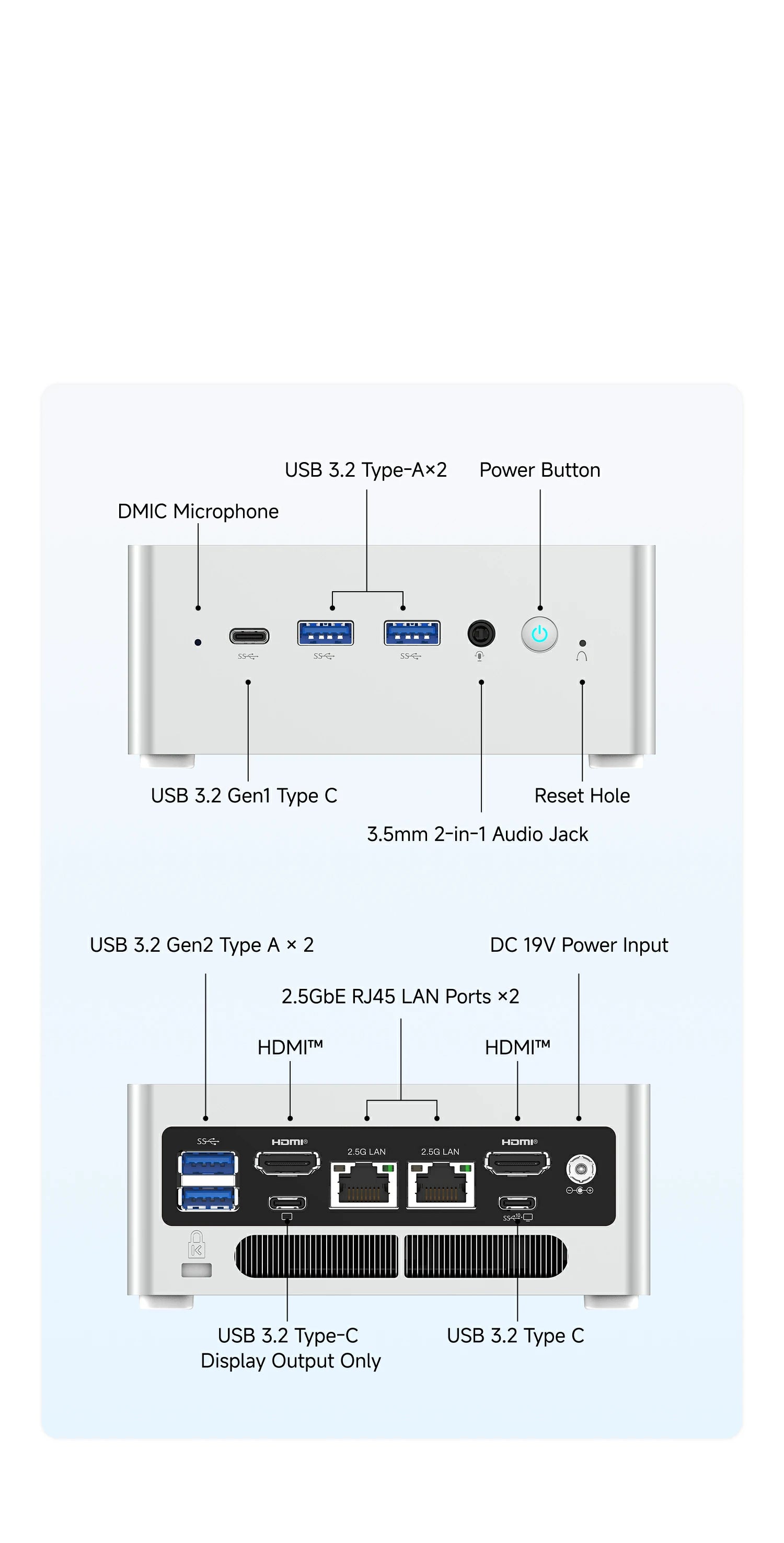

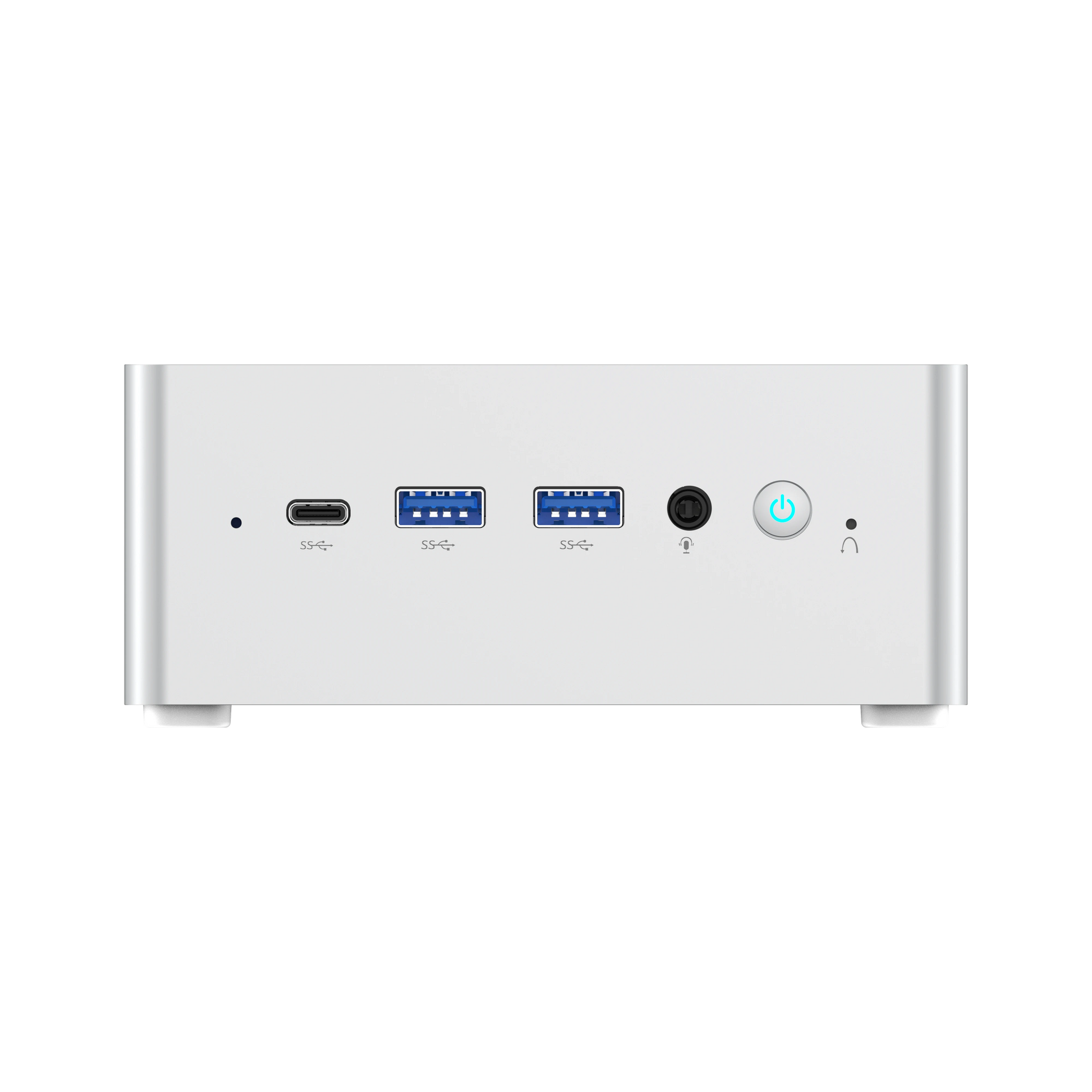

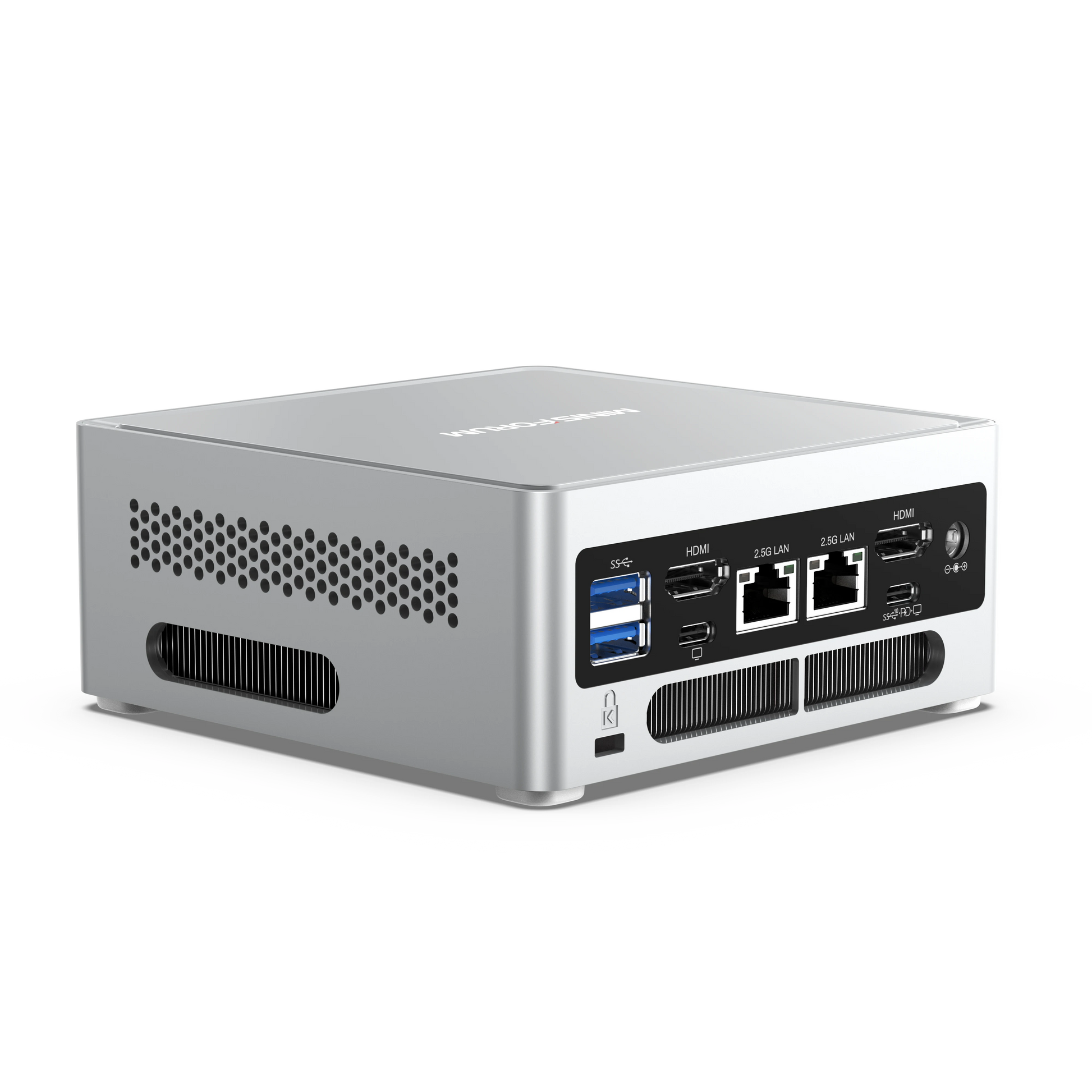

Front and Rear Port Layout
Package Contents
NAB9S
Power Adapter
Power Cord
HDMI™ Cable

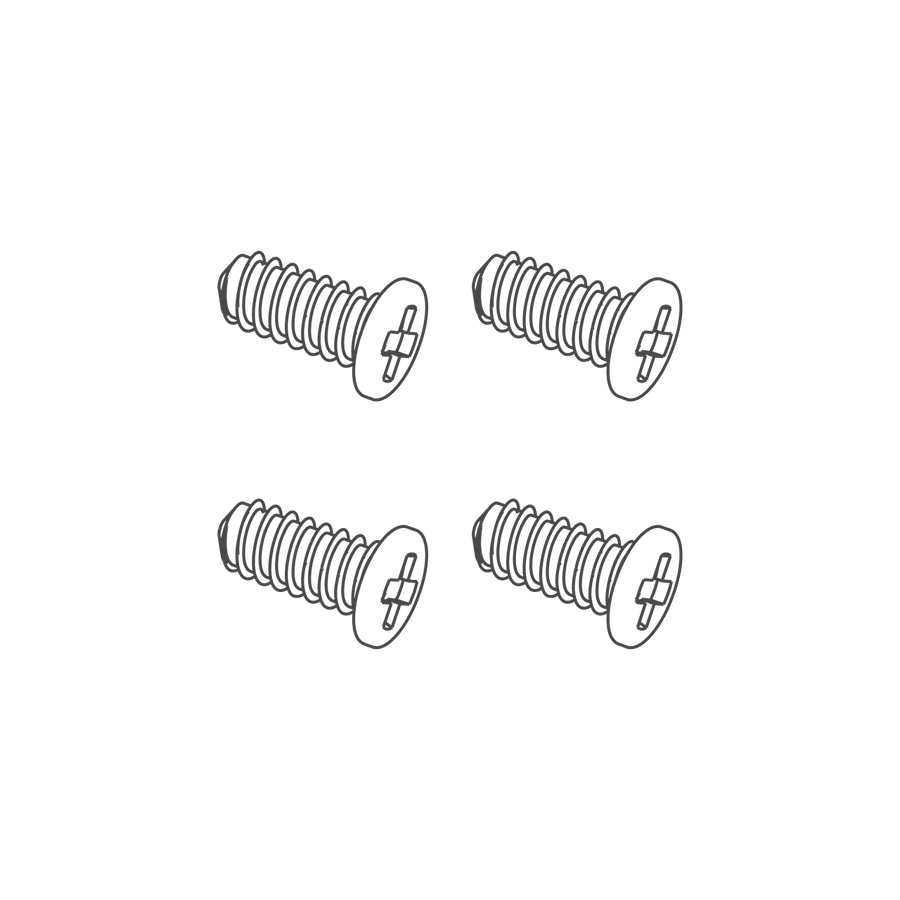

Mounting Screw Set
SATA Cable
Wall-Mount Bracket
User Manual
NAB9S Specification
CPU
Intel® Core™ i9-13900HX, 24 Cores, 32 Threads, up to 5.4GHz
GPU
Intel® UHD Graphics
Memory
2 × SO-DIMM DDR4, up to 3200MHz, up to 32GB
Storage
1 × M.2 2280 NVMe SSD Slot, PCIe 4.0, up to 4TB
1 × 2.5-inch SATA HDD Slot, SATA 3.0
Wireless Connectivity
Wi-Fi 6E, Bluetooth 5.2
Video Output
2 × HDMI™, up to 4K@60Hz
2 × USB-C, up to 4K@60Hz
Audio Output
2 × HDMI™
1 × 3.5mm 2-in-1 Audio Jack
Audio Input
1 × 3.5mm 2-in-1 Audio Jack
I/O Ports
1 × USB 3.2 Gen1 Type-C, Data Transfer Only
1 × USB 3.2 Type-C, Alt DP Display Output and PD Power Output
1 × USB 3.2 Type-C, DP Display Output Only
4 × USB 3.2 Gen2 Type-A
1 × 3.5mm 2-in-1 Audio Jack
1 × DMIC Microphone
2 × HDMI™
2 × 2.5GbE LAN Ports, RJ45
1 × DC IN 19V Power Input
Buttons & Openings
1 × Power Button
1 × Reset Hole
Power
DC 19V/6.32A 120W
Wall-Mount Bracket
Supported
Operating System Support
Windows 11
Dimensions
127 × 127.5 × 54.7 mm
Weight
0.57 kg
