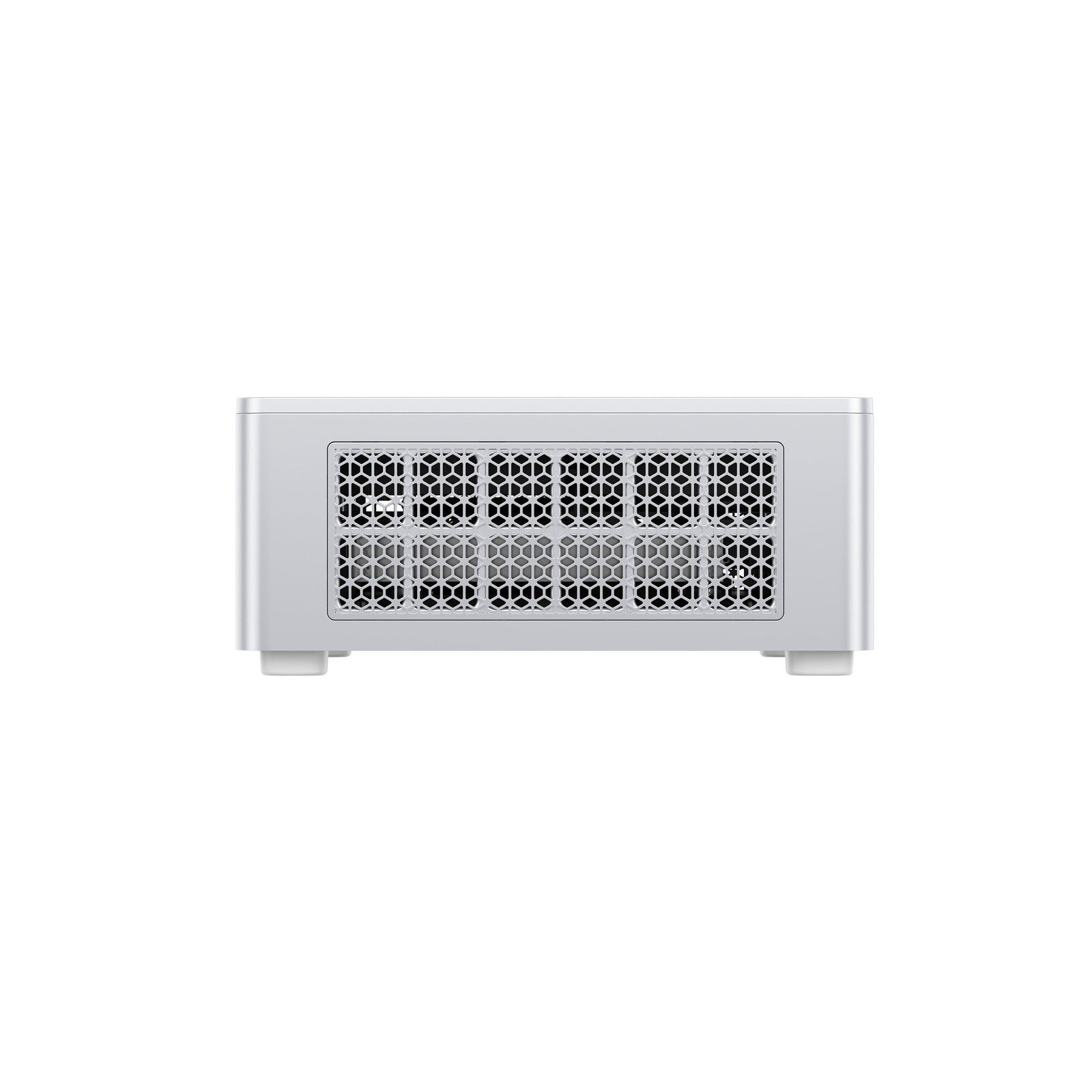

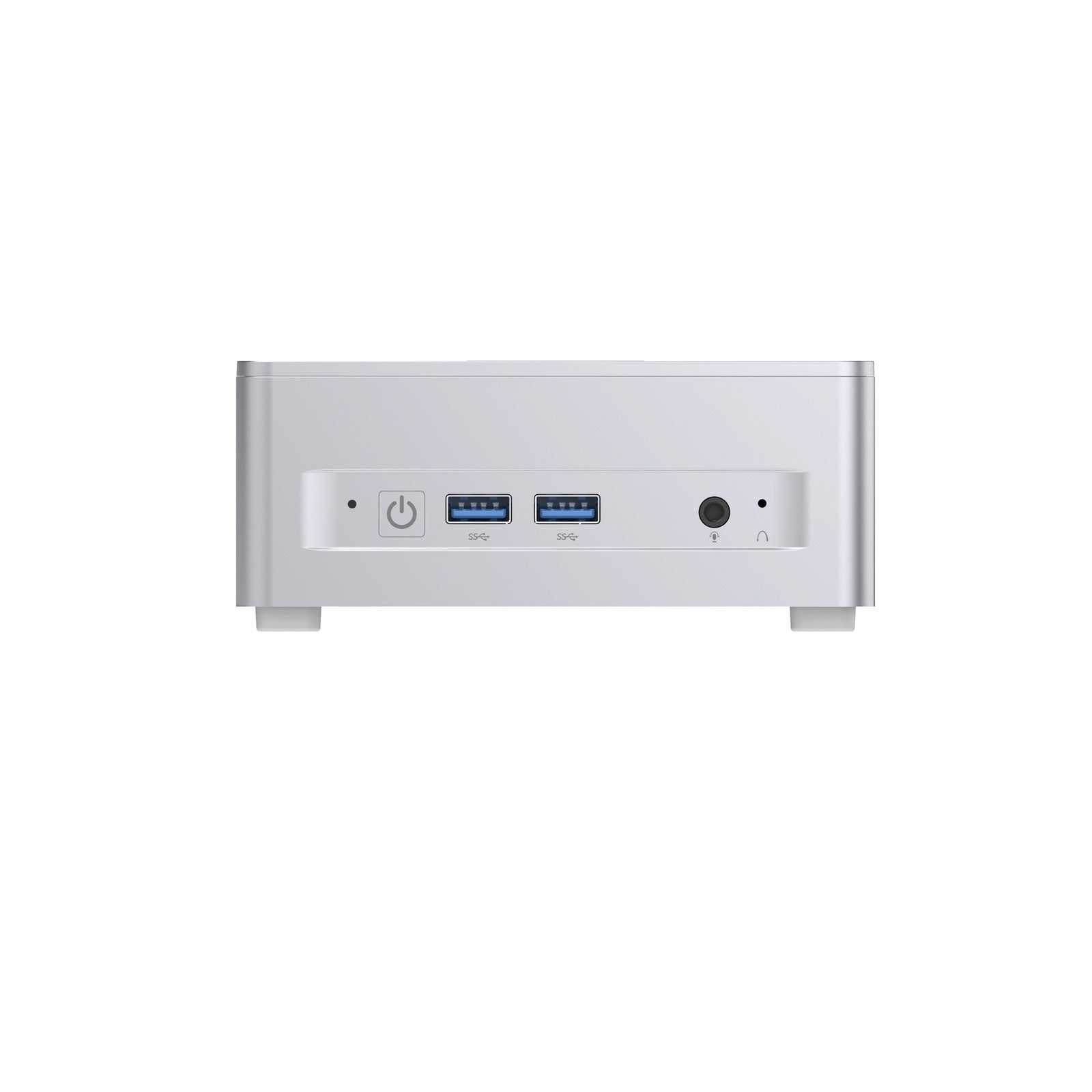

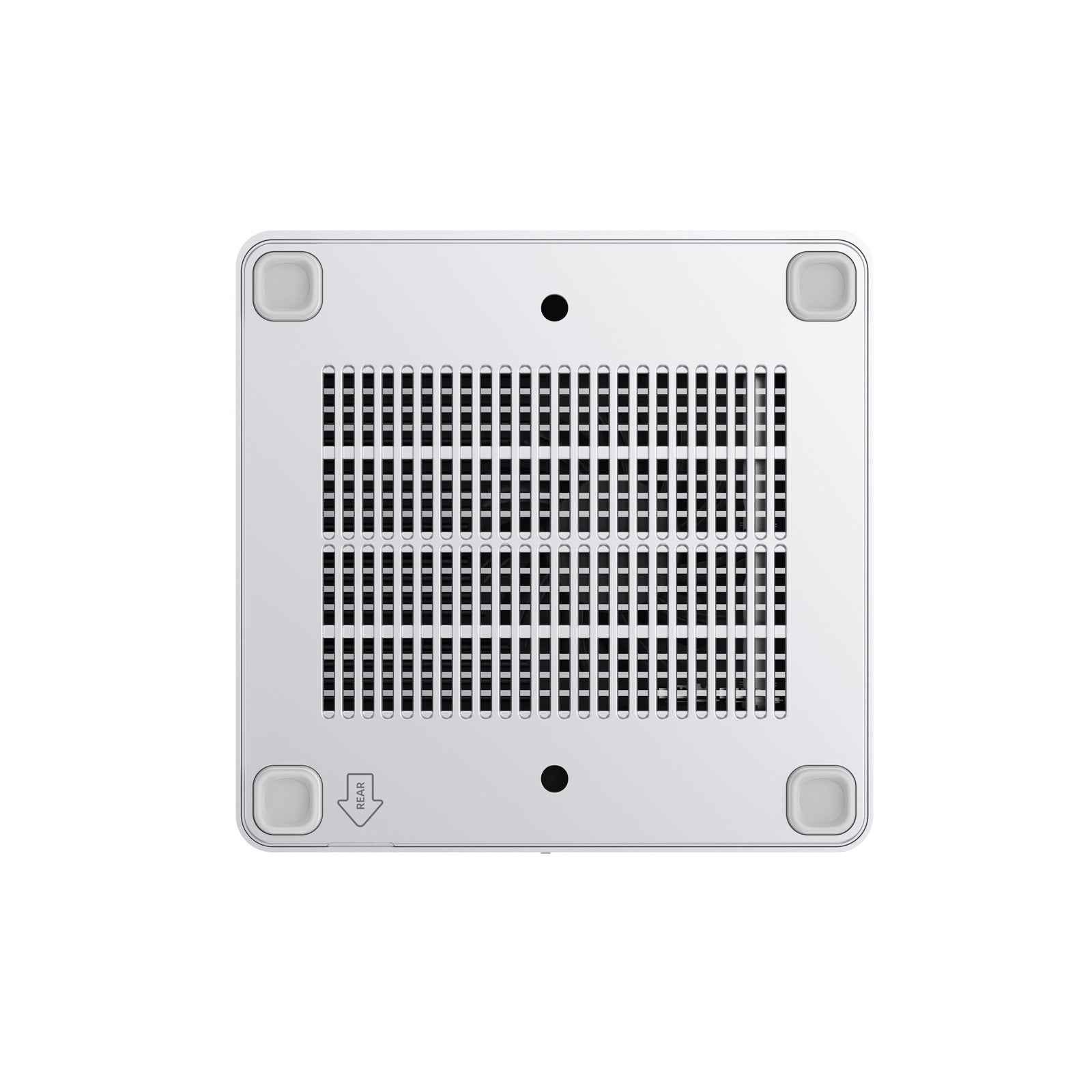

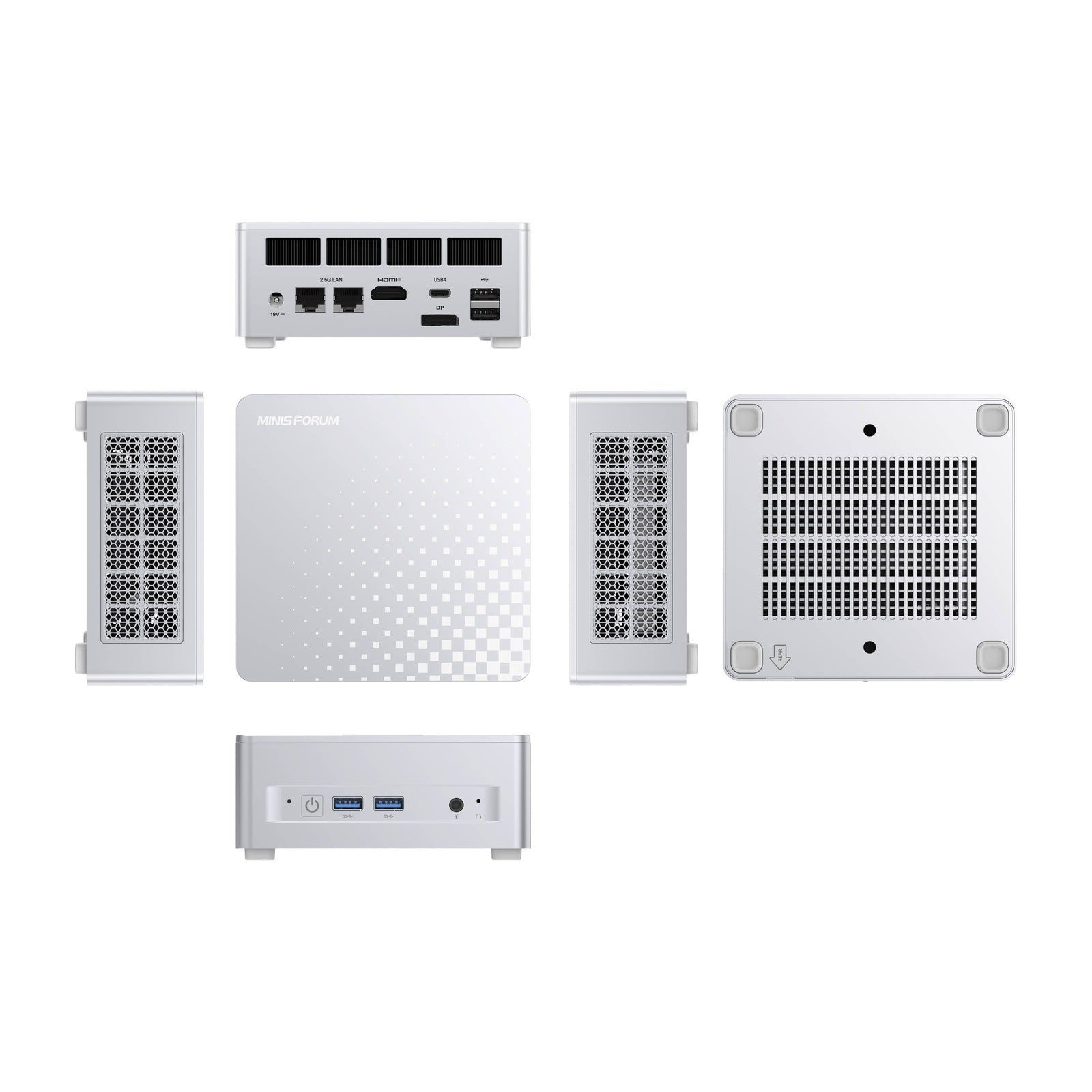

MINISFORUM M1-Plus
- Intel Core i5-12600H
- 2 × DDR5 SODIMM Slots
- M.2 Key M 2280 *1 (PCIe Gen4 x4)
- USB_Type A x2 (USB2.0)
- Wi-Fi 6e(Module: MTK MT7902) Bluetooth® 5.2
For bulk discount inquiries, please contact us at elsa@minisforum.com
30-Day Free Return
›
Return to local warehouse
Lifetime Technical Support
›
Technical support for the life of the product
Duty-Free for US & Canada
›
Tax/duty included for eligible regions
2+1 Warranty Protection
›
2-year factory warranty
Plus optional 3-year accidental coverage extension (Powered by seel & Xcotton)
High-speed Memory
Ultra-fast DDR5 memory avoids bandwidth bottlenecks, ensuring a smooth and dependable multitasking experience
4800MHz
Default Frequency
5200MHz
Max Supported Frequency
64GB
Max Capacity
96GB
Max Supported Capacity
High-speed Memory
Ultra-fast DDR5 memory avoids bandwidth bottlenecks, ensuring a smooth and dependable multitasking experience
4800MHz
Default Frequency
5200MHz
Max Supported Frequency
64GB
Max Capacity
96GB
Max Supported Capacity
Designed for Efficiency

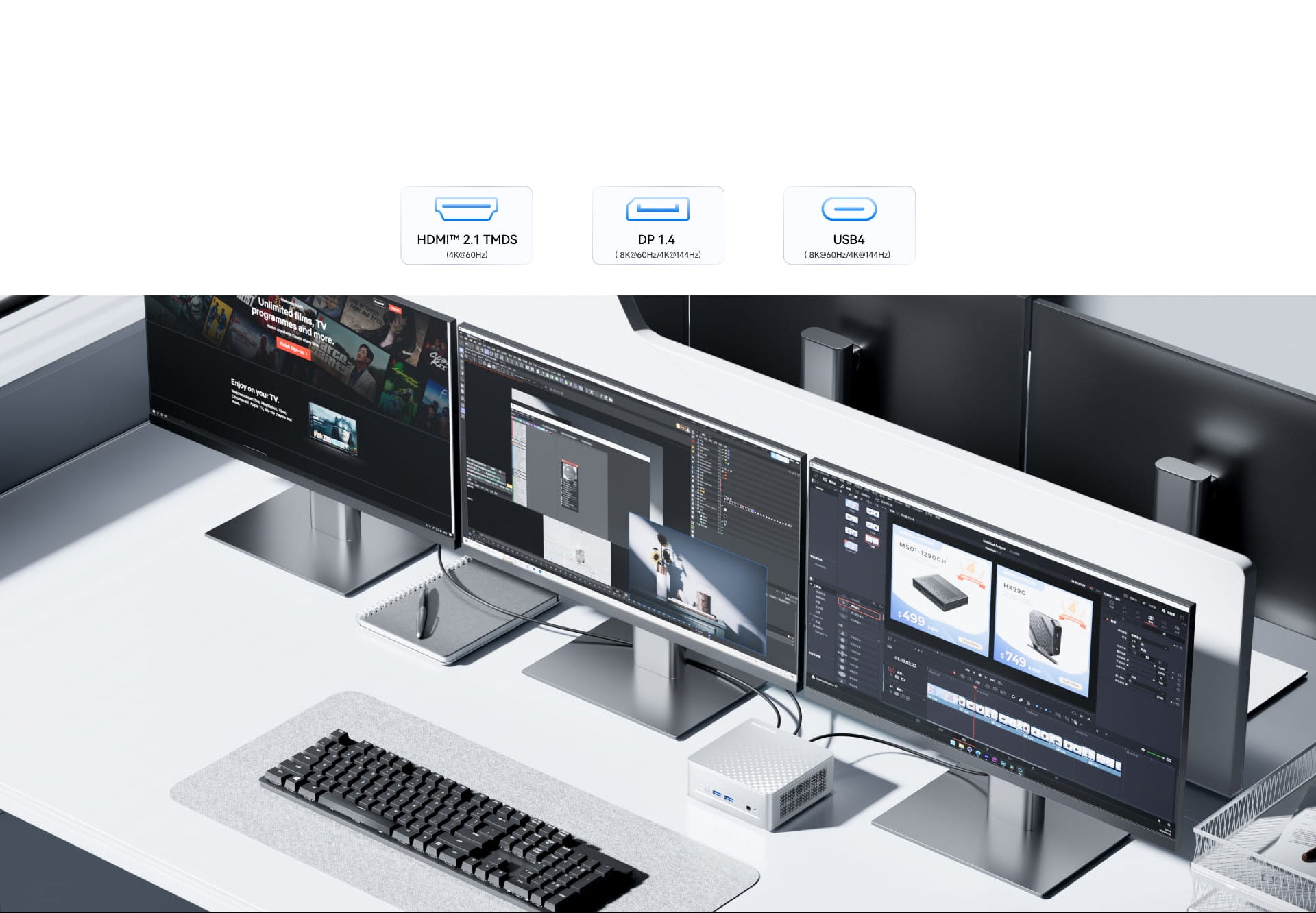

Run three independent 4K displays and unlock a visibly higher level of productivity

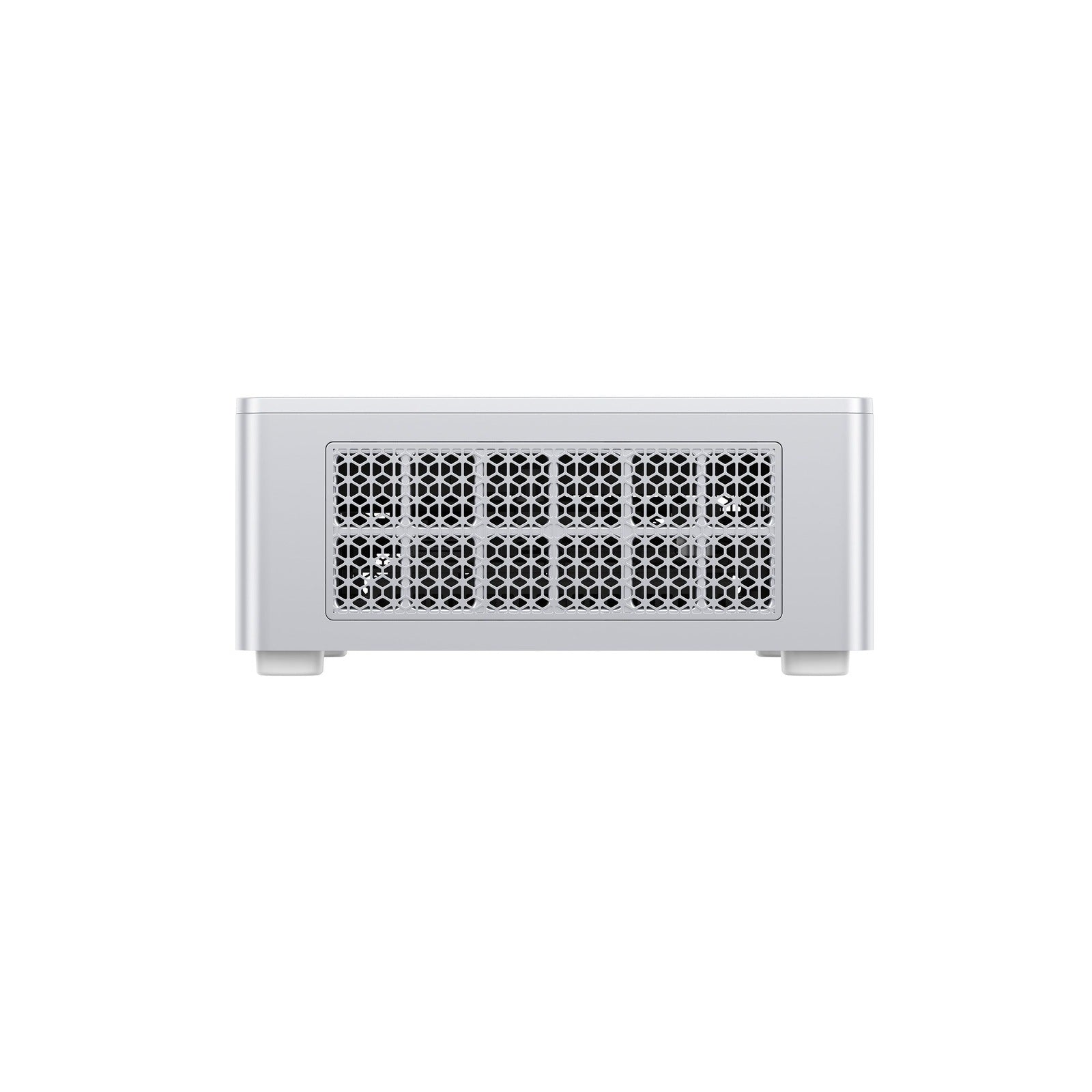

Active Cooling, Minimal Noise
Active Cooling
A dedicated active cooling fan directly targets the DDR and SSD modules, effectively dissipating heat from these critical components to ensure unwavering system stability
Whisper-quiet
It operates at a quiet 45 dB or less during typical use, ensuring a peaceful and undisturbed computing experience
MINISFORUM MS-02 Ultra
M1 Plus Specification
Intel® Core™ i5-12600H (12 Cores / 16 Threads）
Intel® Iris® Xe Graphics
*Ships with a single DDR stick; Device Manager shows Intel® UHD Graphics. With two sticks (dual-channel), it shows Intel® Iris® Xe Graphics.
DDR5 Dual Channel SO-DIMM
(Optional SKU Capacity: 0/16/32/64 GB，Max Supported Capacity: 96 GB，Default Frequency: 4800 MHzMax Supported Frequency: 5200 MHz)
1× M.2 2280 NVMe SSD Slot (PCIe 4.0 x4) (Optional SKU Capacity: 0/512GB/1TB)
Wi-Fi 6E, Bluetooth® 5.2
2.5GbE (RJ45)
HDMI™ 2.1 TMDS x 1 (Up to 4K@60Hz)
DP 1.4 x 1 ((Up to 8K@60Hz/4K@144Hz)
USB4 х 1(Up to 8K@60Hz/4K@144Hz)

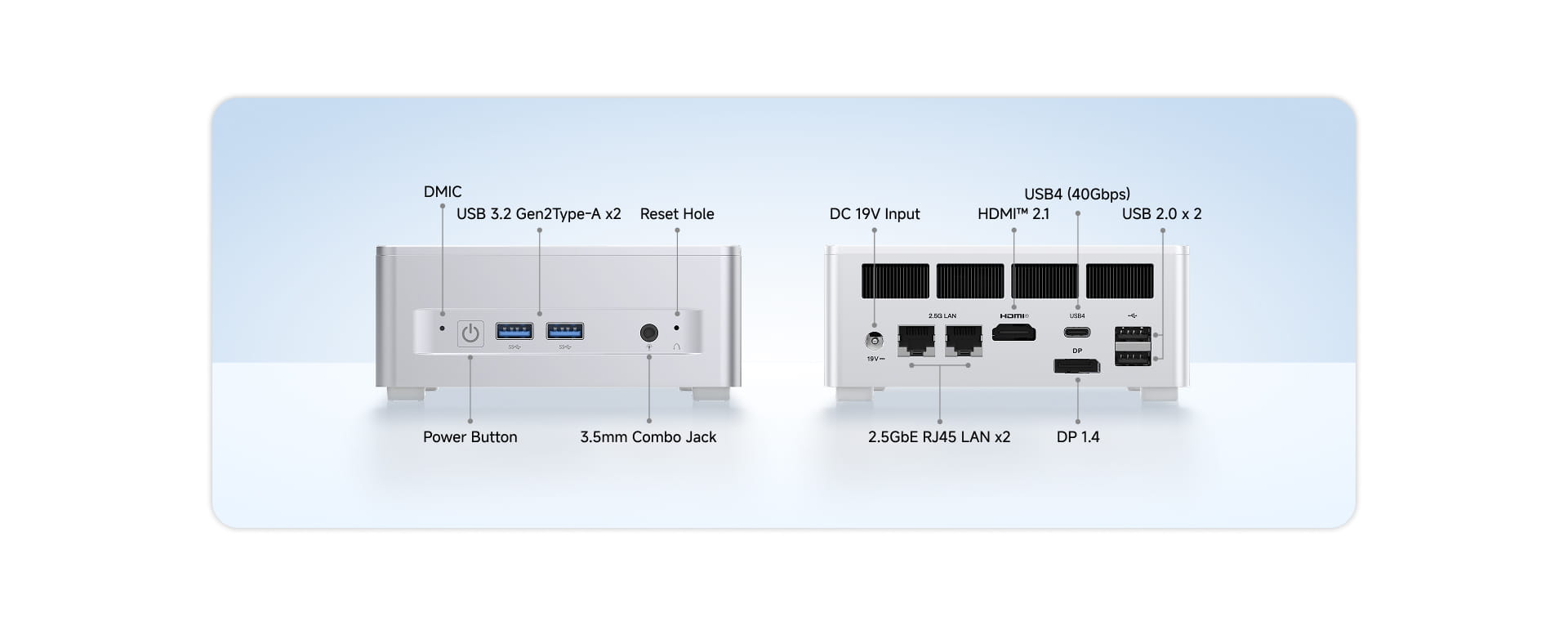

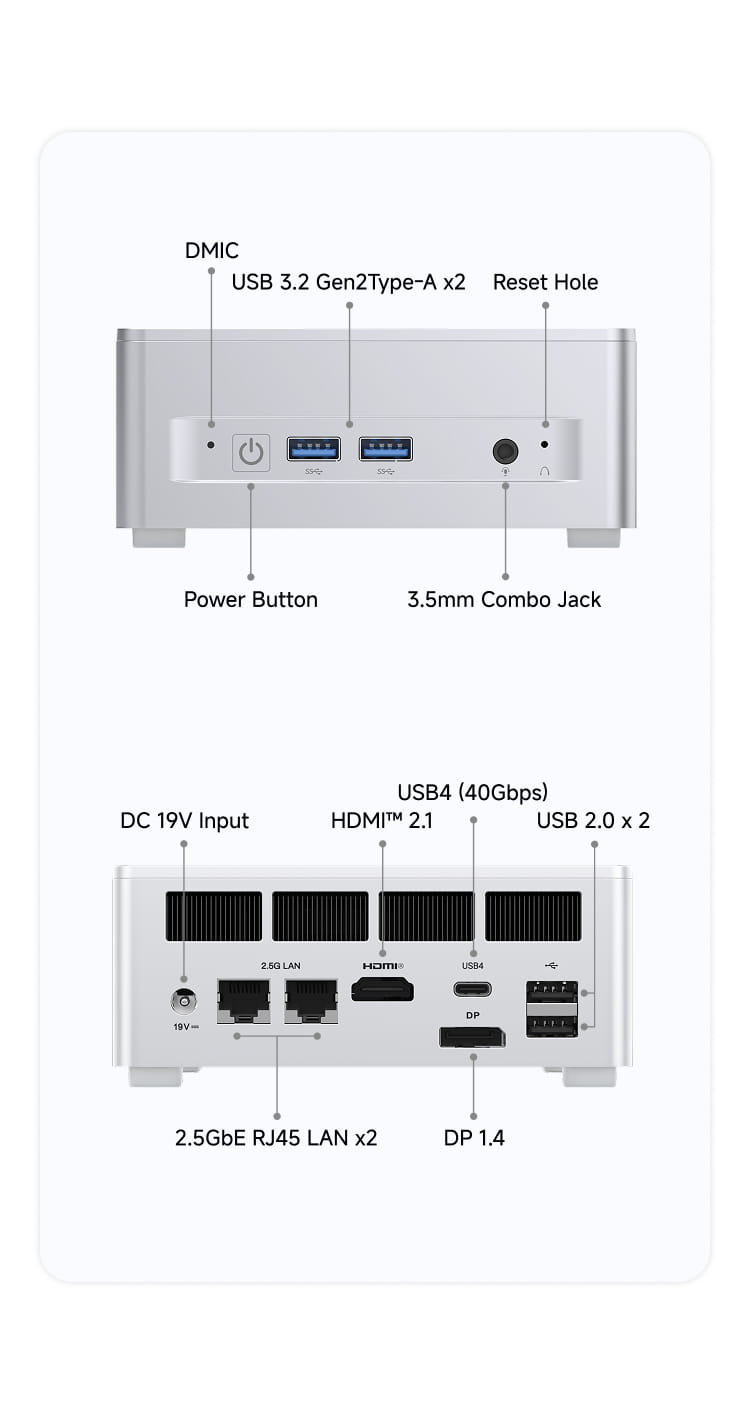

HDMI™ 2.1 ×1
DP 1.4 ×1
3.5 mm Combo Jack ×1
3.5 mm Combo Jack ×1
USB Type A (USB3.2 Gen2) ×2

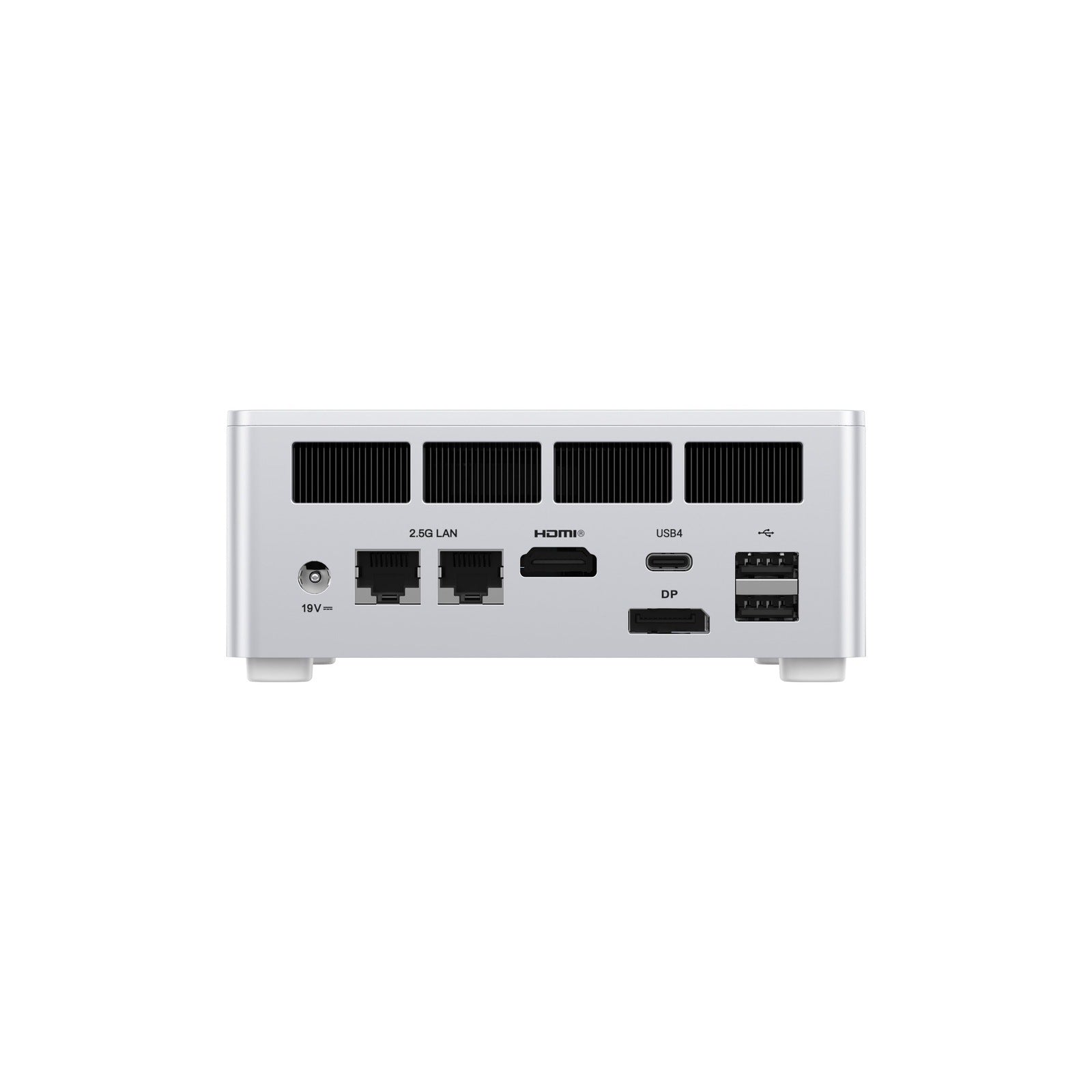

DC 19V Input
USB Type C (USB4, 40Gbps, Alt DP, PD in 65-100W, PD out 15W) ×1
USB Type A (USB2.0) ×2

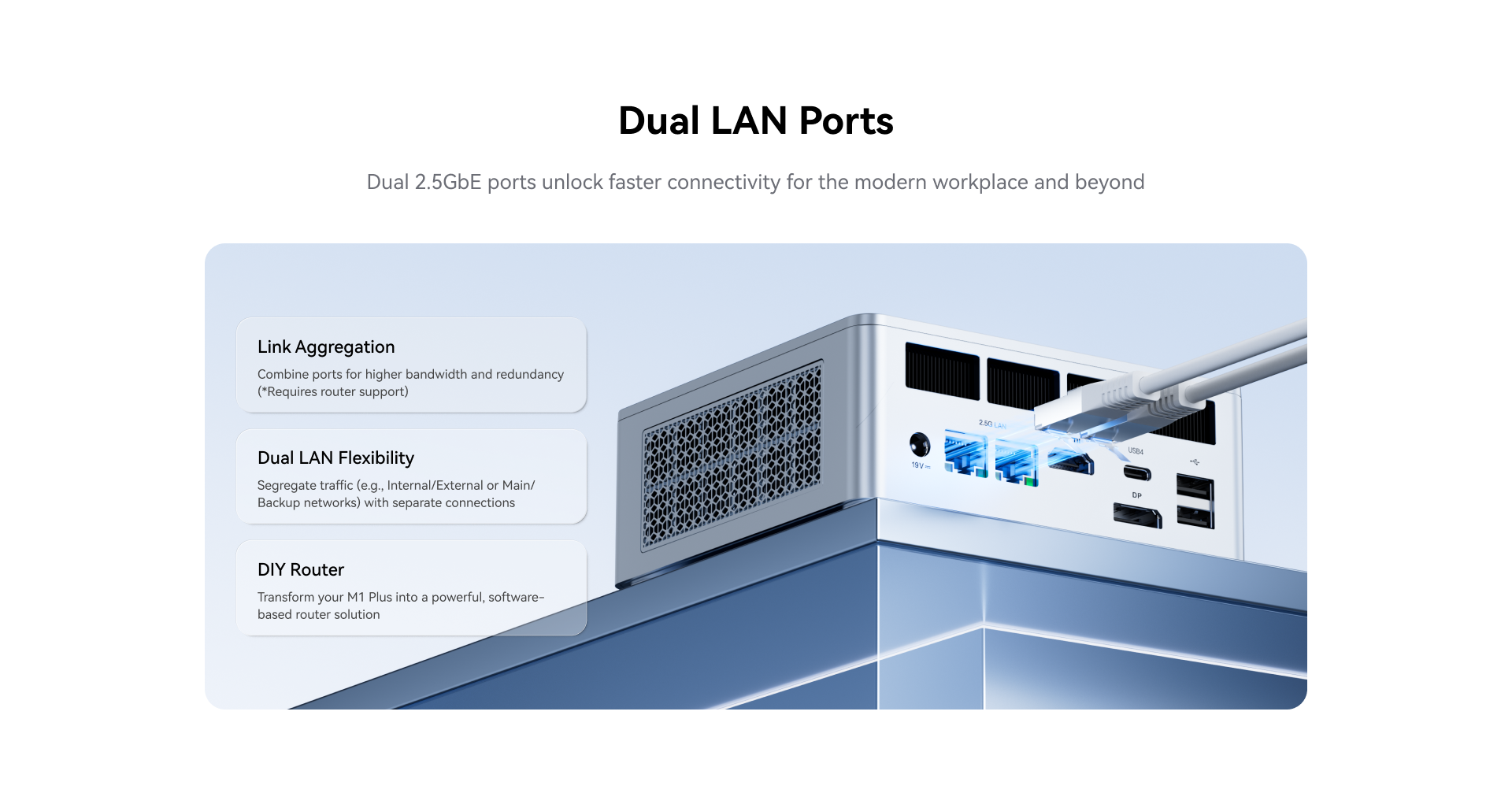

2.5GbE LAN (RJ45) ×2
HDMI™ 2.1 TMDS ×1 (up to 4K@60Hz)
DP1.4 ×1 (up to 4K@120Hz)
19V/6.32A 120W
Support
Windows11 Pro
