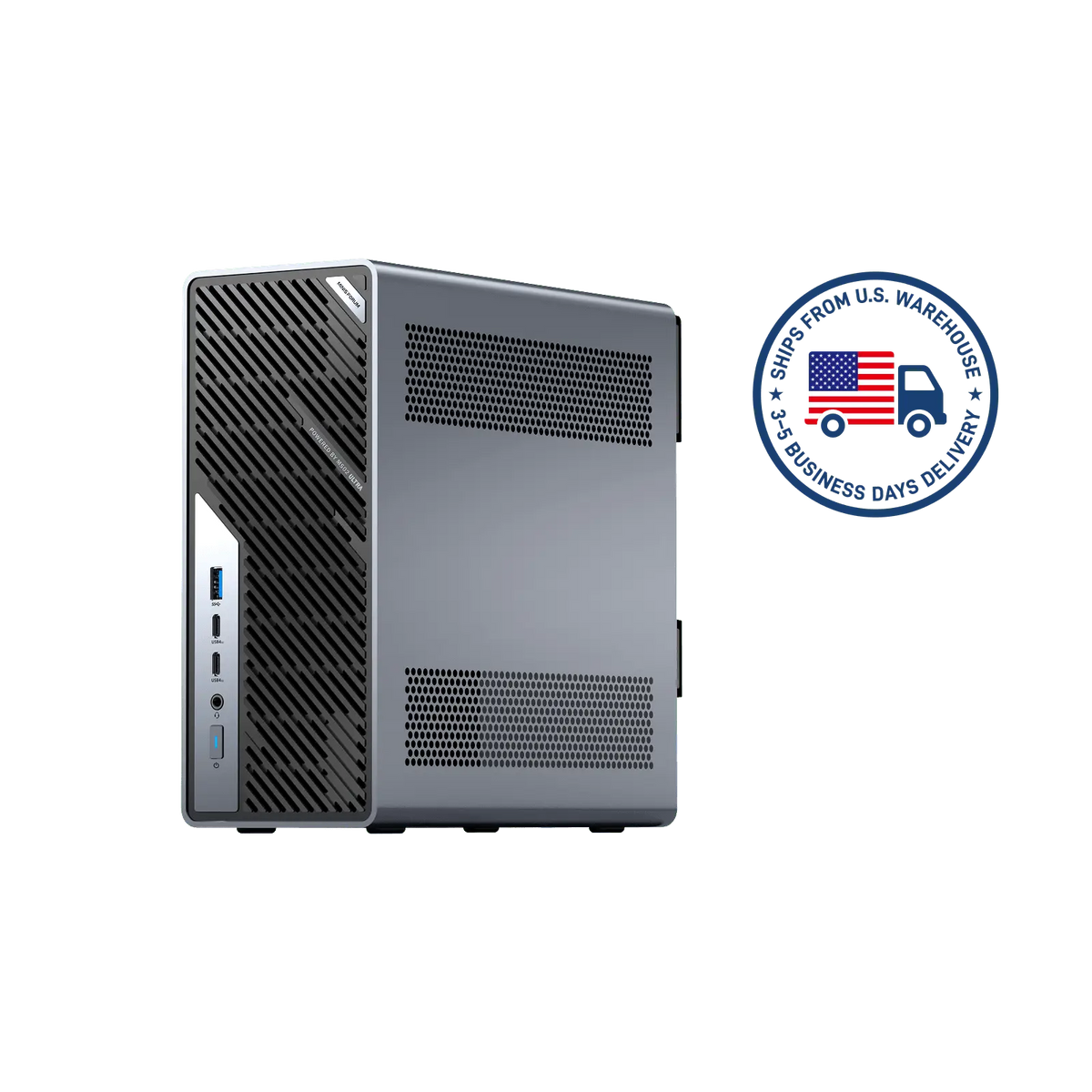

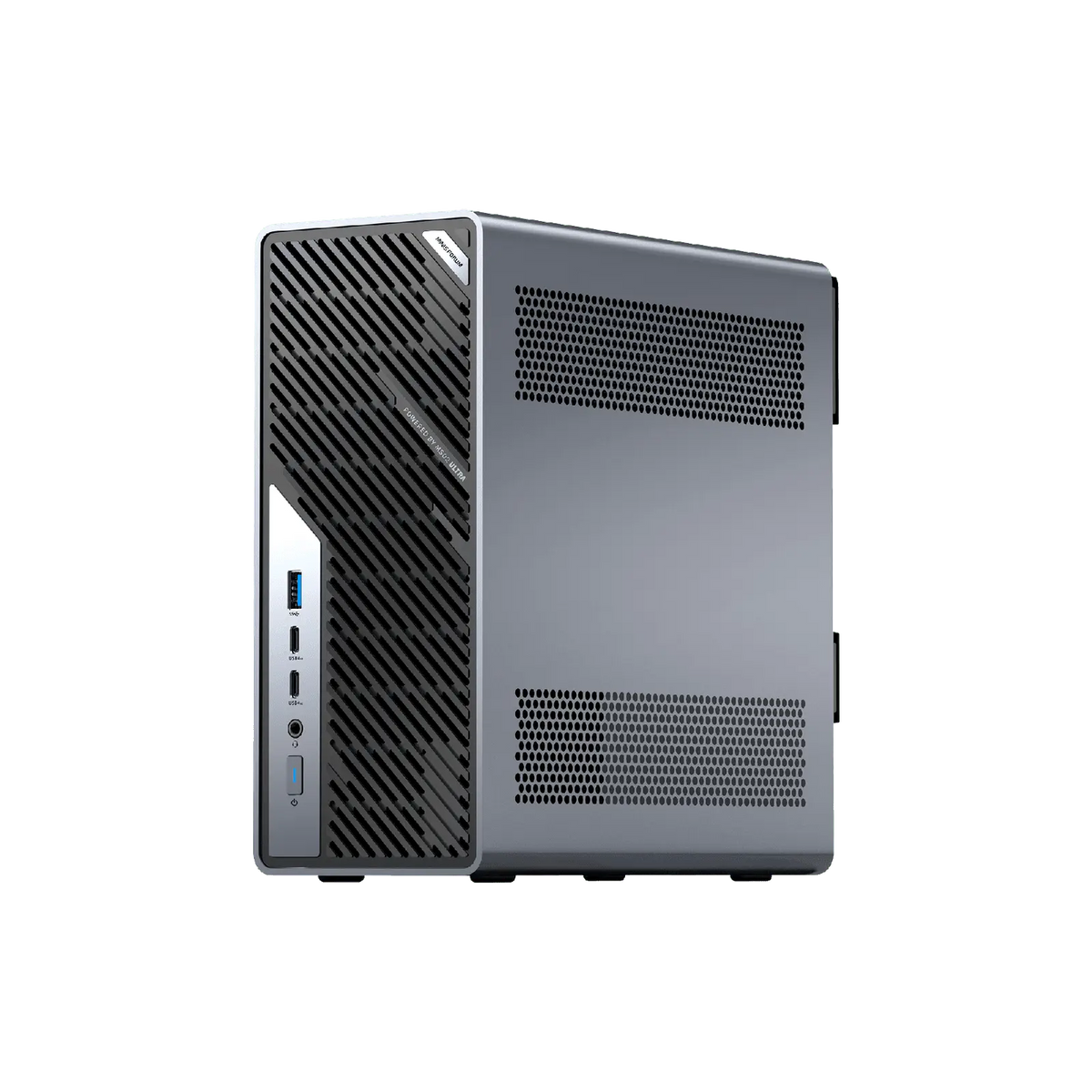

MINISFORUM MS-02 Ultra
Sale price
$1,159.00
Regular price
$1,449.00
For bulk discount inquiries, please contact us at elsa@minisforum.com
- Optional Intel® Core™ Ultra 9 285HX | 275HX | Ultra 5 235HX
- 4 × DDR5 SODIMM Slots
- PCIe 5.0 x 16 Expansion Slot
- 2 × USB4 V2 (80 Gbps)
- 2 × 25GbE SFP+ (285HX only)
- 1 × 10GbE | 2.5GbE RJ45 | WiFi 7 & BT 5.4
Payment Methods:
Trusted Delivery:
Compare Specs
Upgrade Everything
Compromise Nothing
Engineering the Future
Redefining Mini Workstations
Redefining Mini Workstations
Engineering the Future
Redefining Mini Workstations
All-Core Synergy
Up to Intel® Core™ Ultra 9 285HX with CPU, GPU, and NPU synergy for all-scenario performance.
Ultimate Expandability PCIe 5.0
Up to 3 PCIe slots, 4× M.2 PCIe 4.0, and USB4 v2 (80Gbps) for unlimited modularity.
* M.2 slot count: 285HX: 4 slots; 275HX/235HX: 2 slots.
Enterprise-Grade Reliability
ECC memory & Intel vPro® enable 24/7/365 continuous operation and remote control.
*ECC & vPro® available on 285HX only.
Ultra-Fast 25 GbE Networking
Dual 25 GbE with 10 GbE & 2.5 GbE LAN for lightning-speed data transfer.
*Dual 25GbE ports: 285HX only.
High-Speed DDR5 Memory
4× DDR5 SODIMM slots, up to 256 GB memory,high-speed and responsive for smooth multitasking.
Data Protection Guaranteed
Supports multi-drive expansion and RAID 0/1/5/10, providing both high-speed performance and data protection.
Server-Grade Thermal Design
6 heat pipes + dual-fan cooler handle up to 140W Turbo and sustain 100W TDP, with low noise at 36 dB.
Compact yet Accessible
4.8 L slide-out chassis with built-in 350 W power supply —small outside, limitless inside.
Dual-Slot GPU Support
Supports PCIe ×16 dual-slot desktop GPUs,
enabling powerful graphics rendering, AI acceleration, and multi-display output.
The All-Purpose Platform
Multi-Engine Computing Core
Powered by Intel® Core™ Ultra 9 285HX with a 24-core CPU (8P + 16E) and a 13 TOPS NPU, the system delivers both speed and efficiency for AI and media workloads, while PCIe GPU expansion unlocks advanced computing performance.
* Other CPU options:
– Ultra 5 235HX: 14 cores / 14 threads, up to 5.1 GHz
– Ultra 9 275HX: 24 cores / 24 threads, up to 5.4 GHz
Intel® Core™ Ultra 9 285HX
24-core CPU
16 E-cores + 8 P-cores
13 TOPS
NPU
Zero Error, Zero Downtime
Up to 256 GB DDR5 Memory
Handles intensive computing with ease.
ECC auto-correction ensures mission-critical data integrity and stability
*ECC available on 285HX only.
Scalable RAID Storage Architecture
Supports multi-drive expansion and RAID 0/1/5/10 configurations, combining high-speed throughput with data redundancy for demanding workloads.
Intel® vPro® Remote Management
Supports multi-drive expansion and RAID 0/1/5/10 configurations, combining high-speed throughput with data redundancy for demanding workloads.
*vPro® available on 285HX only
Up to 256 GB DDR5 Memory
Handles intensive computing with ease.
ECC auto-correction ensures mission-critical data integrity and stability
*ECC available on 285HX only.
Scalable RAID Storage Architecture
Supports multi-drive expansion and RAID 0/1/5/10 configurations, combining high-speed throughput with data redundancy for demanding workloads.
Intel® vPro® Remote Management
Supports multi-drive expansion and RAID 0/1/5/10 configurations, combining high-speed throughput with data redundancy for demanding workloads.
*vPro® available on 285HX only
Mini yet Limitless Expansion
Mini yet Limitless Expansion
M.2 Storage Slots
4x M.2 2280 slots supporting both PCIe 4.0 x4 NVMe, expandable up to 24 TB total capacity with RAID 0/1/5/10, enabling independent drives for projects, media, and cache with ultra-fast performance.
* M.2 slot count: 285HX: 4 slots; 275HX/235HX: 2 slots.
PCIE & USB4.0v2
Up to 3 PCIe slots including a ×16 dual-slot GPU, with the primary slot supporting PCIe 5.0 for high-bandwidth creative and computing workloads.
USB4 v2 (80Gbps) further enhances high-speed connectivity for external storage, displays, and acceleration modules.
Ultra-Fast Networking
Smart Bandwidth Switching
Adaptive bandwidth switching ensures peak performance accoss enterprise
or local networks.
Revolutionizing team collaboration with ultra-low latency for 4K/8K media and Al data workflows.
Revolutionizing team collaboration with ultra-low latency for 4K/8K media and Al data workflows.
Dual 25GbE Ports
Deliver a theoretical peak bandwidth of ~3.125 GB/s, compared to 1 GbE at ~125 MB/s, enabling large-scale data transfer and parallel computing with ease.
*Dual 25GbE ports: 285HX only.
Multi-Tier LAN Architecture
10 GbE + 2.5 GbE RJ45 Ports with vPro support for enterprise deployments.
*vPro® available on 285HX only
Wi-Fi 7 Connectivity
Wi-Fi 7 (6 GHz Band) delivers nex-tgeneration wireless speed and stability.
Efficient Cooling Performance Unleashed
Efficient Cooling Performance Unleashed
Server-Grade Airflow Design
Dedicated CPU/GPU airflow channels with a server-grade exhaust layoutensure precise thermal control and sustained system stability.
Built-in 350 W Power Supply
Integrated 350 W power design delivers reliable and efficient power for sustained performance-easy to deploy and maintain.
Efficient & Quiet Cooling
6 heat pipes and dual fans dissipate up to 140W Turbo heat and sustain a 100W TDP load, delivering stable and quiet operation at just 36 dB.
Masterpiece of Integration
Compact Form Factor
Only 4.8 L chassis, blending seamlessly into any workspace.
Precision-Crafted Aluminum Design
Precision-milled aluminum chassis unites performance with timeless industrial elegance.
Slide-Out Structure Design
Quick-access slide-out chassis with a two-screw release for straightforward upgrades and maintenance
All-in-One Fusion
Integrating workstation-class performance, server-grade reliability, and creative flexibility in one compact desktop. As the flagship of our workstation series, it embodies the pinnacle of desktop compute evolution.
MS-02 Ultra Specification
CPU
Intel® Core™ Ultra 9 285HX
24 Cores (8 P-Cores + 16 E-Cores), 24 Threads
Max Clock: 5.5 GHz
TDP
Without dGPU: 100W PL1 / 140W PL2
With dGPU: 90W PL1 / 110W PL2
GPU
Intel® Graphics(Internal)
Max GPU Clock: 2 GHz
AI Engine Performance
Intel® AI
NPU Computing Power: Up to 13 TOPS
RAM
4 x DDR5 SODIMM slots (ECC supported; XMP overclocking not supported).
Max frequency support: 4800MHz
Max capacity support: 256GB
SSD
2 × M.2 2280 NVMe SSD slots
(PCIe 4.0 x4, Up to 8TB each)
2 × M.2 2280 NVMe SSD slots
(Inside 25GbE NIC, up to 8 TB/slot PCIe 3.0 x4) or 4 TB/slot PCIe 4.0 x4)
Heat Dissipation
Six-heatpipe radiator with Phase Change Material (PCM)
Max CPU Fan Speed: 5000 RPM
Wireless Connectivity
Wi-Fi 7 | Bluetooth® 5.4
Ethernet Controller
2 × 25 GbE SFP+
1 × 10 GbE LAN RJ45
1 × 2.5 GbE LAN RJ45
Video Output
1 x HDMI™ 2.1 FRL (8K@60Hz, 4K@120Hz)
1 x USB4 with DP Alt Mode (8K@60Hz, 4K@120Hz)
2 x USB4 V2 with DP Alt Mode (8K@60Hz, 4K@120Hz)
Audio Output
1 х HDMI™
1 х USB4
2 х USB4 V2
1 х 3.5mm Audio Jack
Audio Input
3.5mm Combo Jack（TRRS） х 1
I/O Ports (Front)
2 x USB4 V2 Type-C Ports(80 Gbps, DP 2.0 Alt Mode, 15W PD)
1 x USB 10Gbps Type-A Port(USB 3.2 Gen 2)
1 x 3.5mm Audio Jack
1 x Power Button

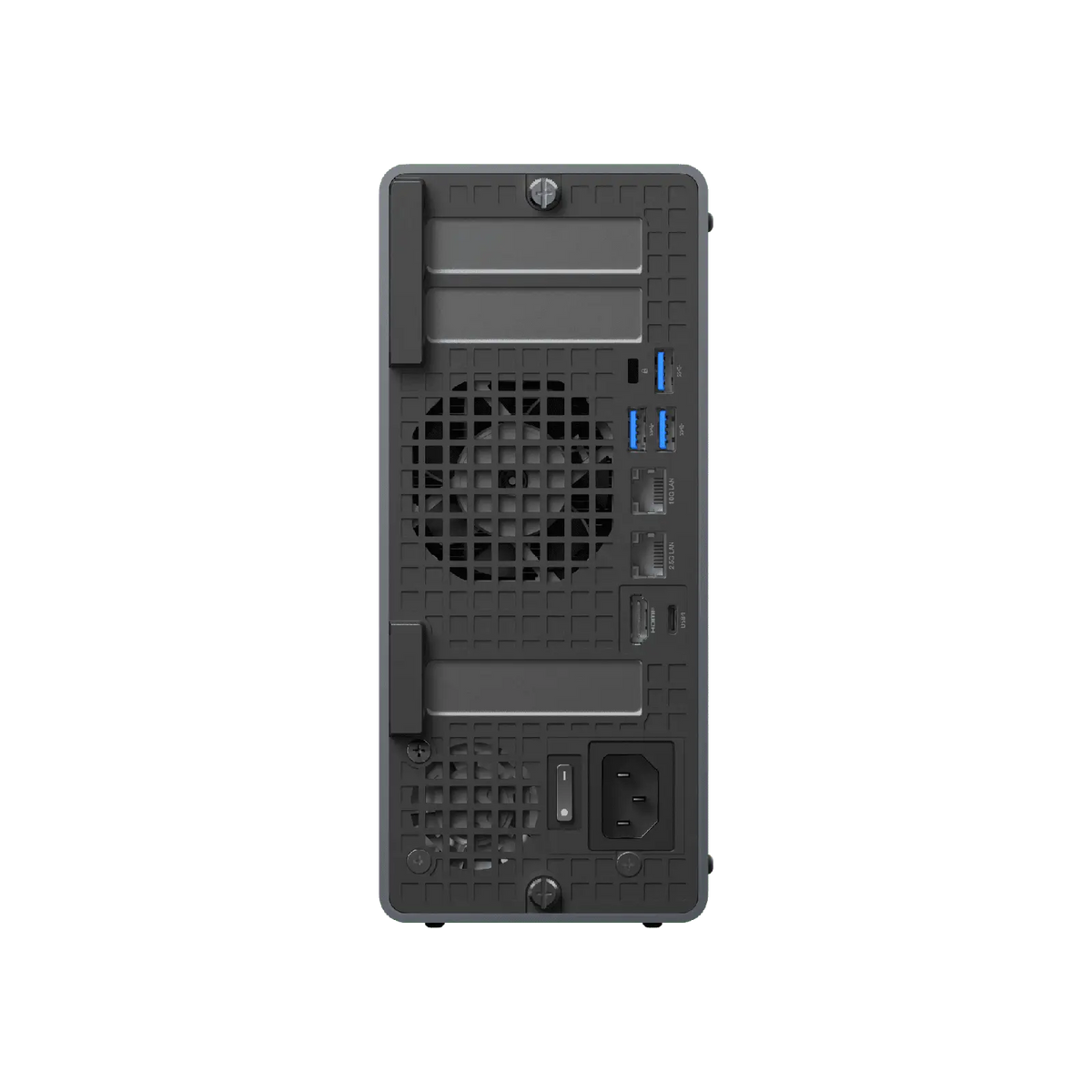

I/O Ports (Rear)
2 x 25GbE SFP+ Ports (Intel E810)
1 x 10GbE RJ45 Port (Realtek RTL8127)
1 x 2.5GbE RJ45 Port (Intel I226-LM, vPro Enabled)
1 × HDMI™ 2.1 FRL
1 x USB4 Type-C Port(40 Gbps, DP 2.0 Alt Mode, 15W PD)
3 x USB-A 10Gbps(USB 3.2 Gen 2)
I/O Ports (Internal)
1 × PCIe 5.0 x16 Slot (bifurcation support )
1 × PCIe 4.0 x16 Slot (PCIe 4.0 x4+x4+x4) with Pre-installed 25GbE NIC
1 × PCIe 4.0 x4 Slot
Button/Hole
Clear CMOS Button x 1
Pre-installed OSOS Support
Windows 11 Pro
Power
AC input (100-240V ~6A 50-60Hz, 1U 350W MAX)
VESA Mount & Dimensions
N/A
Weight
3.45 kg
