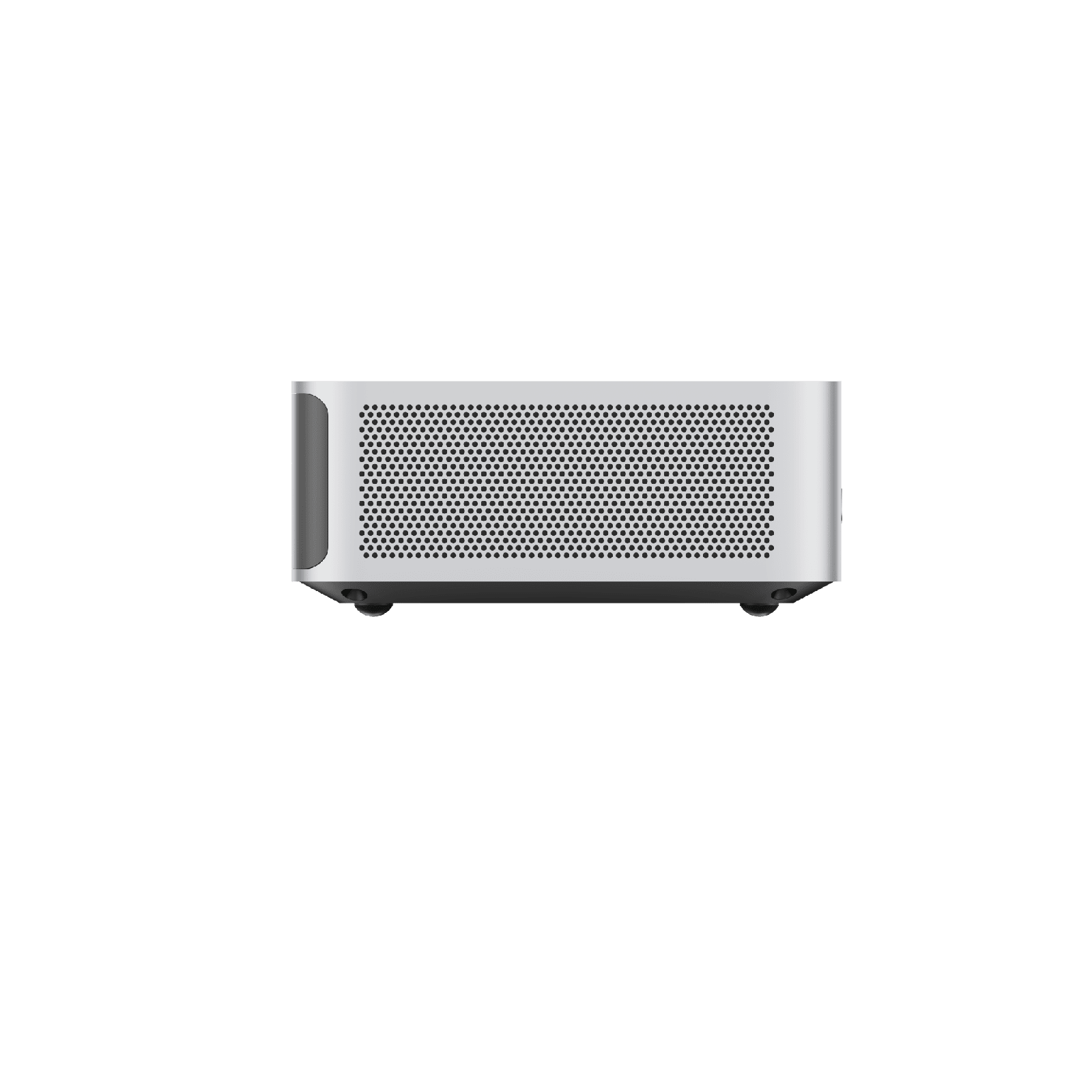

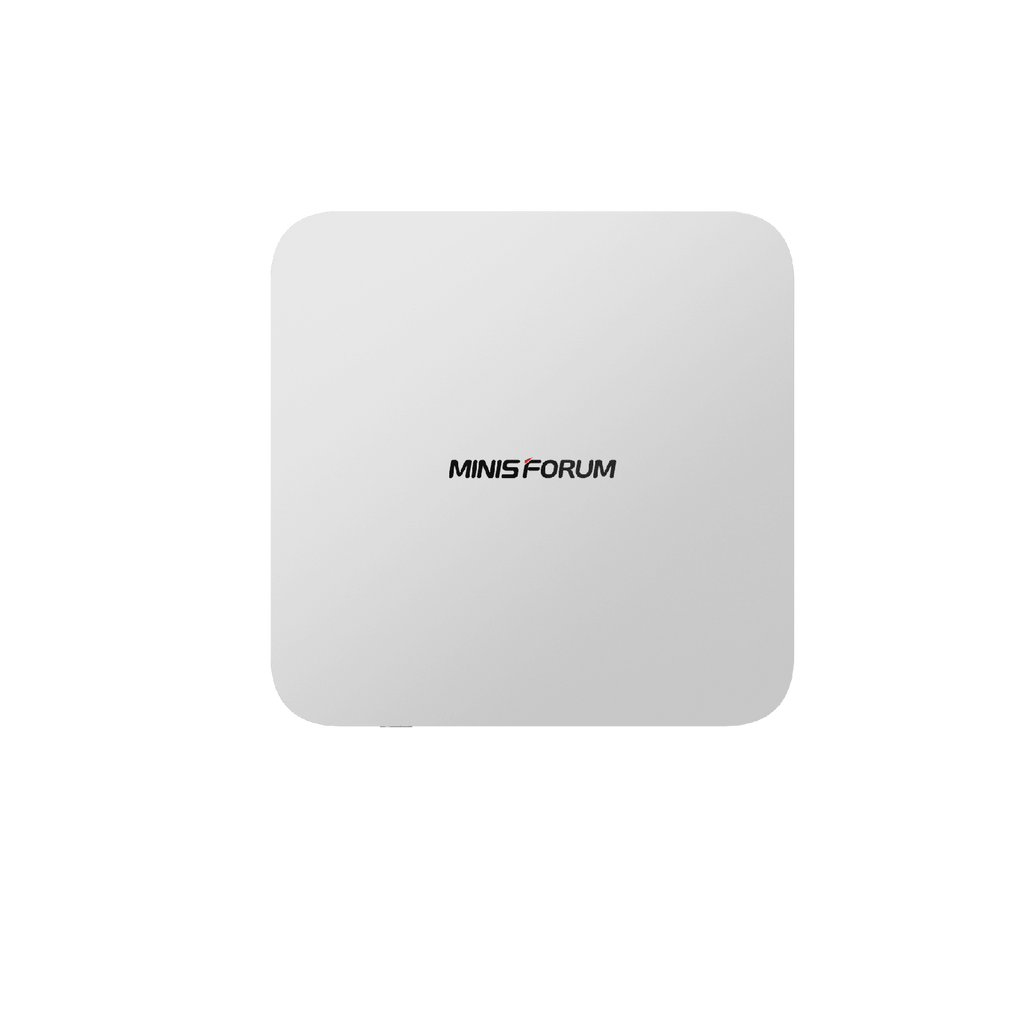

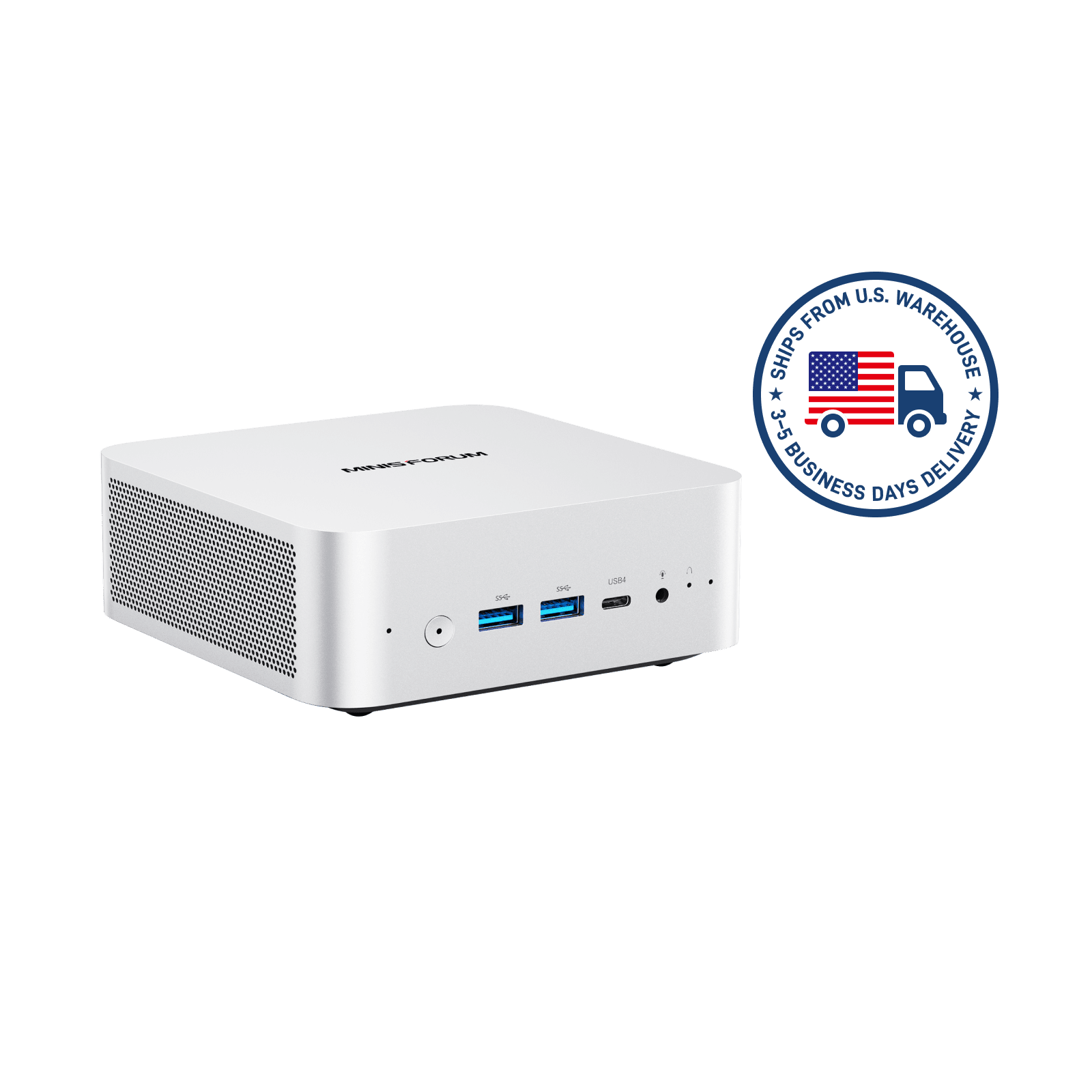

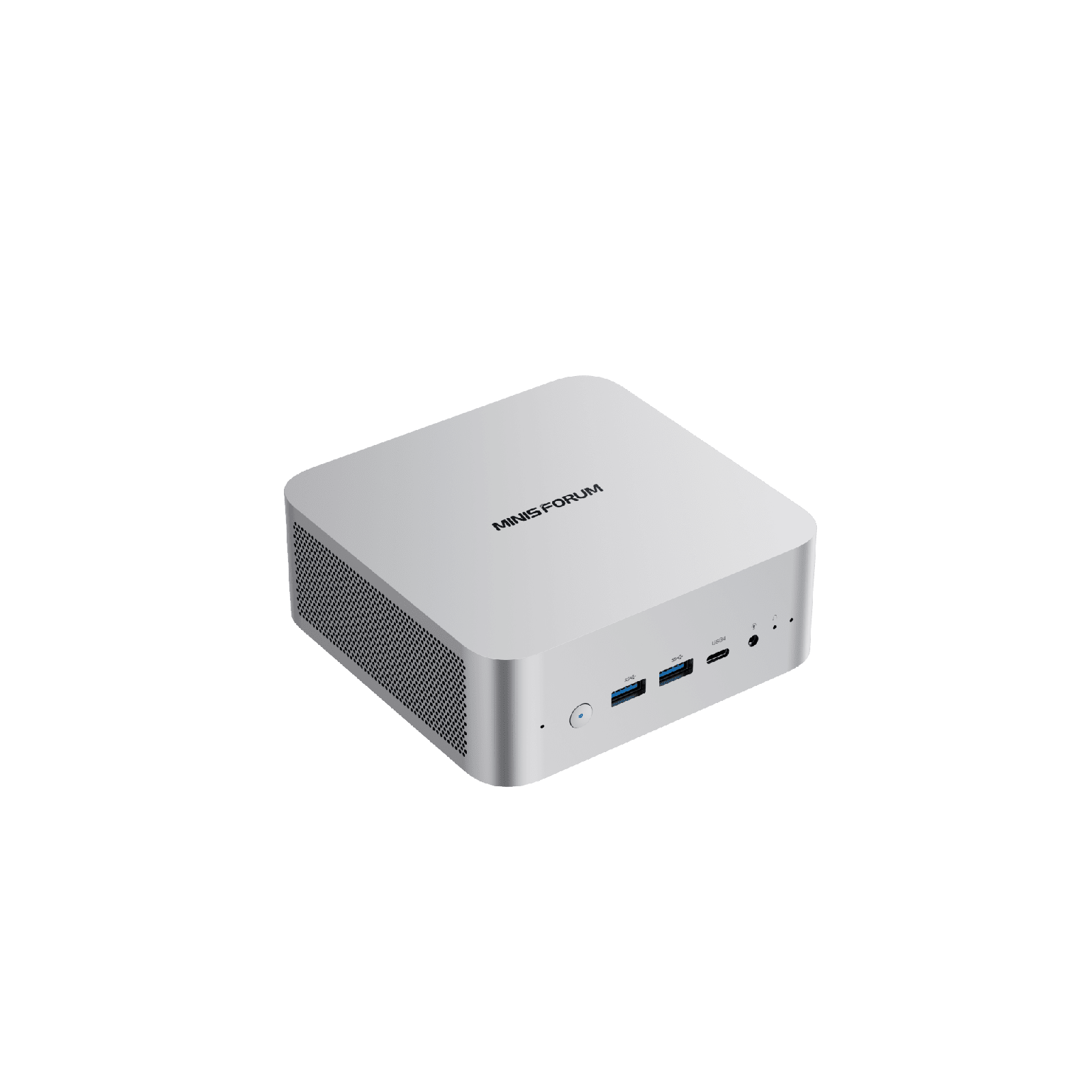

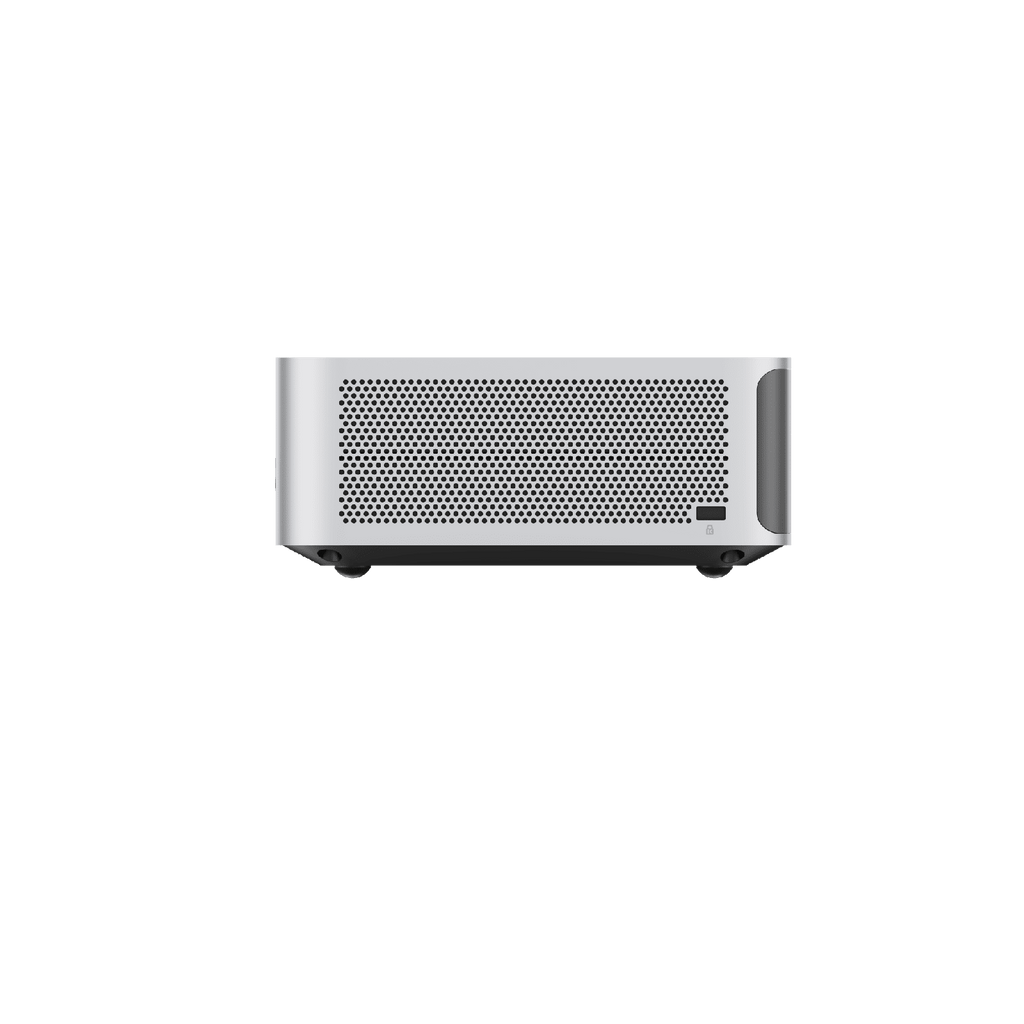

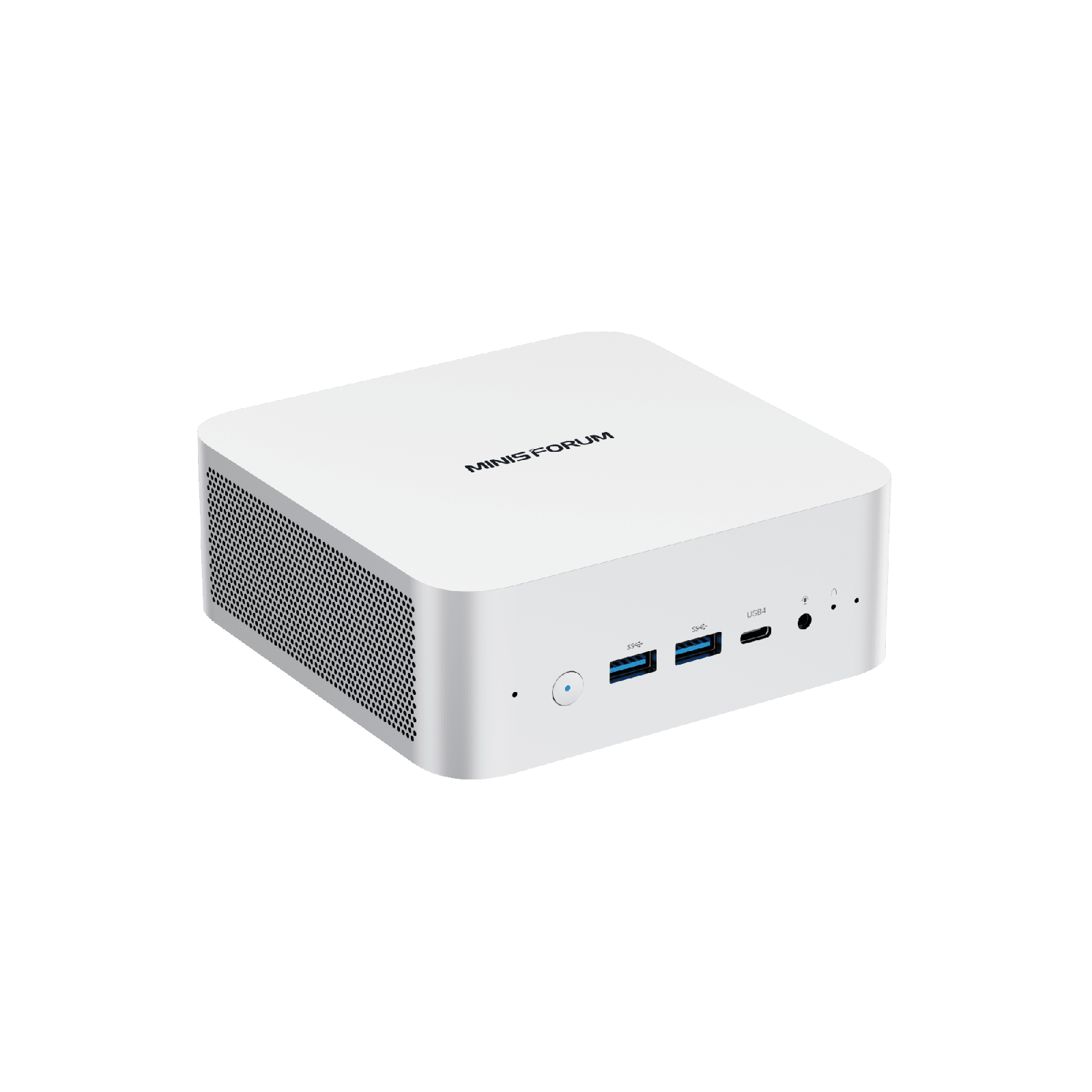

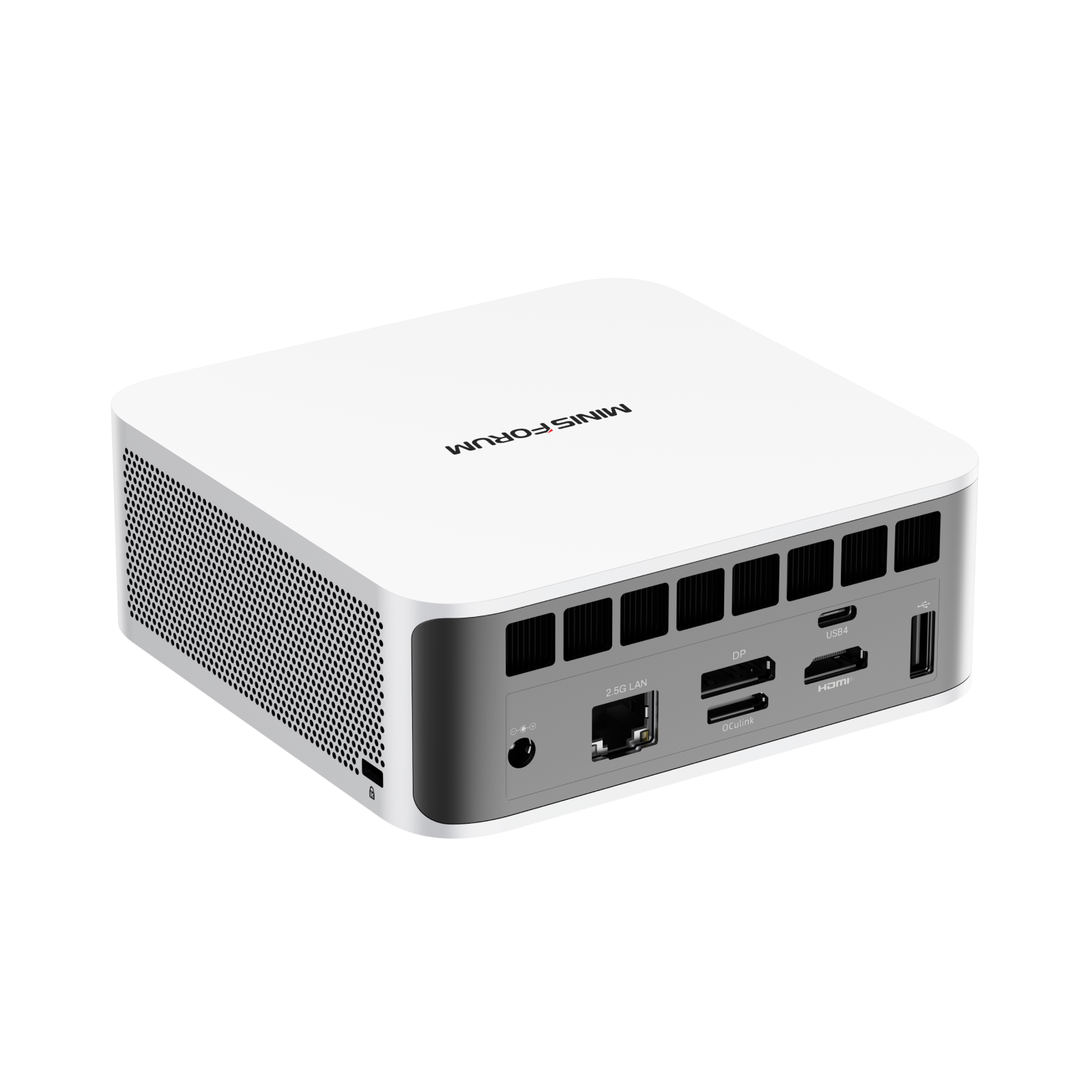

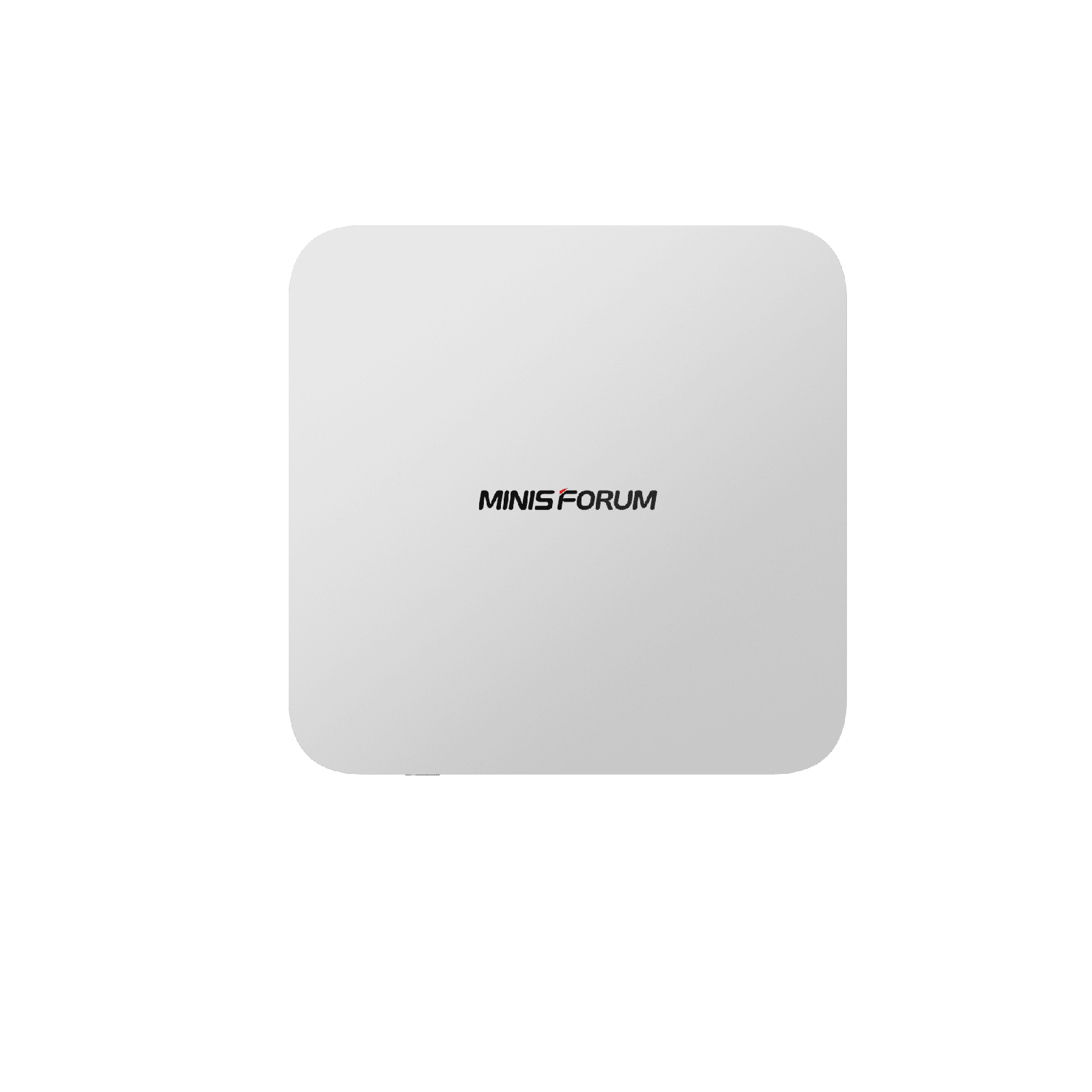

MINISFORUM M1 Pro-285H
Sale price
$884.35
Regular price
$1,105.79
- Intel® Core™ Ultra 9 Processor 285H, 16C/16T
- Intel® Arc™ 140T GPU
- Dual-Channel DDR5 Up to 6400MHz | Up to 128GB

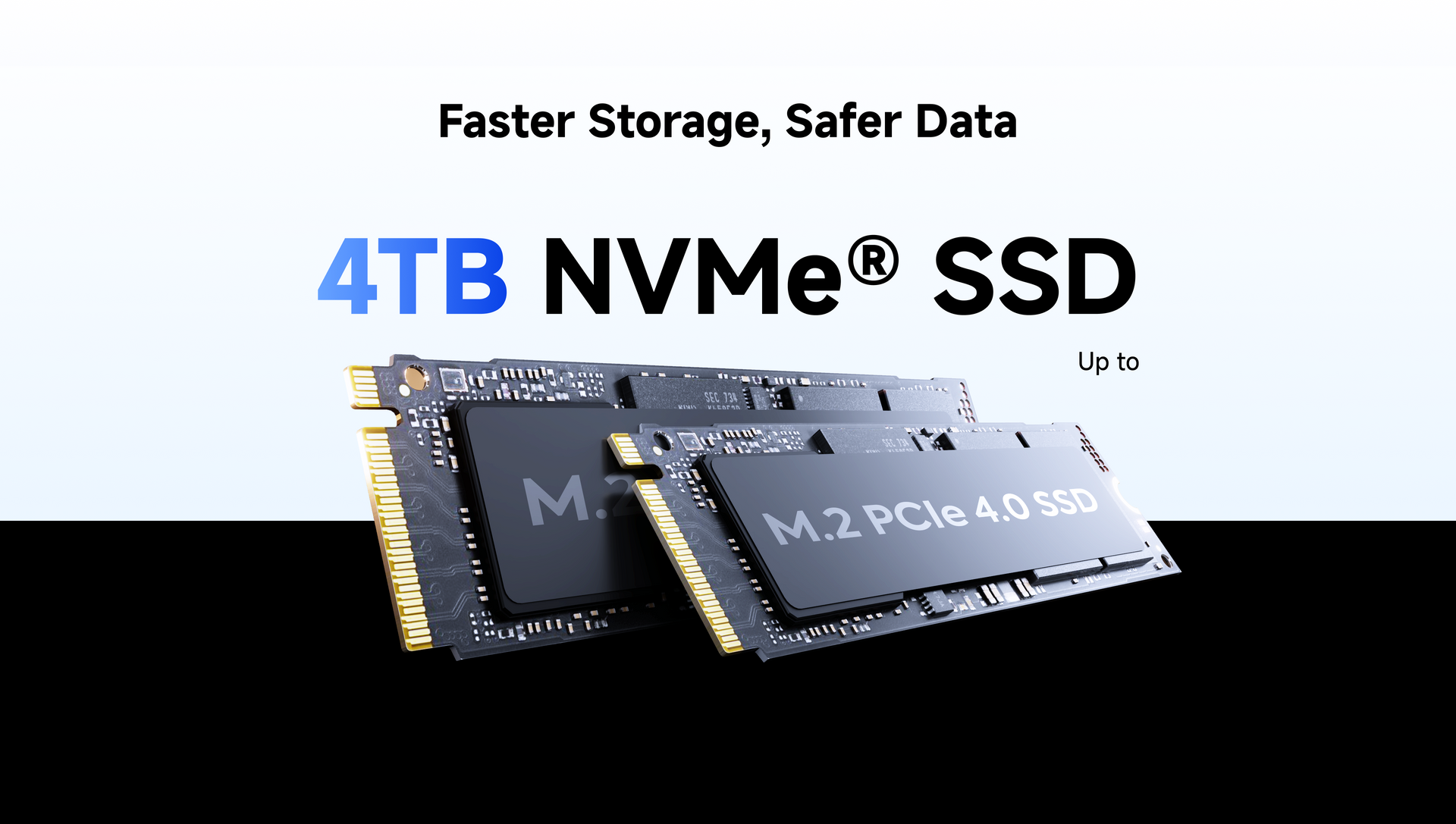

- Dual PCIe 4.0 SSD | Supports RAID 0 / RAID 1
- 2.5G Ethernet port & WIFI 7& BT 5.4
Payment Methods:
Trusted Delivery:
Master Every Scenario
Smart Office Flagship Efficiency
Equipped with flagship AI performance and quad-display output, it handles local AI deployment, data processing, and remote collaboration with ease. The built-in sound card with noise reduction ensures smooth and professional video conferencing.
Desktop Aesthetics Pro-Level Performance
Combining sleek metal aesthetics with flagship performance, it supports high-speed DDR5, RAID, and GPU expansion — ideal for virtual machines, Docker, and AI workflows on your desk.
Broadcast-Ready Smooth & Professional
With an independent sound card and support for USB audio, it delivers exceptional sound quality. Quad-display output and WiFi 7 + 2.5G Ethernet ensure smooth, high-quality streaming and control.
Compact Build Epic Gameplay
Expand with an external GPU and unleash 65W of power to play AAA and ray-traced games smoothly. Fast memory and SSDs ensure quick loading, while immersive audio and multi-display support take your gaming to the next level.

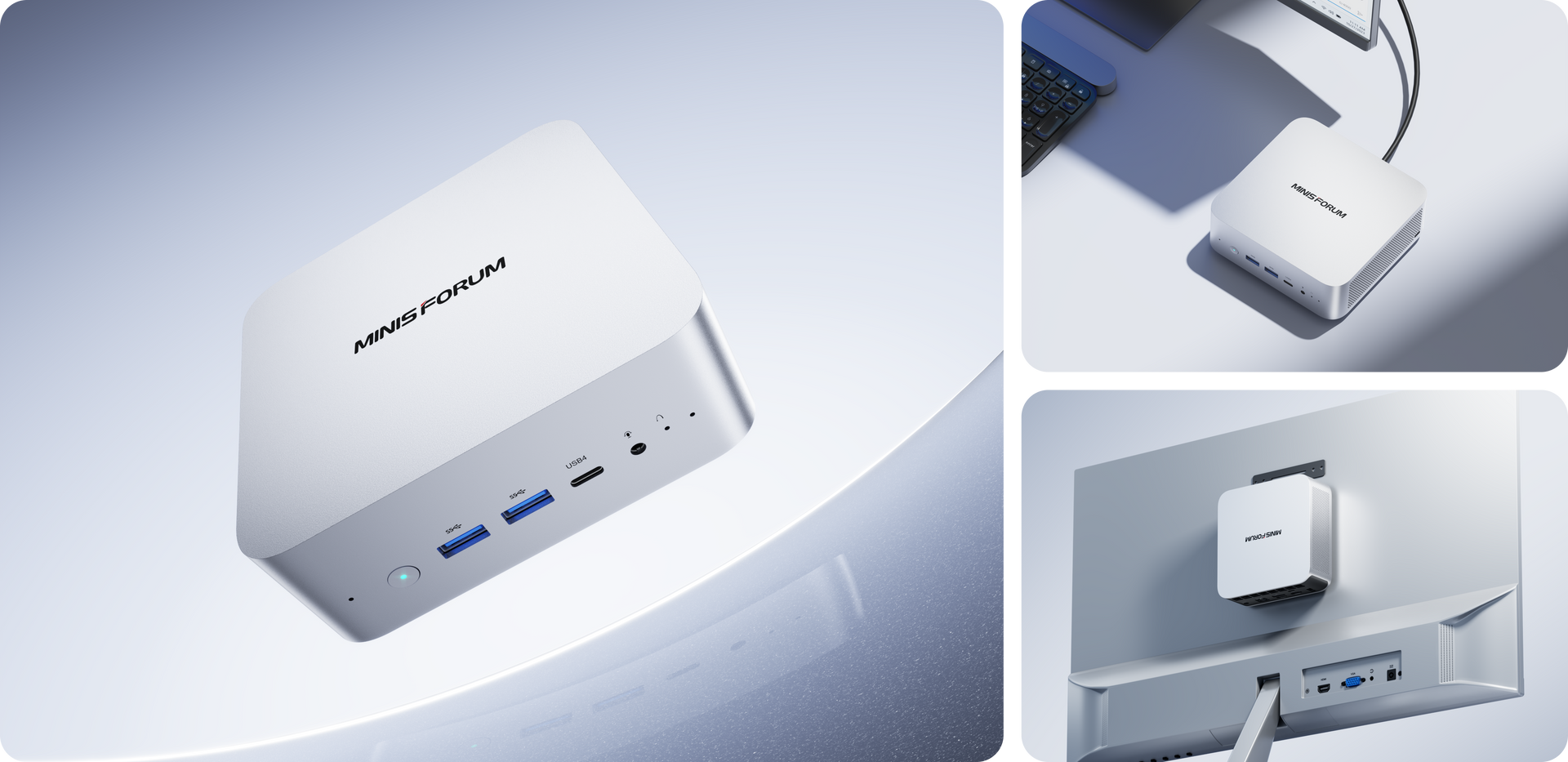

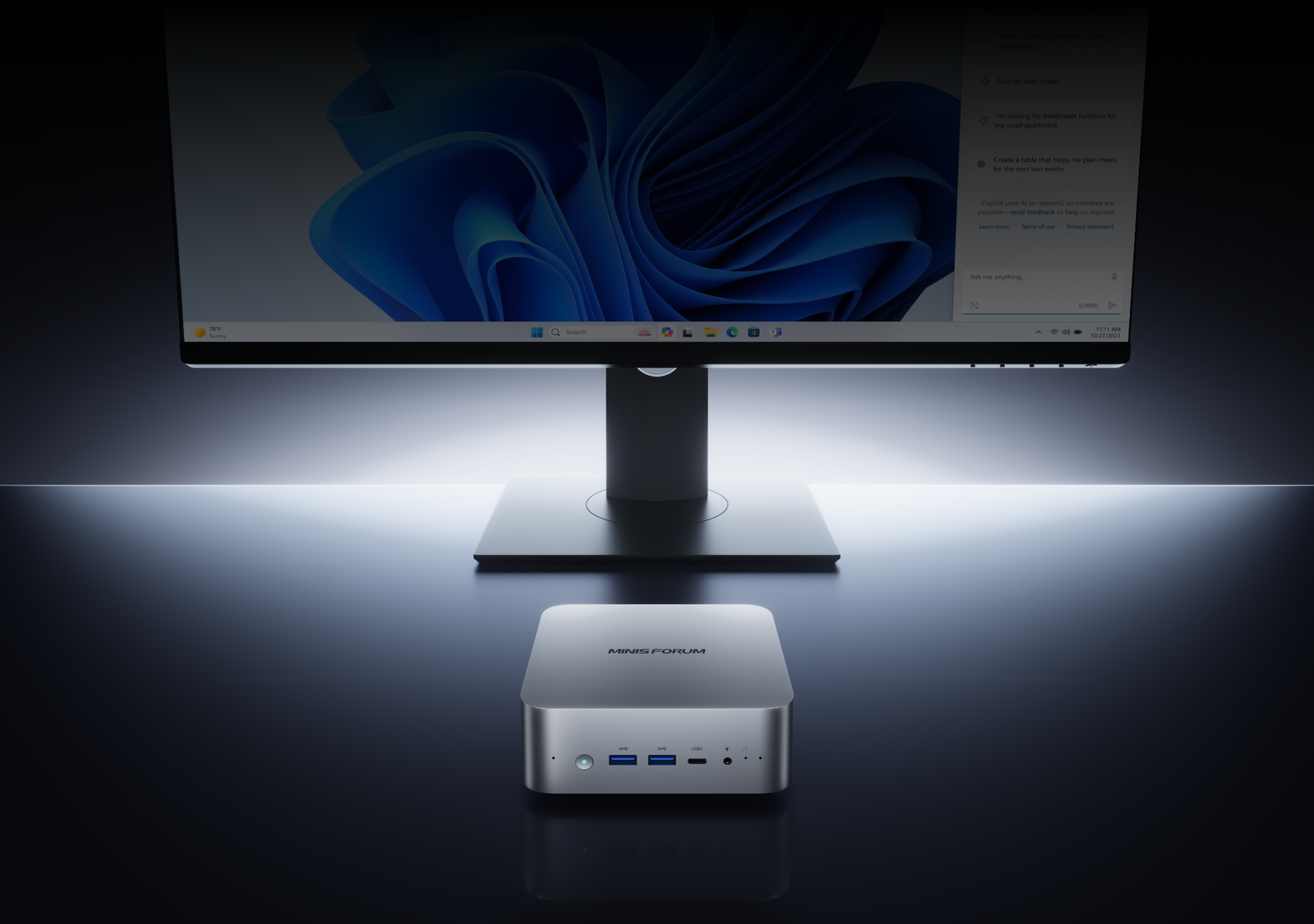

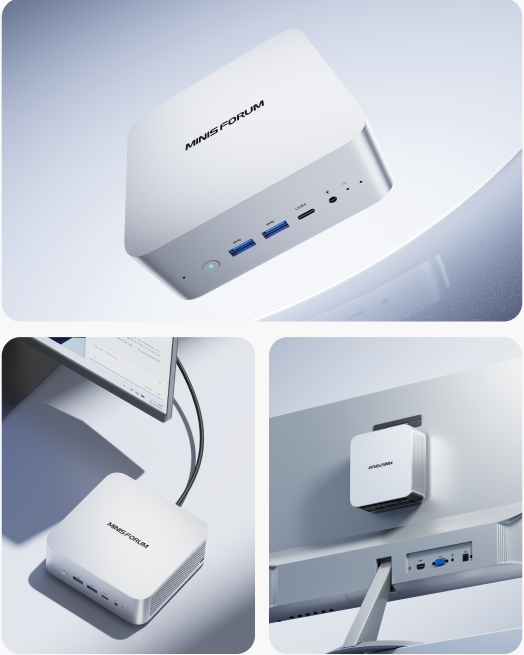

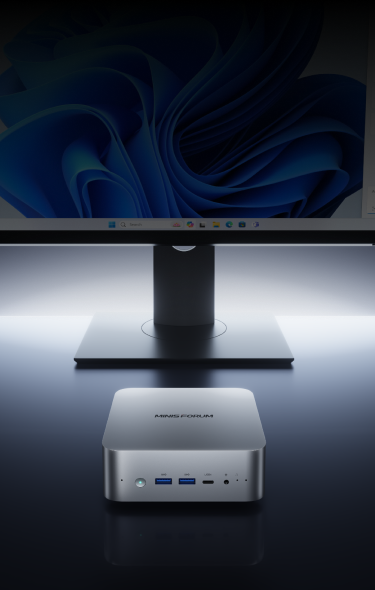

Lightweight Alloy
Seamless Elegance
Crafted from aerospace-grade aluminum with anodized unibody design. Smooth to
the touch, supports both wall-mount and flat placement for any workspace.
Lightweight Alloy
Seamless Elegance
Crafted from aerospace-grade aluminum with anodized unibody design. Smooth to
the touch, supports both wall-mount and flat placement for any workspace.

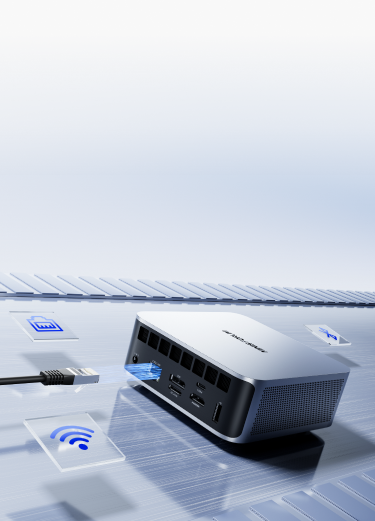

Fast, Stable
Always Connected

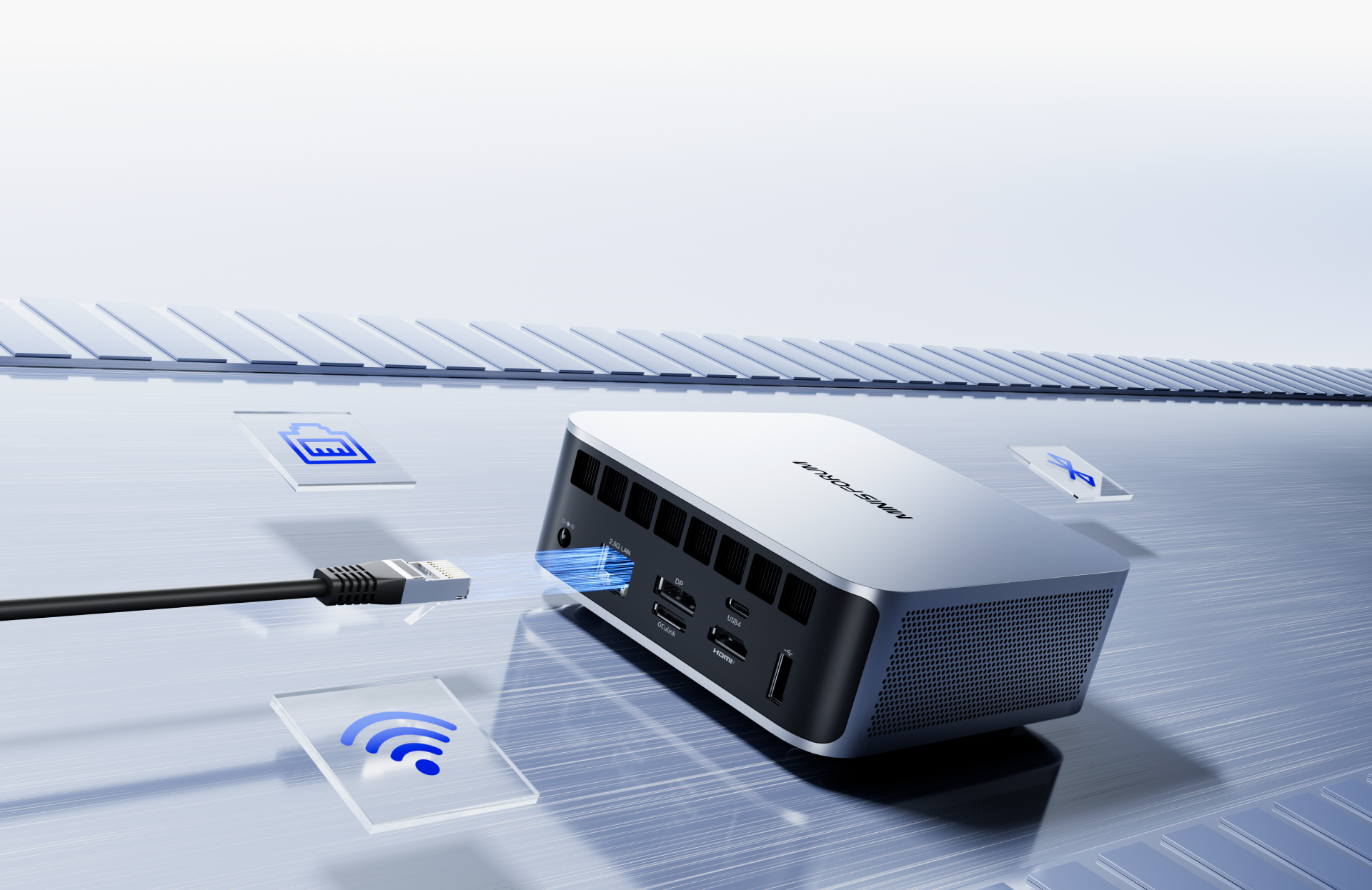

Equipped with a 2.5G Ethernet port offering peak speeds up to 2.5Gbps, it effortlessly handles high-definition video streaming and large file transfers. WiFi 7 (5.8Gbps) and Bluetooth 5.4 deliver ultra-fast wireless connectivity for every task.
Fast, Stable
Always Connected
Equipped with a 2.5G Ethernet port offering peak speeds up to 2.5Gbps, it effortlessly handles high-definition video streaming and large file transfers. WiFi 7 (5.8Gbps) and Bluetooth 5.4 deliver ultra-fast wireless connectivity for every task.

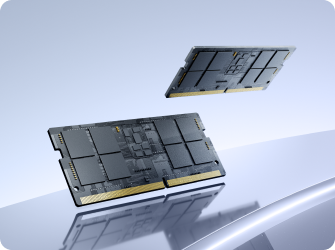

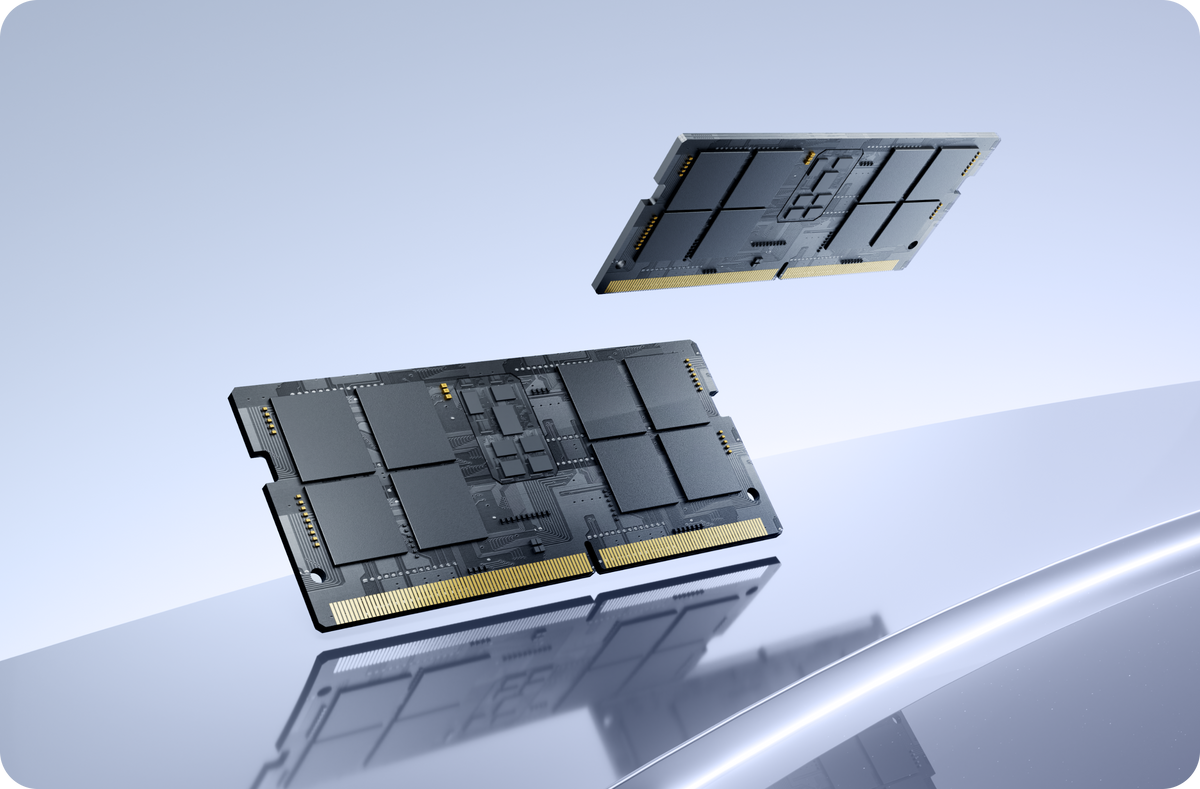

Effortless Multitasking with High Speed Memory
Dual-channel DDR5 memory up to 6400MHz, expandable to 128GB for smooth multitasking and fast performance.
128GB
Max Support
6400Mhz
Dual DDR5 channels
Effortless Multitasking with High Speed Memory
Dual-channel DDR5 memory up to 6400MHz, expandable to 128GB for smooth multitasking and fast performance.
128GB
Max Support
6400Mhz
Dual DDR5 channels

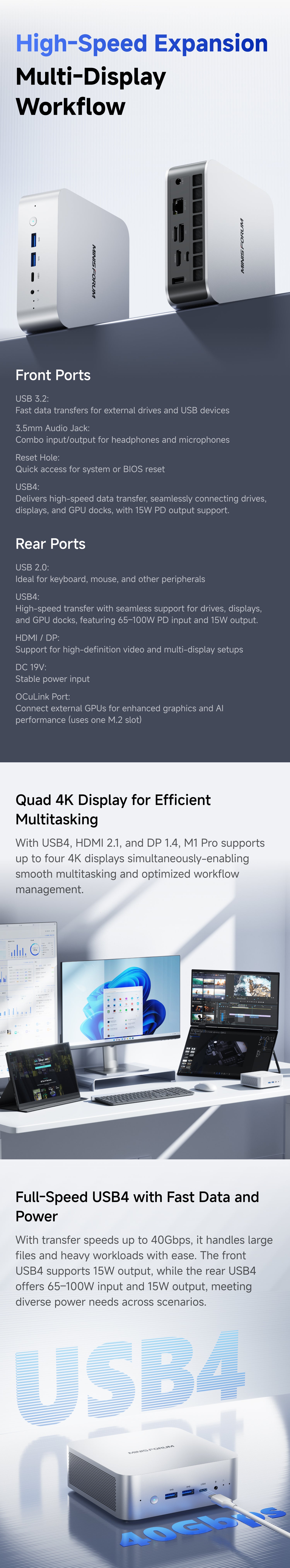

High-Speed Expansion
Multi-Display Workflow

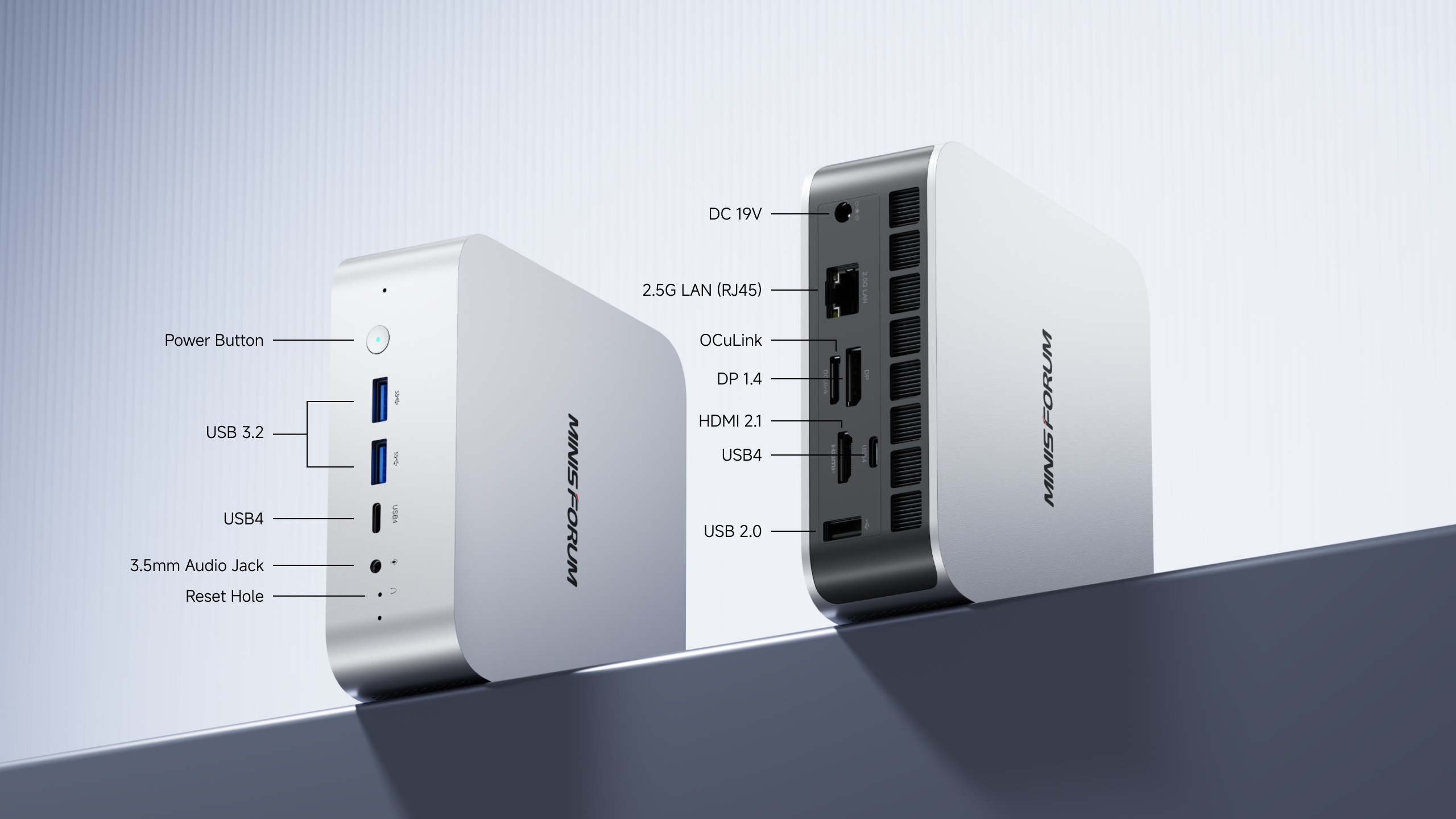

Versatile High-Speed Ports for Unlimited Possibilities
Equipped with full-featured USB4, HDMI, DP, OCuLink and more, the front and rear ports deliver fast data, flexible expansion, and stable power-ready for work, creation, AI, and beyond.
Quad 4K Display for Efficient Multitasking
With USB4, HDMI 2.1, and DP 1.4, M1 Pro supports up to four 4K displays simultaneously-enabling smooth multitasking and optimized workflow management.

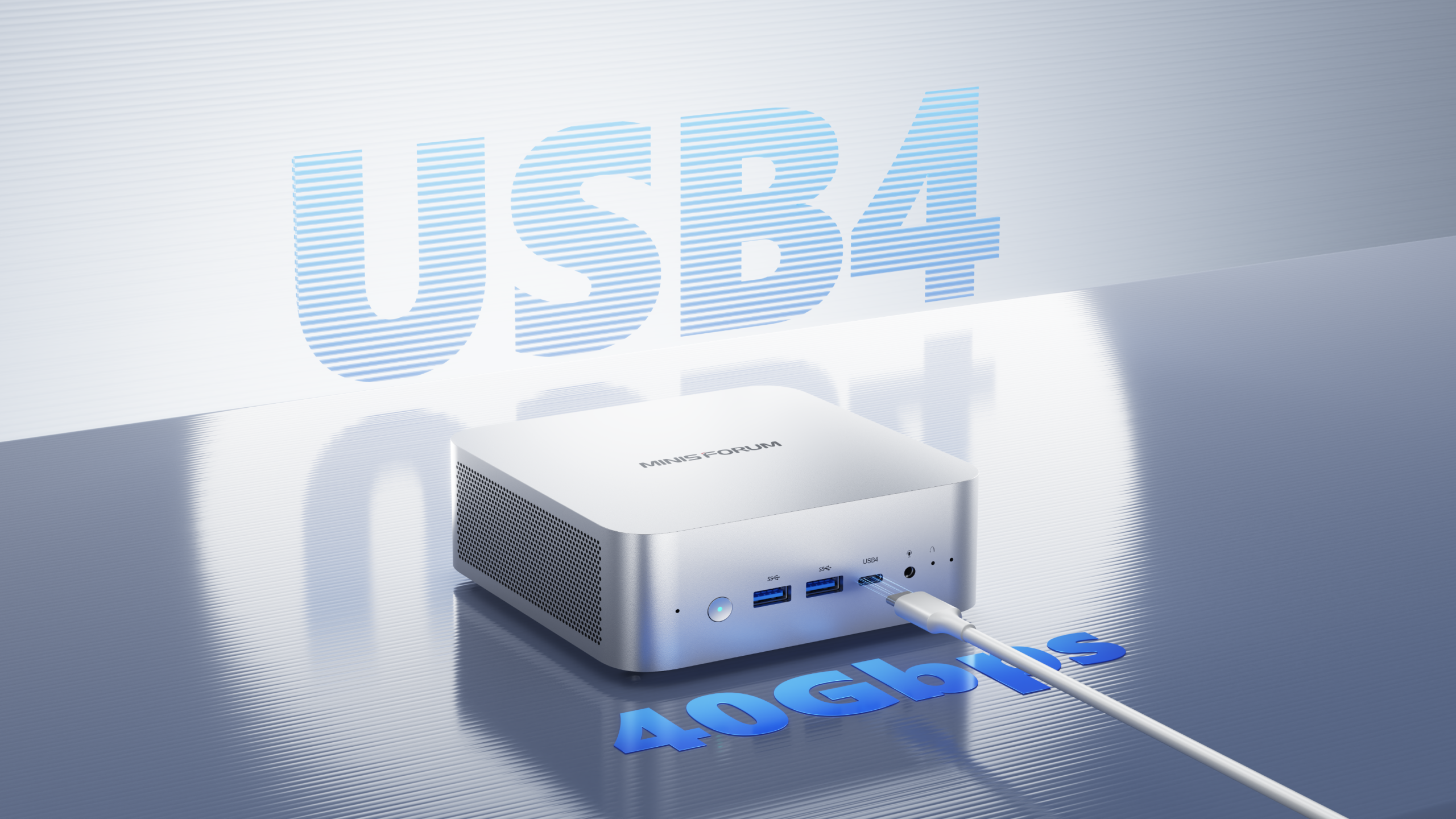

Full-Speed USB4 with Fast Data and Power
With transfer speeds up to 40Gbps, it handles large files and heavy workloads with ease. The front USB4 supports 15W output, while the rear USB4 offers 65–100W input and 15W output, meeting diverse power needs across scenarios.

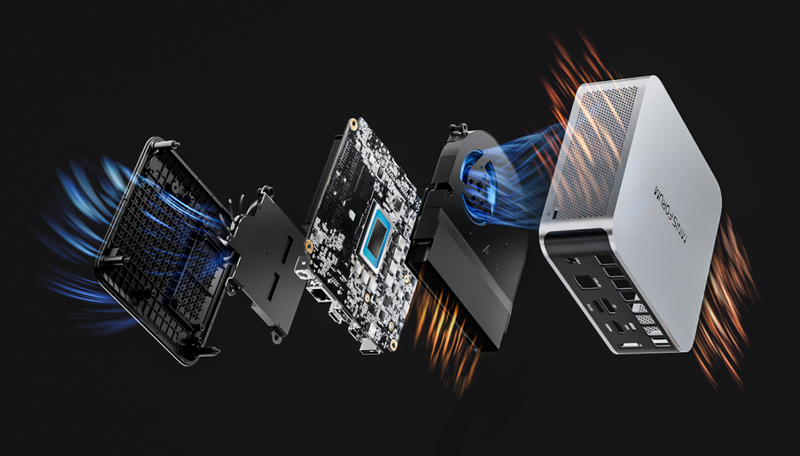

Stay Cool, Perform Better

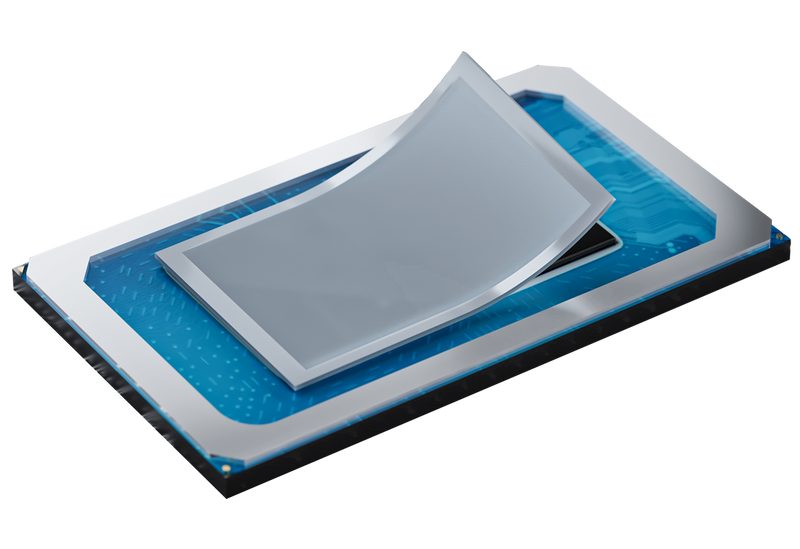

Phase-change Heat Dissipation
Built with high-efficiency phase-change material and dual pure copper heat pipes, M1 Pro quickly dissipates heat under 65W TDP loads.

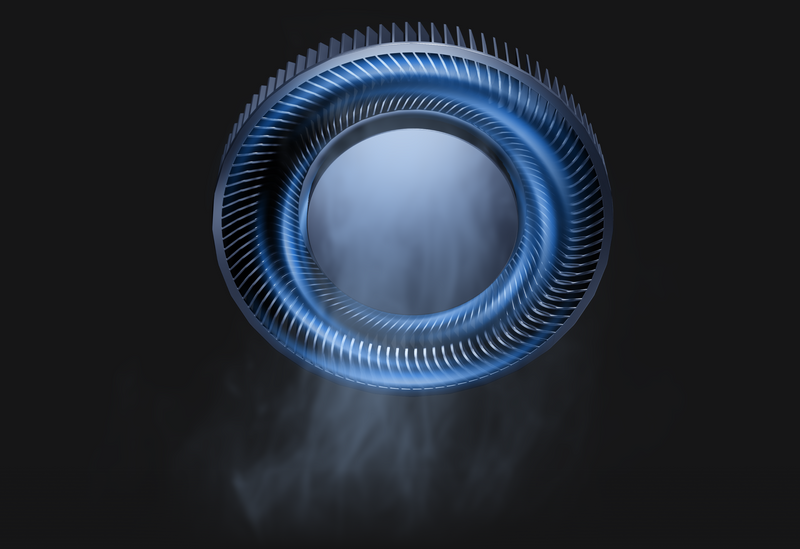

Large Diameter Silent Fan
The dual-fan system with large low-noise blades ensures effective cooling for the CPU, memory, and storage.

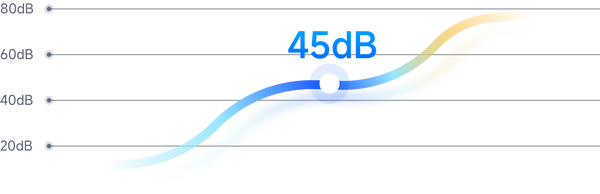

Full Load Decibels
With an idle temperature of 47°C, full-load temperature under 86°C, and noise levels below 45dB, it strikes the perfect balance between quiet operation and peak performance.
Help is always at hand
Crystal-Clear Audio with Flexible Expansion
Built-in sound card with smart noise reduction ensures clear voice in meetings.
Supports external USB audio devices for higher sound quality and allows quick switching between sources for seamless transitions across scenarios.
Crystal-Clear Audio with Flexible Expansion
Built-in sound card with smart noise reduction ensures clear voice in meetings.
Supports external USB audio devices for higher sound quality and allows quick switching between sources for seamless transitions across scenarios.
M1 Pro Specification
CPU
Processor
Total Cores
Total Threads
Frequency
Max Turbo Frequency
TDP (Performance Mode)
TDP (Balance Mode)

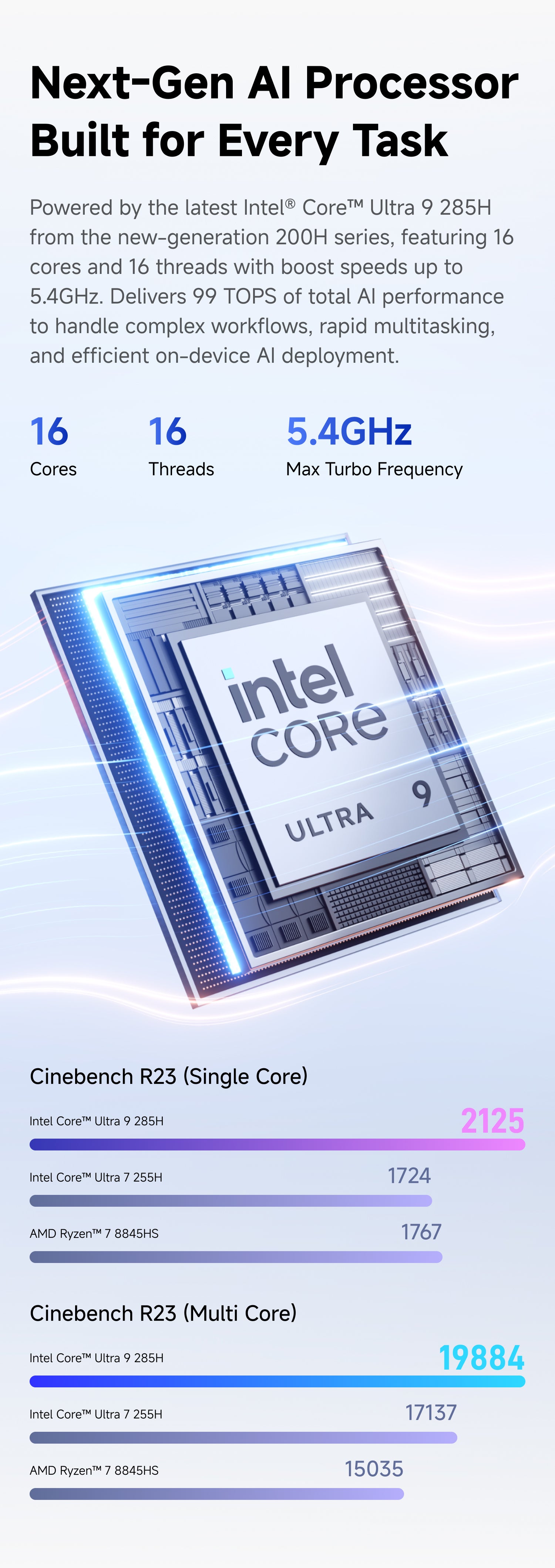

Intel® Core™ Ultra 9 Processor 285H
16 (6× P Core + 8× E Core + 2 LPE Core)
16
2.9 GHz
5.4 GHz
Fast: 65W / Slow: 65W
Fast: 65W / Slow: 45W
GPU
Graphics Cards
Intel® Arc™ 140T GPU
Memory
Memory Type
Optional SKU DDR Capacity
Max Speed Support
Max Capacity Support
DDR5 (SO-DIMM × 2)
0/32/64GB
6400MHz
128GB
Storage
Storage Type
Optional SKU SSD Capacity

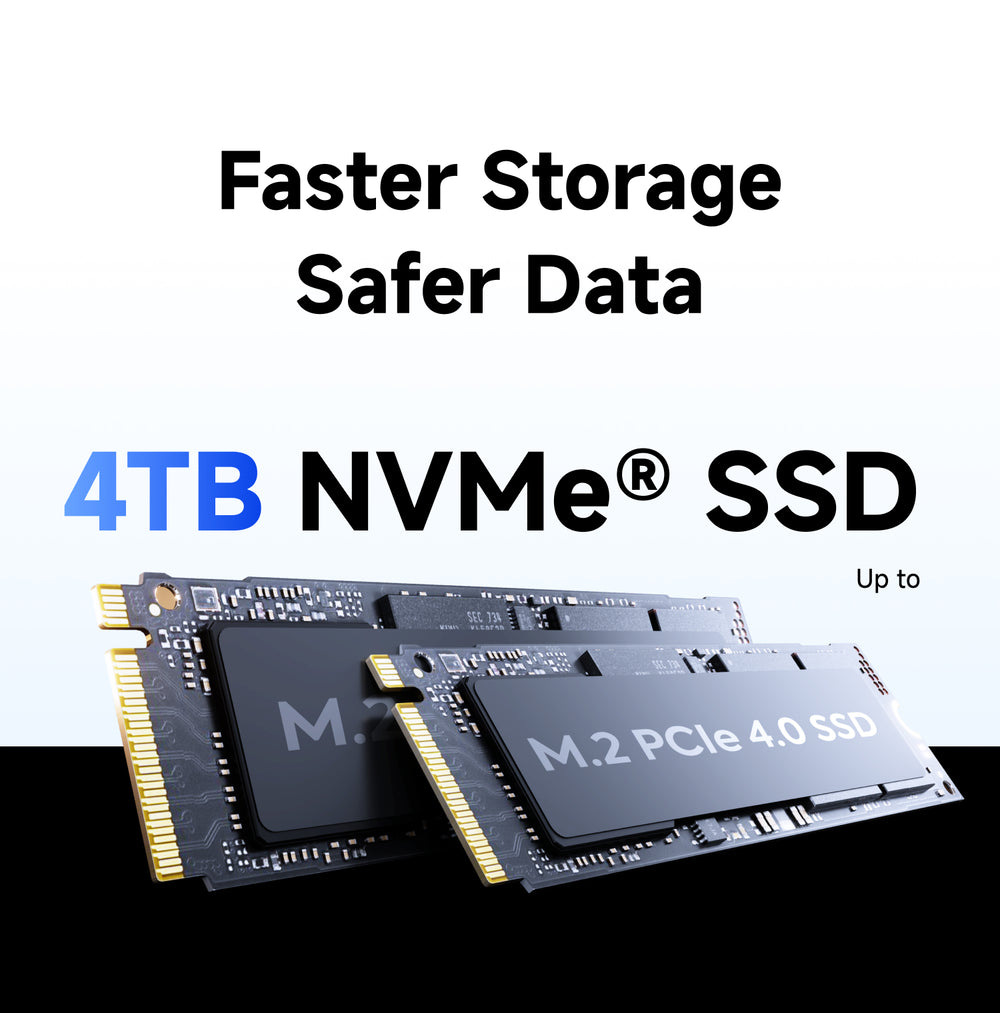

2×M.2 2280 NVME SSD Slot (up to 4TB) (PCIe4.0x4)
0/1TB/2TB
Cooling System
CPU Cooling Type
CPU Fan Type
MAX Speed (CPU Fan)
Noise (Performance Mode)
Noise (Balance Mode)
PCM
10512mm
3200RPM
40dB
30dB
Wireless Connectivity
M.2 2230 E-Key WiFi/BT Combo Module (PCIe Only)
Wi-Fi 7 (Module: BE200)
Bluetooth® 5.4
Ethernet Controller
2.5Gigabit LAN (RJ45) × 1
(Module: i226-v)
Video Output
HDMI 2.1 TMDS × 1
DP 1.4 × 1
USB4 × 2
Up to 4K@60Hz
Up to 4K@120Hz/4K@144Hz
Up to 8K@60Hz/4K@144Hz
Audio Output
HDMI × 1
3.5mm Combo Jack × 1
Speaker × 2
-
-
-
Audio Input
DMIC × 2
3.5mm Combo Jack × 1
-
-
I/O Ports

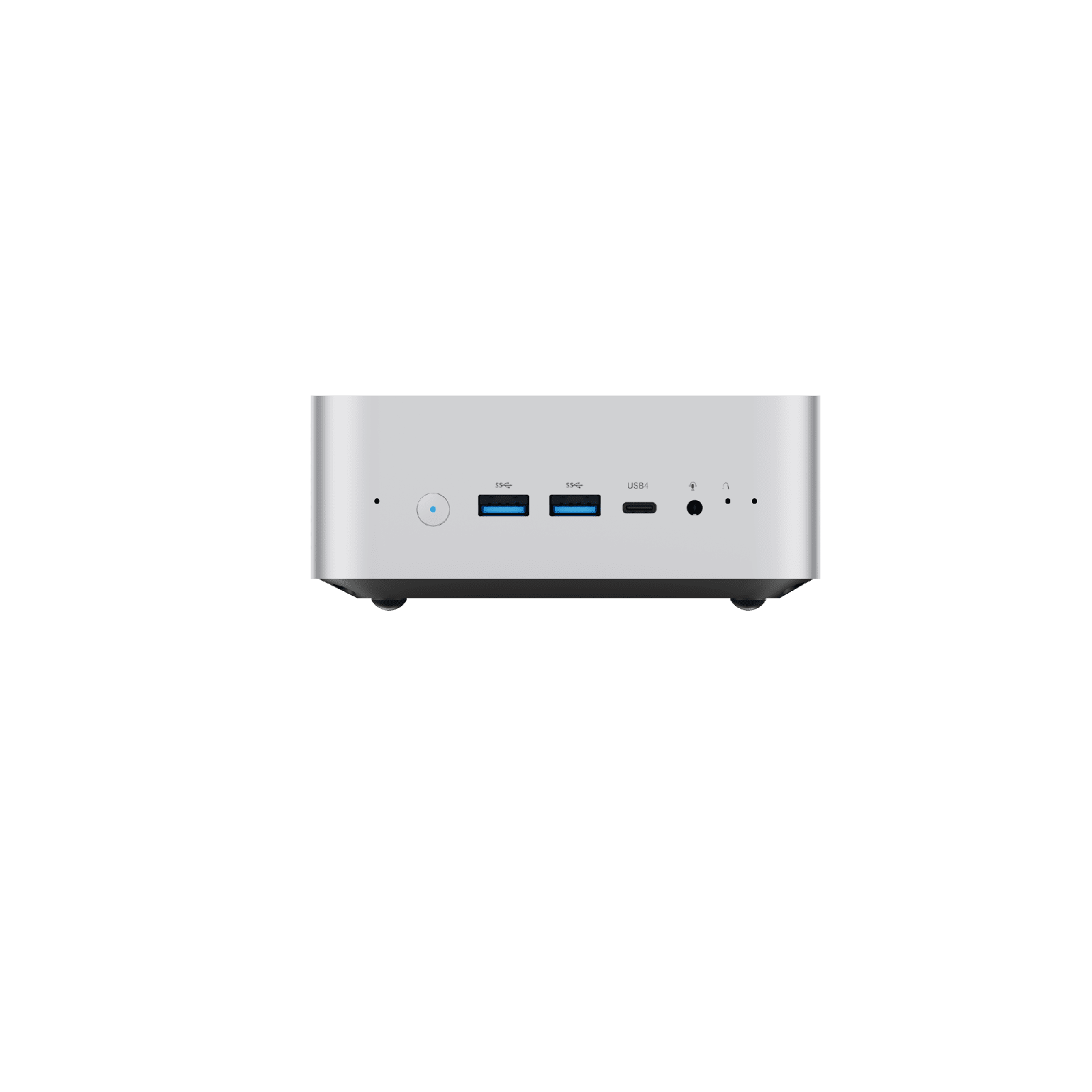

Front
Rear
USB Type A (USB 3.2 Gen2) × 2
3.5mm Combo Jack × 1
Reset Hole × 1
USB4 × 1 (Alt PD, 40Gbps, Alt PD Out 15W, In Front)
HDMI 2.1 × 1
DP 1.4 × 1
USB4 × 1 (Alt PD, 40Gbps, PD in 65-100W, PD out 15W)
2.5Gigabit LAN(RJ45) × 1
OCulink × 1
USB Type A (USB 2.0) × 1
DC-In Port × 1
Button/Hole
Power Button × 1
Reset Hole × 1
Other
-
-
-
VESA Mount
Support
-
Power Adapter
19V / 6.32A 120W
-
OS Support
Windows 11 Pro
-
Dimensions
128 × 126 × 52mm(LWH)
-
Weight
0.6Kg
-
