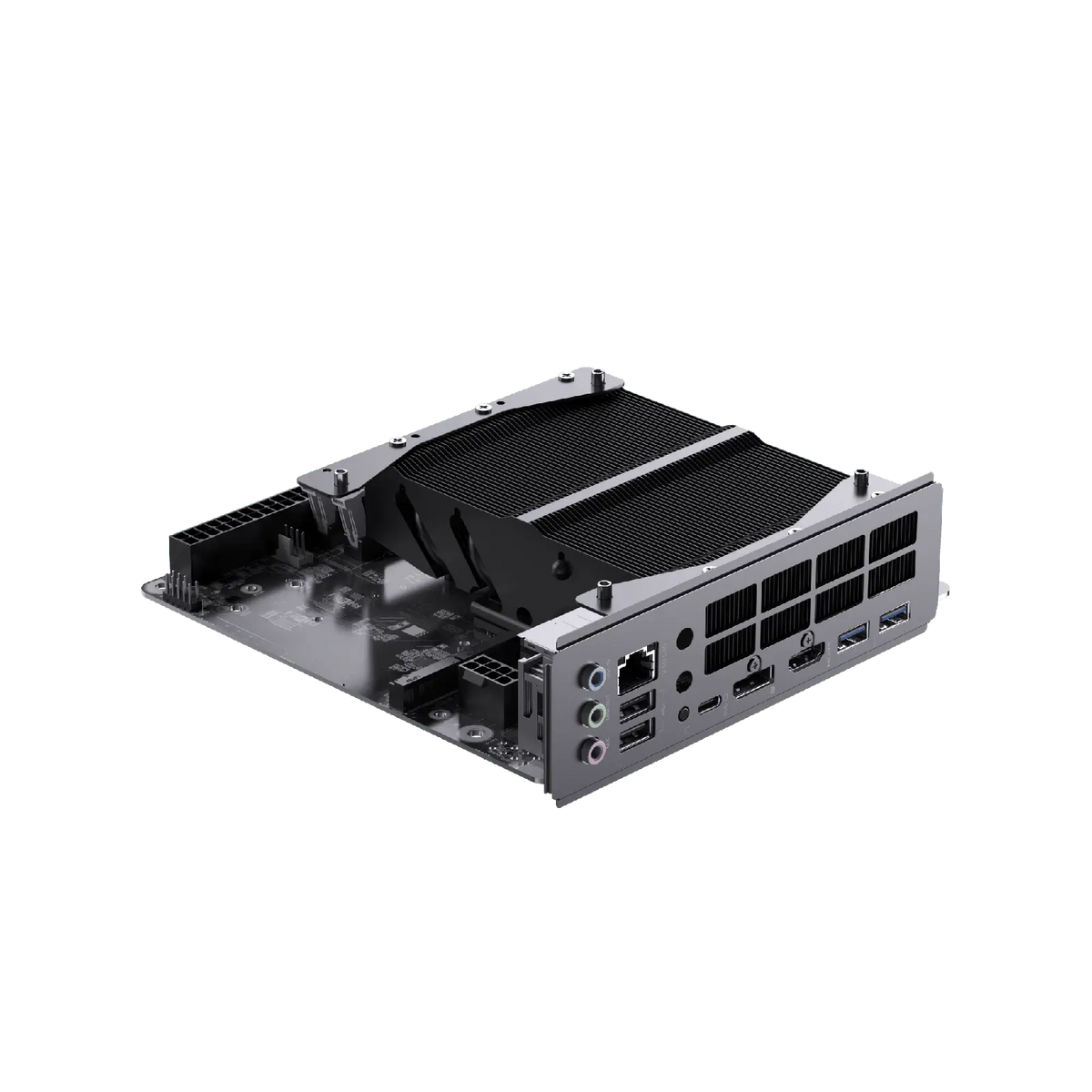

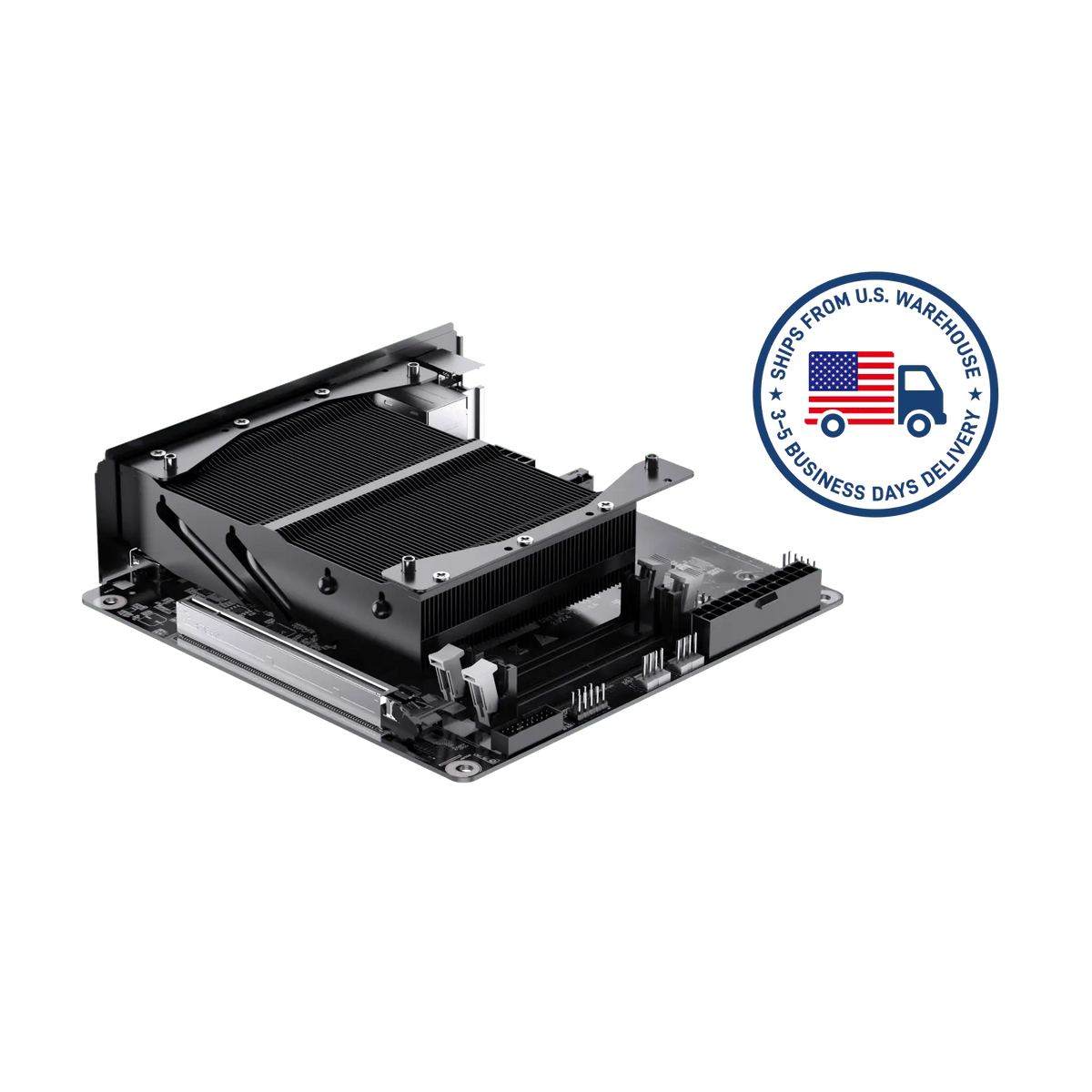

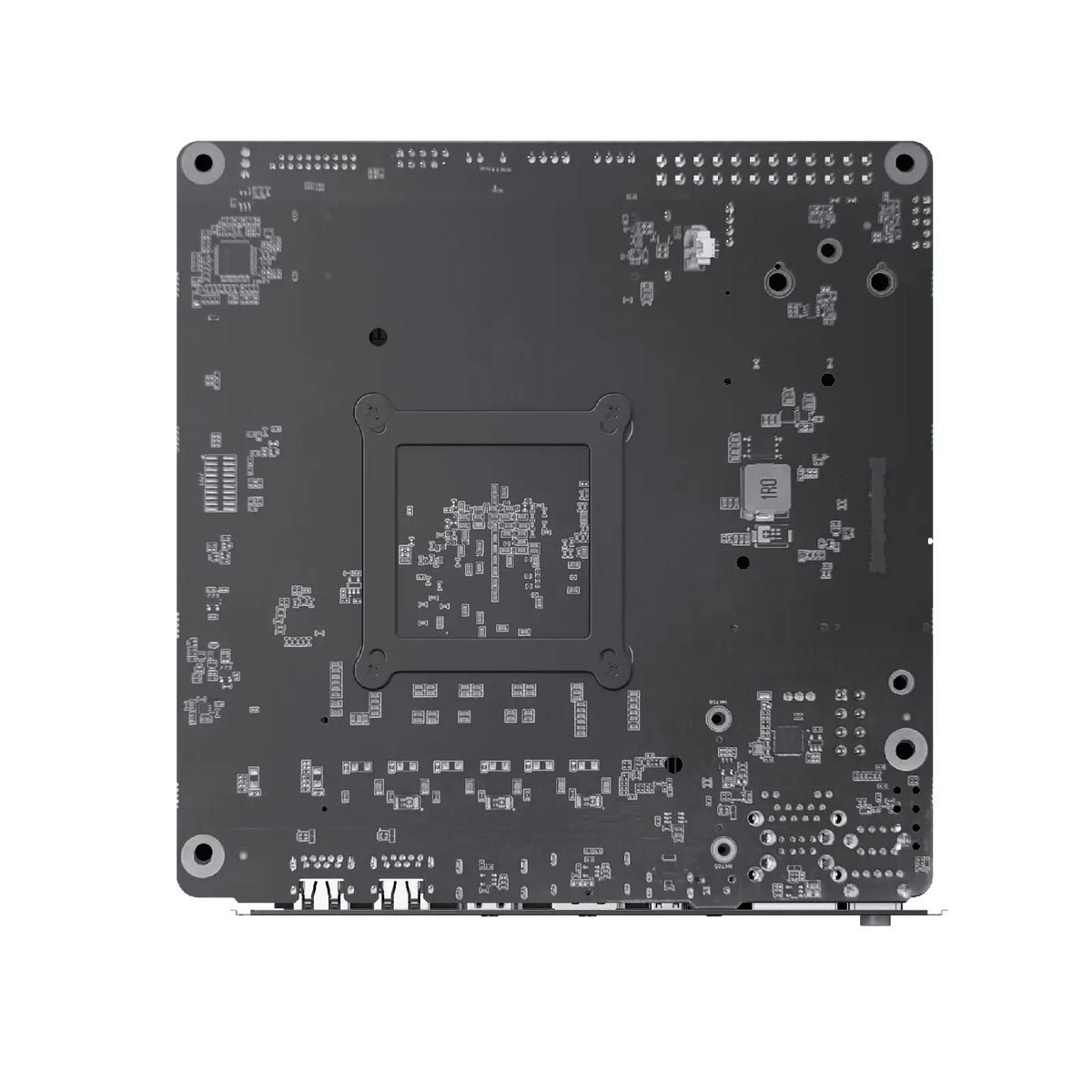

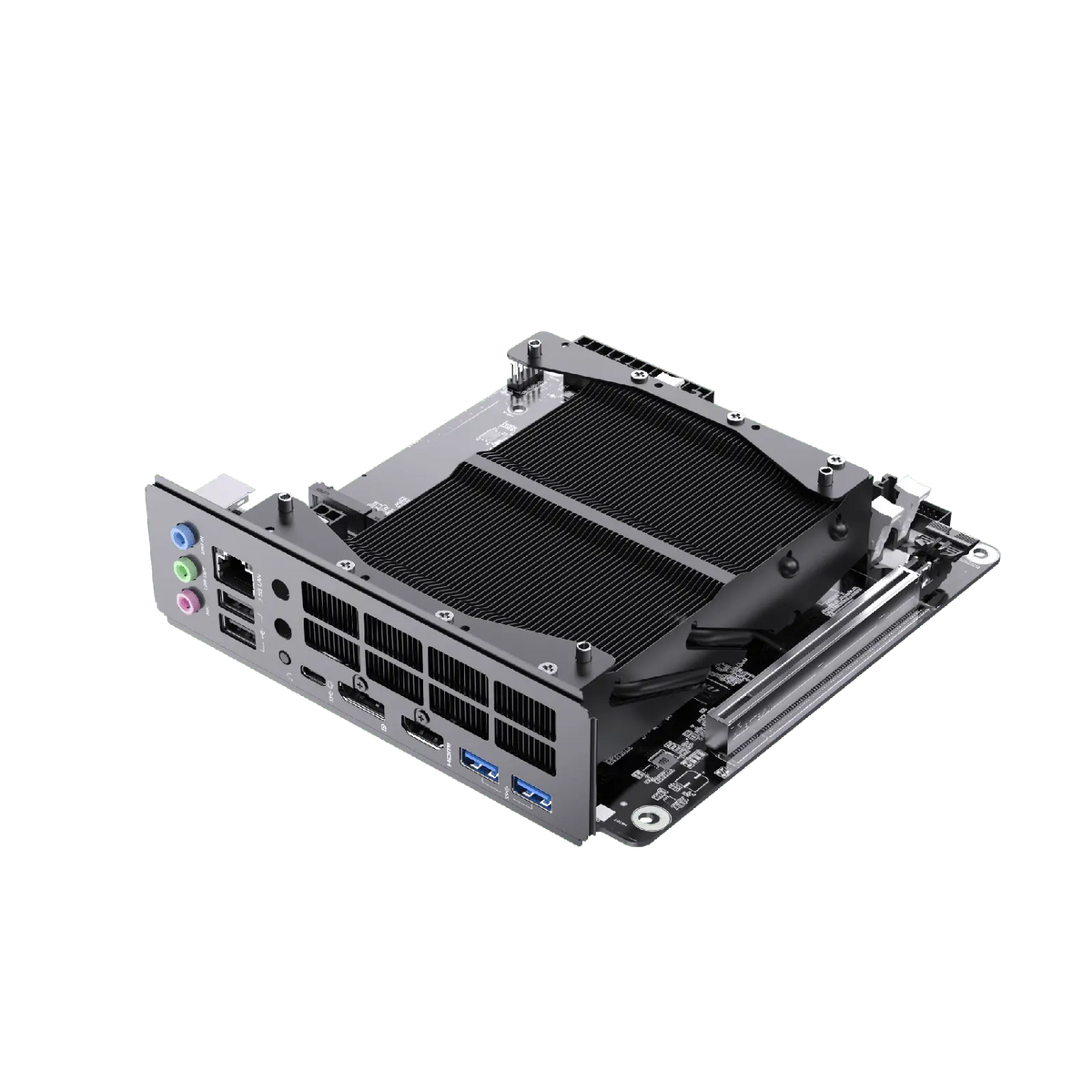

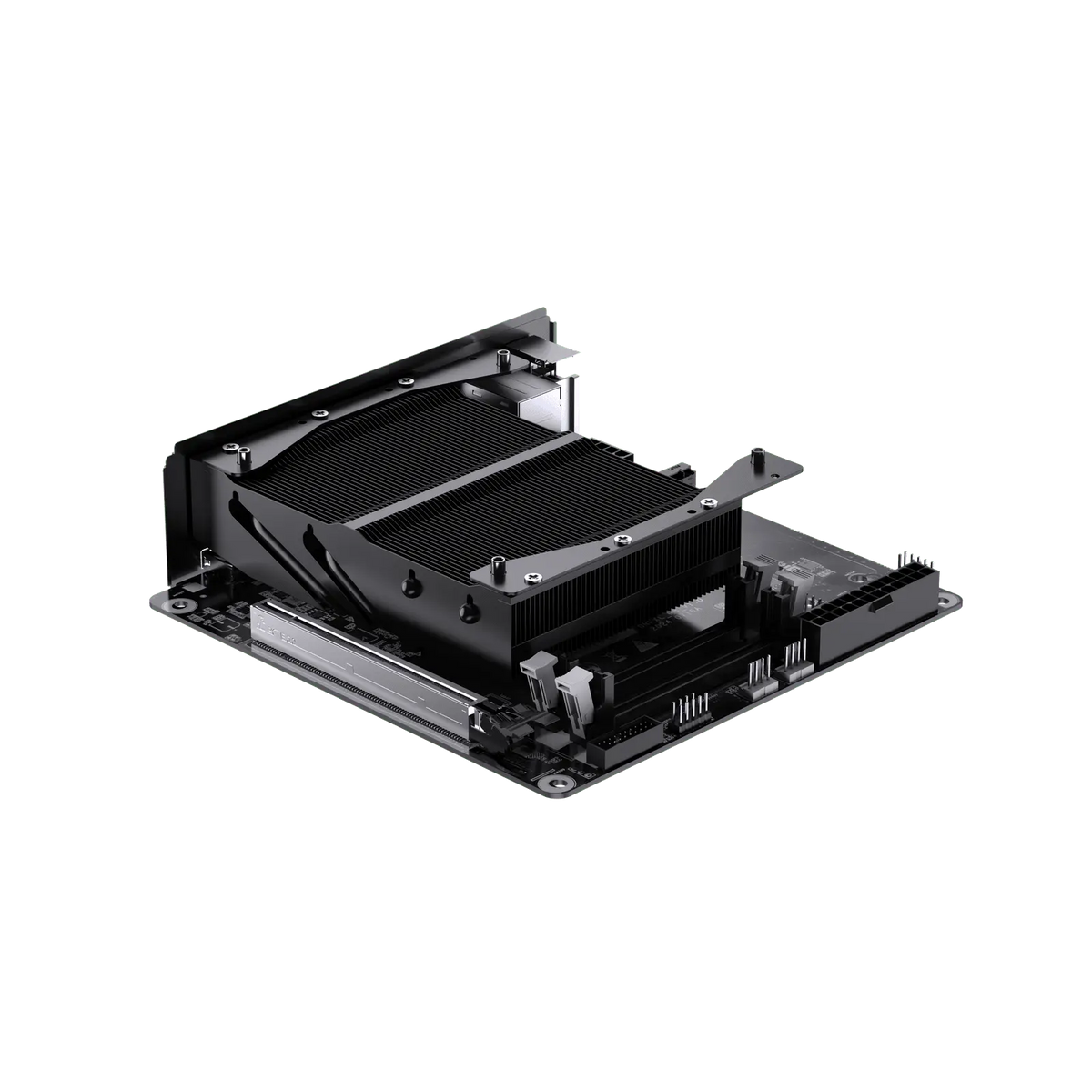

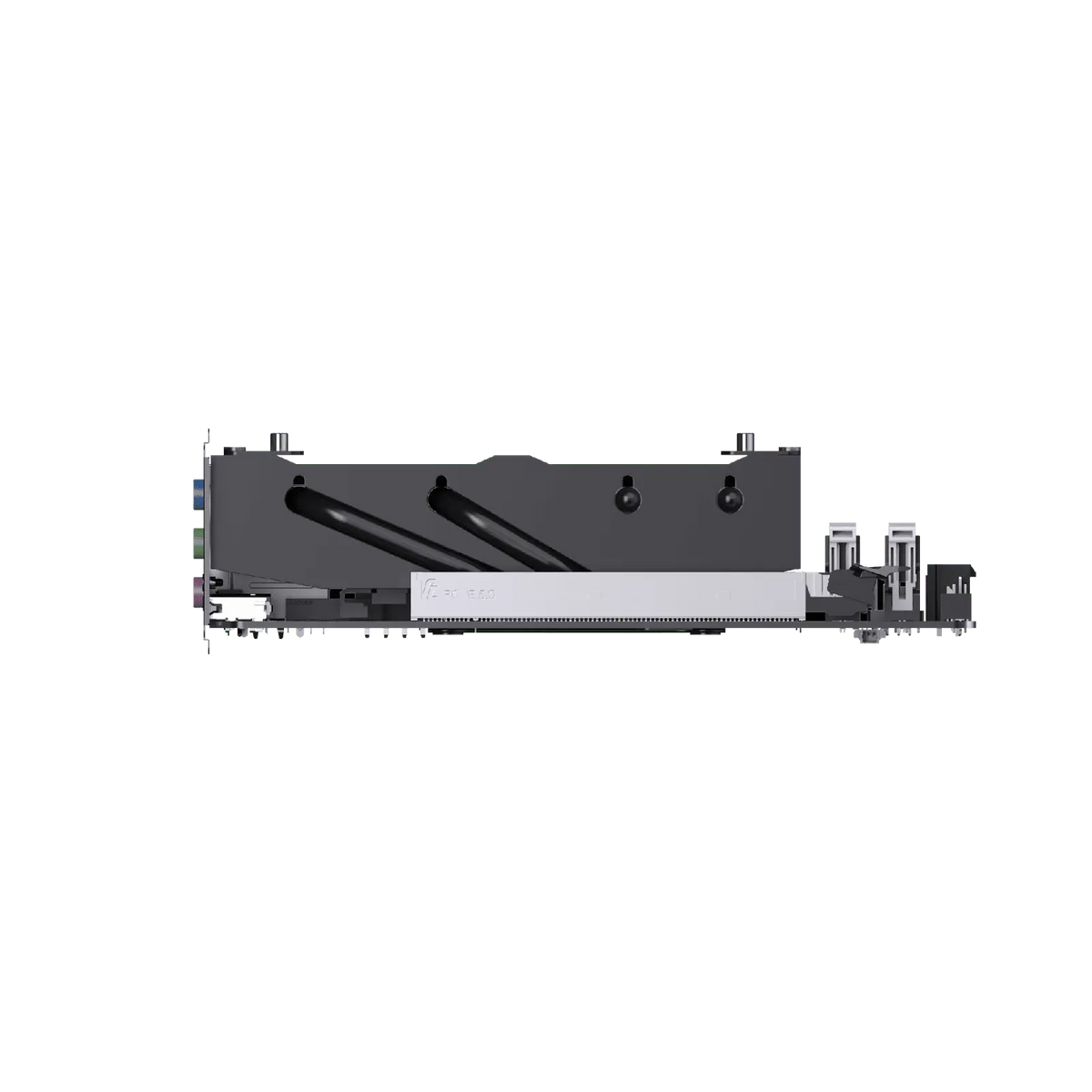

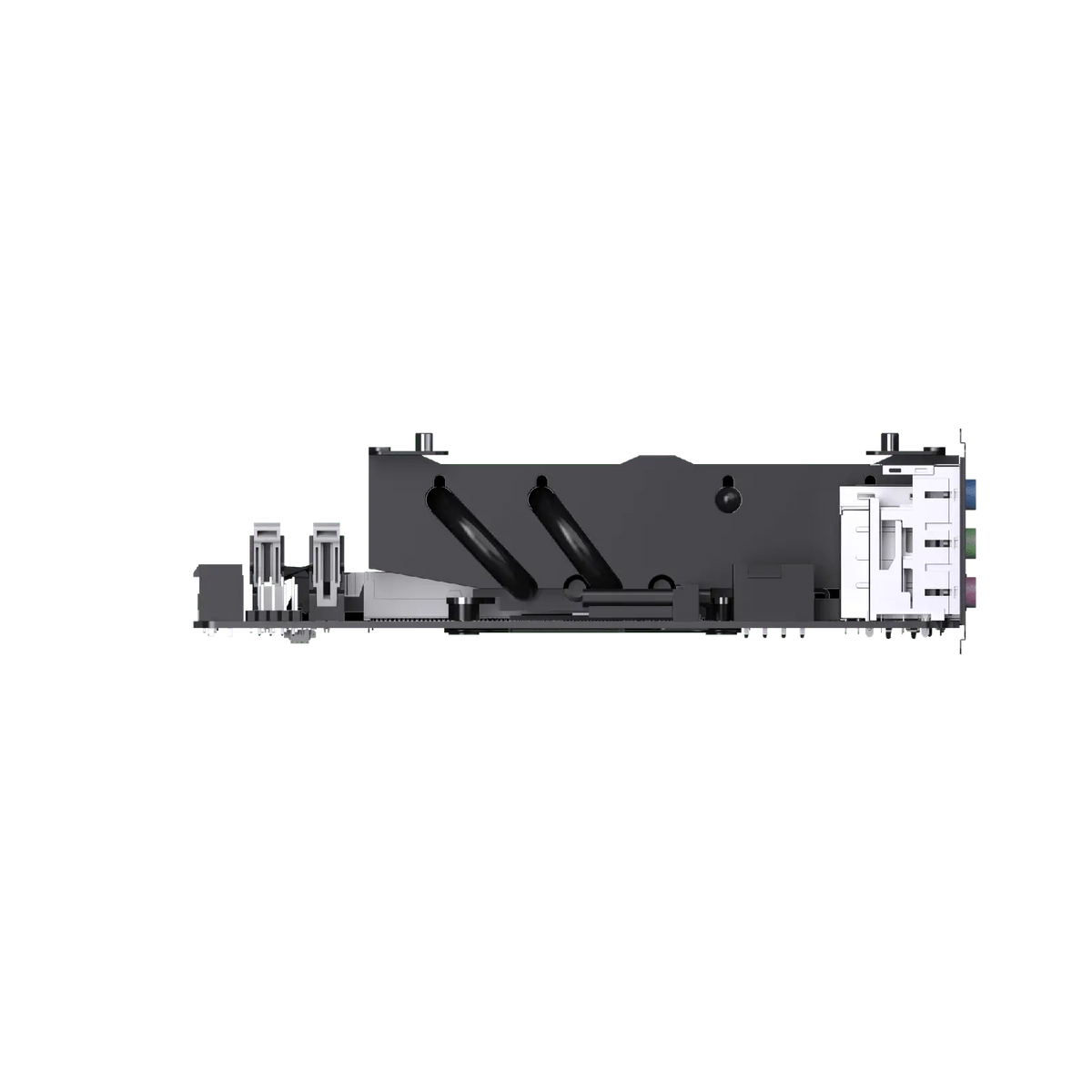

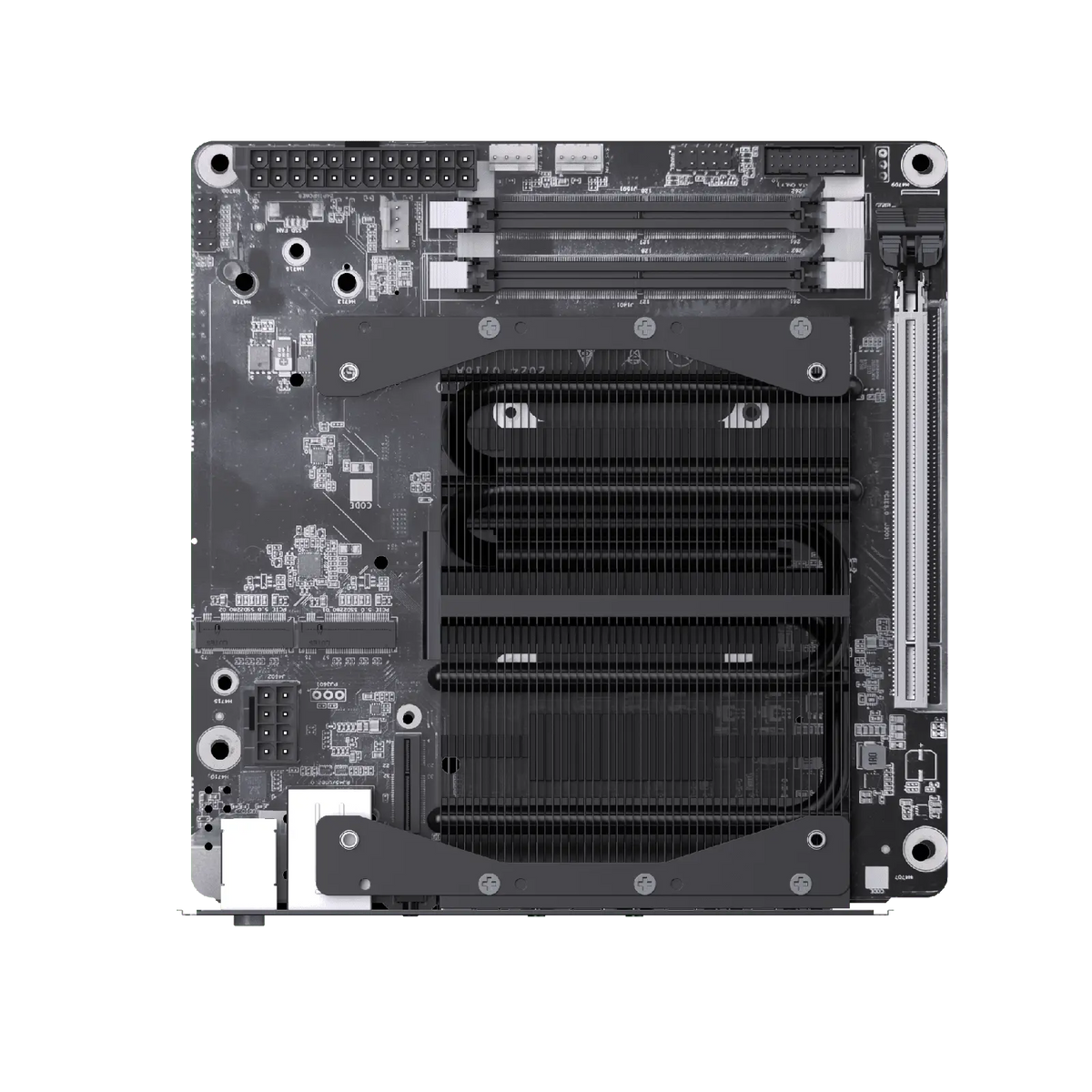

MINISFORUM BD895i SE Motherboard
- AMD Ryzen™ 9 8945HX, 16 Cores/32 Threads
- Dual DDR5-5200 MHz | Up to 96GB
- 2×M.2 2280 NVME SSD Slot (up to 4TB)(PCIe 4.0 × 4)
- PCle5.0 × 16 Expansion Slot
- Support Triple-screen Display | 8K@60Hz
30-Day Free Return
Lifetime Technical Support
Duty-Free for US & Canada
2+1 Warranty Protection
Benefits enjoyed by MINISFORUM customers
30-Day Free Return
›
Return to local warehouse
Lifetime Technical Support
›
Technical support for the life of the product.
Duty-Free for US & Canada
›
Tax/duty included for eligible regions
2+1 Warranty Protection
›
2-year factory warranty, plus optional 3-year accidental coverage extension
（Powered by Seel and Xcotton).
Power at Its Core
Powered by the

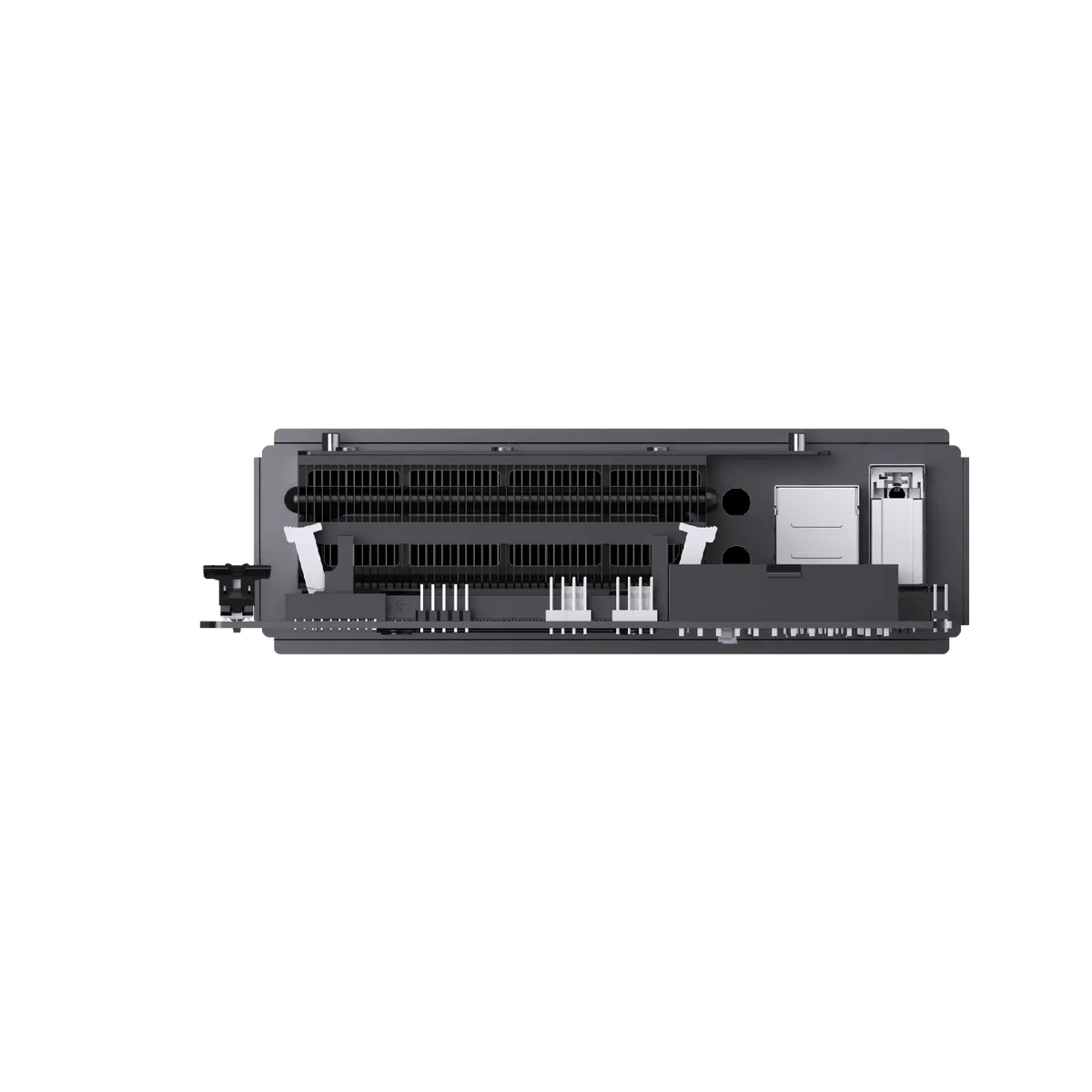

Expansion Freedom
2 X M.2 2280 PCIe 4.0 x4 SSD Slots
1x PCle5.0 x16 (Full-Speed Graphics Slot)

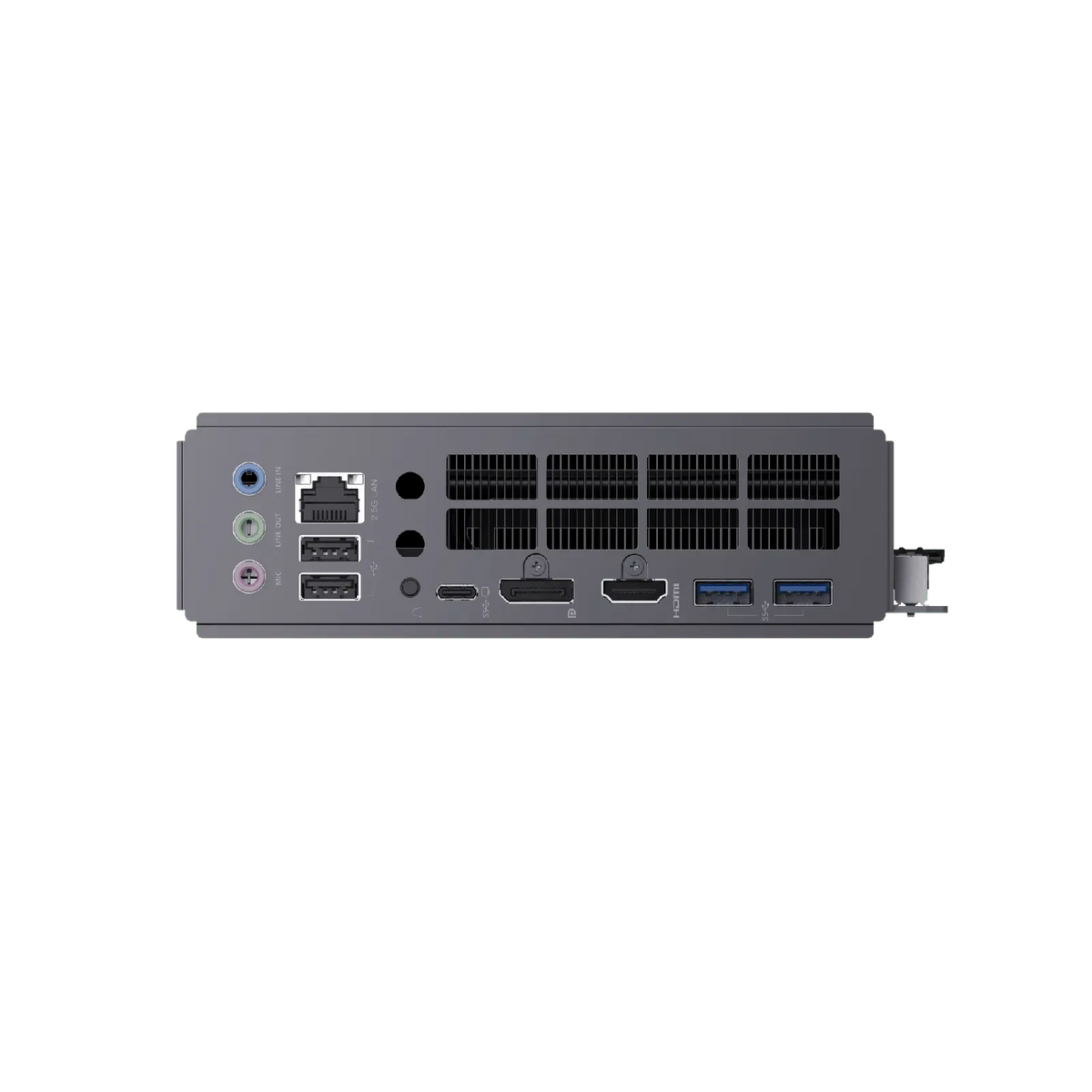

Rich Connectivity
Loaded with high-speed USB ports (including USB-C), dual video outputs
(HDMI 2.1 & DP 1.4), a 2.5G Ethernet jack, and multi-channel audio
Expand Your View
Supports simultaneous triple-screen display output
Supports up to
Power Starts Here
Revolutionize Your Creative Workflow
Ryzen 9 + Dedicated GPU: Smooth Creation for Design, Edit, Code
Alongside Gamers, Conquer Every World
BD895i SE Specification
- Processor: AMD Ryzen™ 9 8945HX
- Total Cores: 16
- Total Threads: 32
- Frequency: 2.5 GHz
- Max Turbo Frequency: 5.4 GHz
- TDP: 100W, 120W Max Turbo
- CPU Cooler height: 37mm(12cm fan not included)
Graphics Cards: AMD Radeon™ 610M
1×PCle 5.0×16 Connector
- Memory Type: DDR5 (SO-DIMM x 2)
- Max Speed Support: 5200MHz
- Max Capacity Support: 96GB
- Storage Type: 2xM.2 2280 NVME SSD Slot (up to 4TB)(PCle4.0x4)
- Optional SKU SSD Capacity: N/A
- M.2 2230 E-Key(PCle Only)
- 1×24-pin Main Power connector
- 1x8-pin +12V CPU Power connector
- 1x4-pin CPU Fan header
- 2 x 4-pin SYS Fan header
- 1×System Panel header
- 1xFront Panel Audio header (F_AUDIO)
- 1×USB 3.2 Gen1 header
- HDMI™ 2.1 FRL x 1 (Up to
- 8K@60Hz/4K@120Hz)
- DP 1.4 x 1 (Up to 8K@60Hz/4K@120Hz)
- 1 x USB-C (Up to 8K@60Hz/4K@120Hz)
- HDMI™ x1
- Line Out x1
- Line in x1
- Mic x1
- 2.5Gigabit LAN(RJ45) x1
- USB Type A(USB2.0) x2
- USB Type A(USB3.2 Gen1) x2
- USB Type C (USB3.2 Gen2)(Alt DP) x1
- HDMI2.1 x1
- DP1.4 x1
- Line in x1
- Line Out x1
- Mic x1
- CLR COMS x1
ATX Power(>200W)
Windows 11
170x170x1.6mm(LWH)
