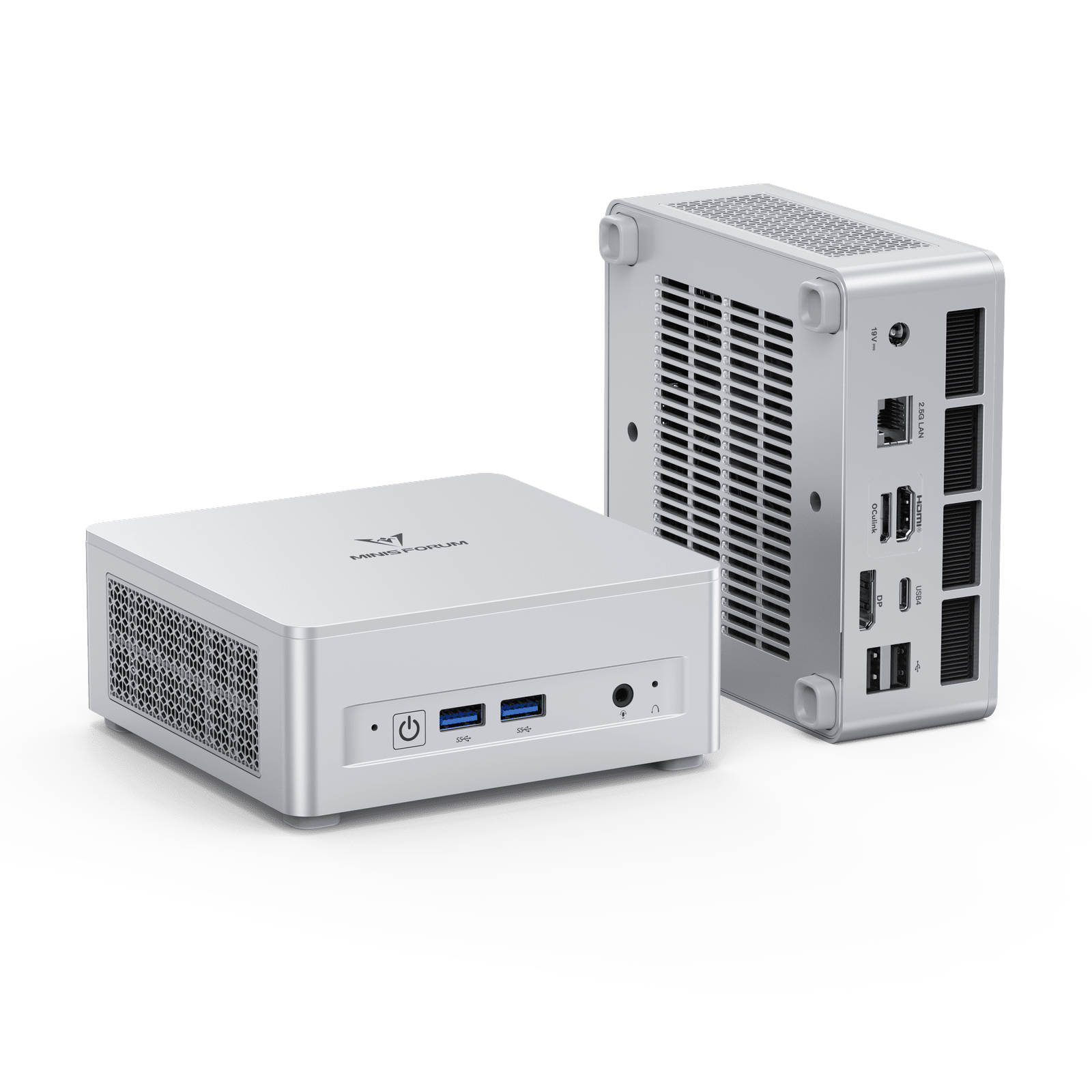

MINISFORUM UM760/870/880 Plus
For bulk discount inquiries, please contact us at elsa@minisforum.com

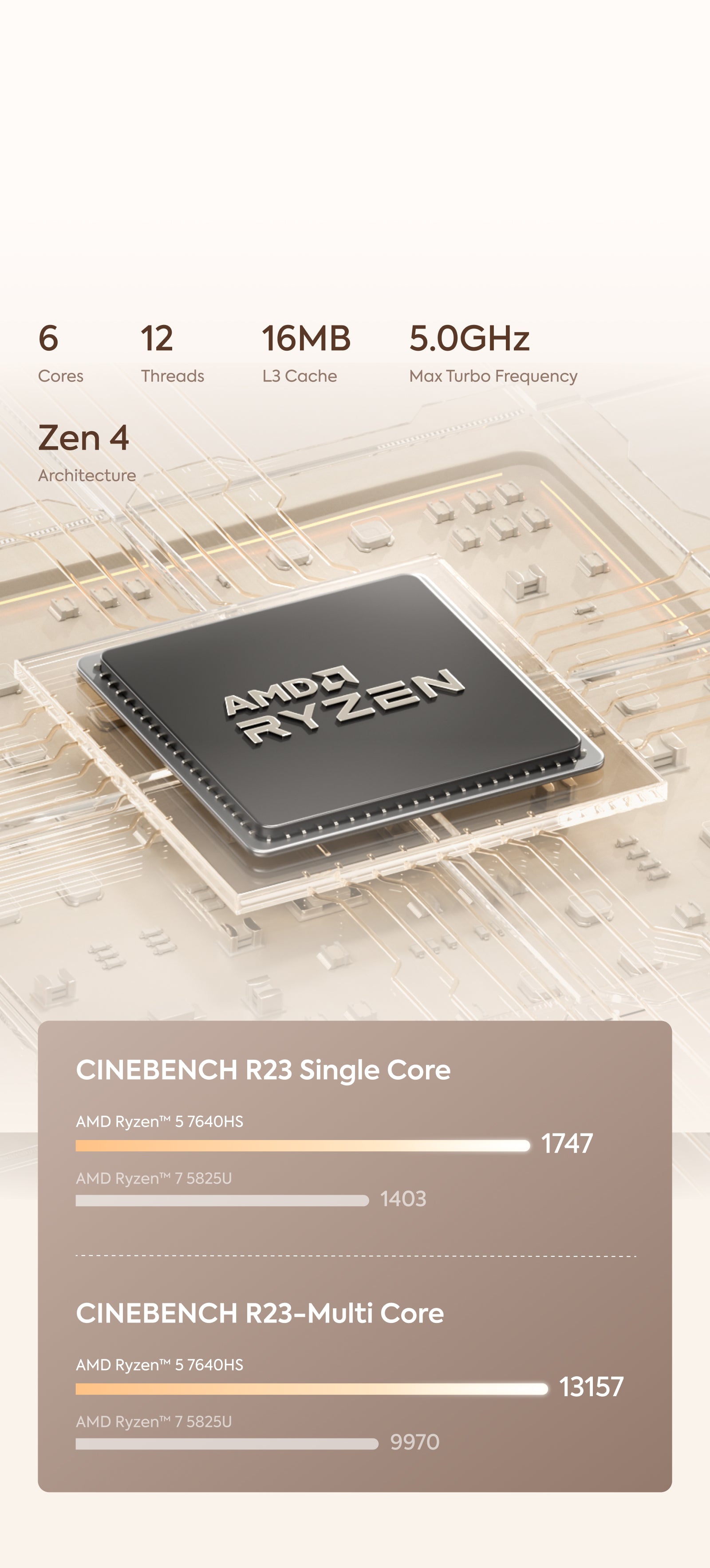

- AMD Ryzen™5 7640HS | AMD Radeon 760M
- AMD Ryzen™7 8745H | AMD Radeon 780M
- AMD Ryzen™ 7 8845HS | AMD Radeon 780M
- 2×M.2 2280 PCIe4.0 SSD | up to 4TB
- PD Support | OCulink port
- WIFI 6E & BT 5.2
30-Day Free Return
Lifetime Technical Support
Duty-Free for US & Canada
3-year Warranty Protection
Benefits enjoyed by MINISFORUM customers
30-Day Free Return
›
Return to local warehouse
Lifetime Technical Support
›
Technical support for the life of the product.
Duty-Free for US & Canada
›
Tax/duty included for eligible regions
3-year Warranty Protection
›
3-year factory warranty, plus optional 3-year accidental coverage extension
（Powered by Seel and Xcotton).
Payment Methods
Trusted Delivery
Ask a question
MINISFORUM UM760 Plus

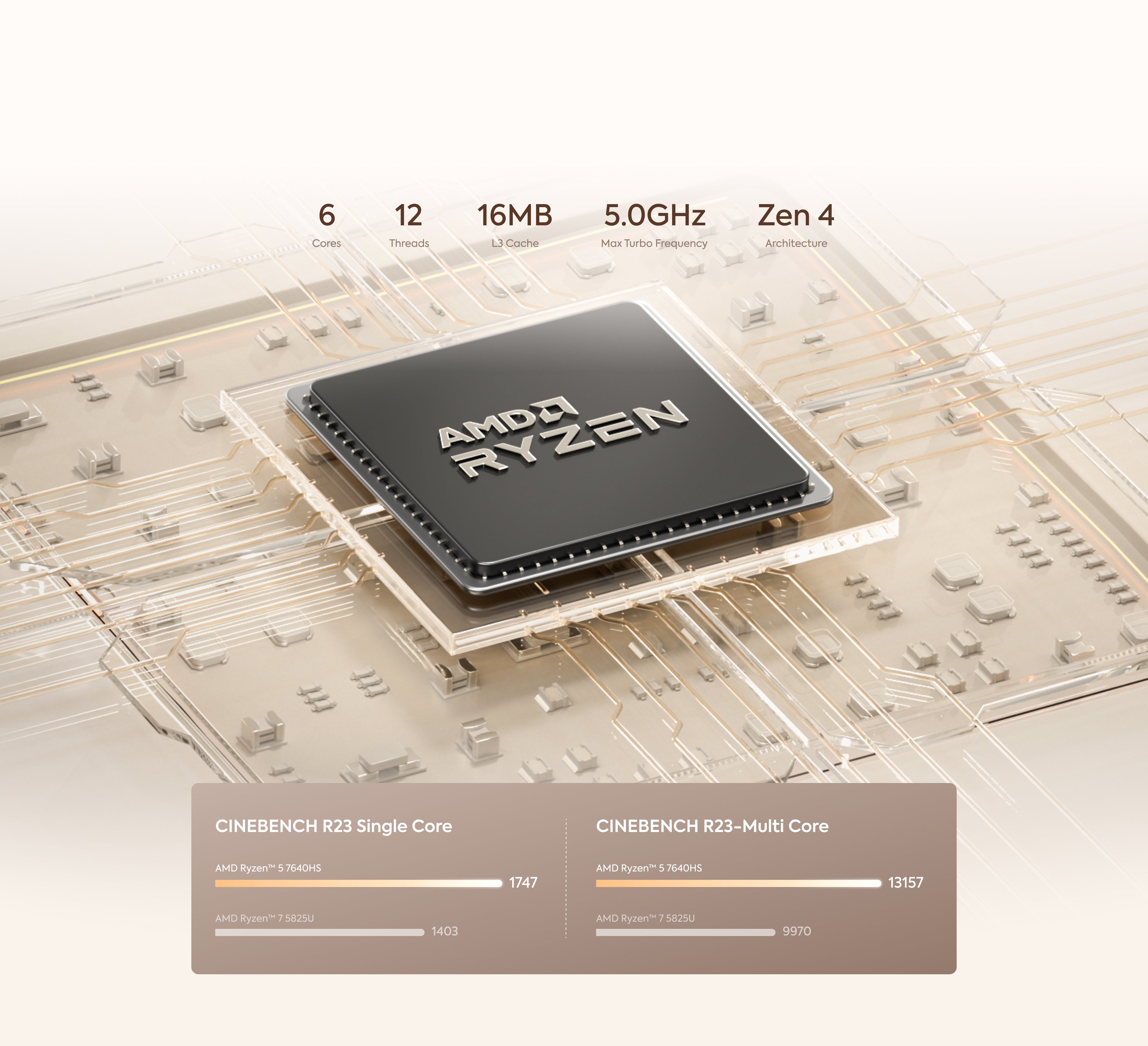

Performance Redefined

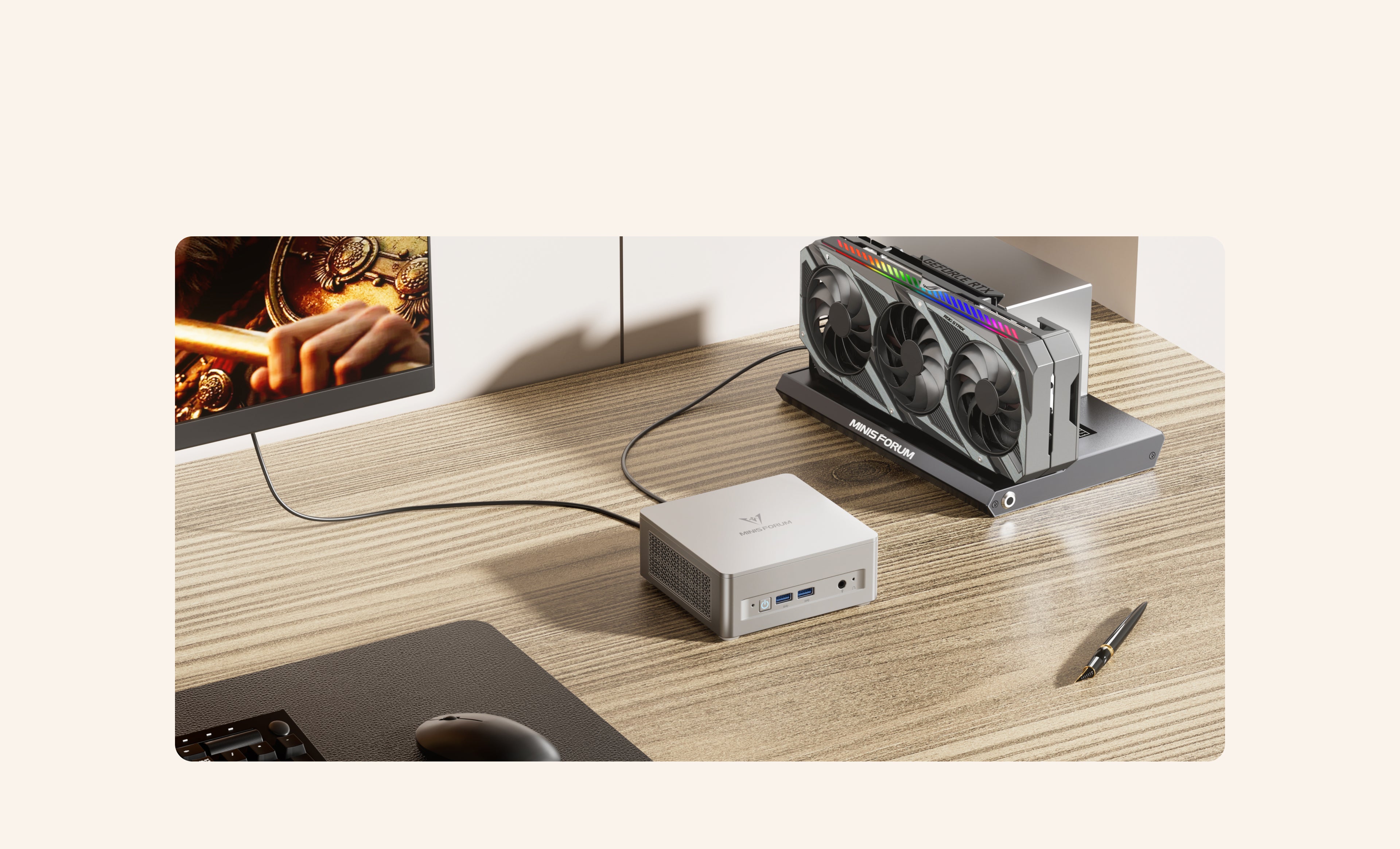

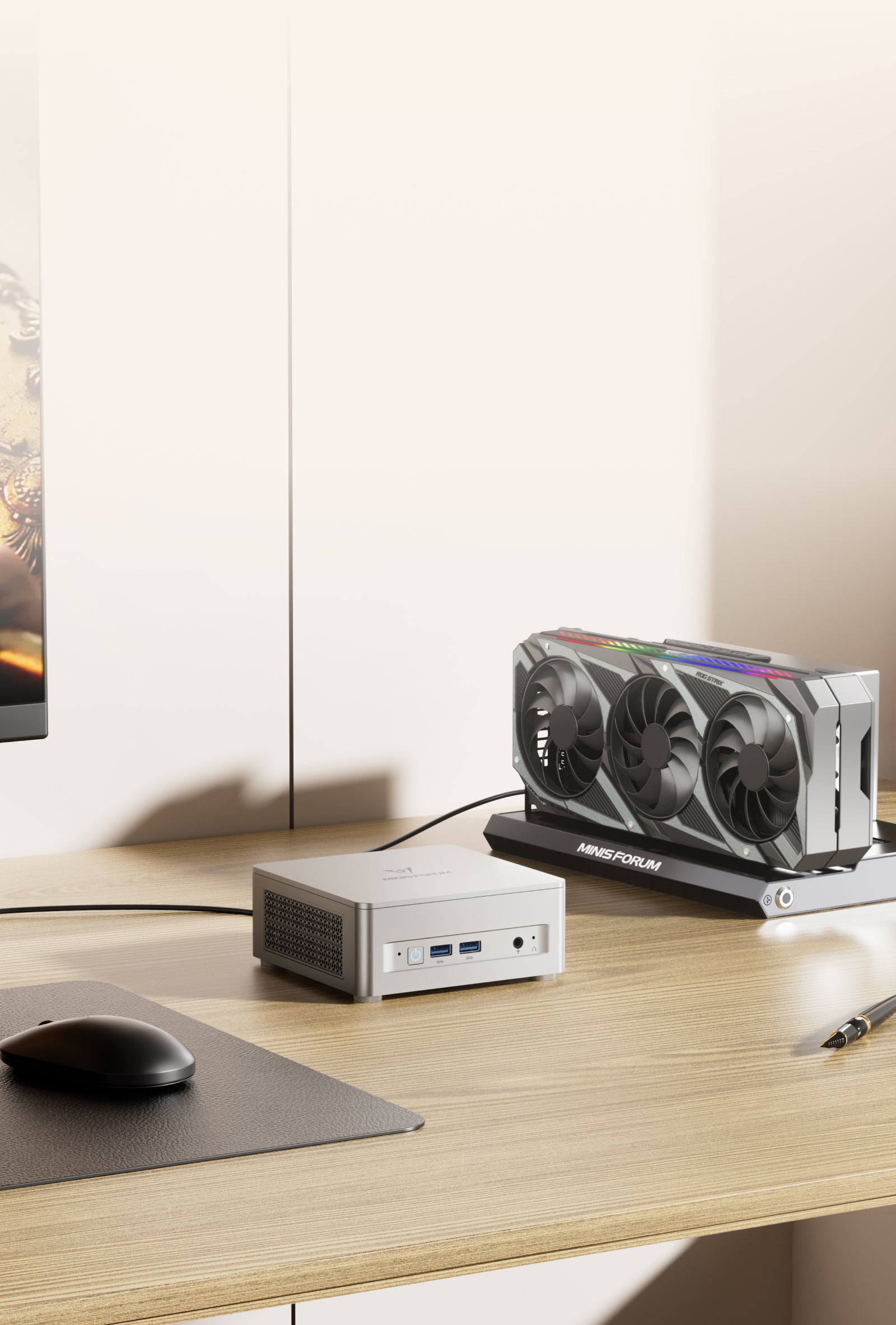

Powerful Integrated & Expandable Graphics

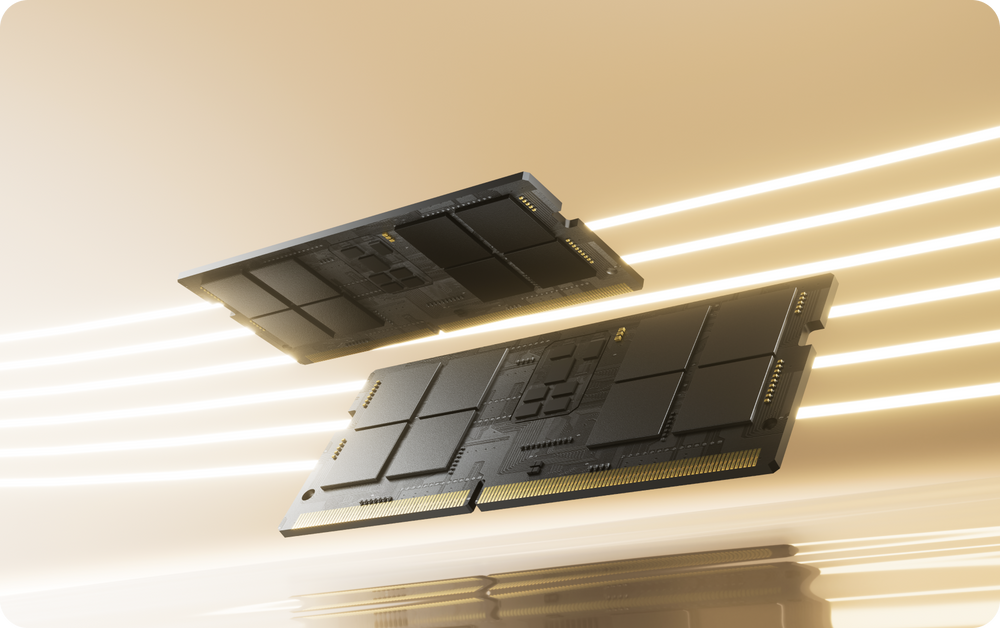

Blazing Fast DDR5 Memory
Boasting up to 96GB of memory, usually reserved for high-end workstations, this ultra-fast 5600 MHz RAM makes multitasking and multimedia rendering effortless. Seamlessly switch between gaming, streaming, and web browsing with smooth, high-speed performance.
Up to
5600MHz
Dual DDR5 channels
Up to
96GB
Max Support

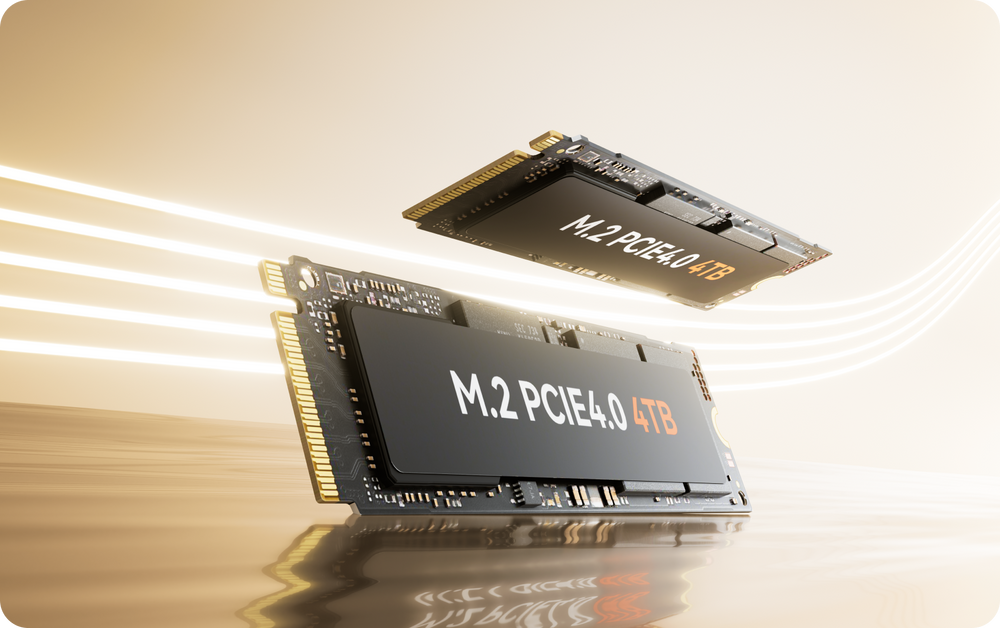

4TB Massive Storage
Experience lightning-fast load times with the nimble NVMe SSD, where games and apps launch quicker than ever. Spend less time waiting and more time gaming. With up to 4TB of PCIe® storage, take your games on the go and upgrade easily as your library grows.
Up to
7000MB/s
Speed
Up to
4TB
Storage
Speedy Network

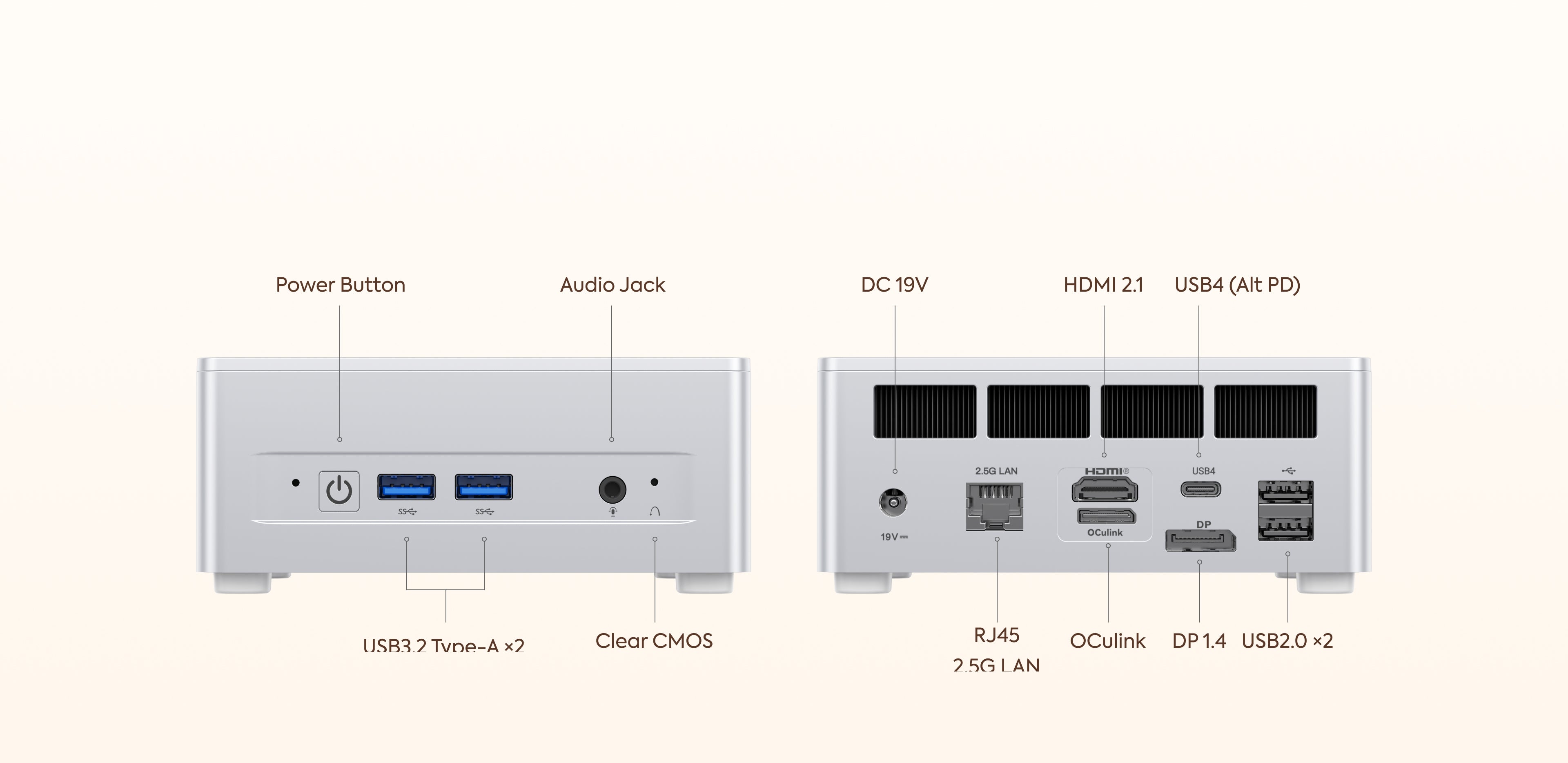

Effortless Connectivity

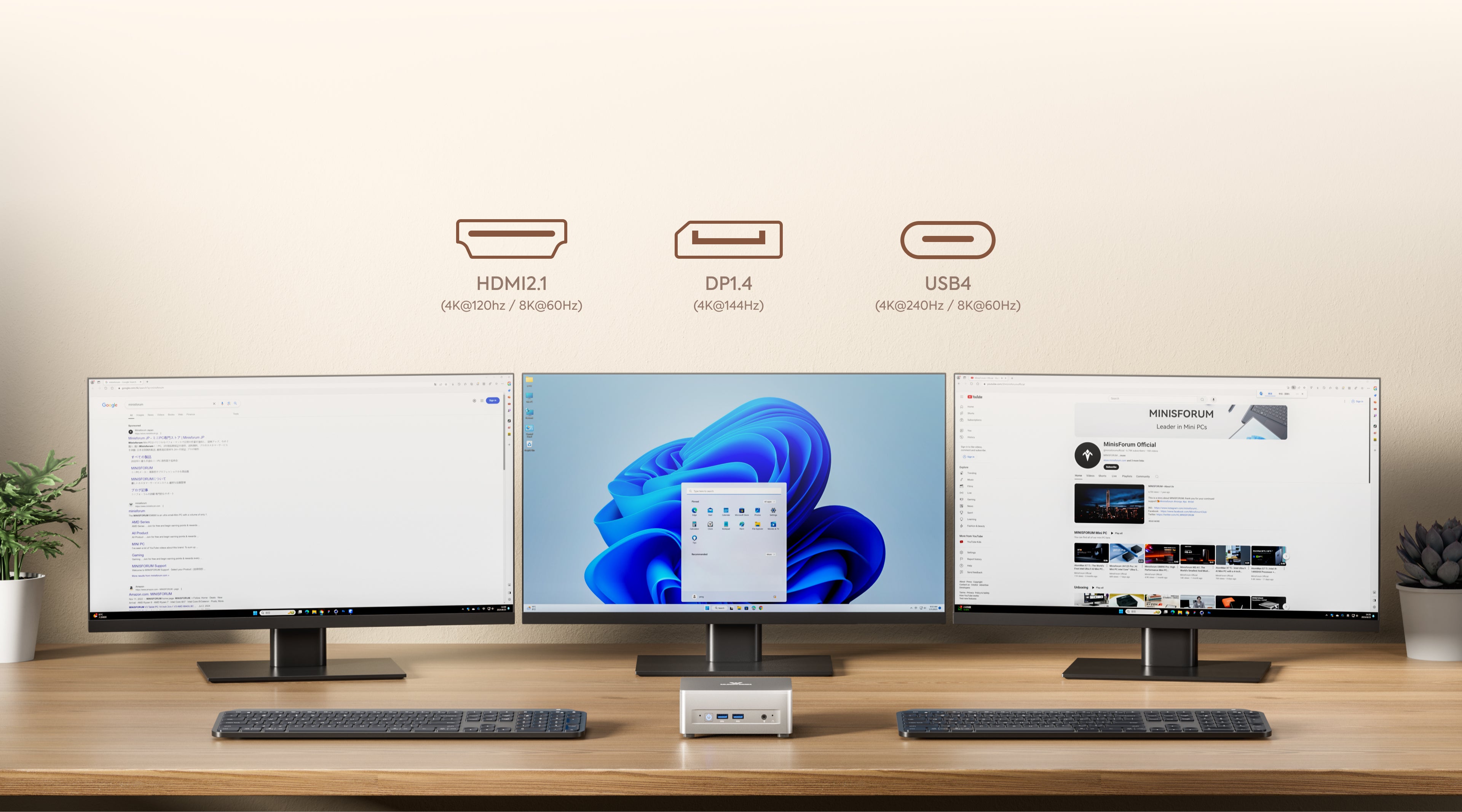

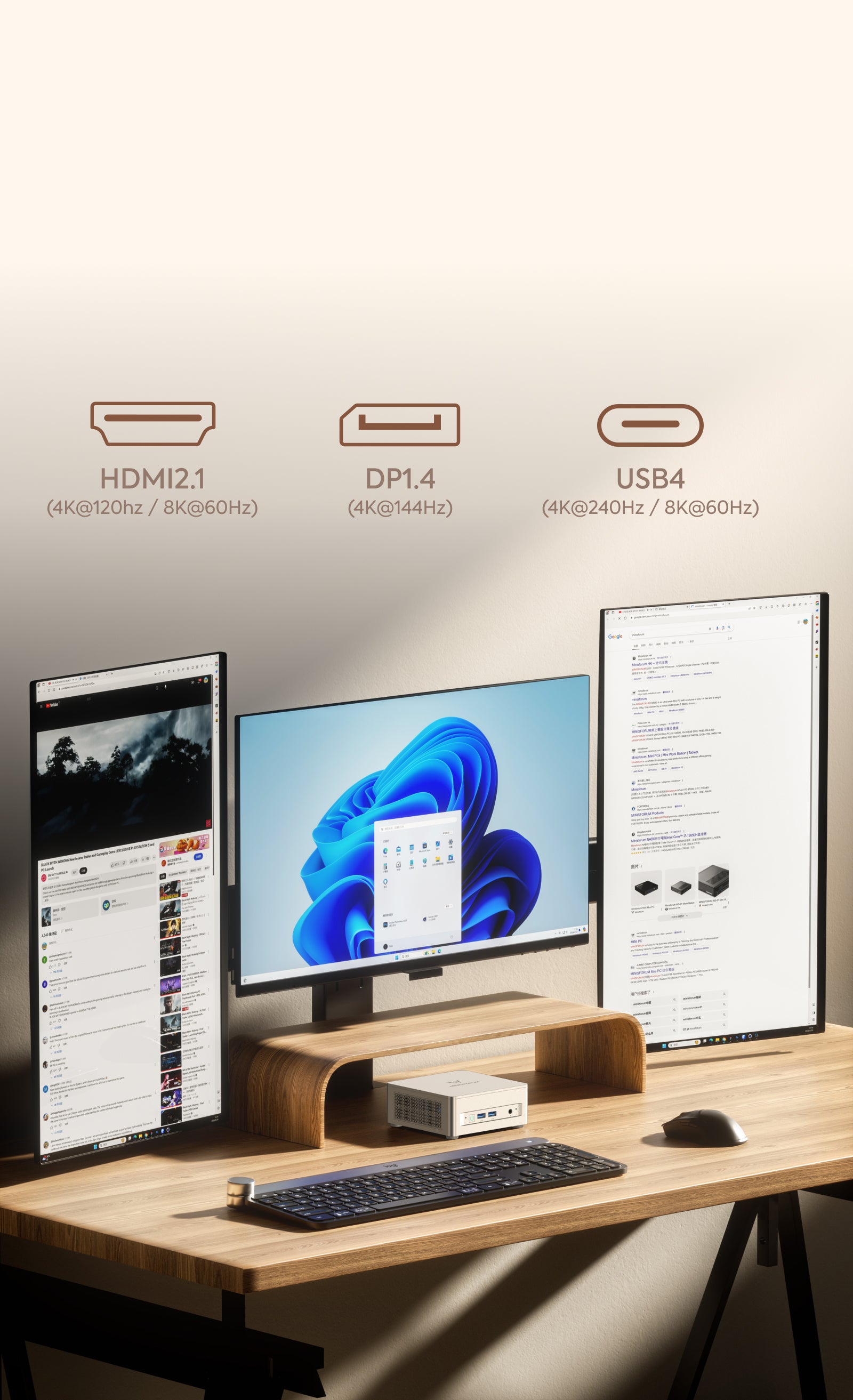

Triple-screen Display

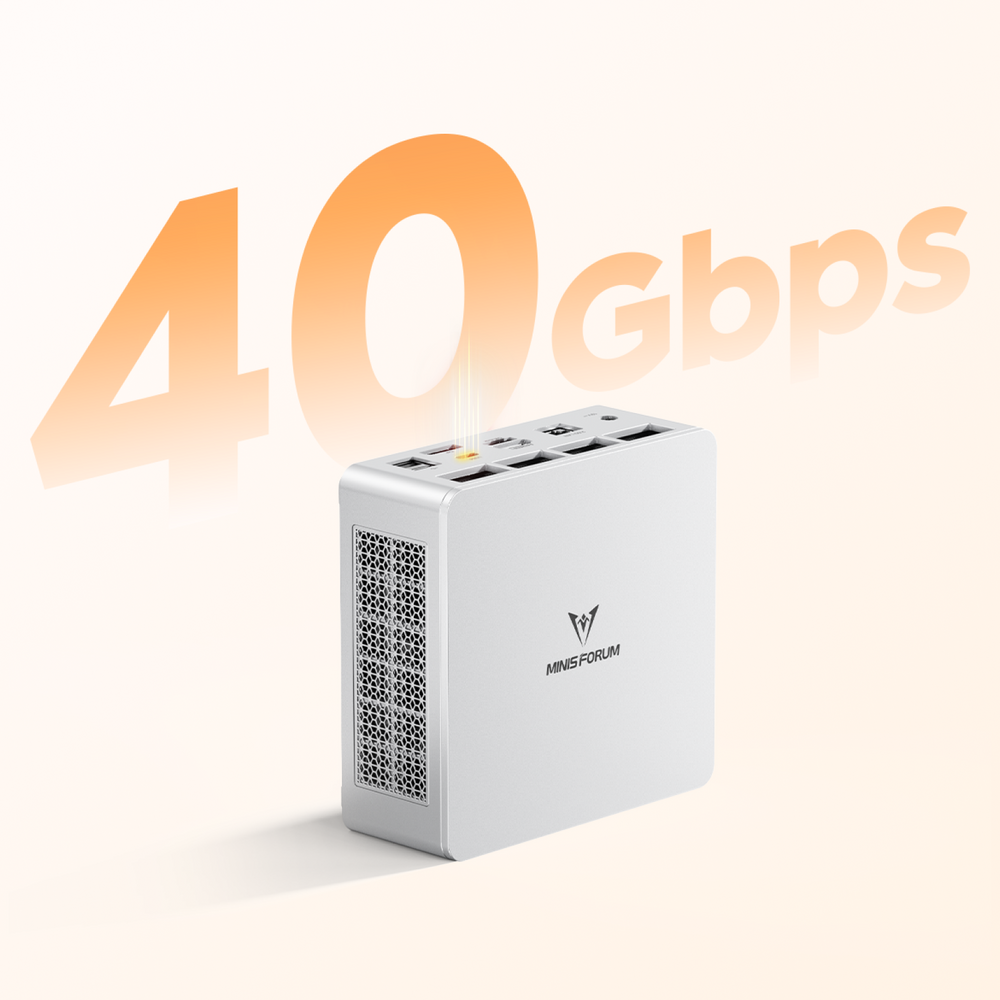

Accelerate Your Workflow With USB4
Supercharge your productivity with the UM760 Plus. Its full-speed USB4 port delivers an astonishing 40Gbps data transfer rate, allowing you to effortlessly handle large files, complex projects, and demanding applications in record time.
Help is always at hand
Compact yet Powerful
The UM760 Plus combines compact design with powerful performance and reliability, offering exceptional capabilities in manageability, AI readiness, Wi-Fi sensing, wireless connectivity, and customization. It’s perfectly suited for modern business applications, edge computing, and IoT scenarios.
Package List

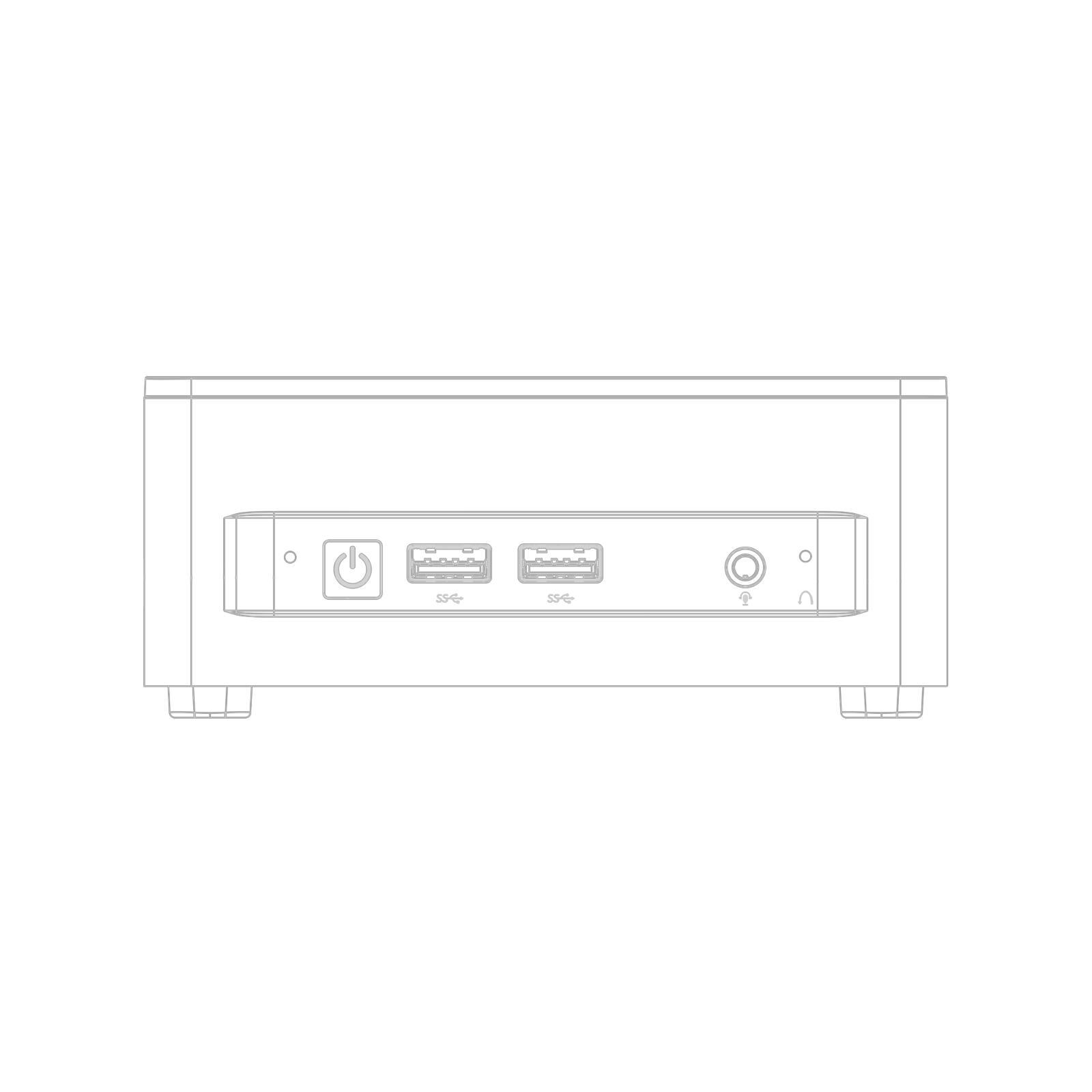

UM760 Plus Mini PC

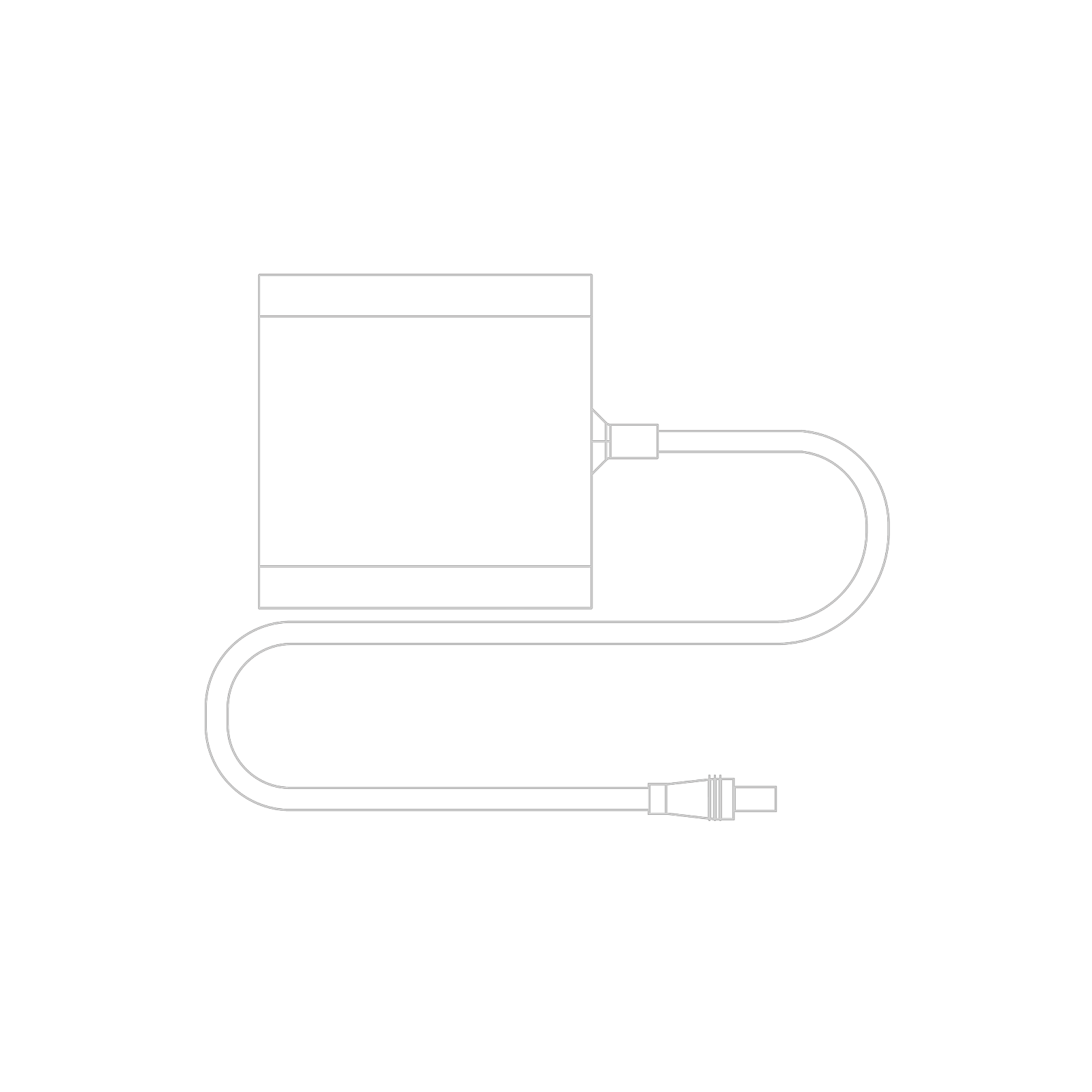

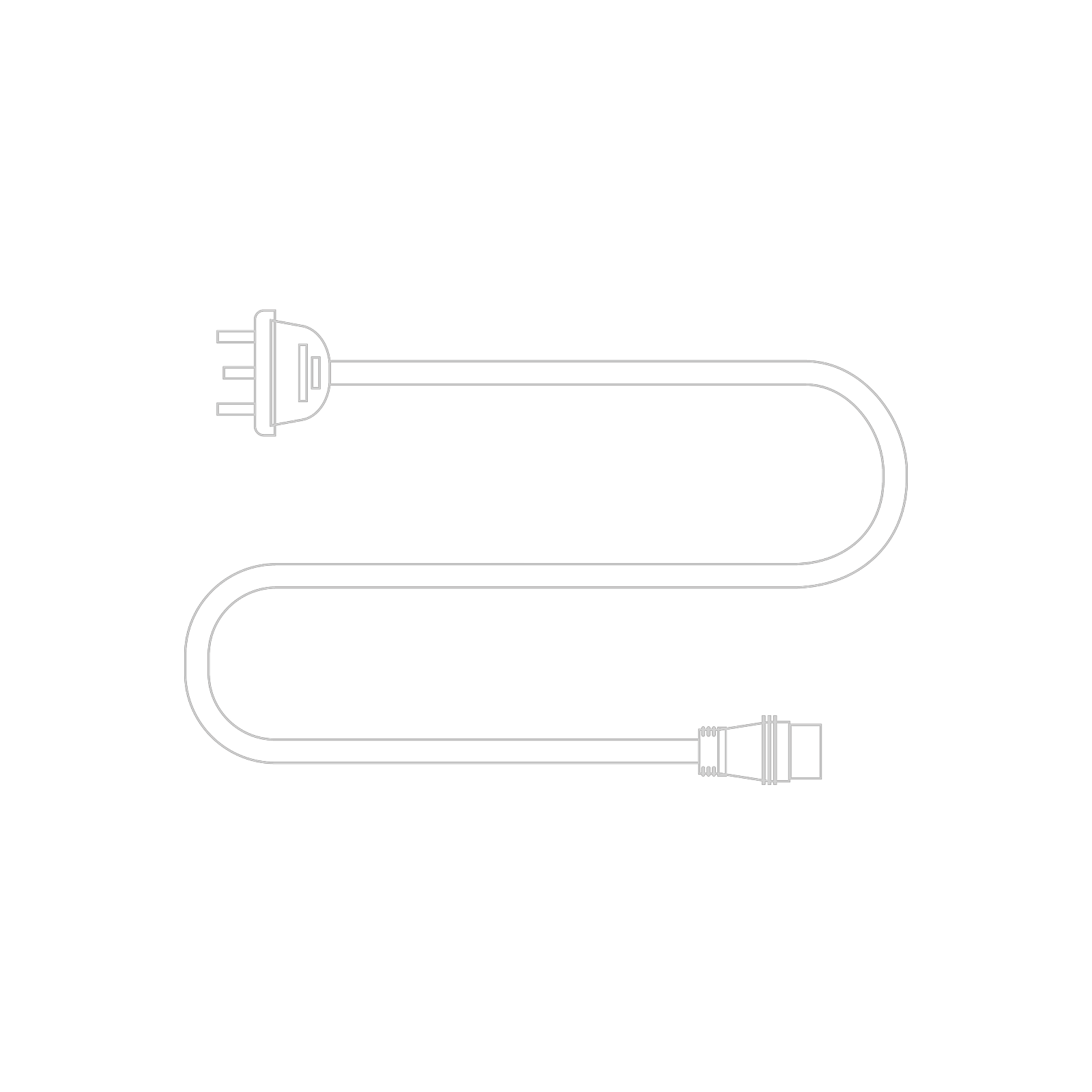

Adapter
Adapter Cable

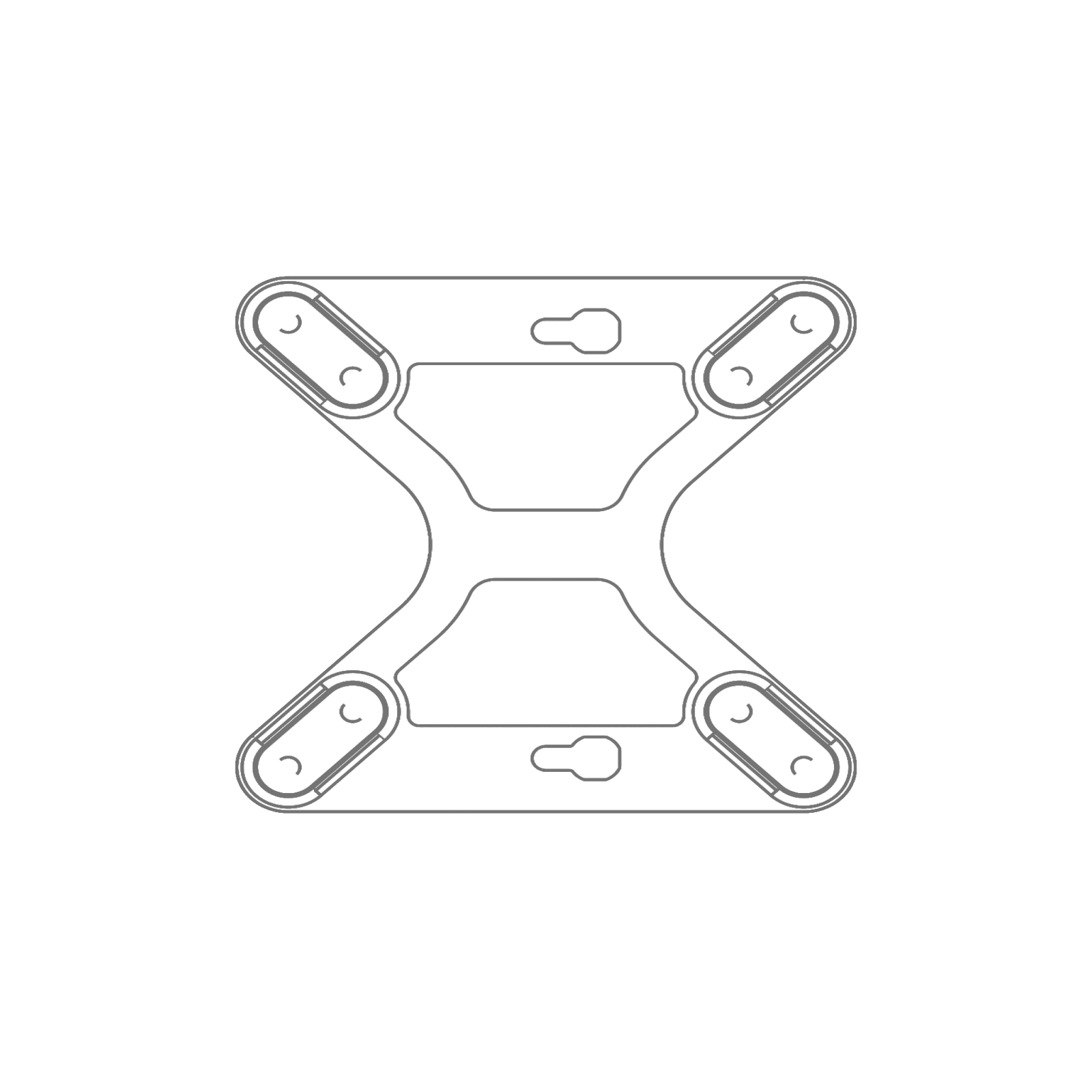

Wall Mounted Installation

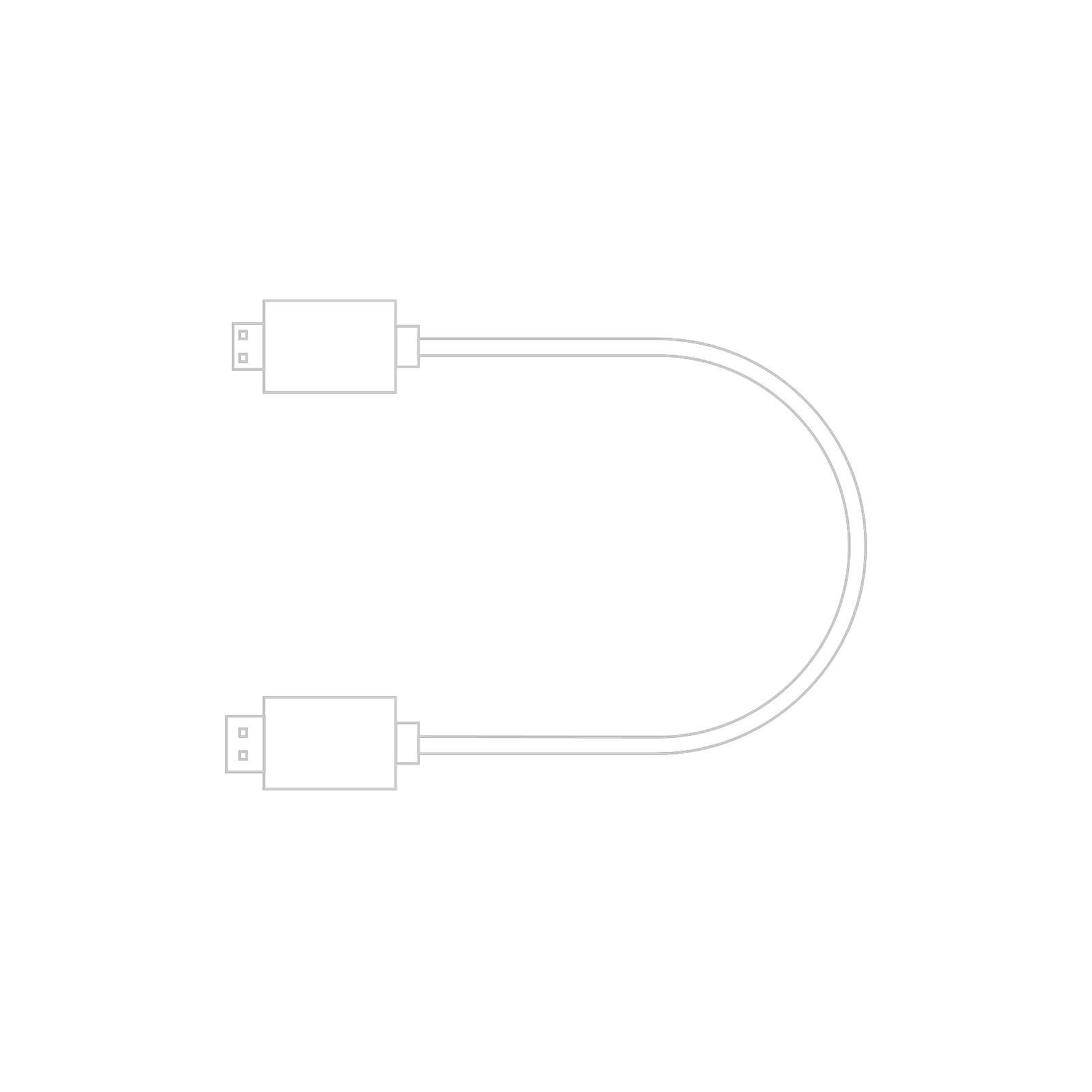

HDMI Cable

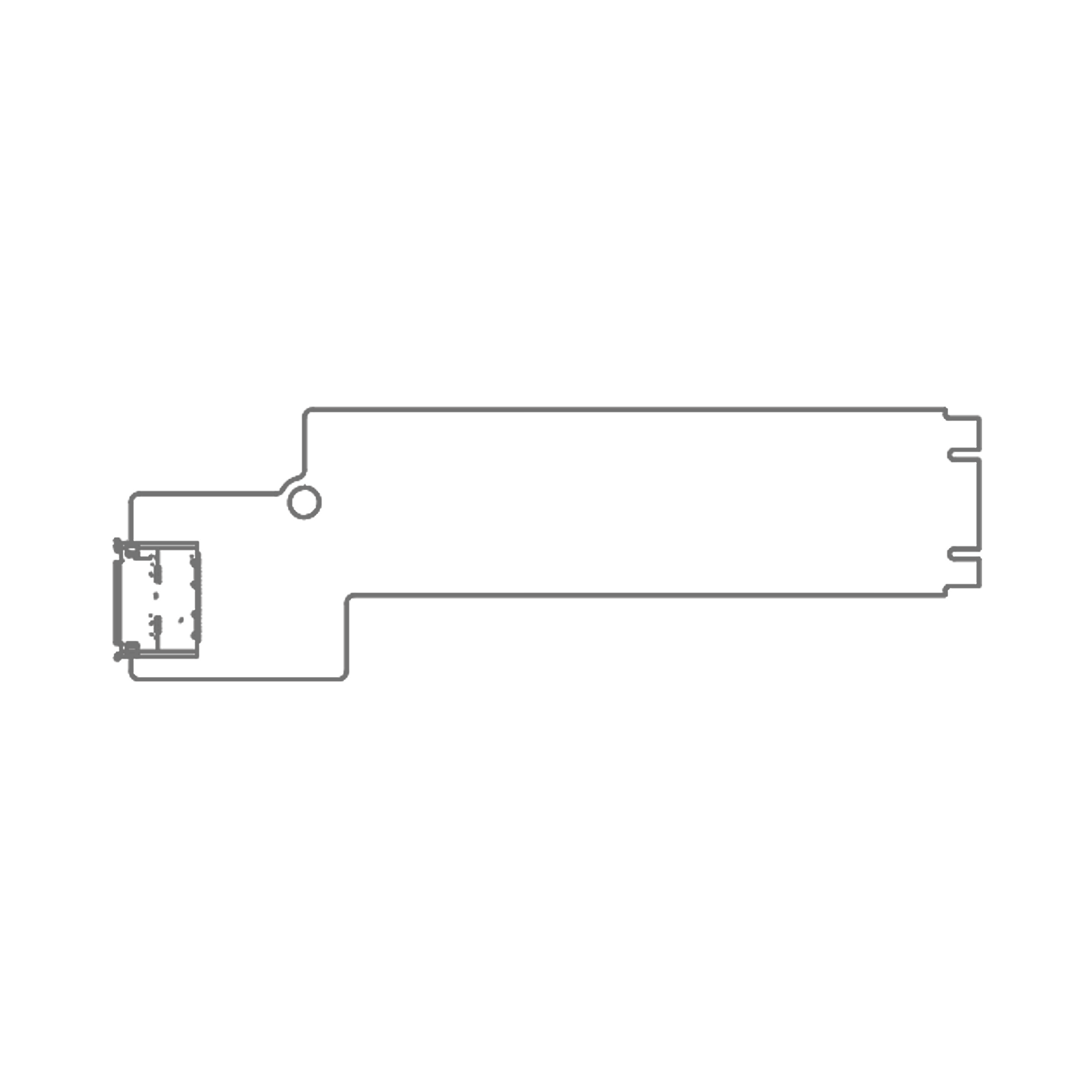

M.2 to OCuLink Adapter Plate
User Manual
Specification
MINISFORUM UM760/870/880 Plus
UM760 Plus
UM870 Plus
UM880 Plus
AMD Ryzen™5 7640HS, 6C/12T
AMD Ryzen™7 8745H, 8C/16T
AMD Ryzen™7 8845HS, 8C/16T
AMD Radeon™ 760M
AMD Radeon™ 780M
AMD Radeon™ 780M
DDR5 (SO-DIMM х2)
DDR5 (SO-DIMM х2)
DDR5 (SO-DIMM х2)
- 2×M.2 2280 NVME SSD Slot (up to 4TB) (PCIe4.0x4)
- 2×M.2 2280 NVME SSD Slot (up to 4TB) (PCIe4.0x4)
- 2×M.2 2280 NVME SSD Slot (up to 4TB) (PCIe4.0x4)
Wi-Fi 6E,Bluetooth® 5.2
Wi-Fi 6E,Bluetooth® 5.3
Wi-Fi 6E,Bluetooth® 5.2

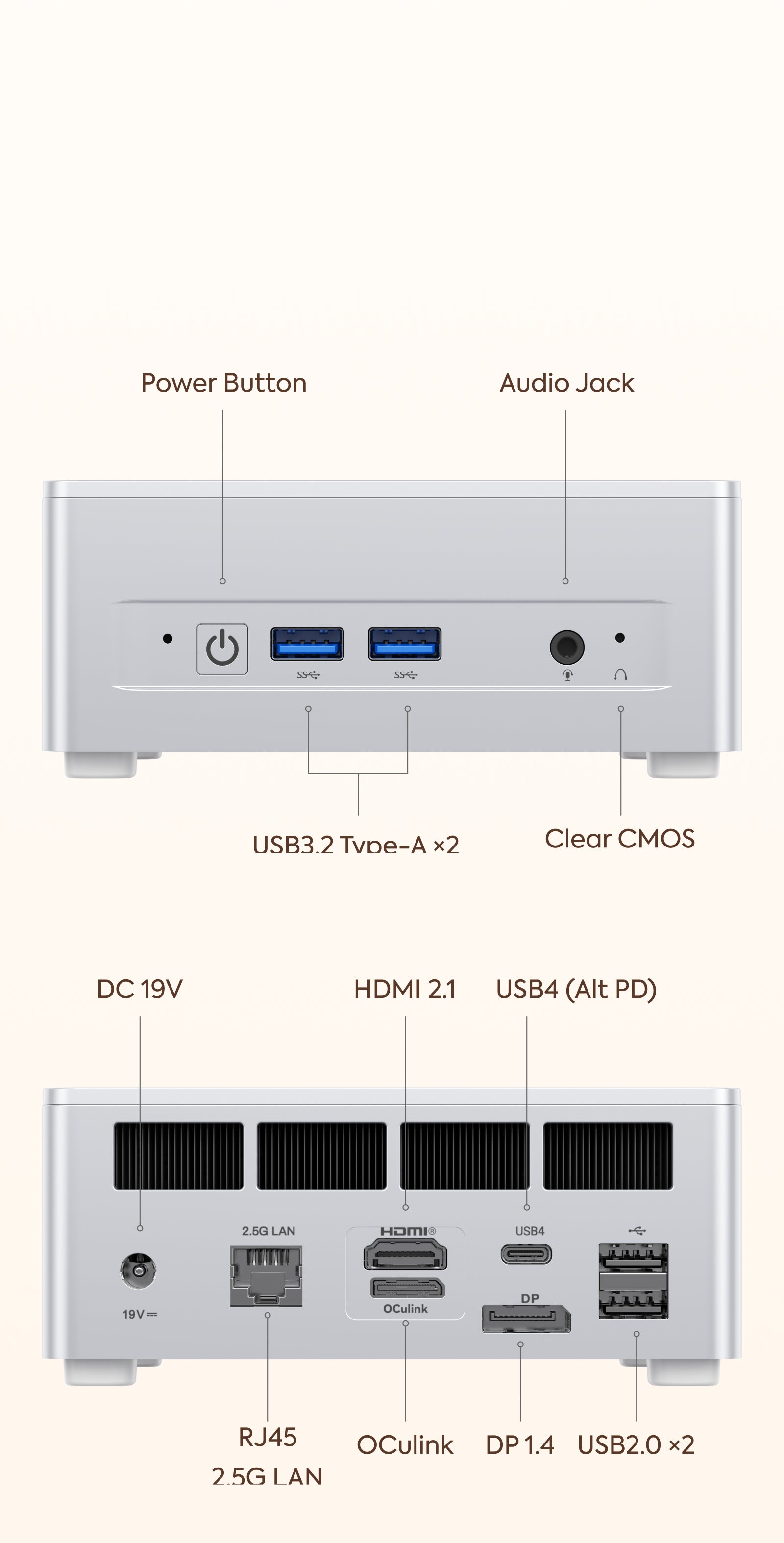

- HDMI x 1
- DP x 1
- USB4 х 1
- HDMI2.1 FRL x 1
- DP1.4 x 1
- USB4 х 1
- HDMI x 1
- DP x 1
- USB4 х 1
- HDMI х 1
- 3.5mm Combo Jack х 1
- HDMI х 1
- 3.5mm Combo Jack х 1
- HDMI х 1
- 3.5mm Combo Jack х 1
- 3.5mm Combo Jack х 1
- 3.5mm Combo Jack х 1
- 3.5mm Combo Jack х 1
- 2.5G(RJ45) x 1
- USB Type A(USB3.2 Gen2) x 2
- USB Type A(USB2.0) x 2
- USB4 x 1(Alt PD in 65-100W & PD Out 15W, In Rear)
- OCuLink x 1 (via M.2 to OCuLink adapter board)
- HDMI 2.1 FRL x 1
- 3.5mm Audio Jack x 1
- 2.5G(RJ45) x 1
- USB Type A(USB3.2 Gen2) x 2
- USB Type A(USB2.0) x 2
- USB4 x 1(Alt PD)
- OCuLink x 1
- HDMI 2.1 x 1
- 3.5mm Audio Jack x 1
- 2.5G(RJ45) x 1
- USB Type A(USB3.2 Gen2) x 2
- USB Type A(USB2.0) x 2
- USB4 x 1(Alt PD in 65-100W & PD Out 15W, In Rear)
- OCuLink x 1 (via M.2 to OCuLink adapter board)
- HDMI 2.1 x 1
- 3.5mm Audio Jack x 1
- Power Button х 1
- Reset Hole х 1
- Power Button х 1
- Reset Hole х 1
- Power Button х 1
- Reset Hole х 1
19V/6.32A 120W
19V/6.32A 120W
19V/6.32A 120W
Windows 11 Pro
Windows 11 Pro
Windows 11 Pro
130x126.5x50.4mm(LWH)
130x126.5x50.4mm(LWH)
130x126.5x50.4mm(LWH)
0.67 kg
0.67 kg
0.67 kg
