MINISFORUM Elite M1 Lite-125U

Sale price$311.00 Regular price$389.00
Save $78.00

For bulk discount inquiries, please contact us at elsa@minisforum.com

  • Intel Core™ Ultra 5 125U, 12C/14T
  • Intel® Graphics | NPU 21 TOPS
  • 2×M.2 2280 PCIe4.0 SSD
  • 2.5G & WIFI 6E & BT 5.2
CPU: Intel Core™ Ultra 5 125U
Type: Barebone
Adapter: US

30-Day Free Return

Lifetime Technical Support

Duty-Free for US & Canada

3-year Warranty Protection

Benefits enjoyed by MINISFORUM customers

×
30-Day Free Return ›

Return to local warehouse

Lifetime Technical Support ›

Technical support for the life of the product.

Duty-Free for US & Canada ›

Tax/duty included for eligible regions

3-year Warranty Protection ›

3-year factory warranty, plus optional 3-year accidental coverage extension
（Powered by Seel and Xcotton).

Payment Methods

VisaMastercardAmerican Express DiscoverPayPalApple Pay Google Pay KlarnaAfterpayUnion PayJCBDiners ClubMaestroVisa ElectronCartes Bancaires

Trusted Delivery

Ask a question

Streamlined Work

One Device Does It All

Maximize your workspace with a true one-cable setup via USB4 (PD IN 65–100W / PD OUT 15W). Keep workflows side-by-side with triple independent displays via HDMI 2.1, DP 1.4, and USB4. Less clutter, cleaner routing, and seamless multitasking.

USB4

One-Cable Desk Setup

Triple-Display

Productivity

<45dB

Quiet & Stable

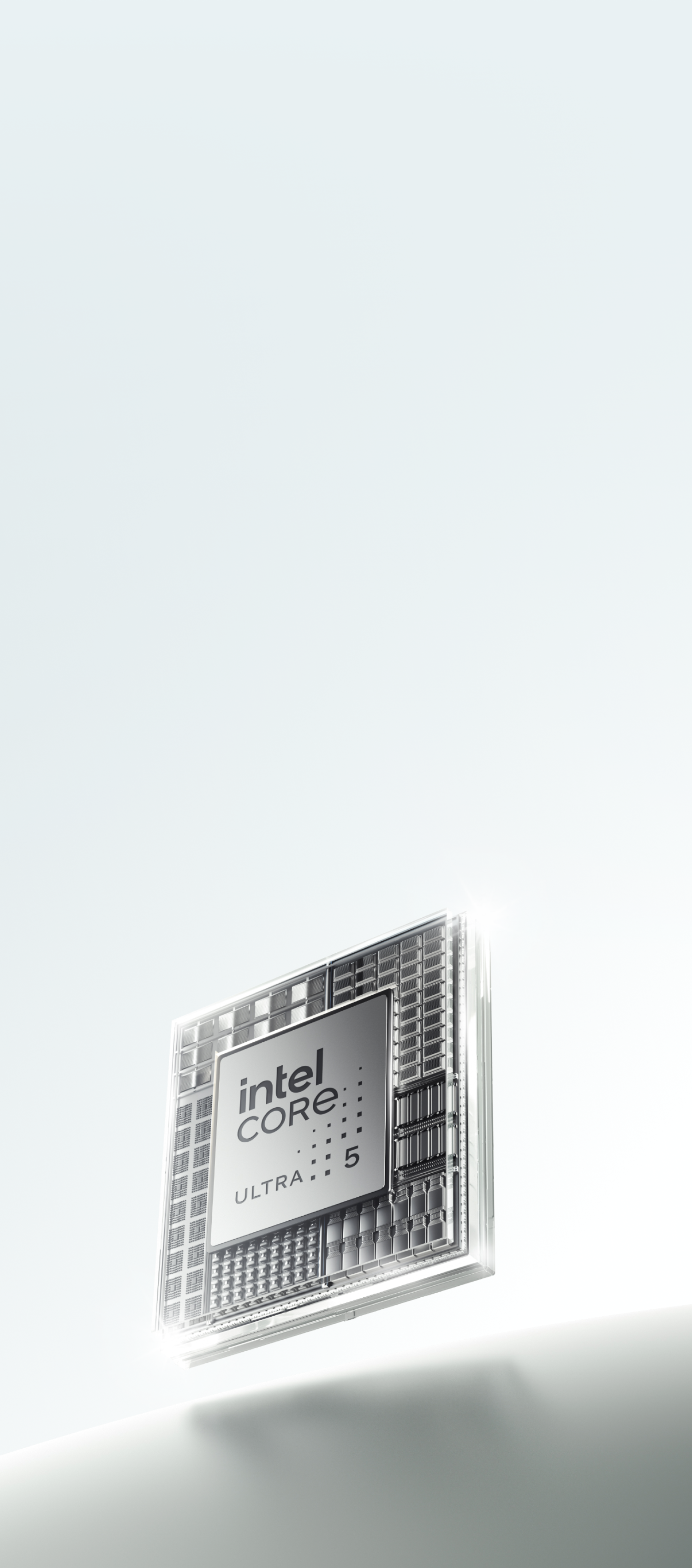

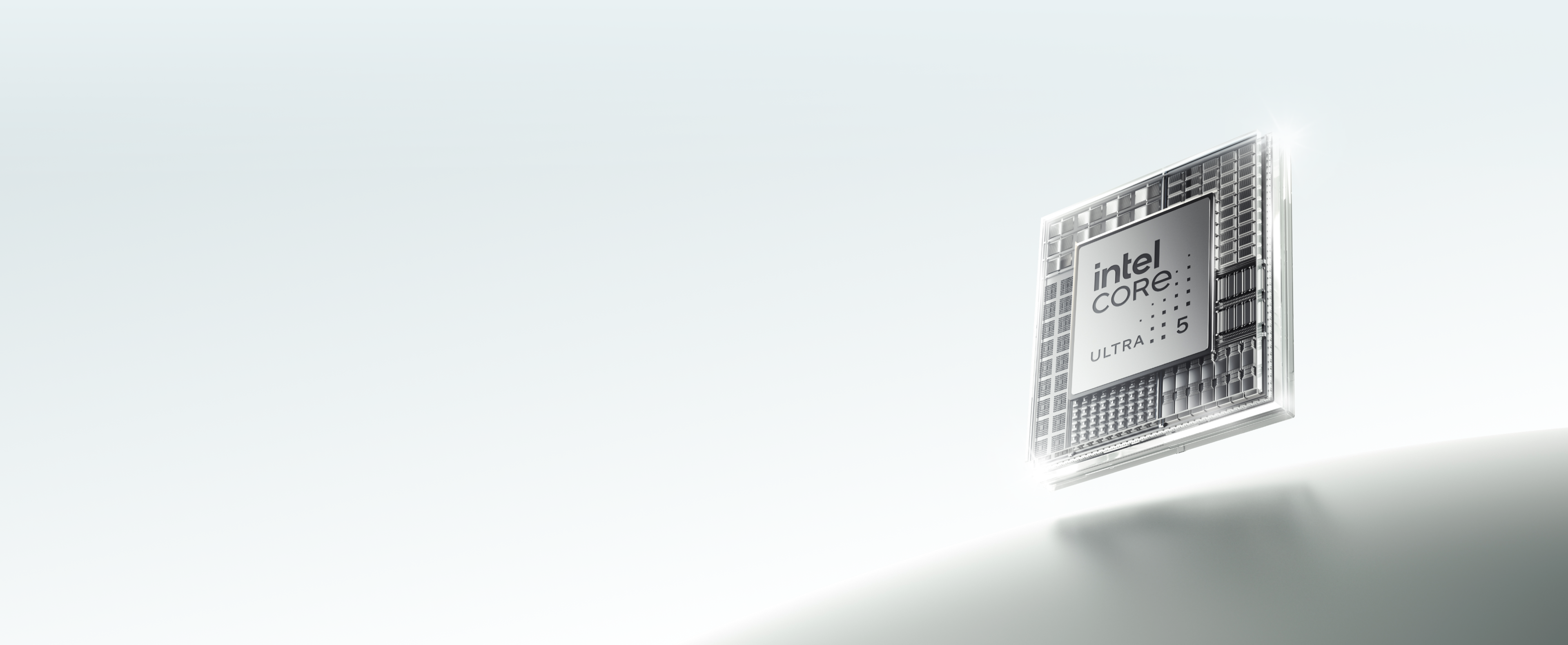

Core Ultra 5 125U

Capable Performance, Smarter Budget

Built for real productivity loads—tabs, Office, video calls, light creation, and nonstop multitasking. Core Ultra 5 125U with 12C/14T, 1.3GHz base and up to 4.3GHz turbo, plus PL1/PL2 35W tuning, focuses on steady everyday smoothness—not short-lived benchmark bursts.
12

Cores

14 Threads

4.3

GHz

Max Turbo Frequency

35

W

Balanced TDP

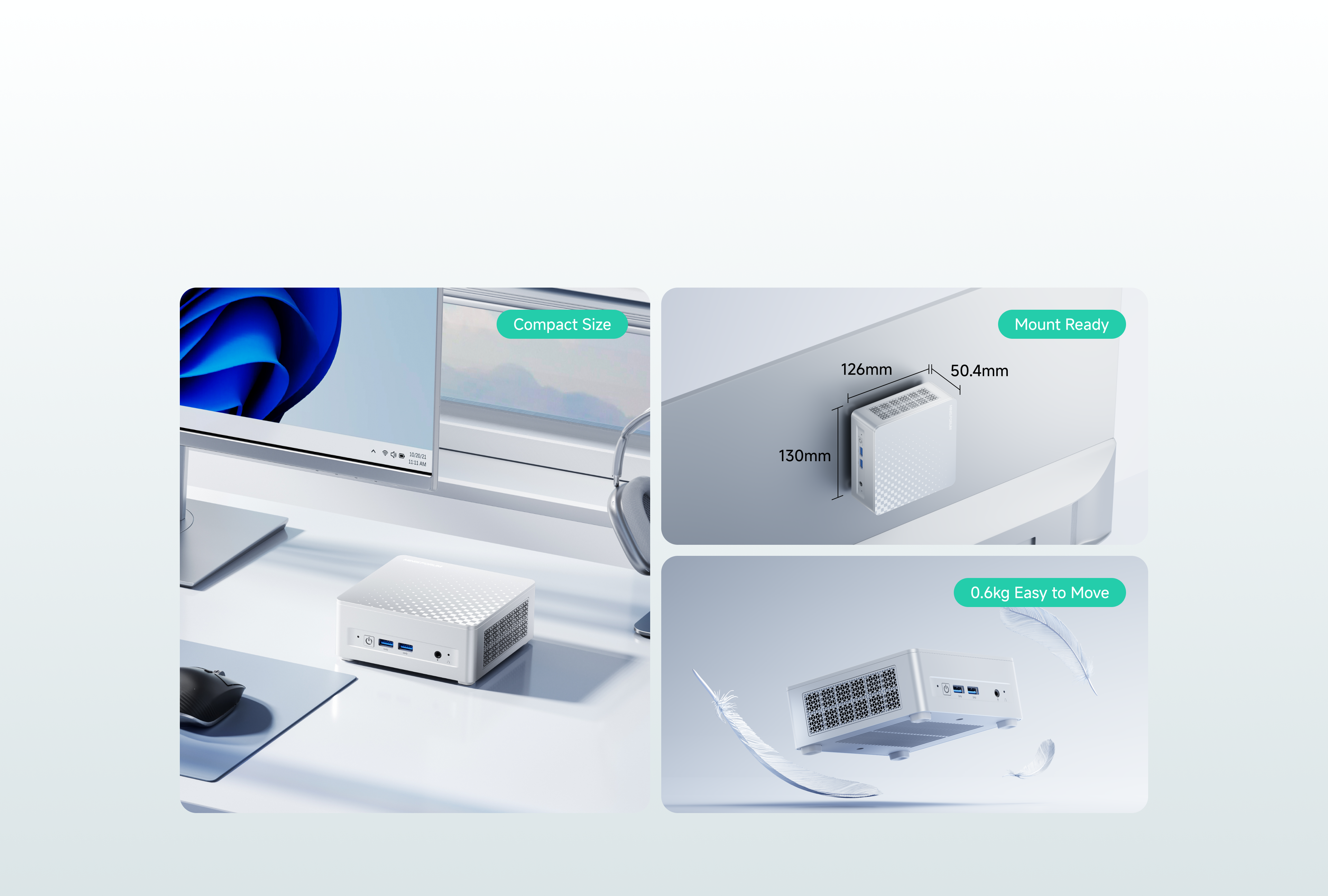

Palm-Sized Mini PC

Get Your Desk Back

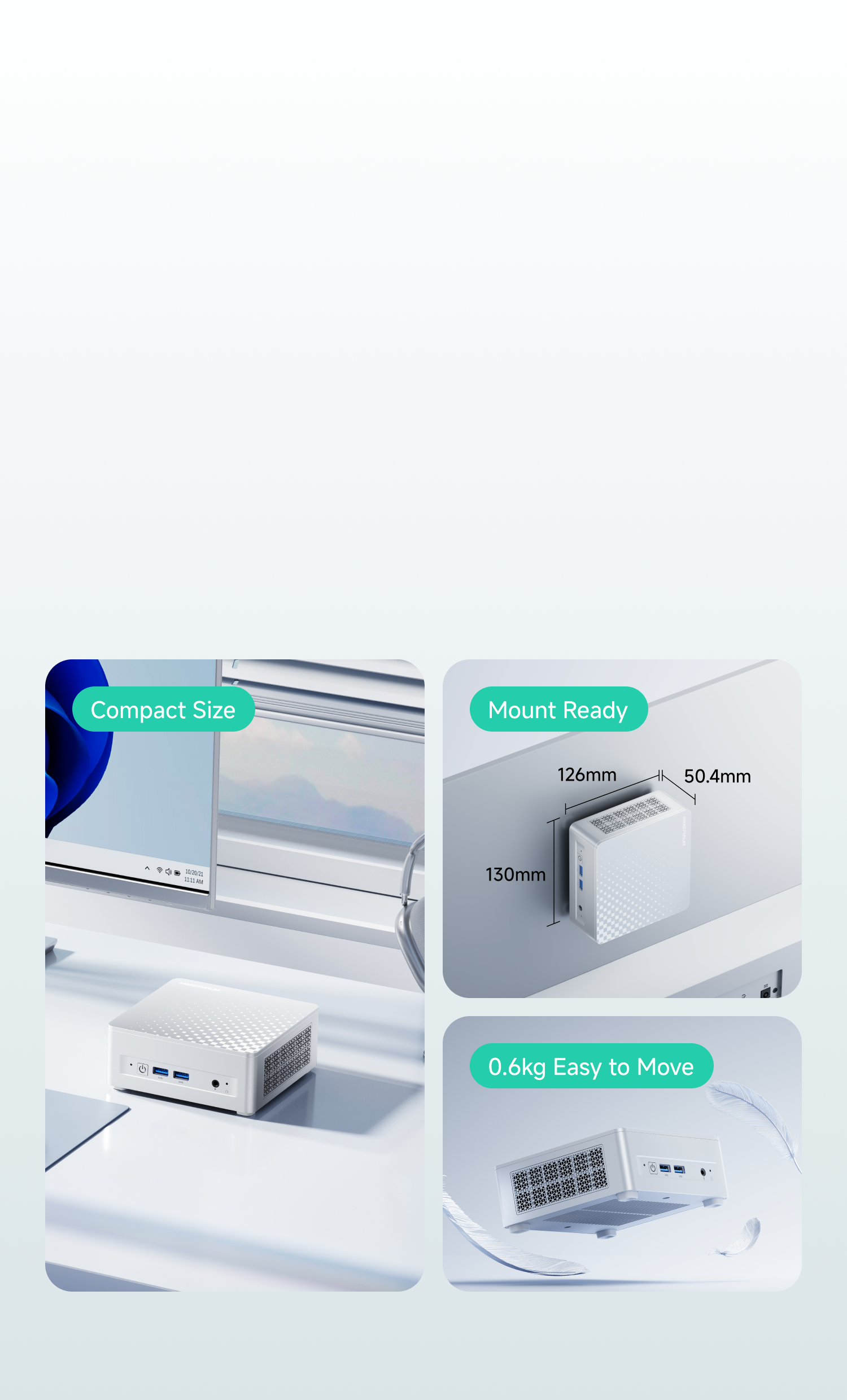

Productivity-friendly For you: less clutter, cleaner routing, easier setup. At just 0.6kg, it fits desks, dorms, and meeting rooms effortlessly. Mount it behind your monitor to completely free up your desk space. Plus, Windows 11 Pro means you’re ready to work right out of the box.

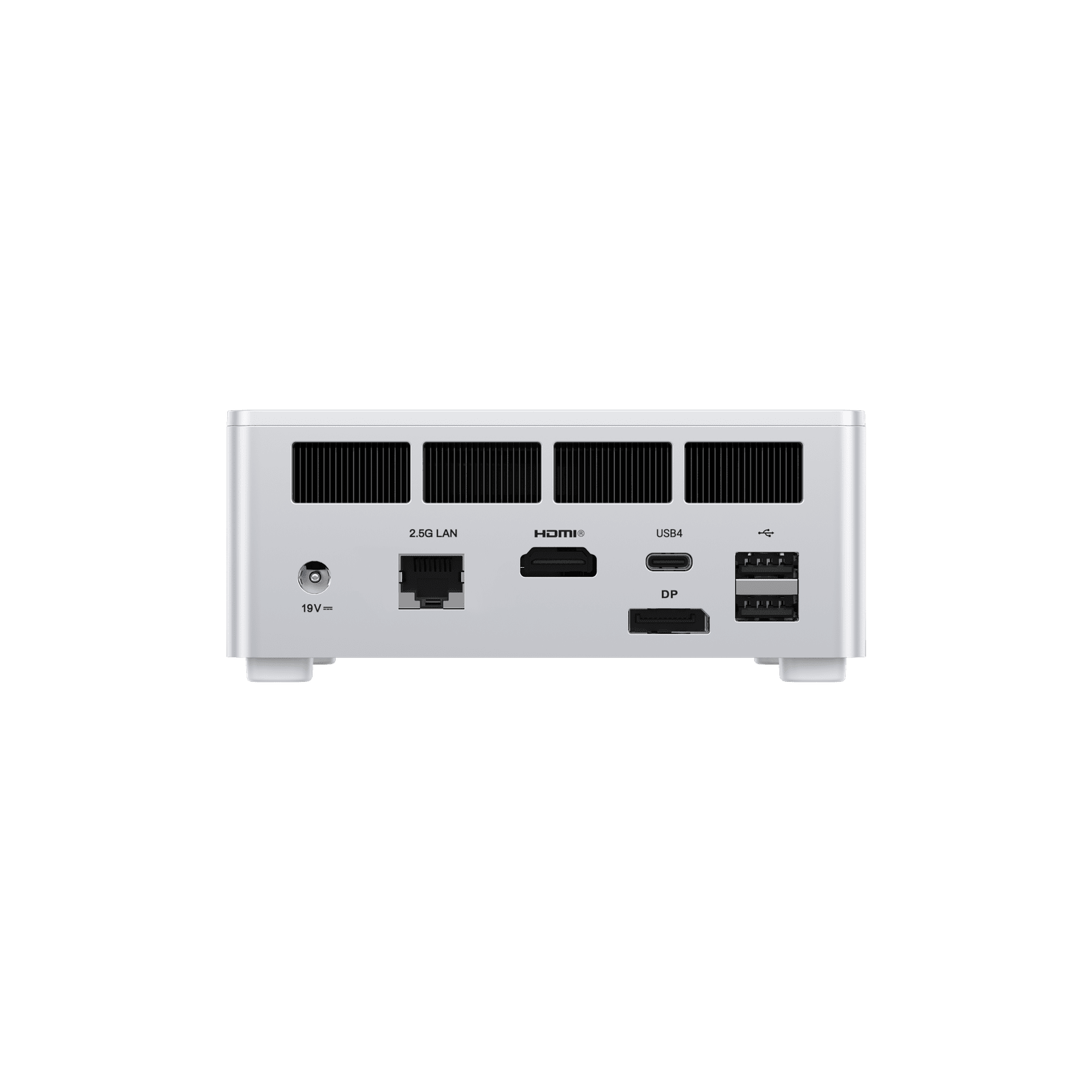

Full Display Outputs &USB4

Connectivity That Keeps Up

Outputs include HDMI 2.1 TMDS (4K@60), DP 1.4 (up to 8K@60 / 4K@144), and USB4 (up to 8K@60 / 4K@144); USB4 40Gbps keeps docks and fast devices responsive; 2.5GbE i226-V delivers steadier calls and quicker LAN transfers, display, expansion, and network all covered.

Dual M.2 Expansion

Practical Today, Flexible Tomorrow

Storage supports dual M.2 2280 PCIe 4.0 (optional 512GB / 1TB pre-configs); memory uses DDR5 SO-DIMM×2 with dual-channel 5600MHz up to 96GB (SKU: 0/16/32GB) for modern connectivity

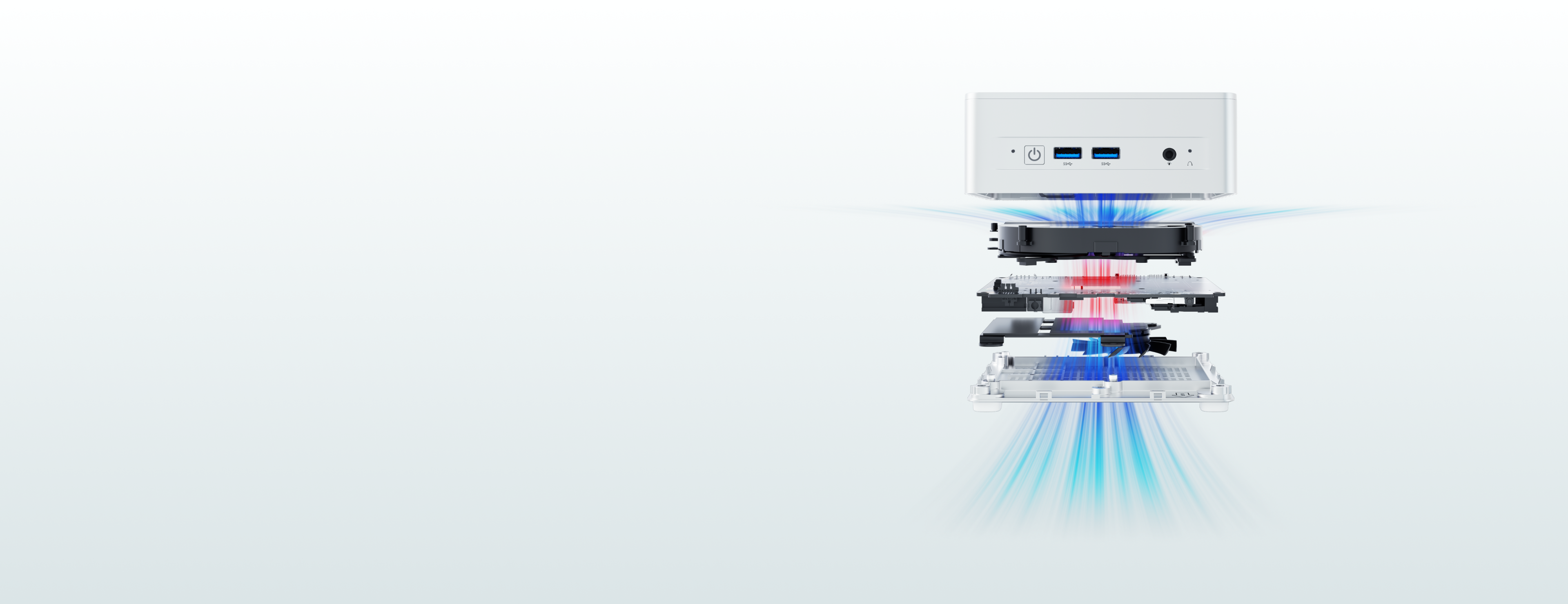

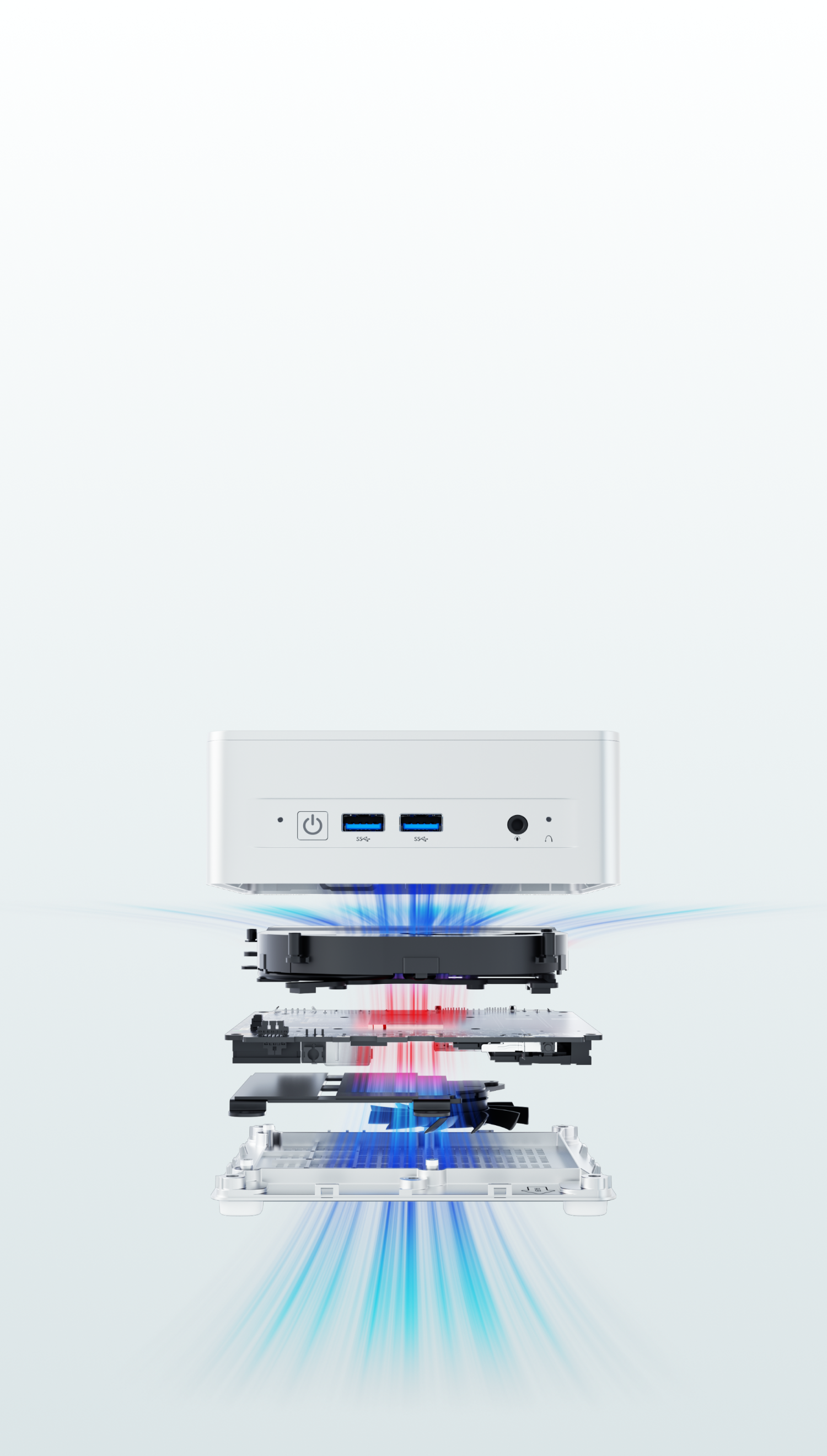

Low-Power Quiet Cooling

Built for Long, Stable Runs

Engineered for long uptime: quieter focus, steadier output, more confidence. With phase-change/PCM cooling + a blower fan, acoustics stay <45dB in Performance/Balance; combined with PL1/PL2 35W tuning, it prioritizes sustained stability over short-lived peak bursts.
PCM Cooling

Phase-Change Heat Dissipation

<45dB

Acoustic Control

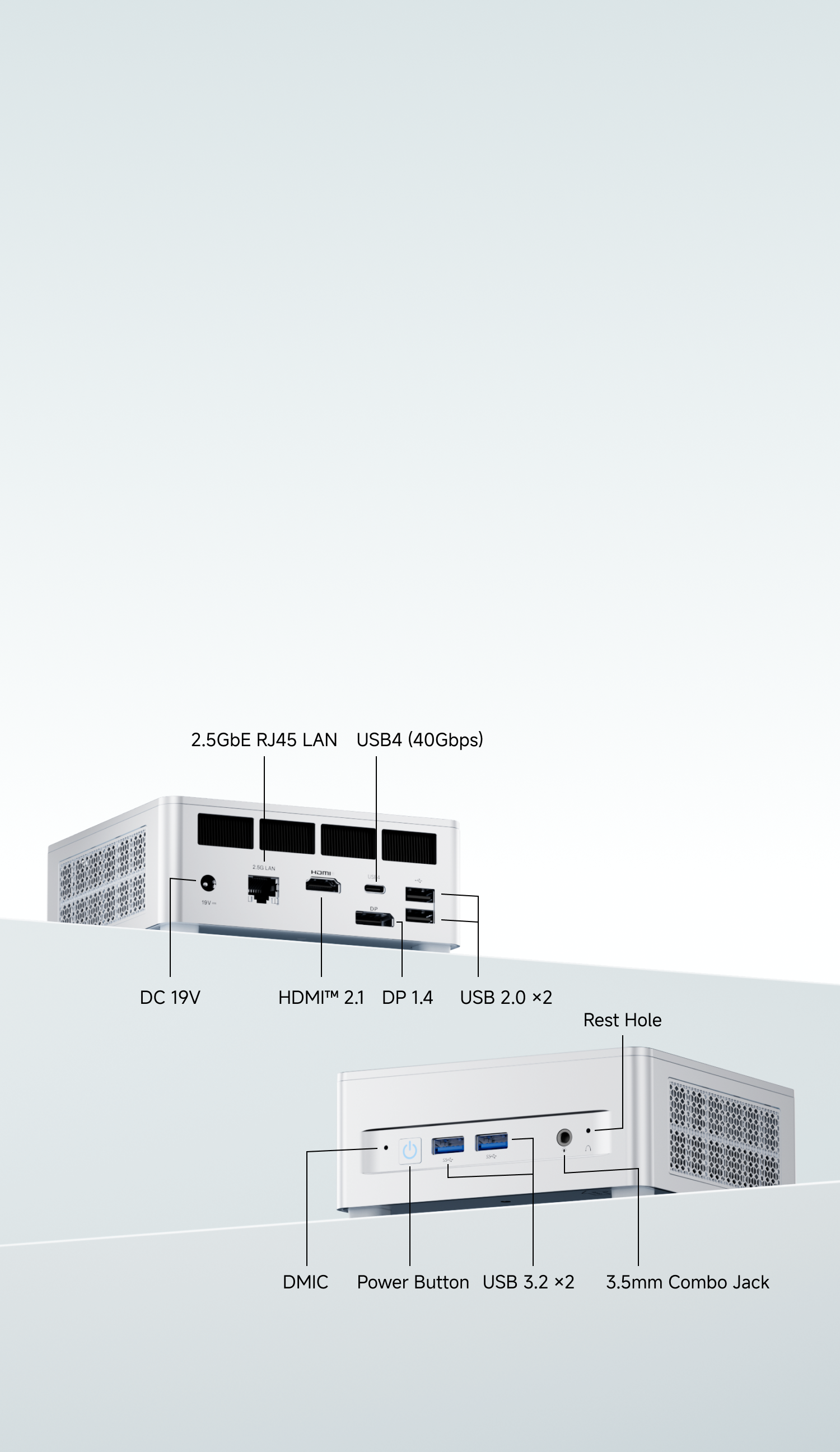

Full Connectivity

Zero Compromise

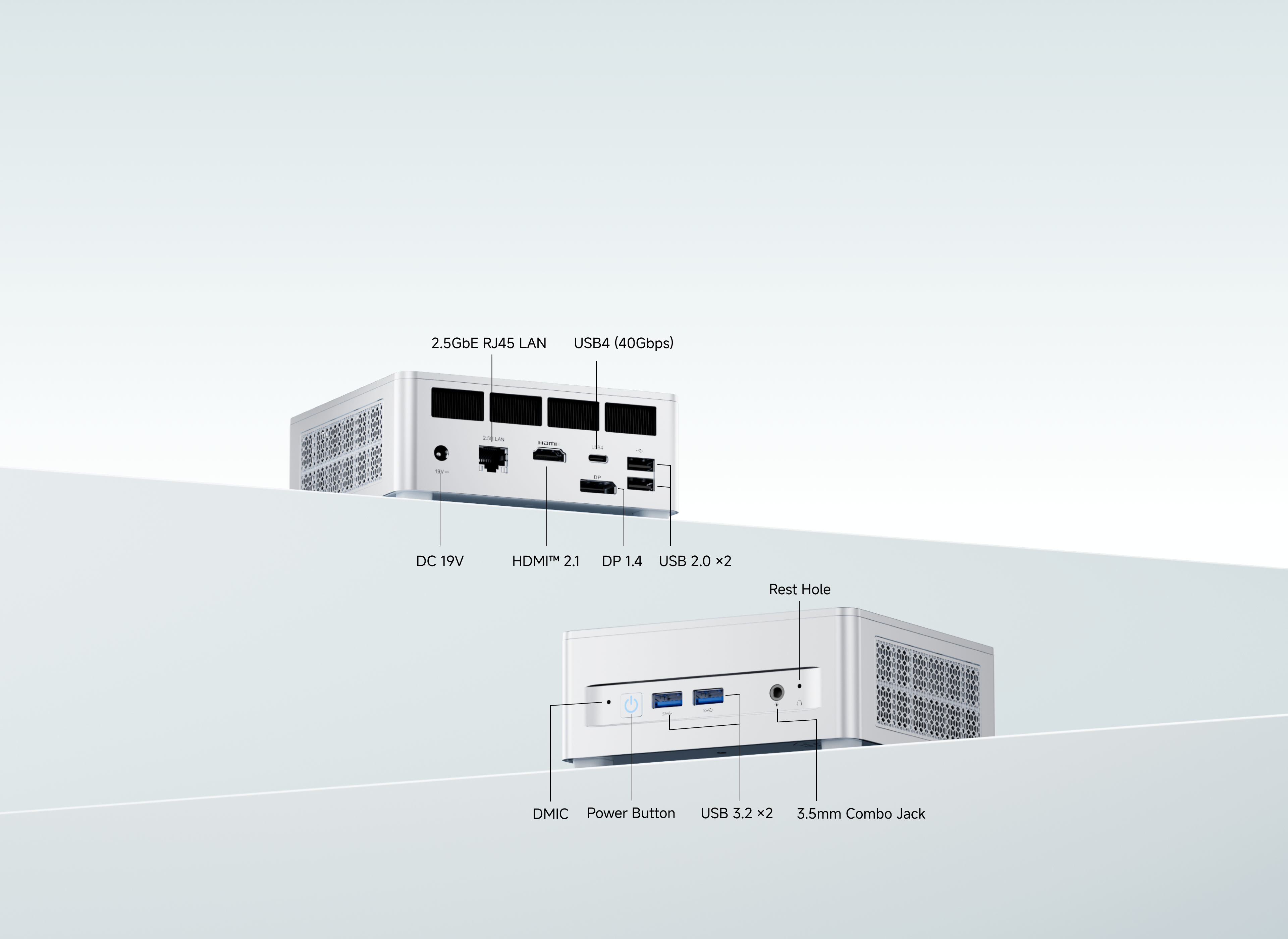

Display, expansion, and network-fully covered: HDMI 2.1 (4K@60) + DP1.4 (up to 8K@60/ 4K@144) + USB4 (up to 8K@60 / 4K@144) for a smoother triple-display workflow. With USB4 40Gbps + Alt-DP + PD IN 65-100W + PD OUT 15W, one cable handles both power and connectivity—plus 2.5GbE i226-V keeps calls steadier and LAN transfers faster.

Packing List

M1 Lite

AC Power Adapter

Power Cord

HDMI™ Cable

Mounting Screw Set

Mini PC Suspension Stand

User Manual

Specification

Elite M1 Lite-125U

CPU
  • Processor: Core Ultra 5 125U
  • Total Cores: 12
  • Total Threads: 14
  • Frequency: 1.3 GHz max
  • Turbo Frequency: 4.3 GHz
  • TDP (Balance Mode): PL1: 35W / PL2: 35W
  • TDP (Silent Mode): N/A
GPU

Graphics Cards: Intel® Graphics

NPU

NPU Performance: N/A

Memory
  • Memory Type: DDR5 (SO-DIMM х 2)
  • Optional SKU DDR Capacity: 0/16/32GB
  • Max Speed Support: (Dual channels) 5600Mhz
  • Max Capacity Support: 96GB
Storage
  • Storage Type: M.2 2280 PCIe4.0 SSD M.2 2280 PCIe4.0 SSD
  • Optional SKU SSD Capacity: 512G/1TB
