MINISFORUM MS-02 Ultra

Sale price$1,199.00 Regular price$1,499.00
Save $300.00

285HX in stock with immediate shipping; 275HX estimated shipping time: early December

For bulk discount inquiries, please contact us at elsa@minisforum.com

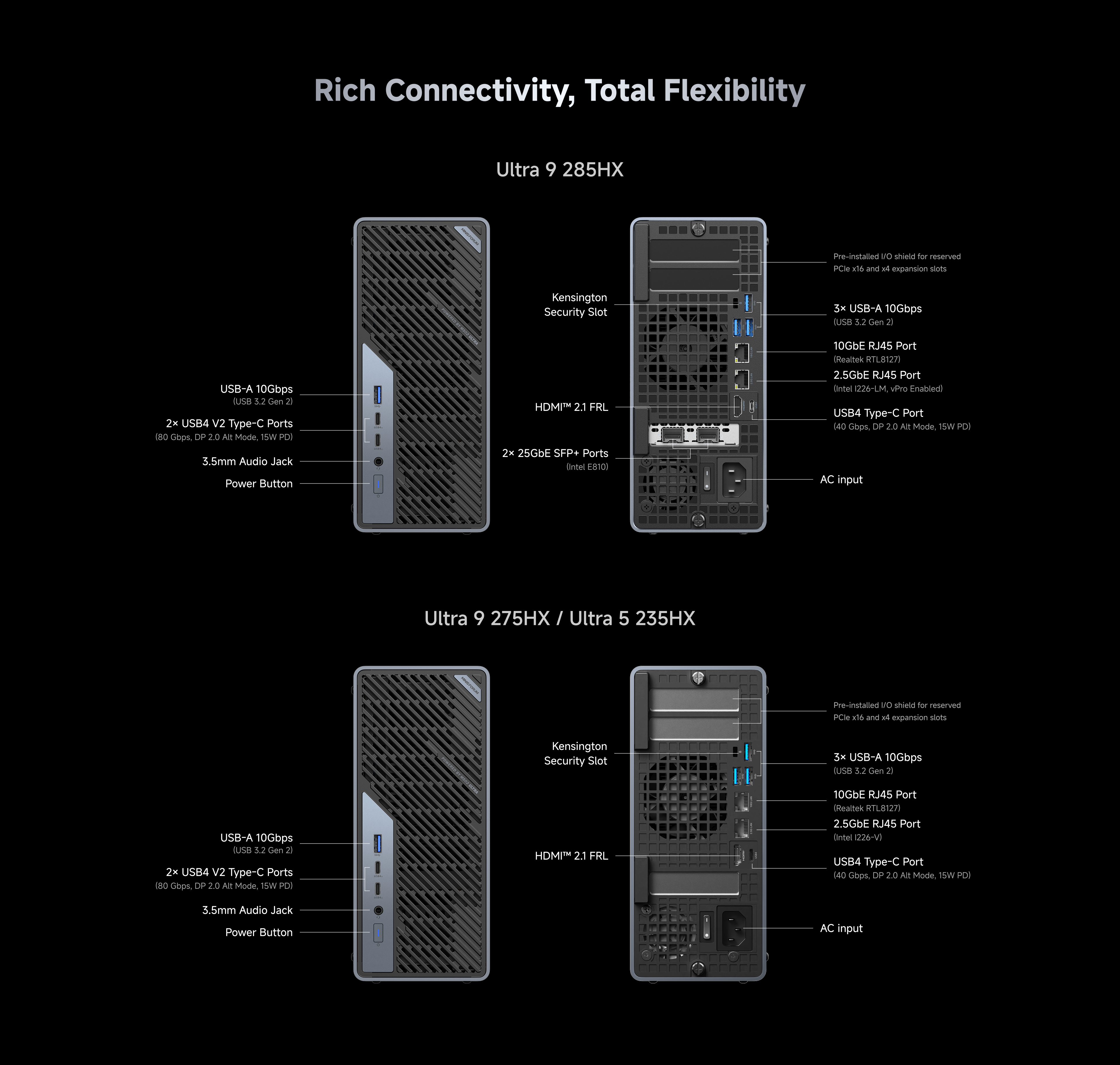

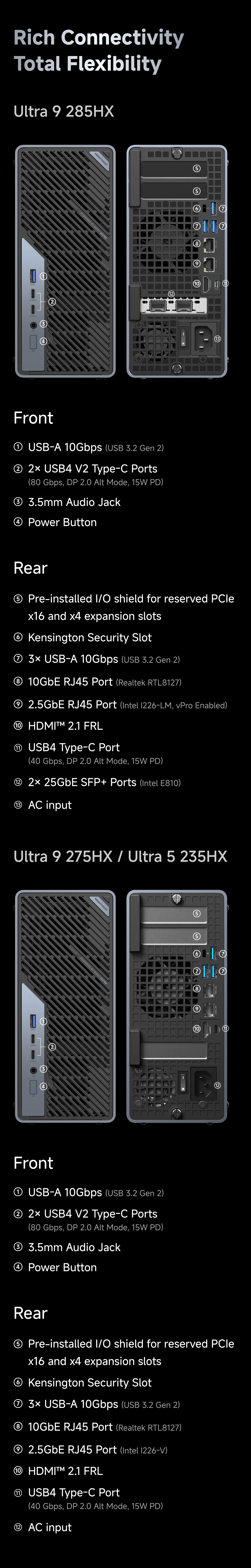

  • Optional Intel® Core™ Ultra 9 285HX | 275HX | Ultra 5 235HX
  • 4 × DDR5 SODIMM Slots
  • PCIe 5.0 x 16 Expansion Slot
  • 2 × USB4 V2 (80 Gbps)
  • 2 × 25GbE SFP+ (285HX only)
  • 1 × 10GbE | 2.5GbE RJ45 | WiFi 7 & BT 5.4
CPU: Intel® Core™ Ultra 9 285HX
Type: Barebone
Adapter: US
VisaMastercardAmerican Express DiscoverPayPalApple Pay Google Pay KlarnaAfterpayUnion PayJCBDiners ClubMaestroVisa ElectronCartes Bancaires
30-Day Free Return ›

Return to local warehouse

Lifetime Technical Support ›

Technical support for the life of the product

Duty-Free for US & Canada ›

Tax/duty included for eligible regions

2+1 Warranty Protection ›

2-year factory warranty

Plus optional 3-year accidental coverage extension (Powered by seel & Xcotton)
Engineering the Future
Redefining Mini Workstations
All-Core Synergy
Up to Intel® Core™ Ultra 9 285HX with CPU, GPU, and NPU synergy for all-scenario performance.
Ultimate Expandability PCIe 5.0
Up to 3 PCIe slots, 4× M.2 PCIe 4.0, and USB4 v2 (80Gbps) for unlimited modularity.
* M.2 slot count: 285HX: 4 slots; 275HX/235HX: 2 slots.
Enterprise-Grade Reliability
ECC memory & Intel vPro® enable 24/7/365 continuous operation and remote control.
*ECC & vPro® available on 285HX only.
Ultra-Fast 25 GbE Networking
Dual 25 GbE with 10 GbE & 2.5 GbE LAN for lightning-speed data transfer.
*Dual 25GbE ports: 285HX only.
High-Speed DDR5 Memory
4× DDR5 SODIMM slots, up to 256 GB memory,high-speed and responsive for smooth multitasking.
Data Protection Guaranteed
Supports multi-drive expansion and RAID 0/1/5/10, providing both high-speed performance and data protection.
Server-Grade Thermal Design
6 heat pipes + dual-fan cooler handle up to 140W Turbo and sustain 100W TDP, with low noise at 36 dB.

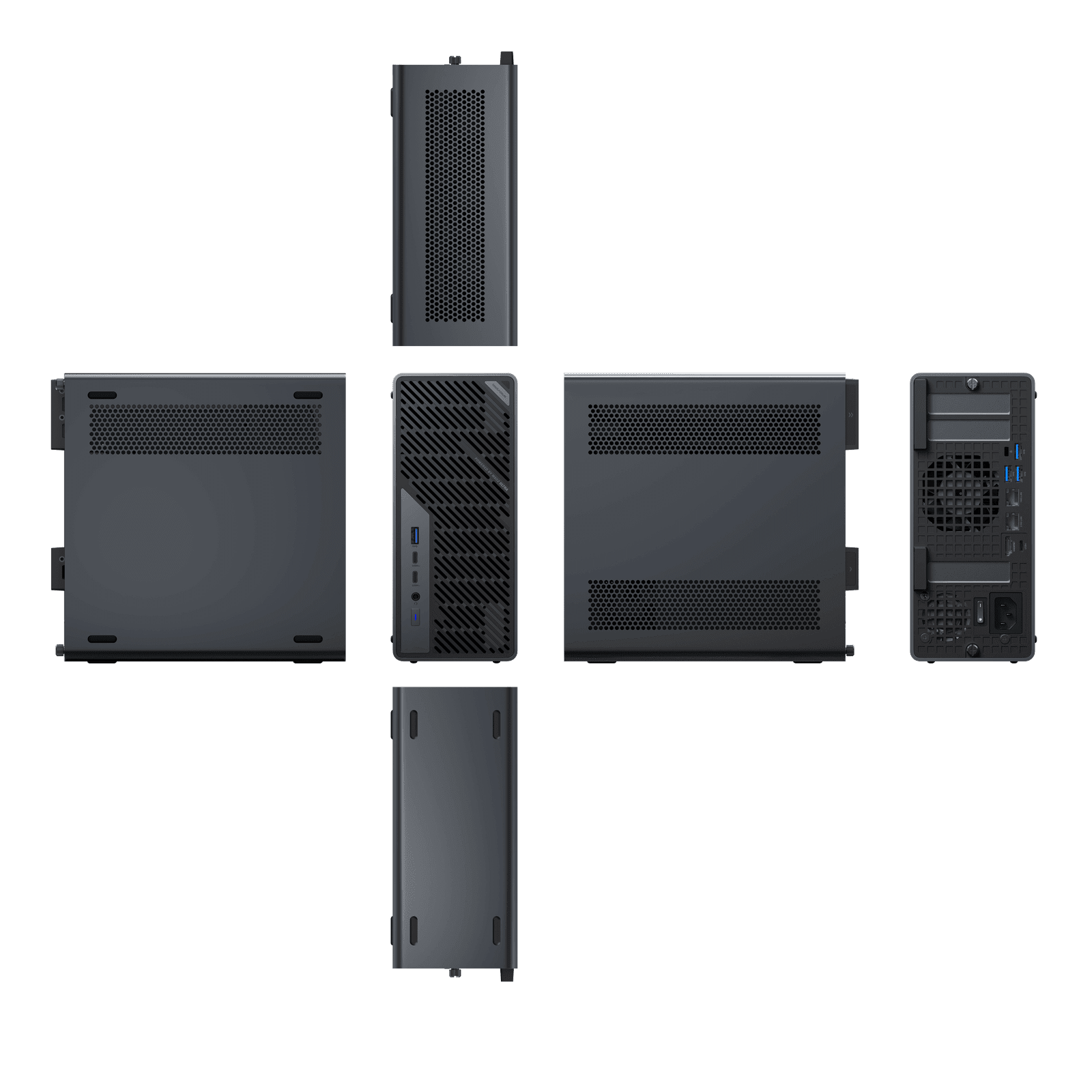

Compact yet Accessible
4.8 L slide-out chassis with built-in 350 W power supply —small outside, limitless inside.
Dual-Slot GPU Support
Supports PCIe ×16 dual-slot desktop GPUs, enabling powerful graphics rendering, AI acceleration, and multi-display output.
The All-Purpose Platform
Professional Creators
Lightning-Fast Transfers for Creative Workflows
Dual 25 GbE & USB4 v2 (80 Gbps) deliver instant data sync and smooth multi-task editing.
Up to 4x8K display outputs for editing, color grading, and 3D modeling workflows.
*Dual 25GbE ports: 285HX only.
Al Developers & Engineers
Up to Intel® Core™ Ultra 9 285HX with 13 TOPS NPU and 24-core CPU, delivering solid compute for AI inference and engineering workloads. PCIe ×16 expansion allows external GPUs to unlock advanced model training and data processing potential.
Enterprise IT & SMBs
Efficient IT Management Made Simple
Intel vPro®, ECC memory and slide-out maintenance reduce downtime and service costs.
*ECC & vPro® available on 285HX only.
Tech Enthusiasts & Power Users
Freedom to expand and customize your performance.
Three PCIe slots allow flexible installation of GPUs, NICs, or capture cards for limitless customization.

Zero Error, Zero Downtime

Up to 256 GB DDR5 Memory

Up to 256 GB DDR5 handles intensive computing with ease.
ECC auto-correction ensures mission-critical data integrity and stability
*ECC available on 285HX only.

Scalable RAID Storage Architecture

Supports multi-drive expansion and RAID
0/1/5/10 configurations, combining high-
speed throughput with data redundancy for
demanding workloads.

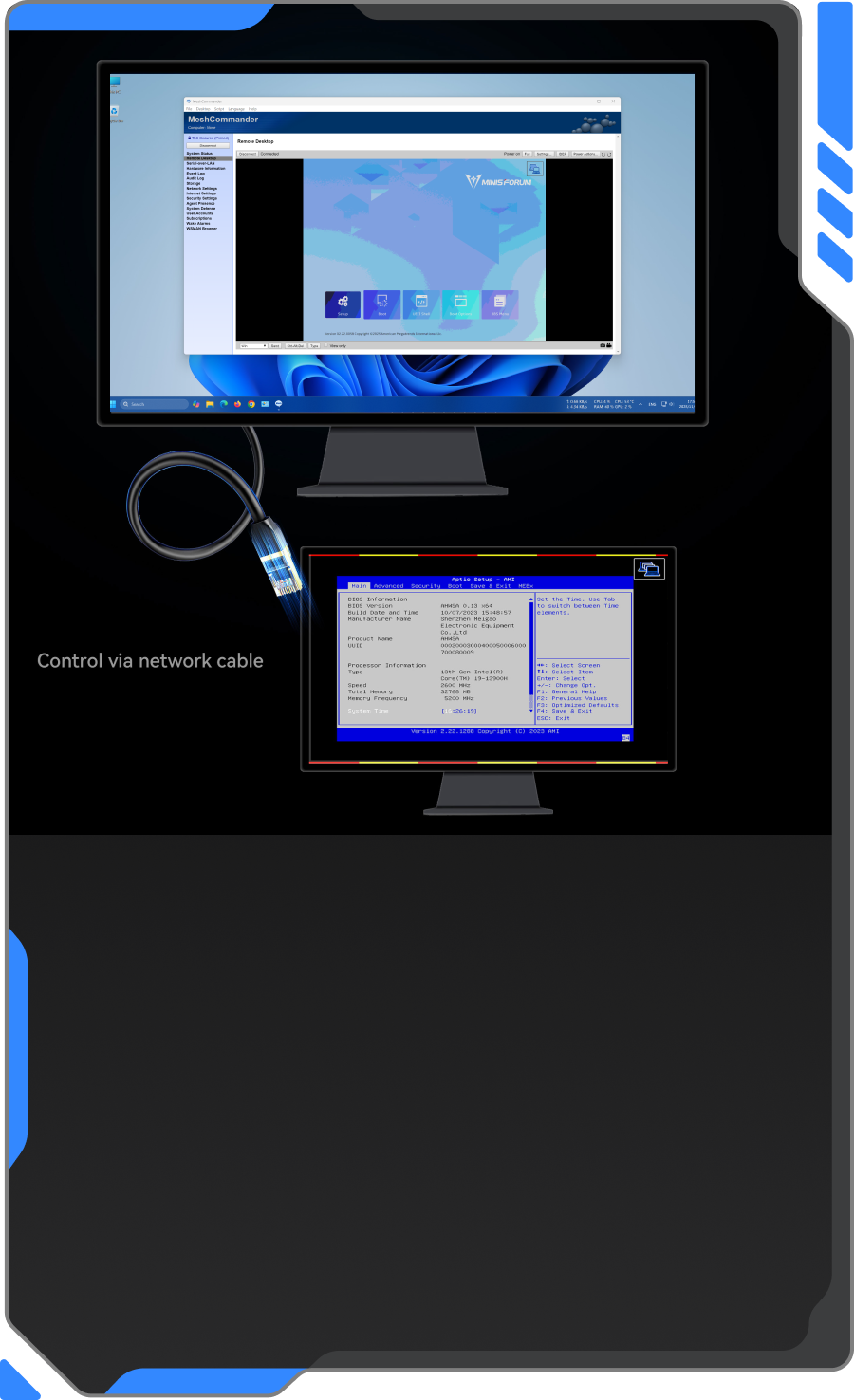

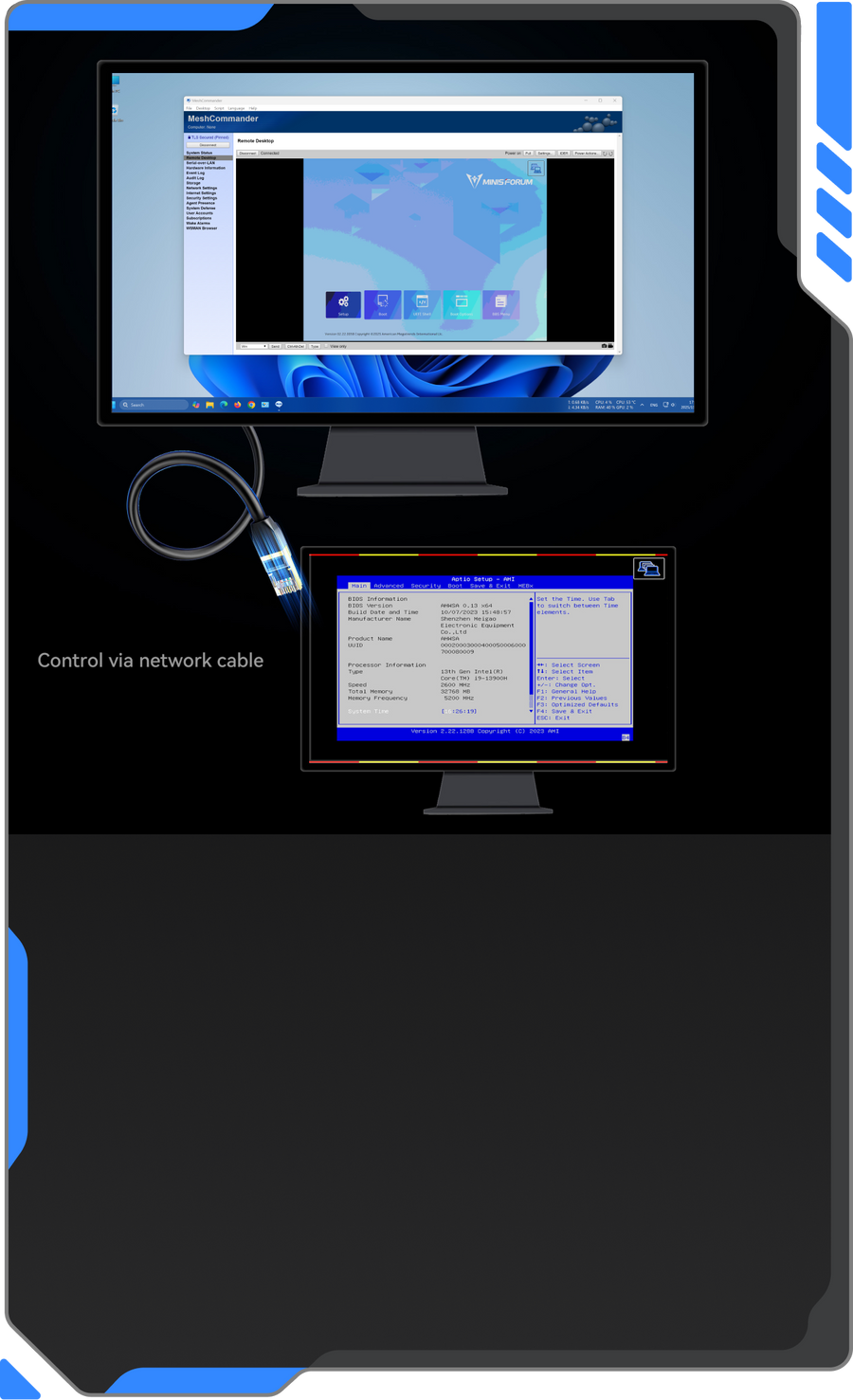

Intel® vPro® Remote Management

Intel® vPro® with BIOS-level KVM enables full remote control and 24/7 uptime.
Certified for industrial-grade reliability
under sustained workloads.
*vPro® available on 285HX only

Up to 256 GB DDR5 Memory

Up to 256 GB DDR5 handles intensive computing with ease.
ECC auto-correction ensures mission-critical data integrity and stability
*ECC available on 285HX only.

Scalable RAID Storage Architecture

Supports multi-drive expansion and RAID
0/1/5/10 configurations, combining high-
speed throughput with data redundancy for
demanding workloads.

Intel® vPro® Remote Management

Intel® vPro® with BIOS-level KVM enables full remote control and 24/7 uptime.
Certified for industrial-grade reliability
under sustained workloads.
*vPro® available on 285HX only

Mini yet Limitless Expansion

Mini yet Limitless Expansion

M.2 Storage Slots

4x M.2 2280 slots supporting both PCIe 4.0 x4 NVMe, expandable up to 24 TB total capacity with RAID 0/1/5/10, enabling independent drives for projects, media, and cache with ultra-fast performance.
* M.2 slot count: 285HX: 4 slots; 275HX/235HX: 2 slots.

PCIE & USB4.0v2

Up to 3 PCIe slots including a ×16 dual-slot GPU, with the primary slot supporting PCIe 5.0 for high-bandwidth creative and computing workloads.

USB4 v2 (80Gbps) further enhances high-speed connectivity for external storage, displays, and acceleration modules.

Ultra-Fast Networking
Smart Bandwidth Switching
Adaptive bandwidth switching ensures peak performance accoss enterprise or local networks.
Revolutionizing team collaboration with ultra-low latency for 4K/8K media and Al data workflows.
Dual 25GbE Ports
Dual 25GbE ports deliver a theoretical peak bandwidth of ~3.125 GB/s, compared to 1 GbE at ~125 MB/s, enabling large-scale data transfer and parallel computing with ease.
*Dual 25GbE ports: 285HX only.
Multi-Tier LAN Architecture
10 GbE + 2.5 GbE RJ45 Ports with vPro support for enterprise deployments.
*vPro® available on 285HX only
Wi-Fi 7 Connectivity
Wi-Fi 7 (6 GHz Band) delivers nex-tgeneration wireless speed and stability.

Efficient Cooling Performance Unleashed

Efficient Cooling Performance Unleashed

Server-Grade Airflow Design

Dedicated CPU/GPU airflow channels with a server-grade exhaust layoutensure precise thermal control and sustained system stability.

Efficient & Quiet Cooling

6 heat pipes and dual fans dissipate up to 140W Turbo heat and sustain a 100W TDP load, delivering stable and quiet operation at just 36 dB.

Built-in 350 W Power Supply

Integrated 350 W power design delivers reliable and efficient power for sustained performance-easy to deploy and maintain.

MINISFORUM MS-02 Ultra

Product Specification

CPU

Intel® Core™ Ultra 9 285HX
24 Cores (8 P-Cores + 16 E-Cores), 24 Threads
Max Clock: 5.5 GHz

TDP

Without dGPU: 100W PL1 / 140W PL2
With dGPU: 90W PL1 / 110W PL2

GPU

Intel® Graphics(Internal)
Max GPU Clock: 2 GHz

AI Engine Performance

Intel® AI
NPU Computing Power: Up to 13 TOPS

RAM

4 x DDR5 SODIMM slots​ (ECC supported; XMP overclocking not supported).
Max frequency support: 4800MHz
Max capacity support: 256GB

SSD

2 × M.2 2280 NVMe SSD slots

(PCIe 4.0 x4, Up to 8TB each)
2 × M.2 2280 NVMe SSD slots

(Inside 25GbE NIC, up to 8 TB/slot PCIe 3.0 x4) or 4 TB/slot PCIe 4.0 x4)
