MINISFORUM MS-A2

$439.00 $549.00
  • AMD Ryzen™ 9 9955HX,16C/32T
  • Dual DDR5-5600Mhz,up to 96GB
  • M.2 PCIe 4.0 SSD slot*3 | Support U.2 NVMe/M.2 22110
  • Dual 10Gbps SFP+ Lan & 2.5G RJ45 Lan Ports | WIFI 6E & BT 5.3
  • Built-in PCle x16 Slot (support split)
CPU:

AMD Ryzen™ 7 7745HX

TYPE:

Barebone

ADAPTER:

US

Payment Methods:

American Express Apple Pay Cartes Bancaires Diners Club Discover Google Pay JCB Maestro Mastercard PayPal Union Pay Visa Visa Electron

Trusted Delivery:

Trusted Delivery:

Free Shipping

Free Shipping

Free RMA Return

Free RMA Return

0% APR Plan

0% APR Plan

Up To 3 Years Extended Warranty

Up To 3 Years Extended Warranty

30-Day Money-Back Guarantee

30-Day Money-Back Guarantee

AMD Ryzen™ 7 7745HX

Barebone
$439.00 $549.00
Buy Now
Purchase
Overview
Specs

Core Unleashed. Built to Dominate.

Core Unleashed. Built to Dominate.

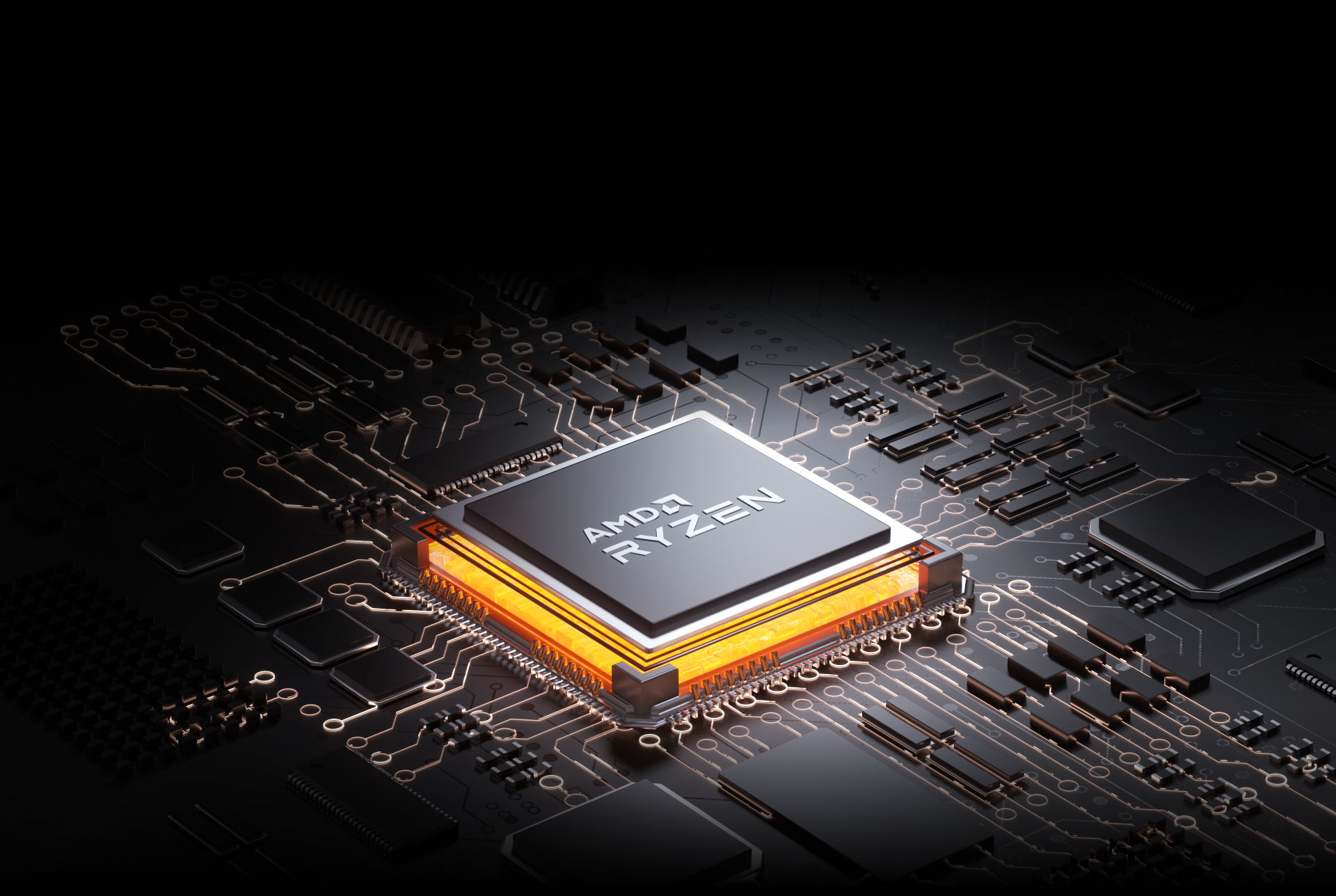

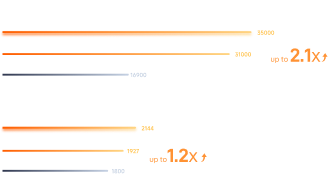

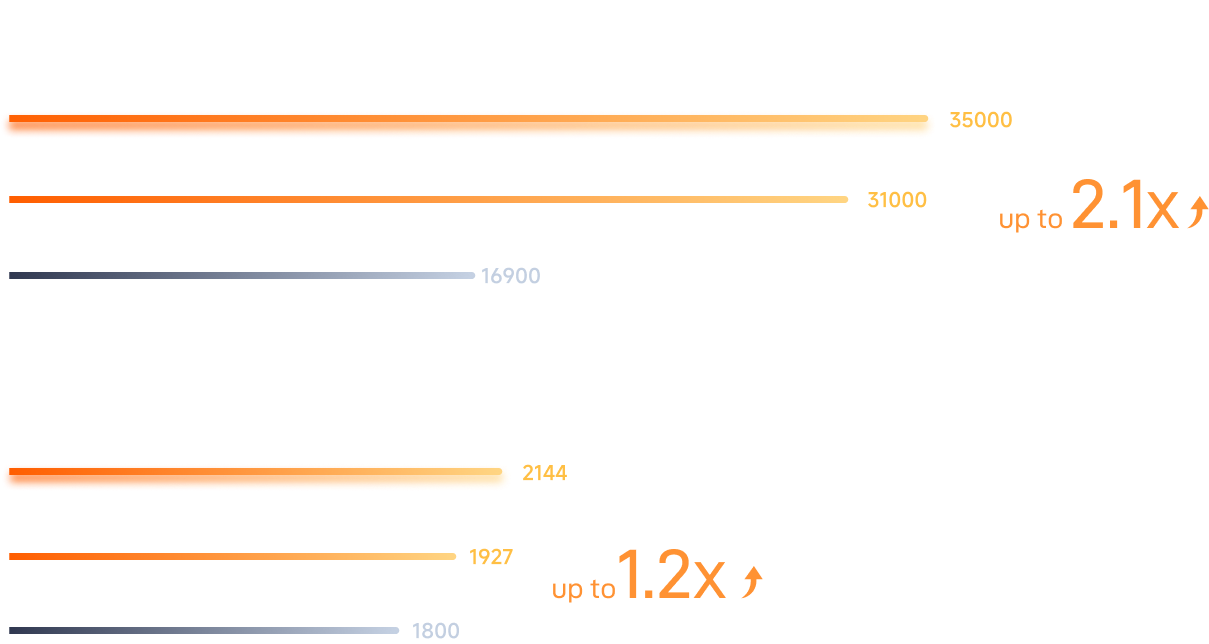

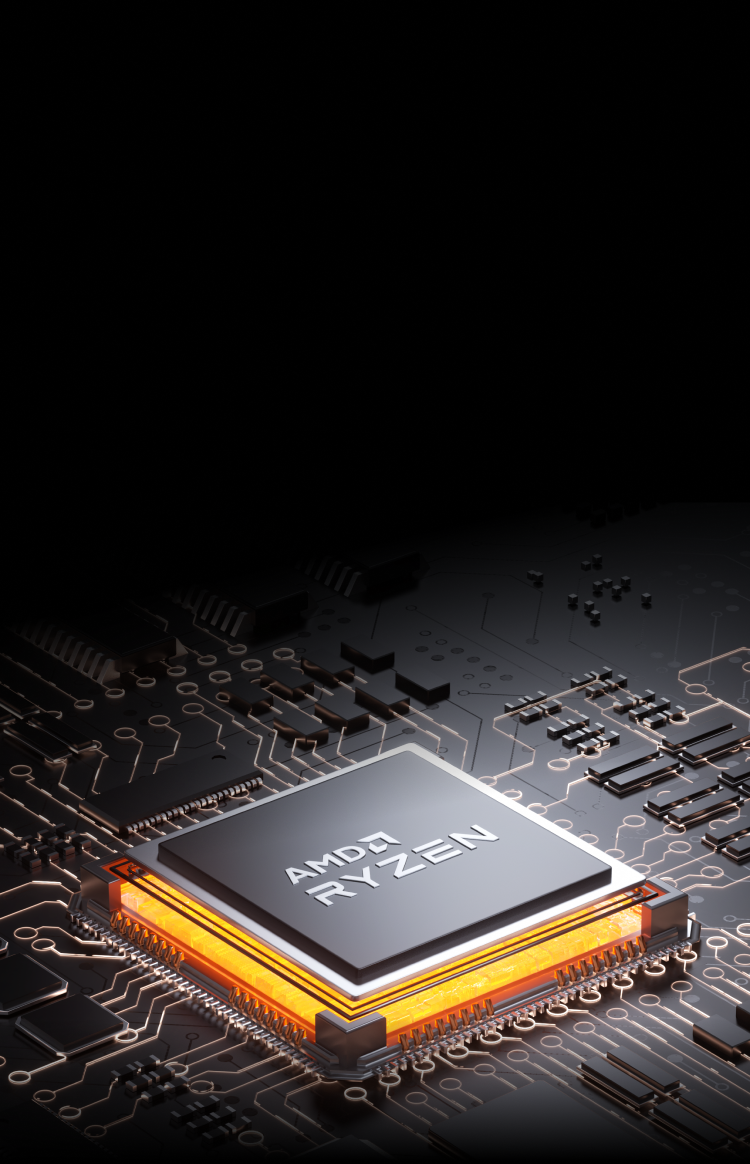

Up to AMD Ryzen™ 9 9955HX processor, featuring the Zen5 architecture with 16 cores and 32 threads, a boost clock speed of up to 5.4GHz, and a turbo 100W TDP. This robust processing power efficiently handles complex multitasking and meets the demands of intensive scenarios like professional rendering and AI training.Equipped with AMD Radeon™ 610M integrated GPU,  2200 MHz graphics frequency, eliminating the need for a separate GPU for general use.
Up to AMD Ryzen™ 9 9955HX processor, featuring the Zen5 architecture with 16 cores and 32 threads, a boost clock speed of up to 5.4GHz, and a turbo 100W TDP. This robust processing power efficiently handles complex multitasking and meets the demands of intensive scenarios like professional rendering and AI training.Equipped with AMD Radeon™ 610M integrated GPU,  2200 MHz graphics frequency, eliminating the need for a separate GPU for general use.
Zen5
Architecture
16/32
Cores/Threads
64MB
L3 Cache
5.4 GHz
Max Boost Clock
100W
Turbo TDP

*Performance data are maximum theoretical values measured in laboratory conditions. Actual results may vary depending on

temperature and usage environment.
*AMD 7000 series features Zen 4 architecture cores.

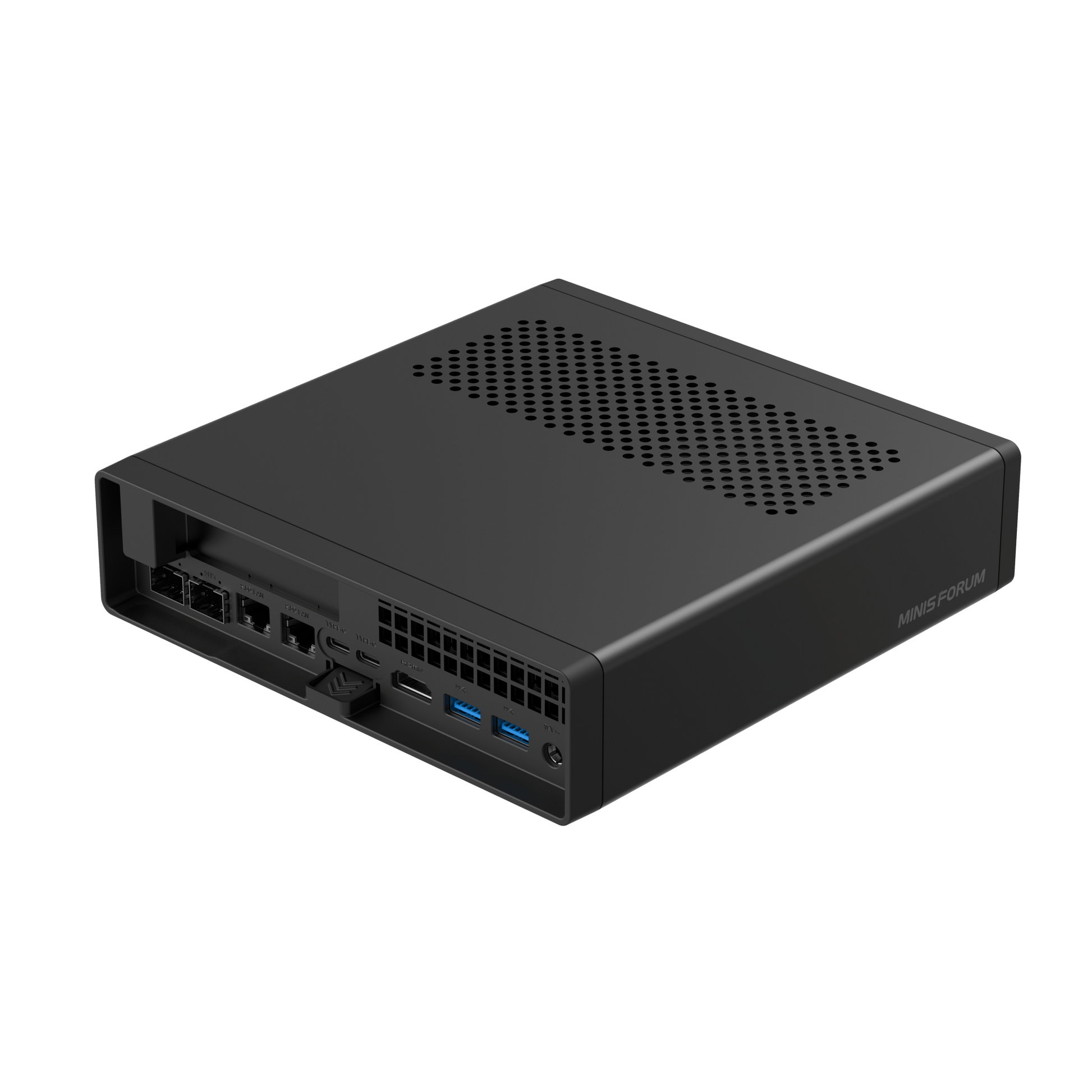

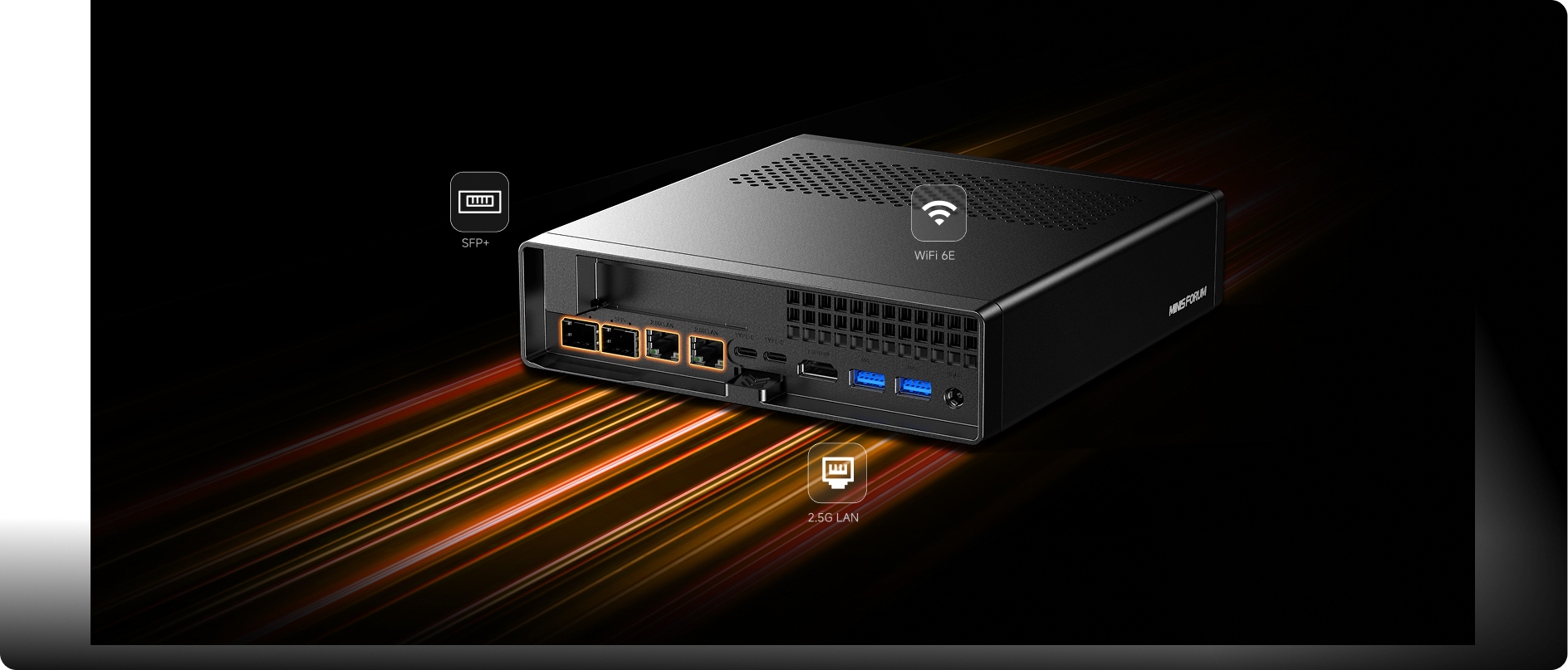

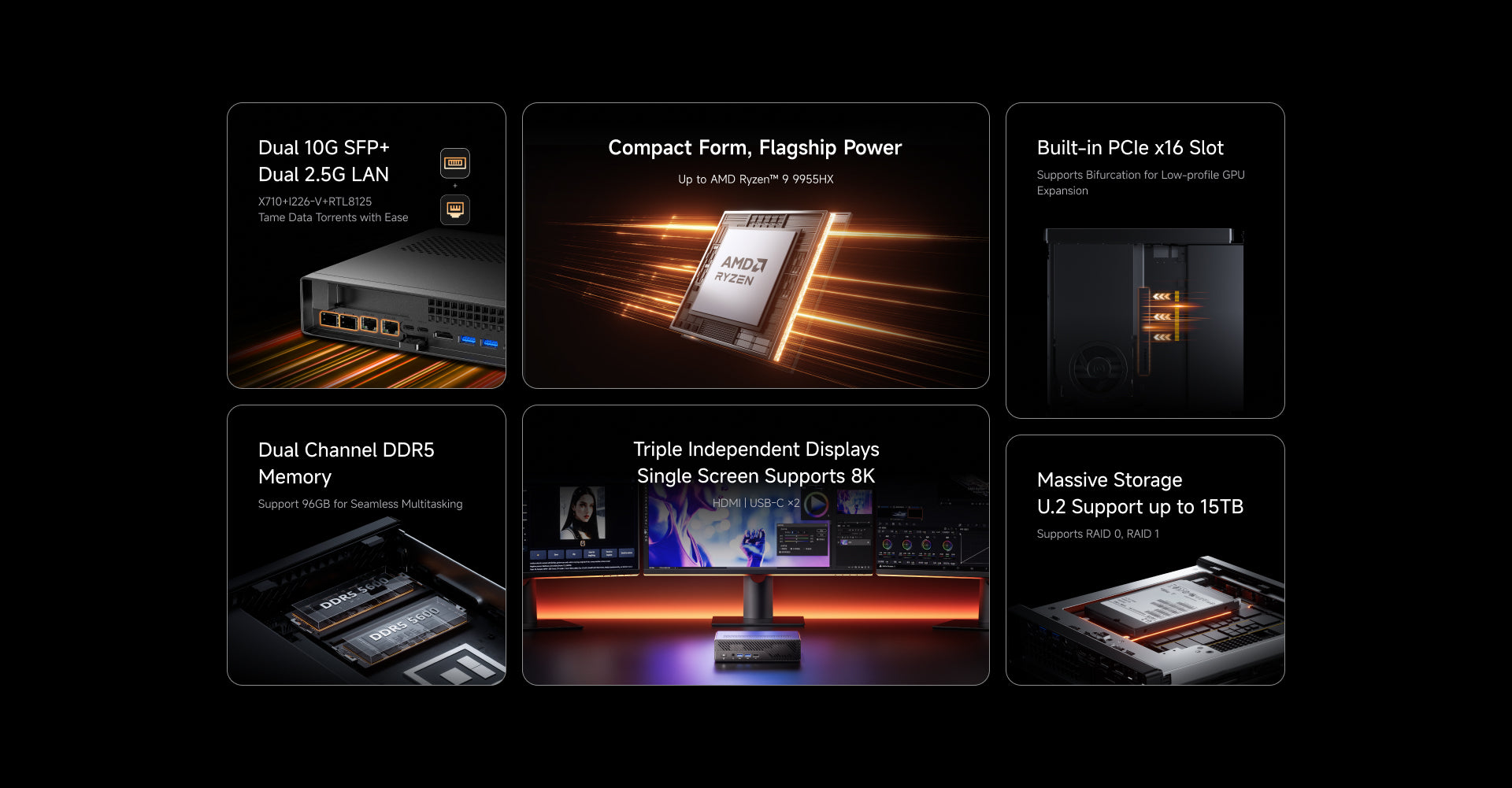

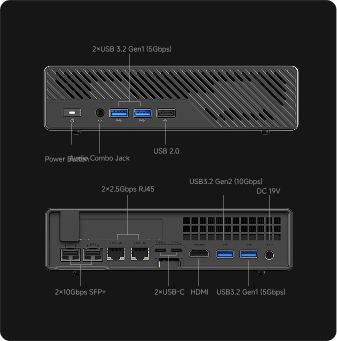

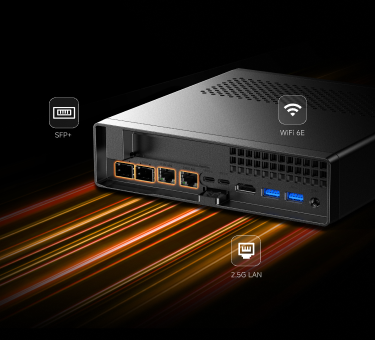

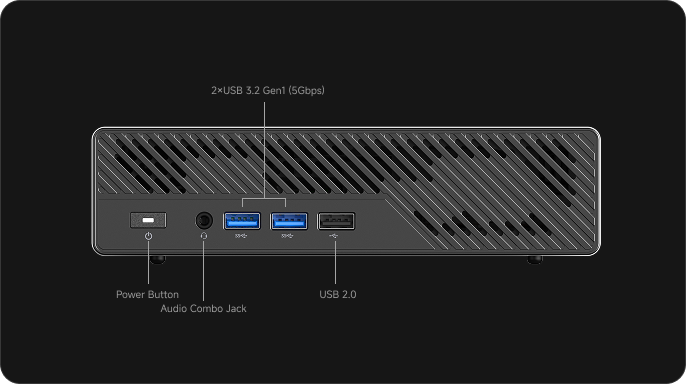

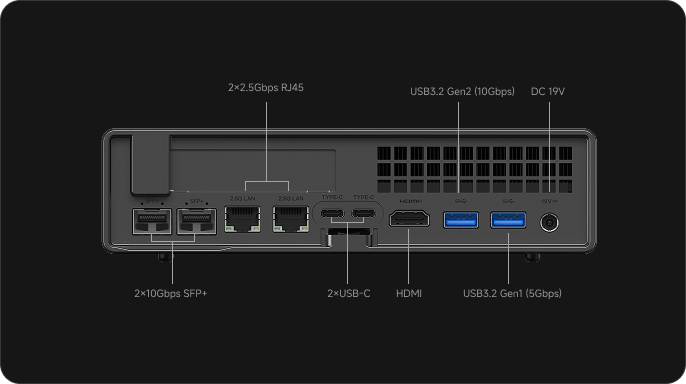

Comprehensive Interface Lineup

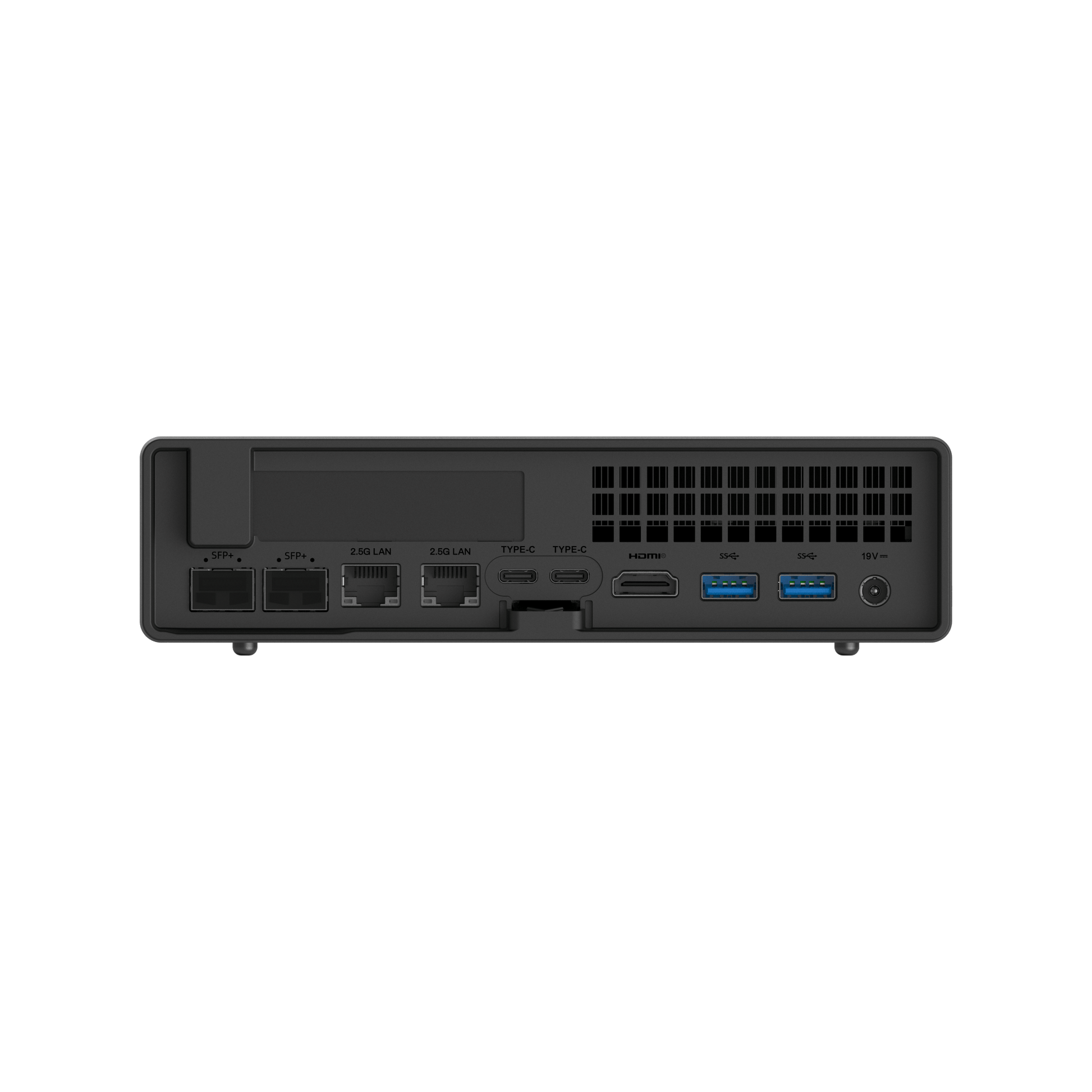

Dual 10G SFP+ ports and dual 2.5G RJ45 ports aggregate for rapid data throughput, unlocking professional productivity.

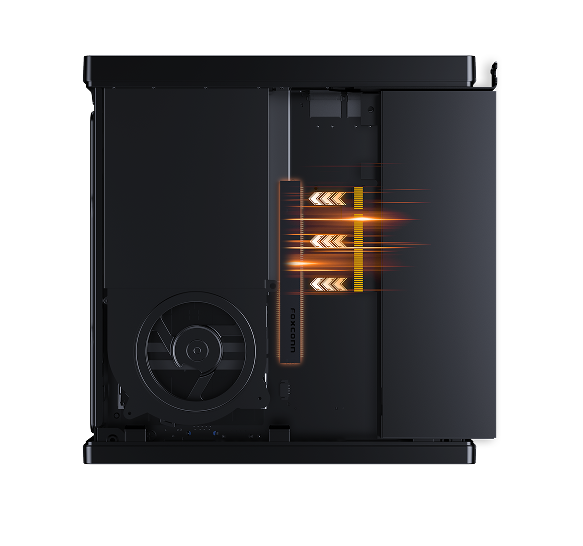

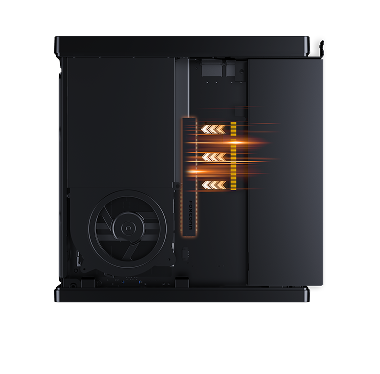

Built-in PCIe x16 Slot

Physical PCIe x16, bandwidth PCIe 4.0 x8, supports split into 2*PCIe 4.0 x4 for graphics cards or network cards.

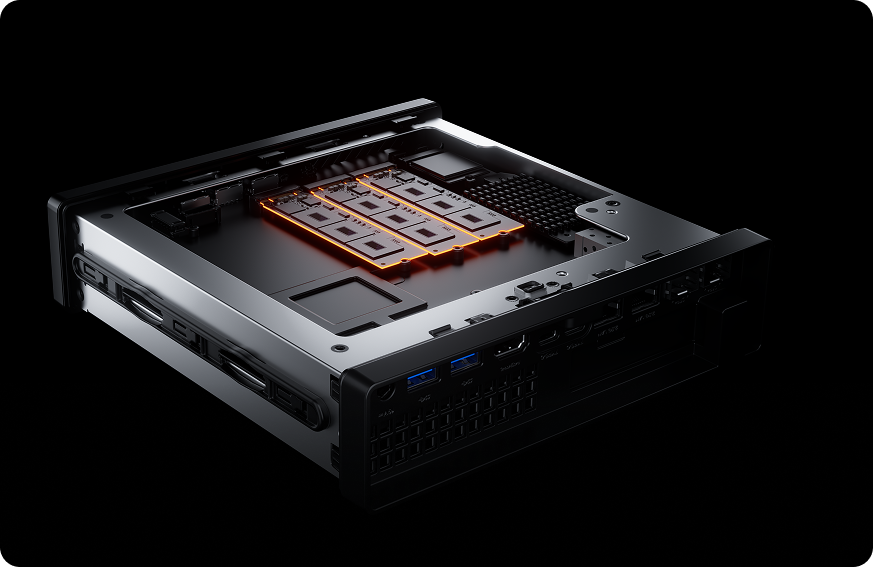

Massive Storage
Unshakable Reliability

3 M.2 PCIe 4.0 NVMe SSD slots support consumer grade SSDs, enabling up to 12TB storage to meet the needs of creative and film professionals.
7000MB/s

Data Transfer Speeds up to

12TB

Storage Capacity Up To

*The two slots are set to PCIe 3.0 x4 by default and can be manually changed to PCIe 4.0 x4 in the BIOS.

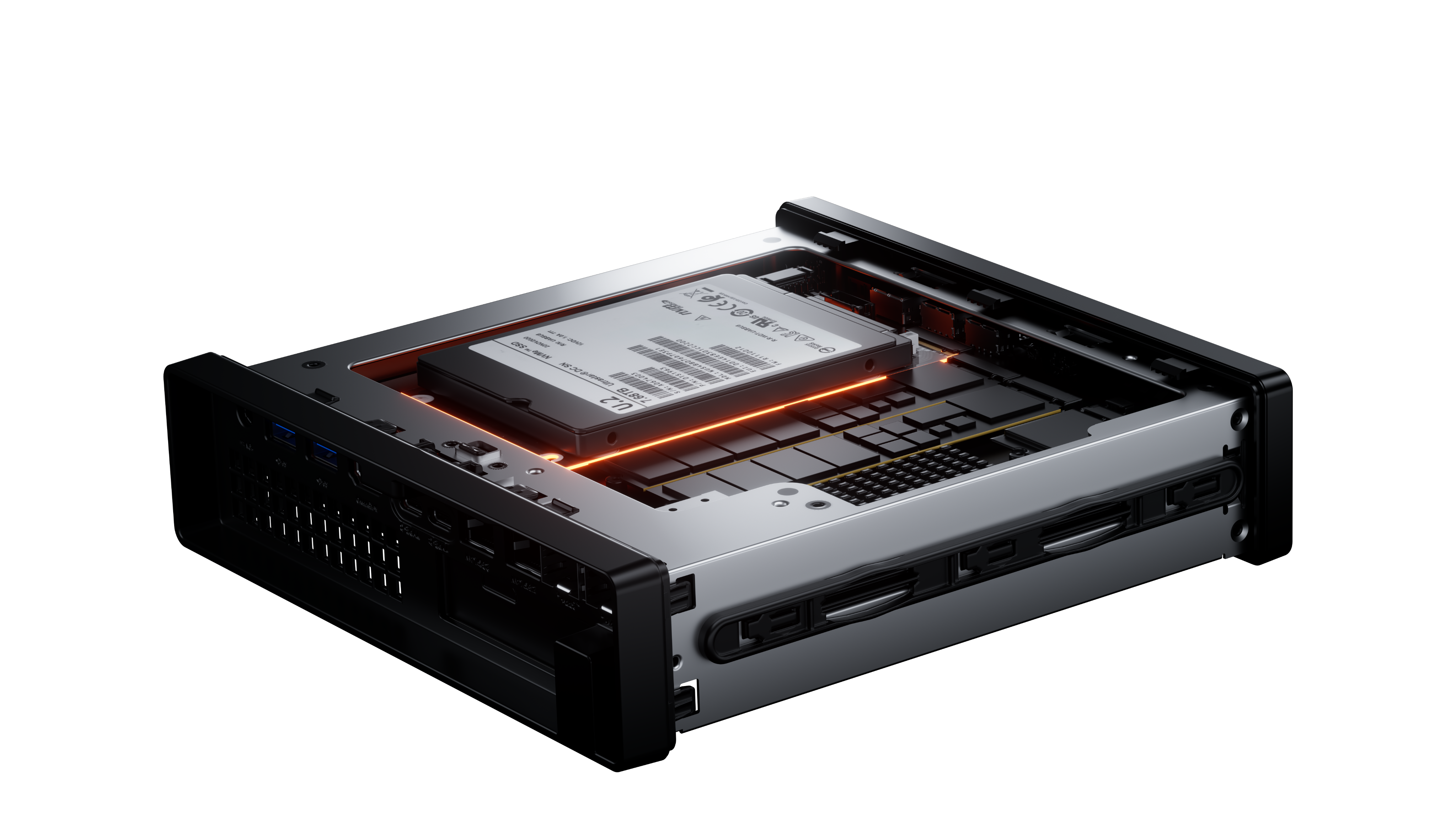

Supports U.2 NVMe/M.2 22110 enterprise SSDs, with up to 15TB per drive, max storage capacity up to 23TB, offering greater capacity and stability.
U.2

Enterprise SSD

15TB

Max Single-Drive Capacity Up To

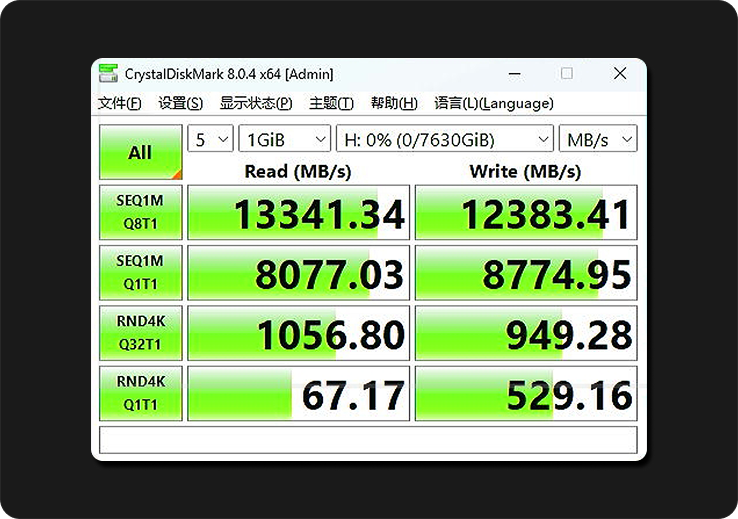

Supports RAID 0 and RAID 1 for optimized storage performance and data management.
RAID 0

Boosts transfer speeds up to 13,000MB/s.

RAID 1

Enhances reliability and ensures data security.

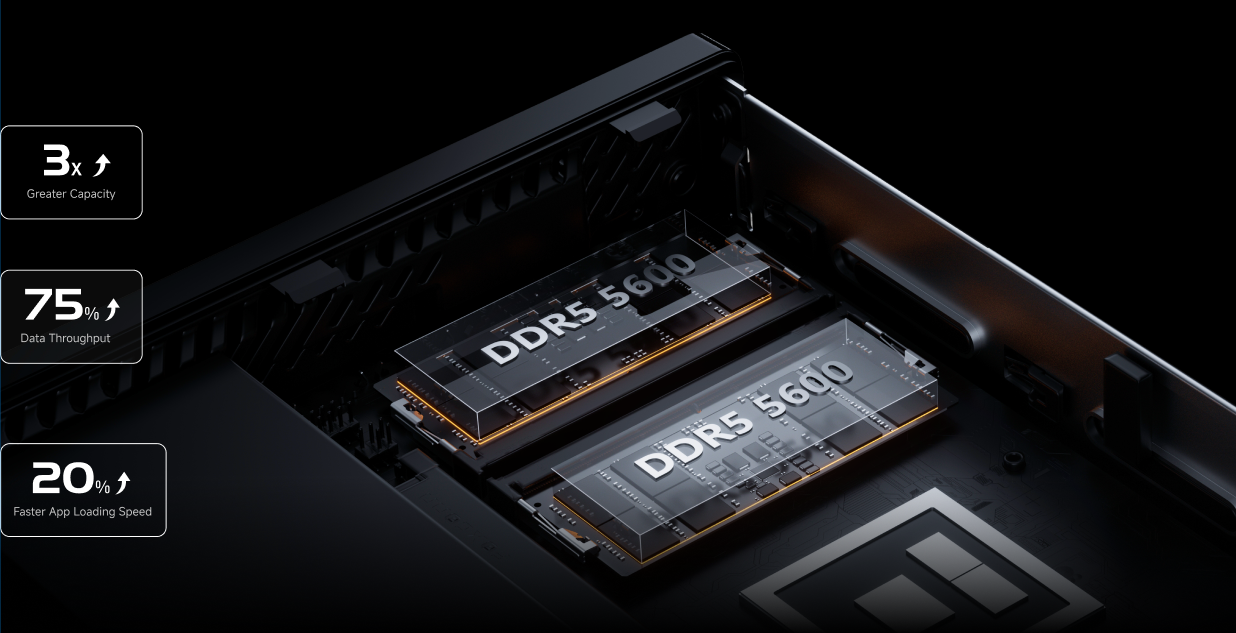

Triple the Capacity Instant Response

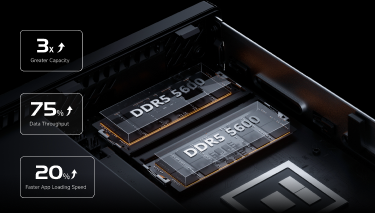

MS-A2 supports up to 96GB DDR5-5600 memory. Compared to 32GB DDR4-3200, this triples capacity, enabling smooth operation of over 20 VMs or heavy duty design software.Its 89.6GB/s bandwidth (vs. DDR4-3200 dual-channel 51.2GB/s) represents a 75% boost in data throughput, enhancing multitasking efficiency.Memory latency is reduced to 80ns (from DDR4's ~100ns), App loading speed improved by 20%. These combined improvements eliminate memory bottlenecks, making professional content creation, server deployment, and complex computations more fluid, making it outperform traditional laptop setups.

*Note: Performance data is from specific test platforms. Real-world performance may differ based on configuration, software, and usage. Always refer to actual tests.

Aviation-grade Precision Design
Modular Instant Upgrade

Aviation-grade Precision DesignModular Instant Upgrade

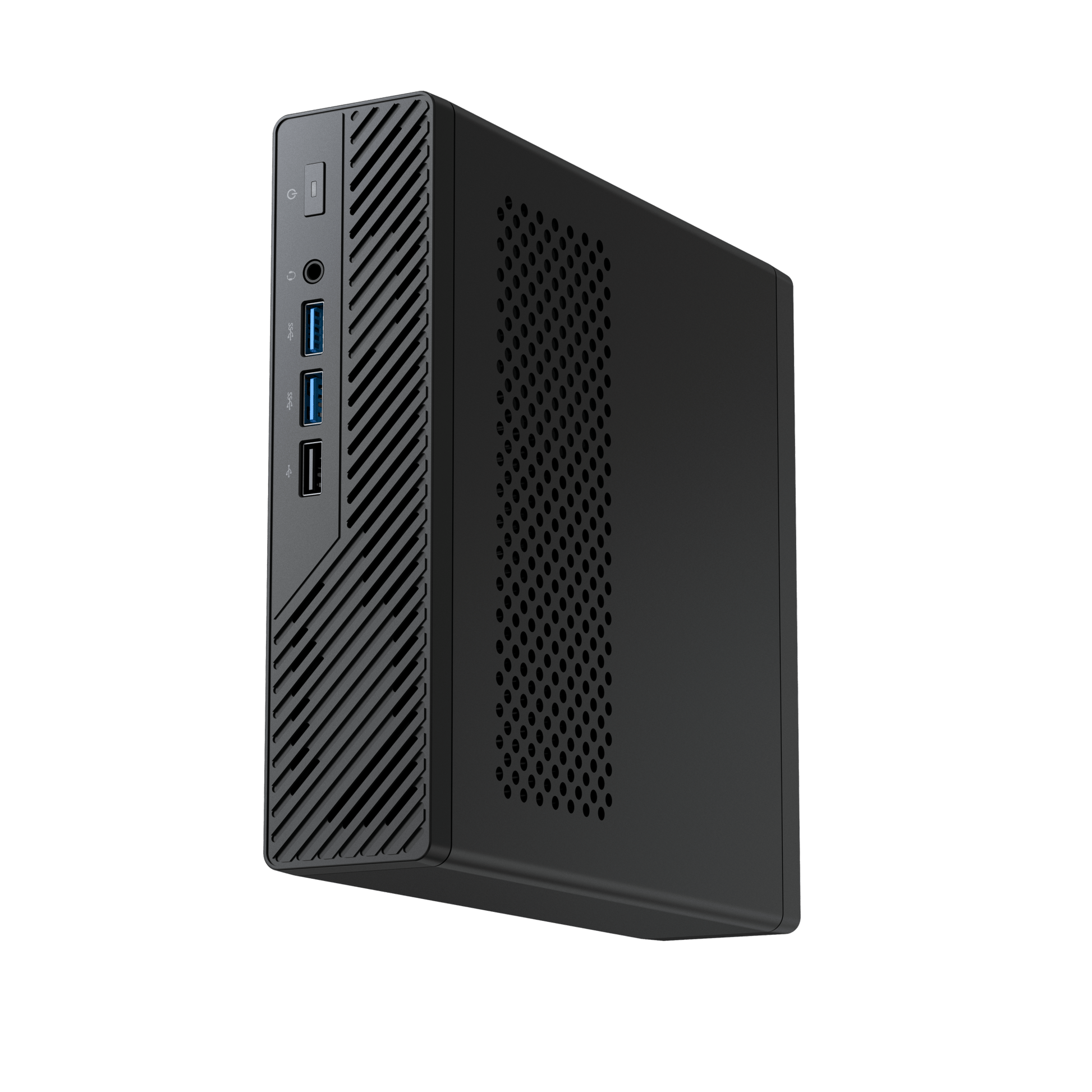

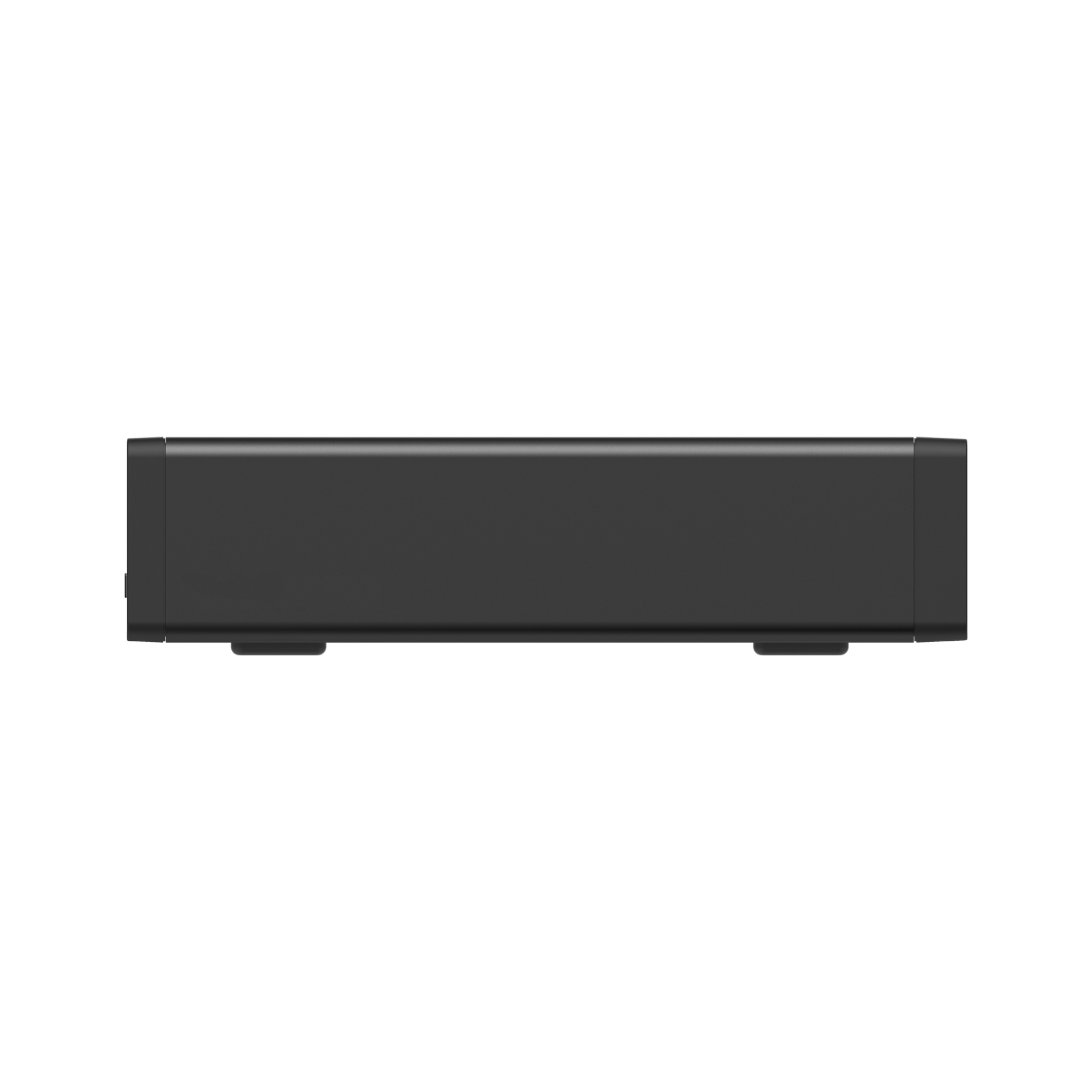

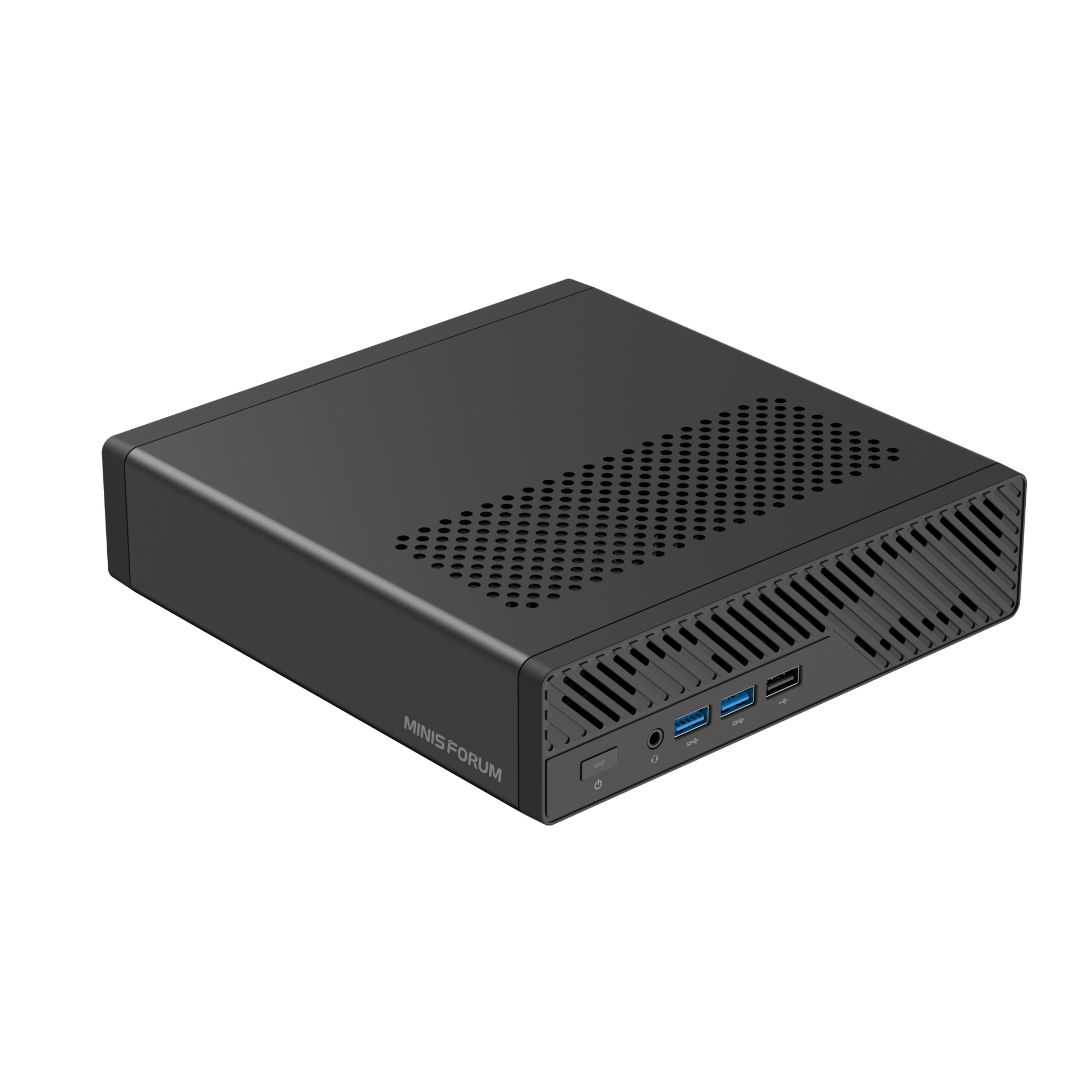

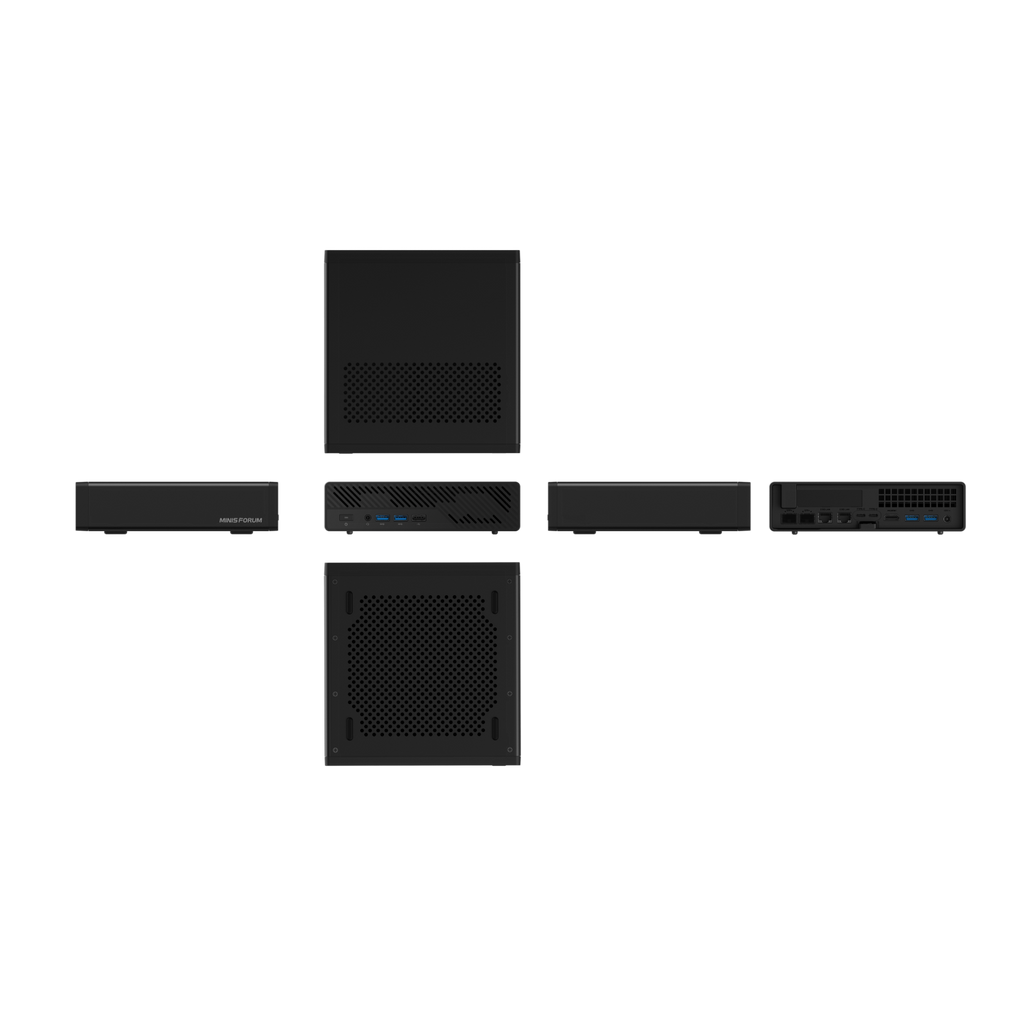

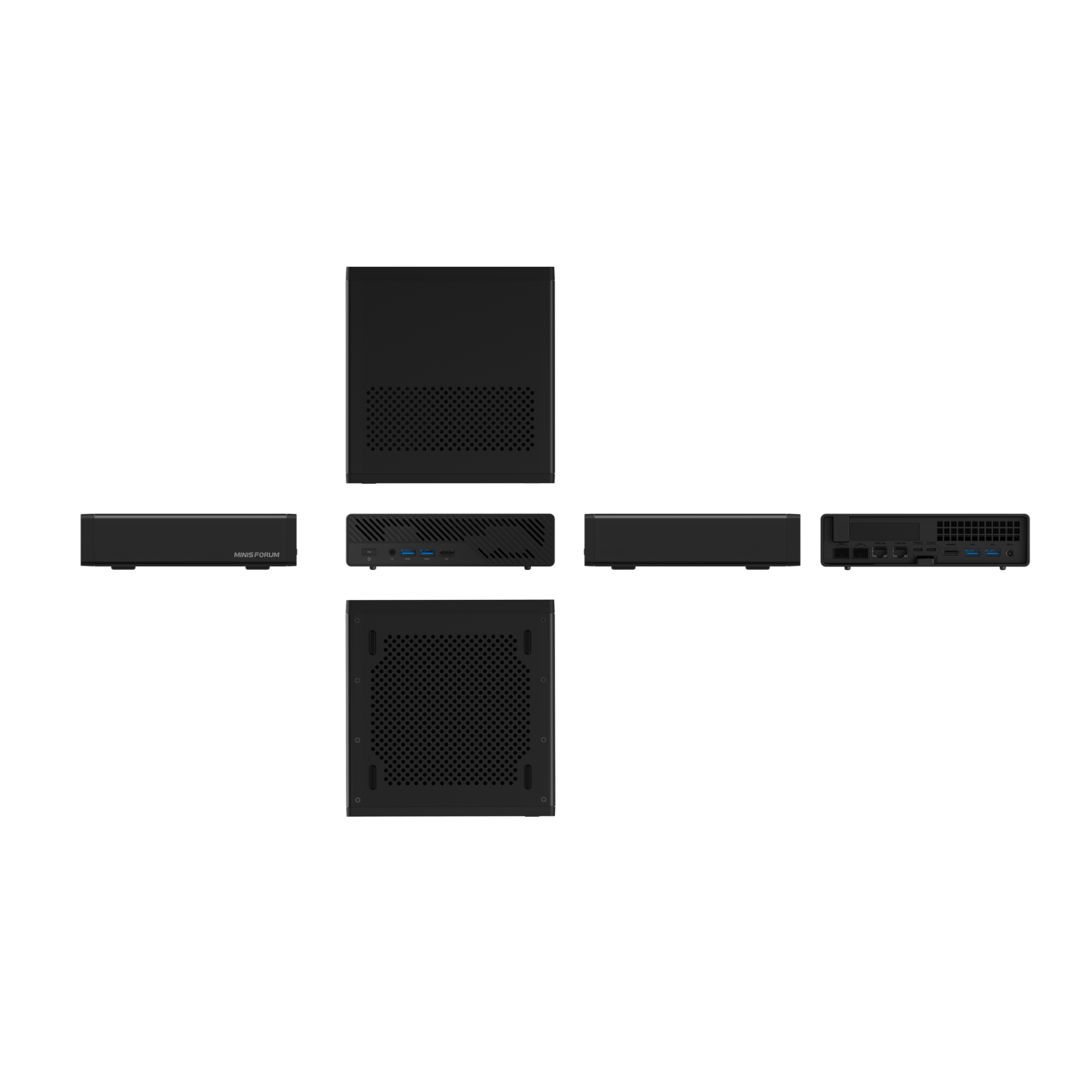

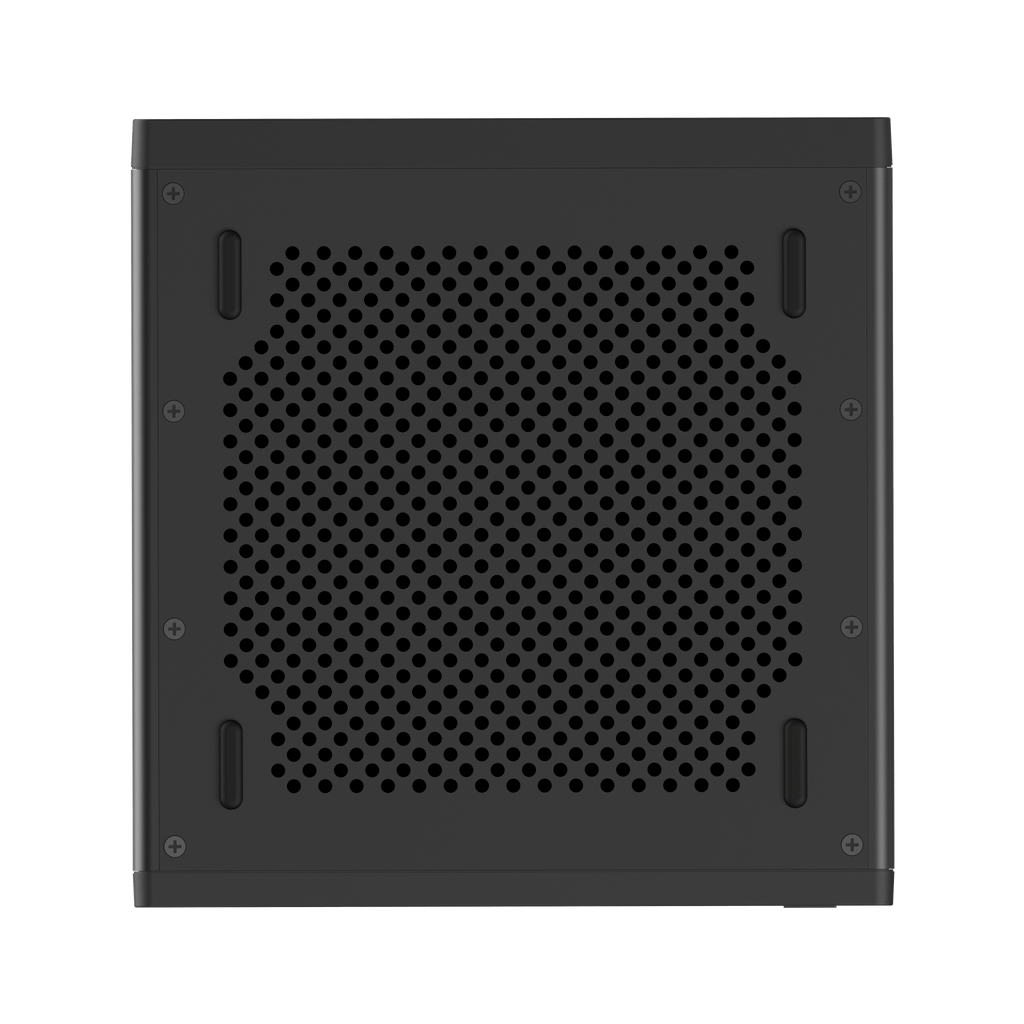

At just 1.78L in volume (196×189×48mm) and weighing only 1.4 kg, MS-A2 features a lightweight metal structure with non - slip pads on the bottom, can be stably placed on desktops, in cabinets, and various other scenarios, saving space and facilitating deployment.
At just 1.78L in volume (196×189×48mm) and weighing only 1.4 kg, MS-A2 features a lightweight metal structure with non - slip pads on the bottom, can be stably placed on desktops, in cabinets, and various other scenarios, saving space and facilitating deployment.

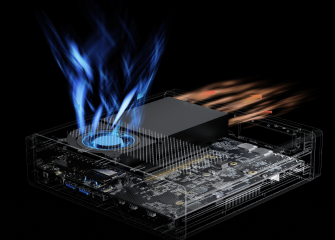

Dual Engines, Zero Noise
Unleash Extreme Performance.

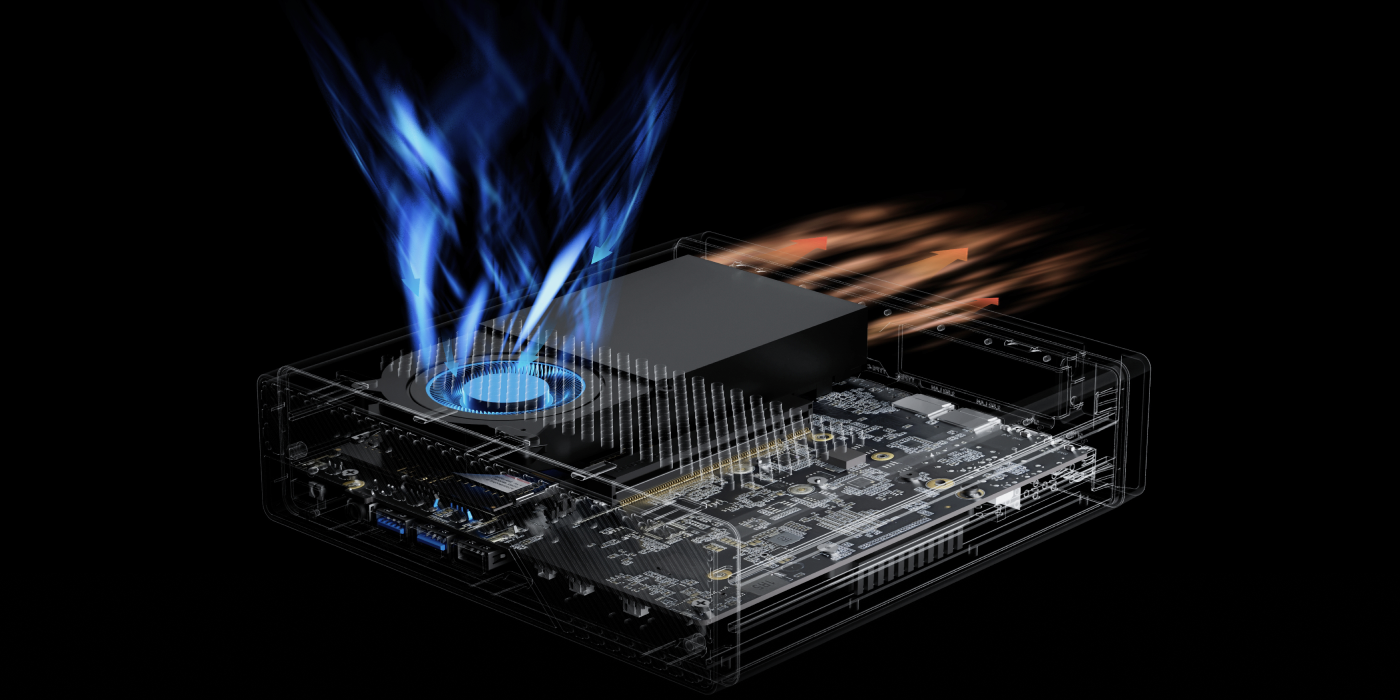

The three heat pipe pure copper thermal architecture reforms heat conduction paths. Innovative turbine fans with aerodynamic vortex grooves boost system airflow by 30%. Advanced phase-change material temperature control technology redefines the performance space of the ultra slim 1.78L body.

All-new Upgraded
Triple Pure Copper Heat Pipes
Phase-change Material
Precision Temperature ControlEasy To Maintain
Upgraded Turbo Fan
30% Increased Airflow
Jet Direct Airflow
Ice-cool Efficiency, Zero Obstruction

One Flagship. Three Domains.

Programming

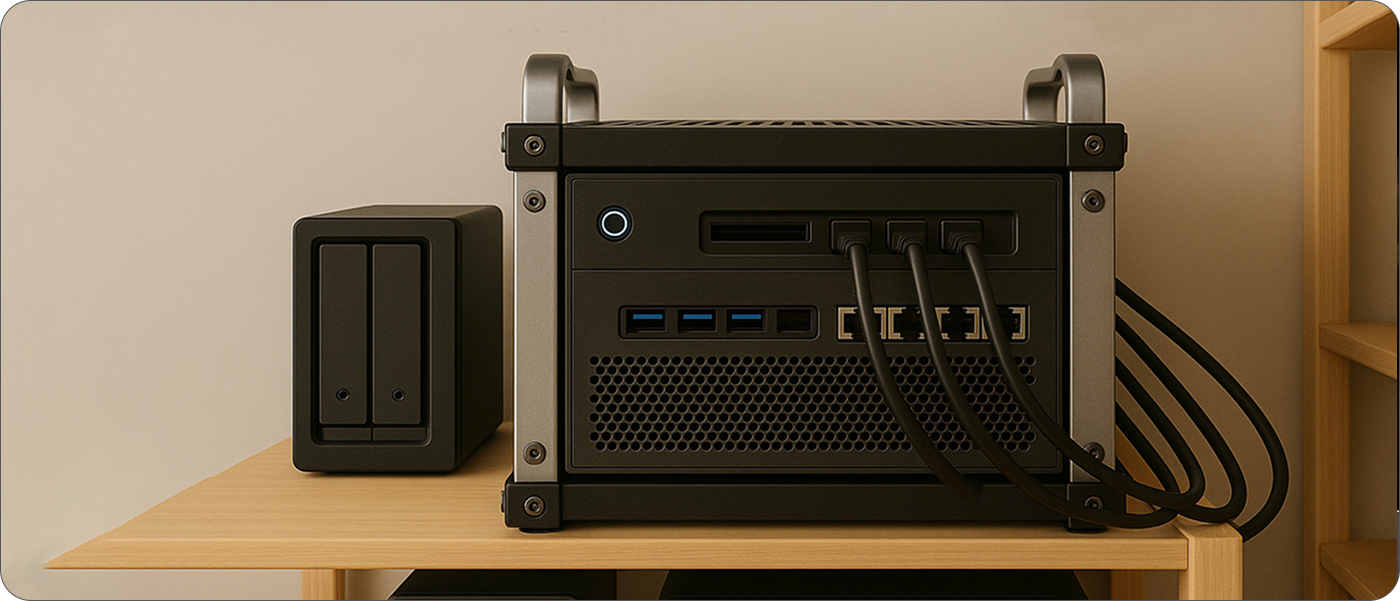

Home Lab Server
Business

Package Contents

MS-A2 Specifiction

CPU

AMD Ryzen™ 9 9955HX(Zen 5 , 16 Cores , 32 Threads, 64M L3 Cache,Max Boost Clock Up to 5.4 GHz)or AMD Ryzen™ 9 7945HX(Zen 4 , 16 Cores , 32 Threads, 64M L3 Cache,Max Boost Clock Up to 5.4 GHz)

GPU

AMD Radeon™ 610M

Memory

Up to 96GB DDR5(SO-DIMM х 2)
Ryzen 9000 Series: DDR5-5600
Ryzen 7000 Series: DDR5-5200

Storage

M.2 2280/U.2 NVME SSD х 1 (Up to 15 TB U.2,PCIe 4.0x4)M.2 2280/22110 NVME SSD х 2 (Up to 4 TB/Slot,default PCIe 3.0 x4, up to PCIe 4.0 x4)

Wireless Connectivity

Wi-Fi 6E, Bluetooth® 5.2
