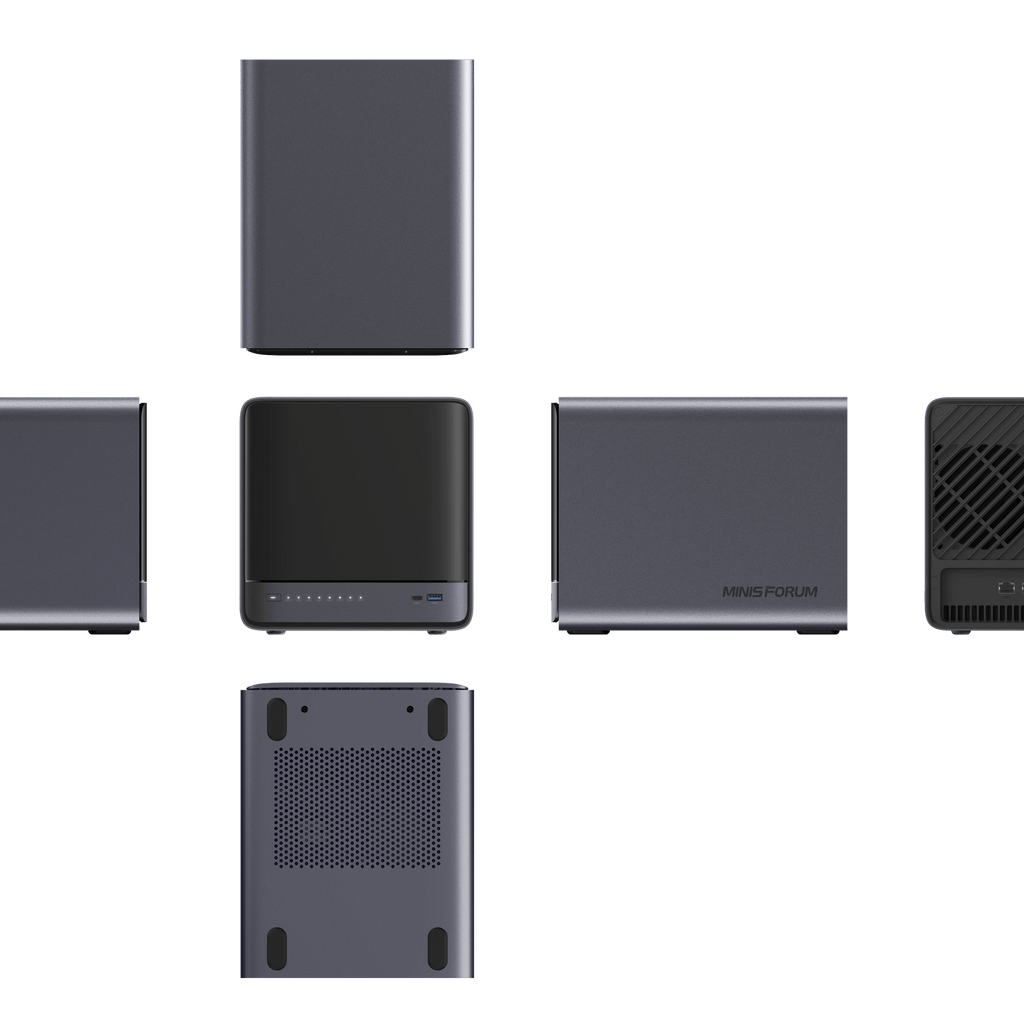

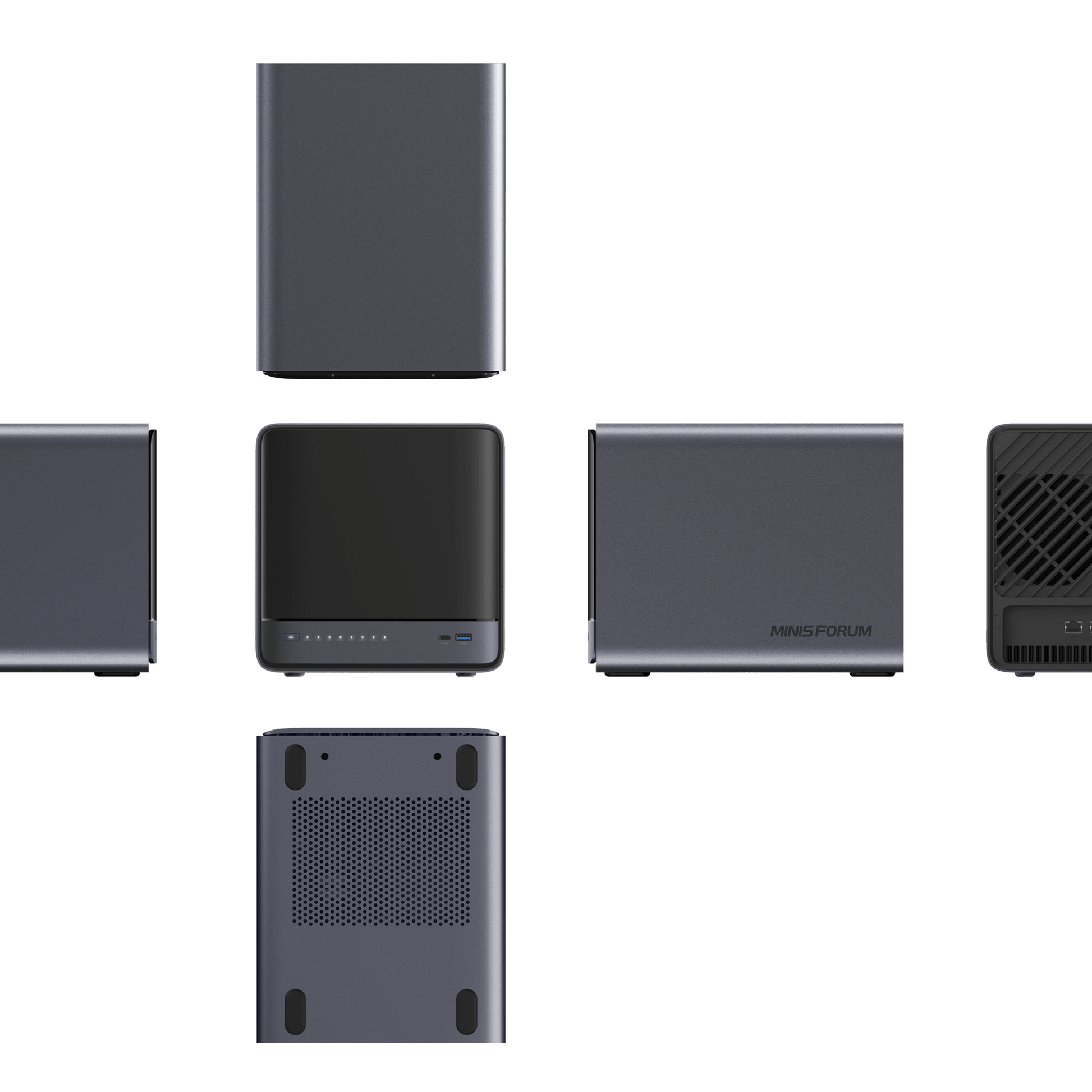

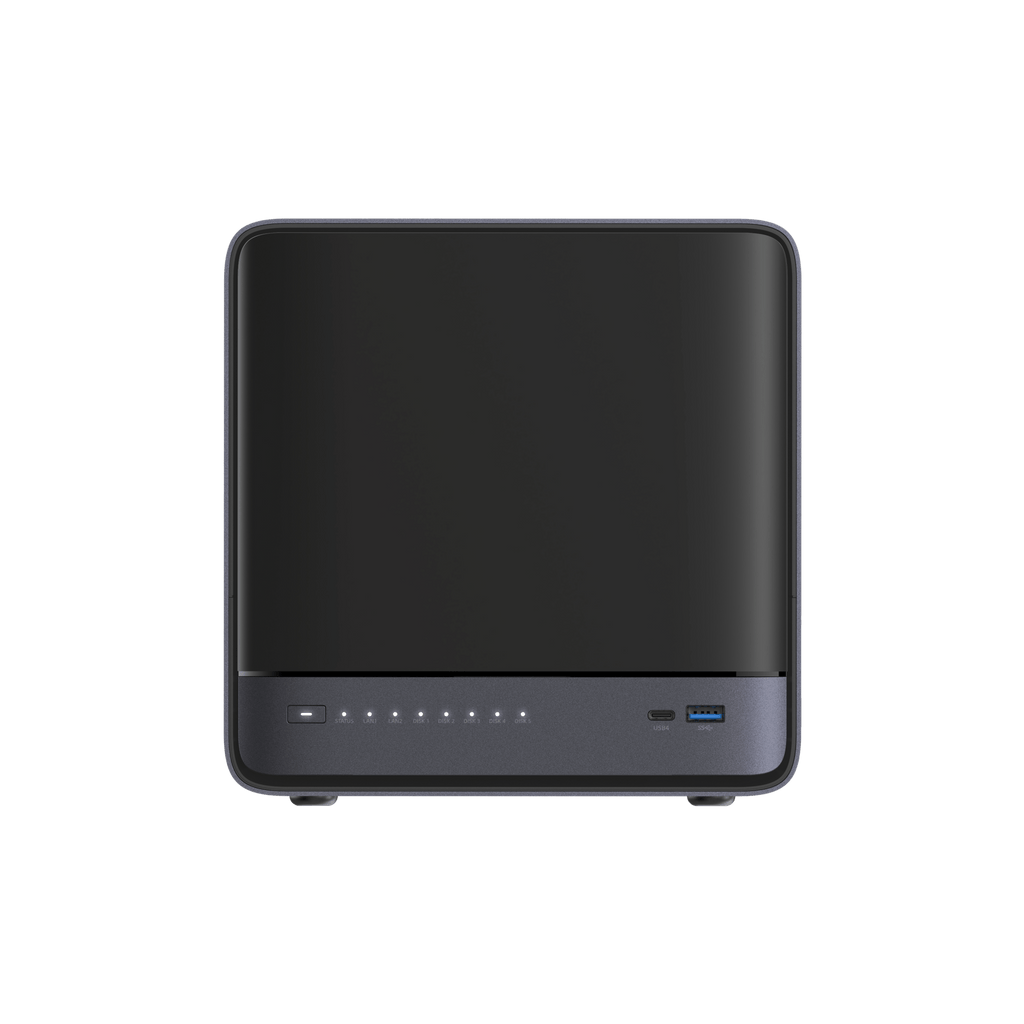

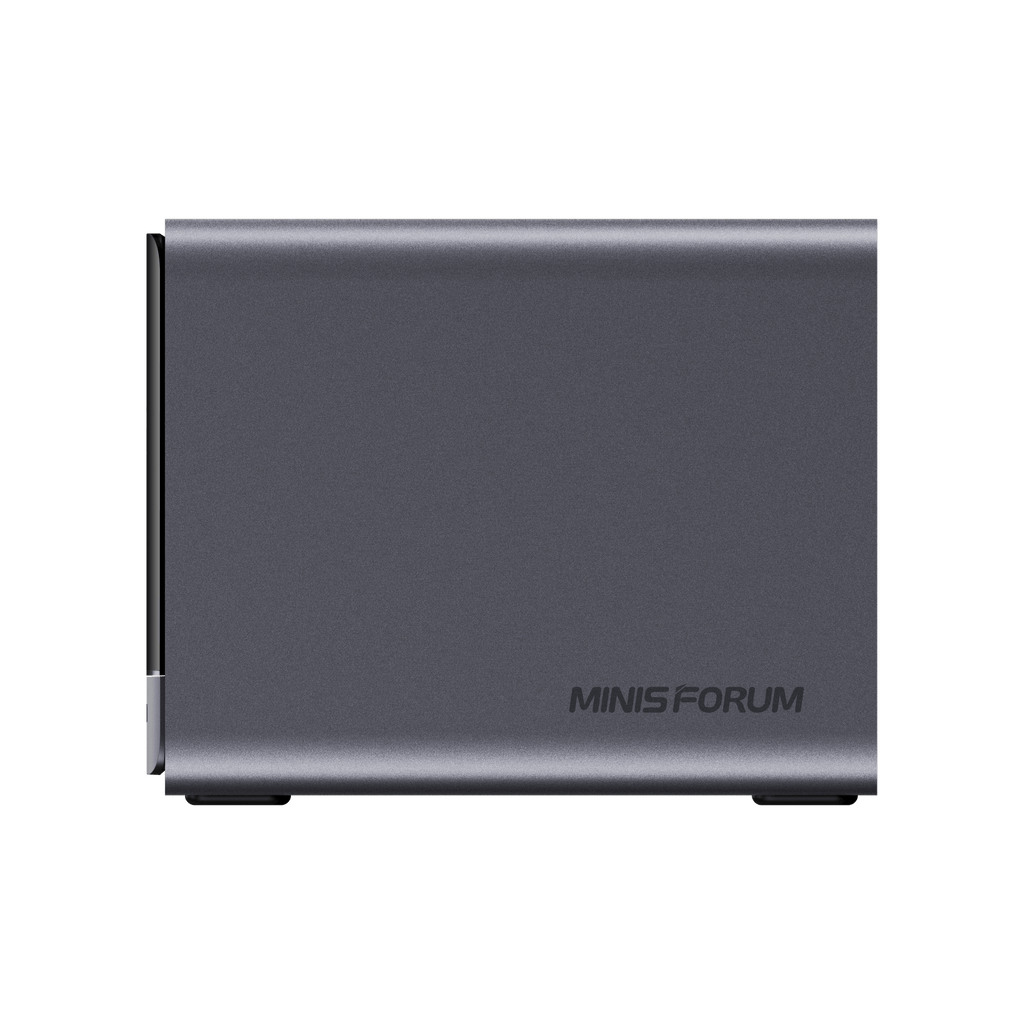

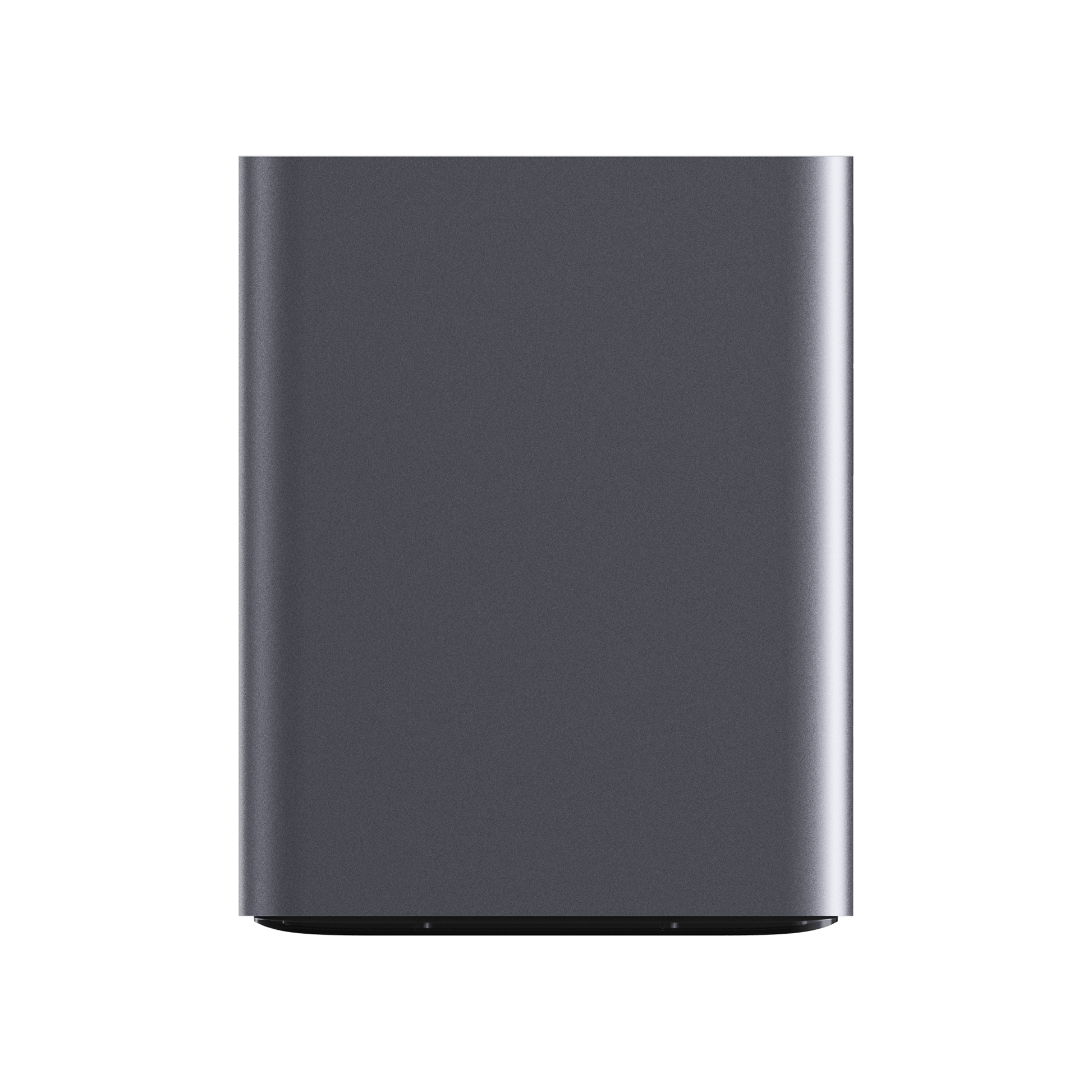

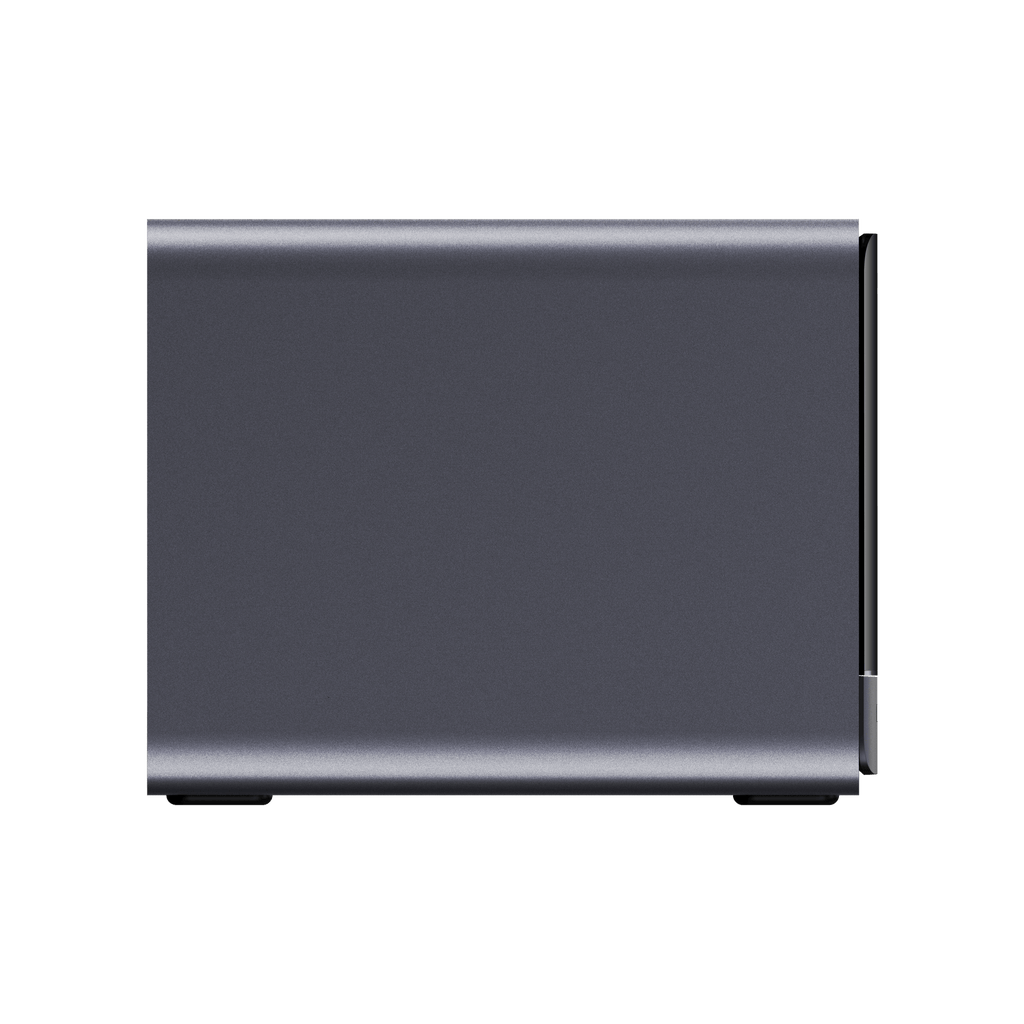

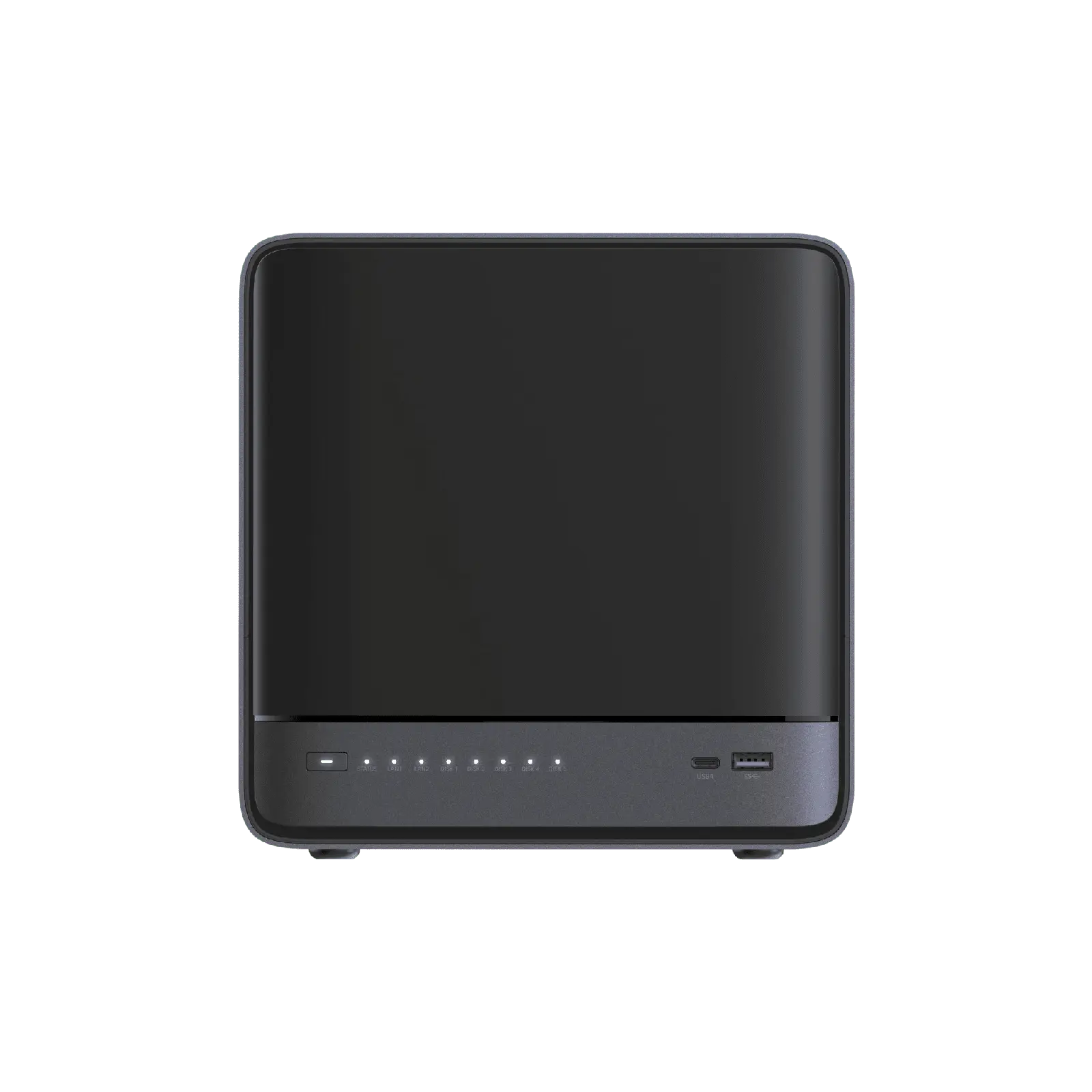

MINISFORUM N5 MAX AI NAS
Payment Methods:
Trusted Delivery:
MinisCloud OS, Your Private AI Hub
MinisOpenClaw
ZFS Snapshots
Local AI Assistant¹
Media Hub
Private AI Security
Built-in VM
One-Click Permission Control²
Remote Access
Your Data
Your AI, Total Control
AMD Ryzen AI Max+ 395, Radeon™ 8060S, up to 126 TOPS, and a high-bandwidth LPDDR5x architecture bring truly usable high-performance local AI into a 5-bay AI NAS.
- Extreme Compute Foundation: AMD Ryzen AI Max+ 395 · Radeon™ 8060S · Up to 126 TOPS
- High-Bandwidth Memory: LPDDR5x accelerates model access, multitasking, and high-frequency workloads
- Local AI Entry Point: MinisOpenClaw + one-click permission control* for faster, safer AI access
AMD Ryzen AI Max+ 395, Radeon™ 8060S, up to 126 TOPS, and a high-bandwidth LPDDR5x architecture bring truly usable high-performance local AI into a 5-bay AI NAS.
- Extreme Compute Foundation: AMD Ryzen AI Max+ 395 · Radeon™ 8060S · Up to 126 TOPS
- High-Bandwidth Memory: LPDDR5x accelerates model access, multitasking, and high-frequency workloads
- Local AI Entry Point: MinisOpenClaw + one-click permission control* for faster, safer AI access
Strix Halo Power

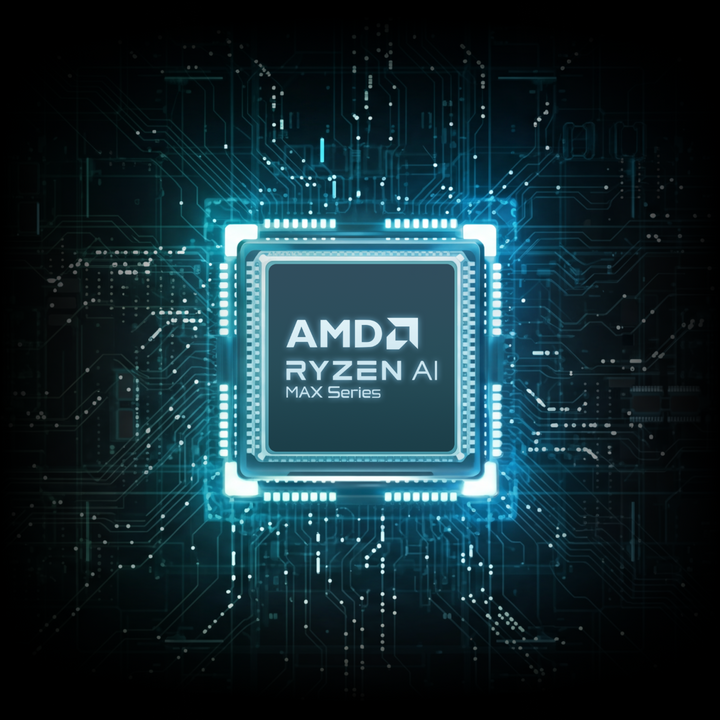

Powered by Ryzen AI Max+ 395 on the Strix Halo platform, N5 MAX brings true high-performance local AI into a 5-bay NAS form factor.
Ryzen AI Max+ 395 Inside: A 16-core, 32-thread AI platform built to keep local AI responsive under real workloads.
Radeon™ 8060S Graphics: Strong graphics capability for AI-assisted creation, visual workloads, and generation-heavy workflows.

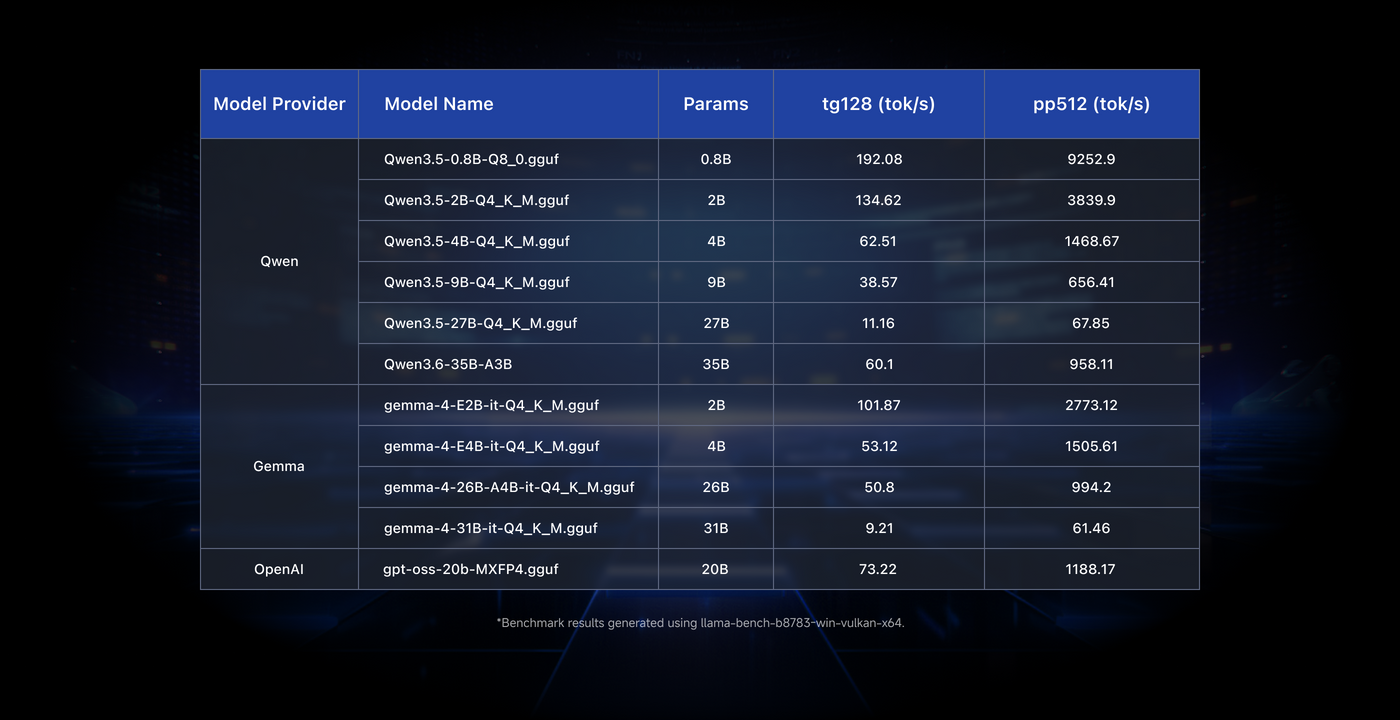

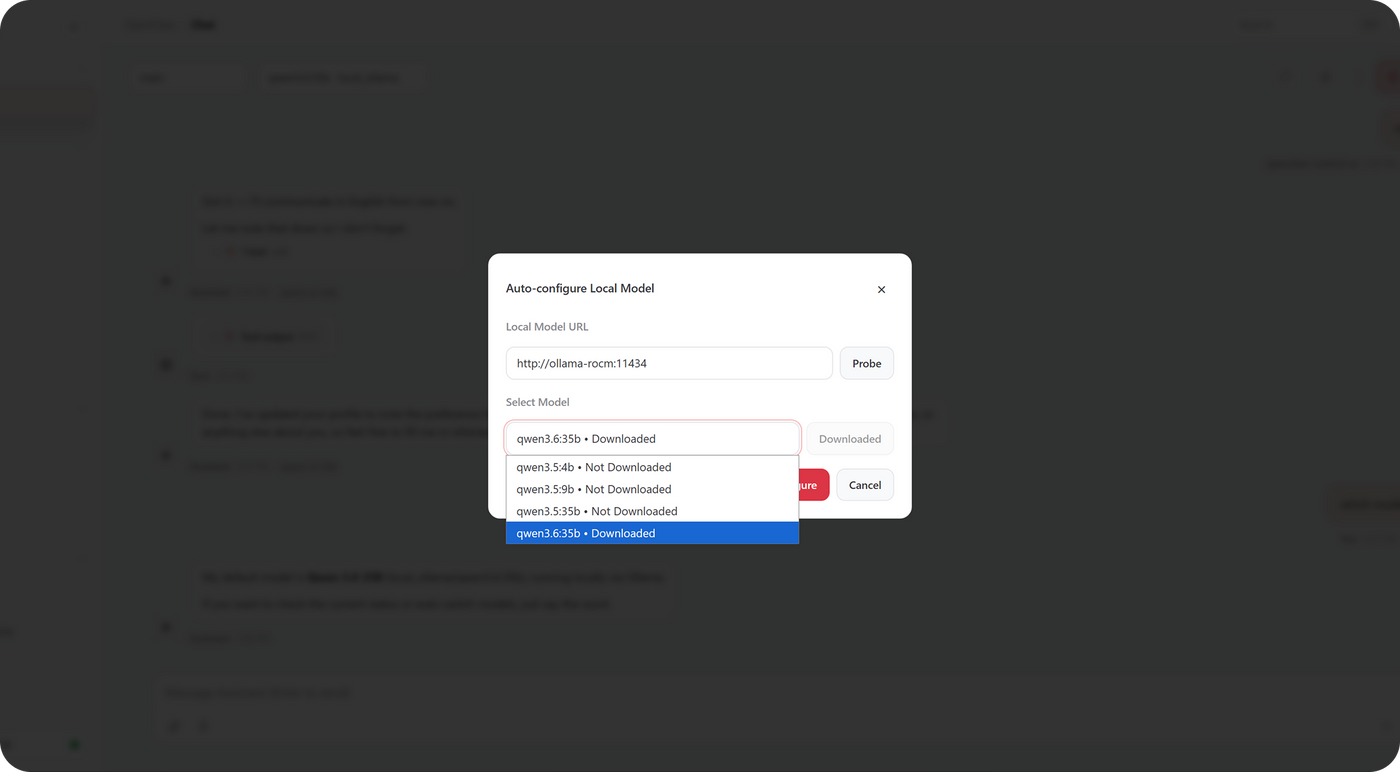

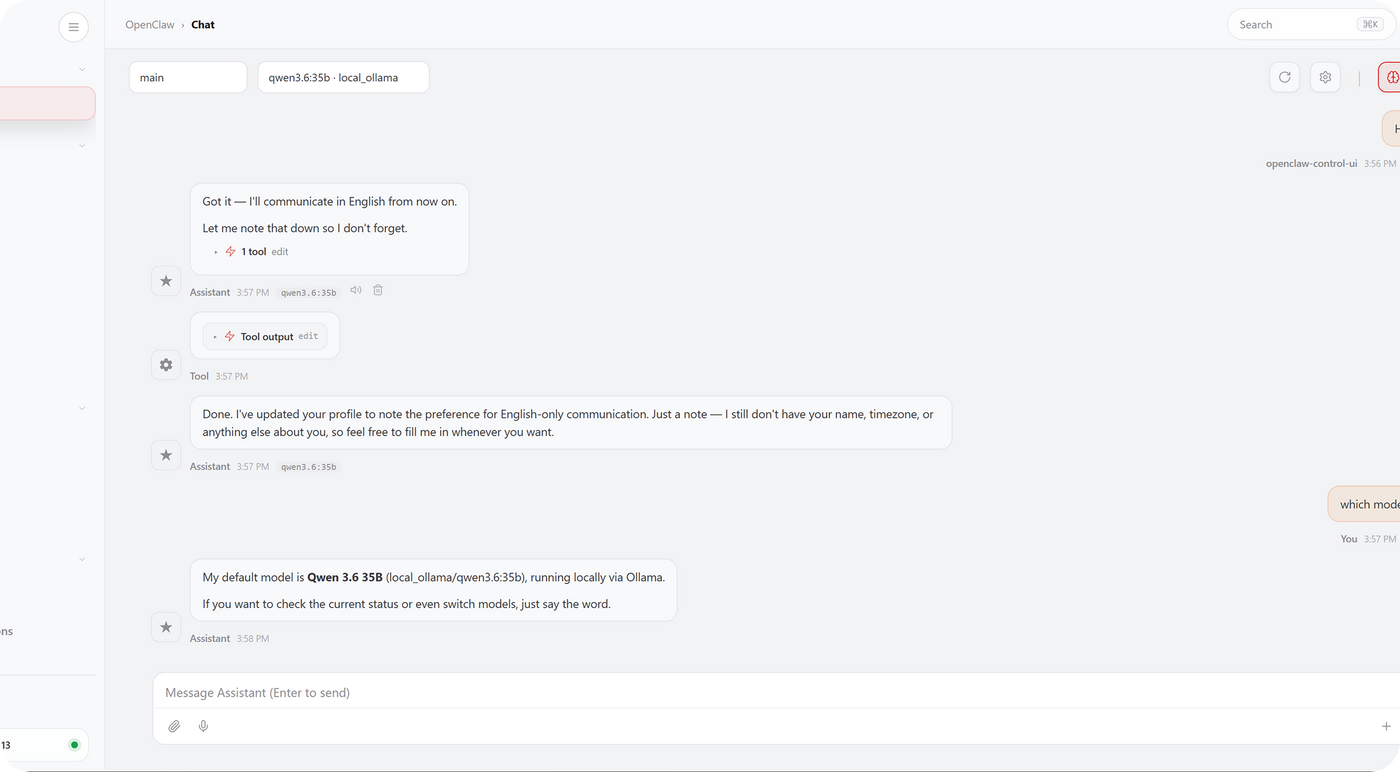

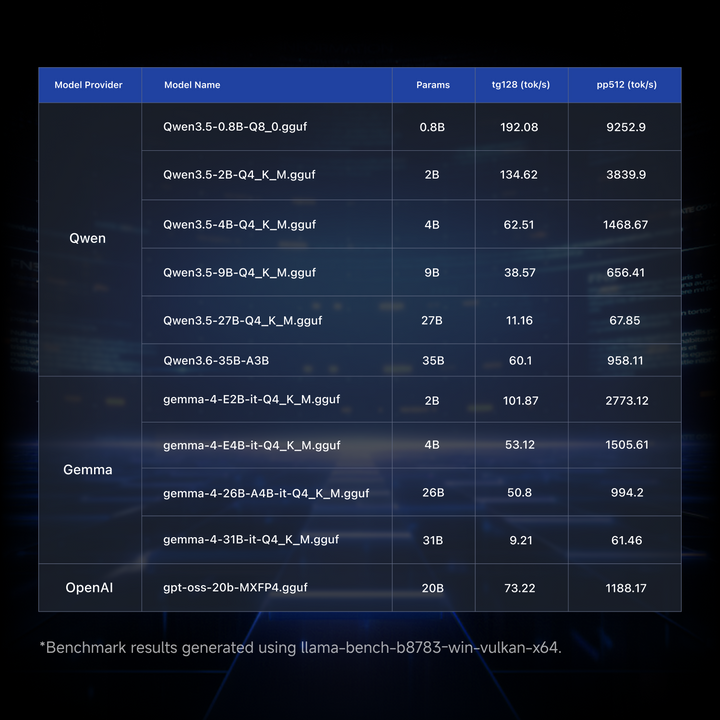

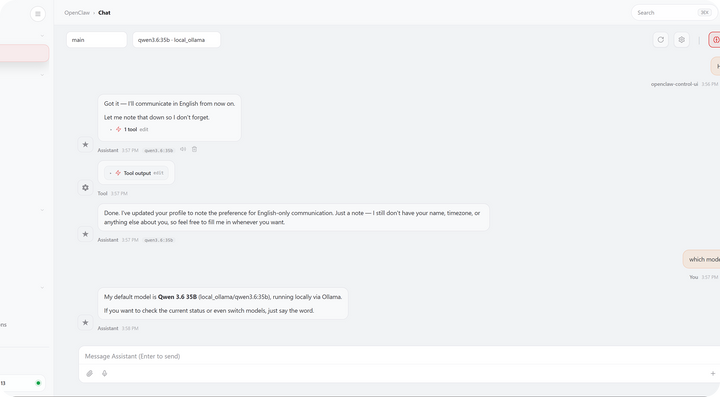

35B-Class Local Model Ready: Built to run large local models such as Qwen3.6 35B and Gemma 4 26B (Non pre installed) in real workflows.
Bandwidth Beats Bulk
LPDDR5x
8533MT/s
Top-tier consumer-platform
memory speed for faster model
access and AI calls.
256-bit
Memory Bus
Wider bandwidth keeps compute,
graphics, and data-heavy AI
workloads better fed.
Up to 64GB
Unified Memory
Enough capacity for demanding
local AI, with speed as the real
differentiator.
Make Massive Storage Move
5 × HDD bays & 5× M.2 SSD slots combine mass capacity with SSD acceleration, giving large HDD arrays the feel of a much faster working system.

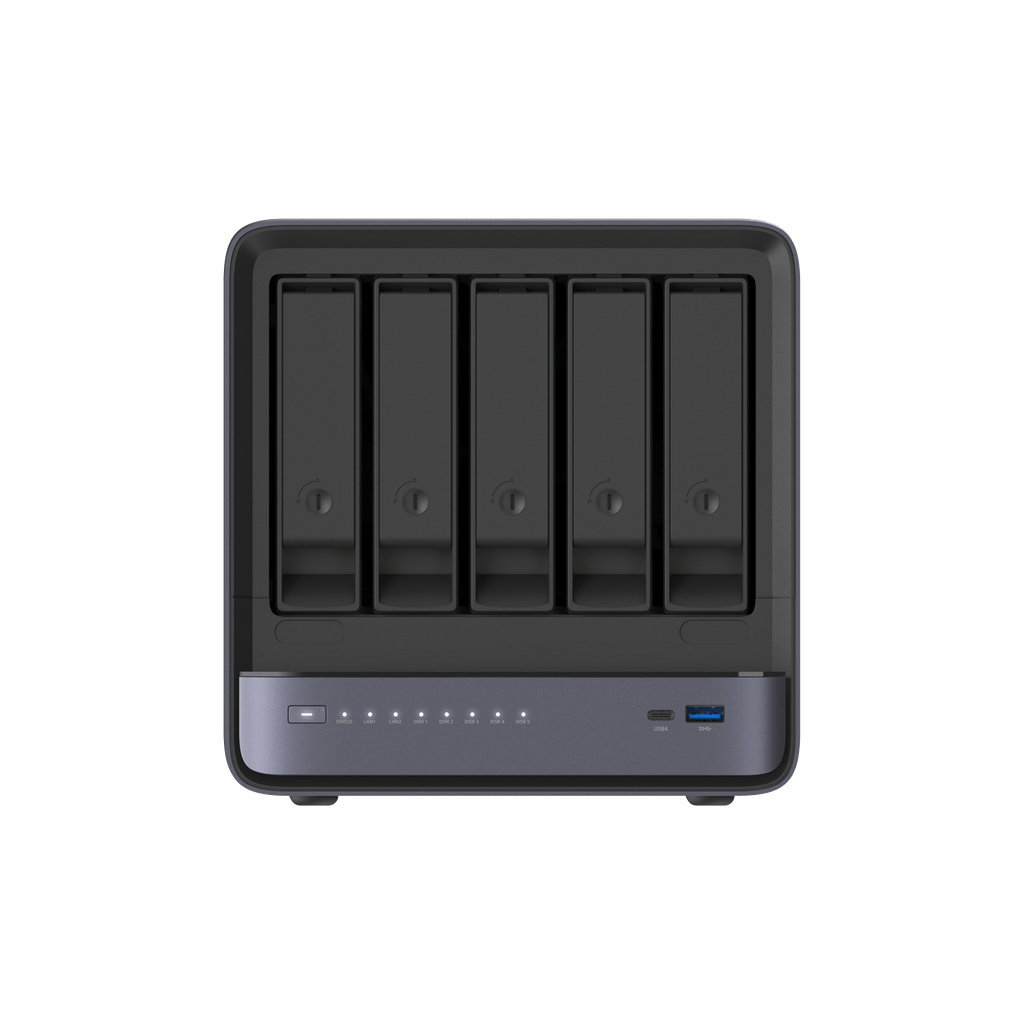

5× HDD Bays
Built for archives, project libraries, media
assets, private data, and long-term storage
Built for archives, project libraries, media
assets, private data, and long-term storage
5× M.2 NVMe Slots
Use SSDs for cache, hot data, models,
project files, and HDD array acceleration
Use SSDs for cache, hot data, models,
project files, and HDD array acceleration

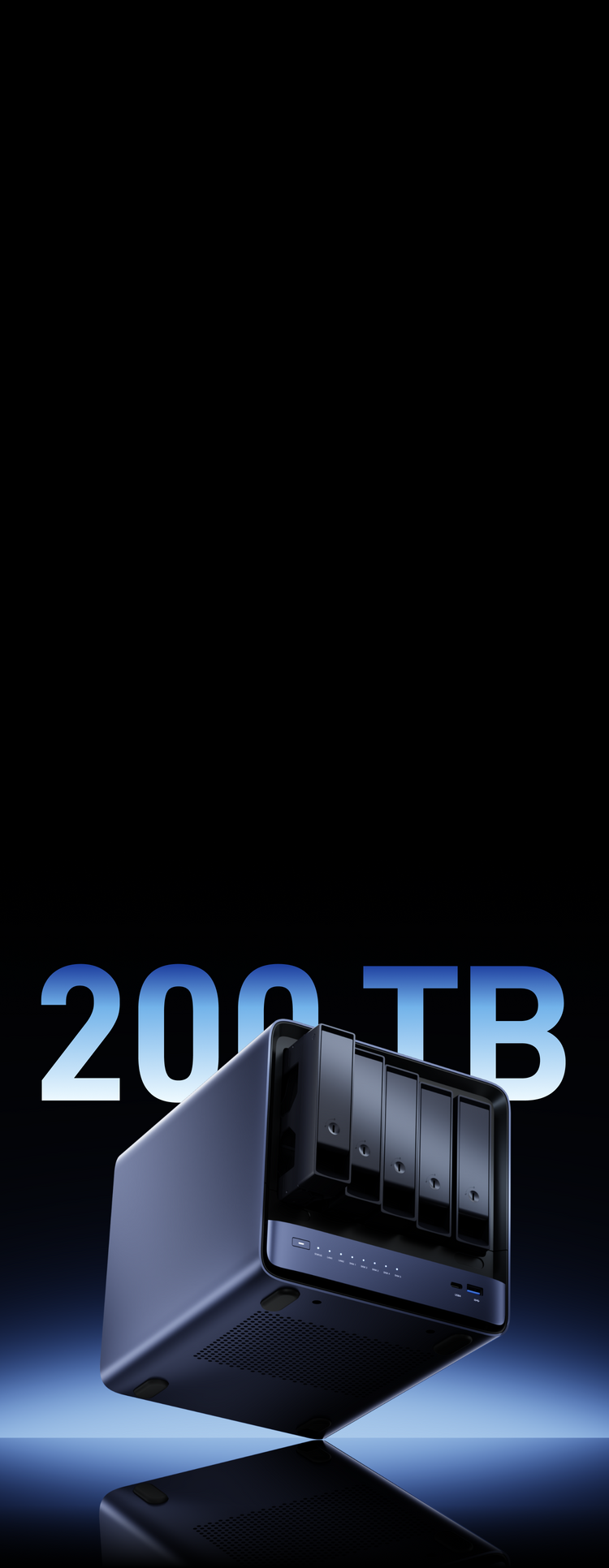

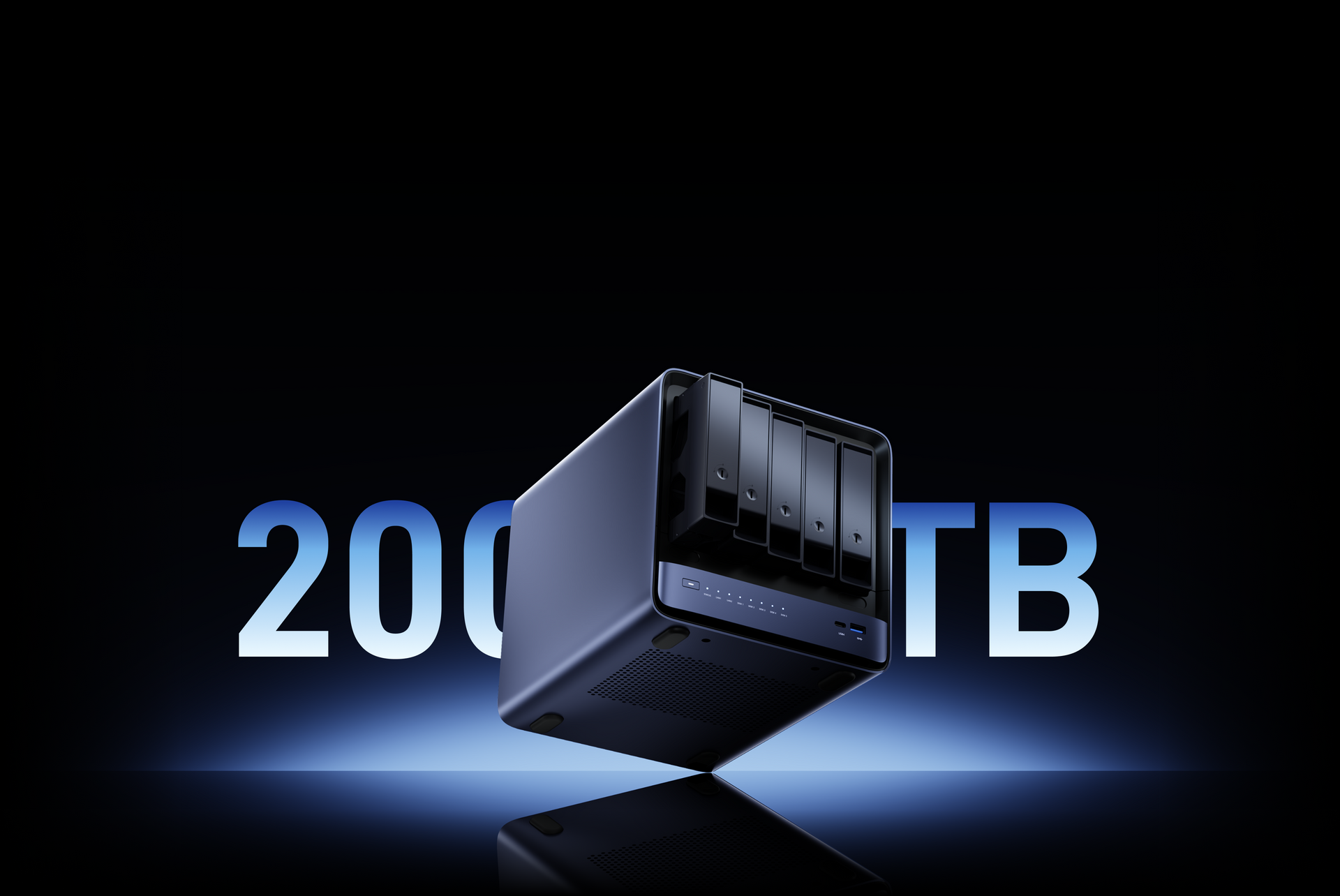

Up to 200TB Capacity
Keep models, assets, cache, archives, and
output inside one unified AI NAS platform
Keep models, assets, cache, archives, and
output inside one unified AI NAS platform
Multiple RAID modes for data security
Supports RAID0, RAID1, RAID5/RAIDZ1, RAID6/RAIDZ2 and mixed drive strategies for hot data and
cold backup, speeding reads and cutting storage costs.
RAID 0
Multi-Drive Accelerate
RAID 1
Secure and Stable
RAID 5
Balanced Performance
RAID 6
Maximum Security
Move Data Like You Mean It
Dual 10GbE and USB4 v2 at 80Gbps give N5 MAX the bandwidth to move data, expand storage, and connect high-performance AI workflows.
Dual 10GbE
Built for fast team access, large-file movement,
and high-throughput local workflows
Built for fast team access, large-file movement,
and high-throughput local workflows
2× USB4 v2 80Gbps
Expand with high-performance storage enclosures
or bridge into Thunderbolt-class workflows
Expand with high-performance storage enclosures
or bridge into Thunderbolt-class workflows
USB4 + USB 3.2 Gen2
Fast front access for displays, devices, and
everyday expansion
Fast front access for displays, devices, and
everyday expansion
HDMI™ 2.1 FRL
Up to 8K@60Hz: Direct high-resolution output for
creators, monitoring, and multi-display workflows
Up to 8K@60Hz: Direct high-resolution output for
creators, monitoring, and multi-display workflows
Slide. Swap. Upgrade
A slide-out motherboard bay and built-in power supply turn high-end hardware into a platform that is easier to service and cleaner to deploy.

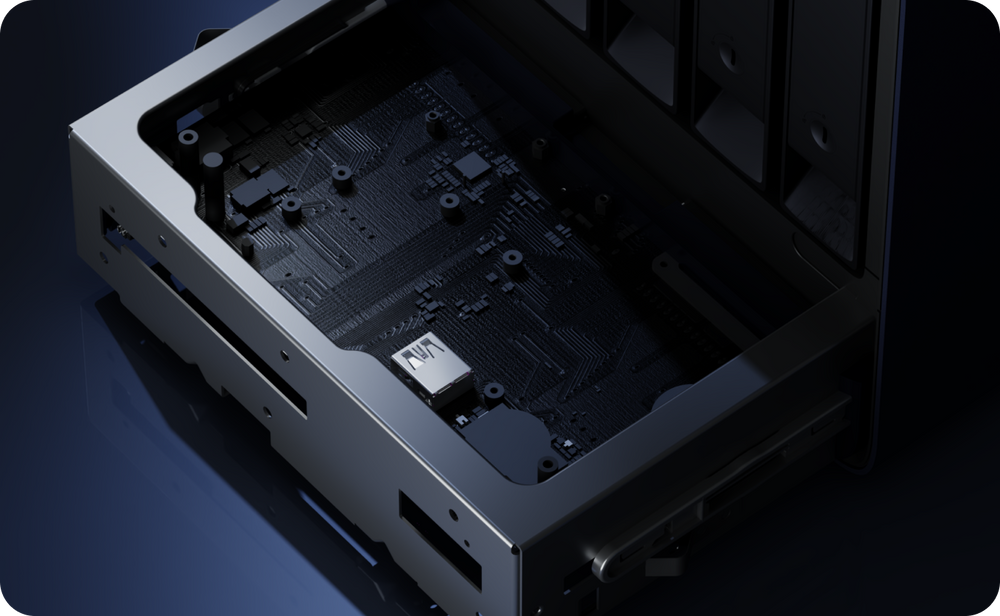

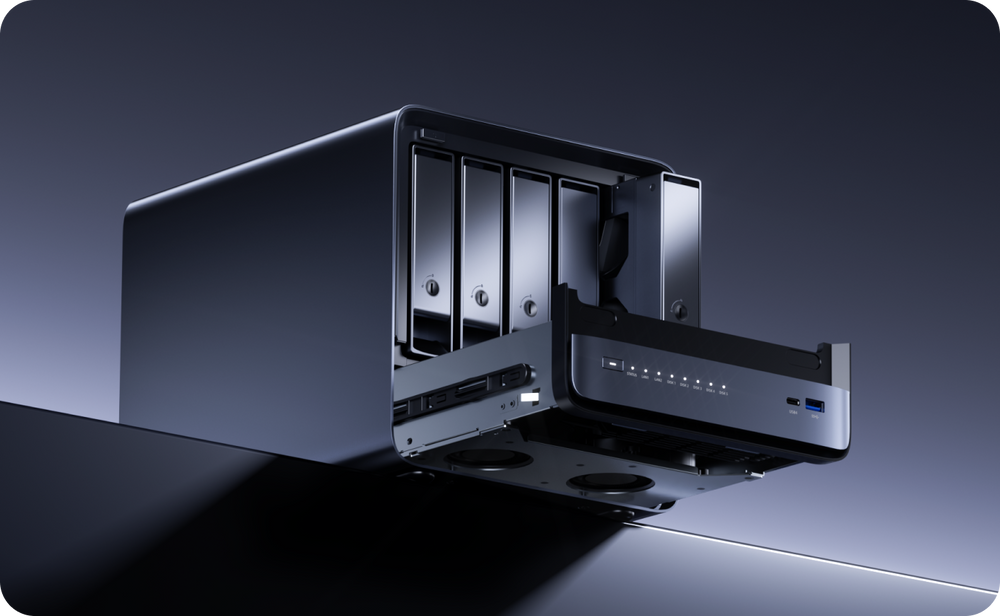

Slide-Out Motherboard Bay
Easier access for servicing, upgrades, and advanced internal operations.
Internal USB 3.2 Gen2
Adds clean internal expansion while keeping high-speed storage slots focused on real workloads.
Built-In Power
Cleaner Desk
A built-in 250W power supply keeps the setup cleaner while powering a serious AI NAS platform.
Built-in 250W
No bulky external power brick, just a
cleaner setup and a more complete system.
No bulky external power brick, just a
cleaner setup and a more complete system.
Saves Desktop Space
A cleaner power design makes N5 MAX easier to place in
studios, offices, and home workspaces.
A cleaner power design makes N5 MAX easier to place in
studios, offices, and home workspaces.
Built Flagship Platform
Designed to support high-performance compute, hybrid
storage, and high-speed I/O in one box.
Designed to support high-performance compute, hybrid
storage, and high-speed I/O in one box.
Stay Cool. Stay Fast
A multi-zone thermal system with heat pipes, PCM, and dedicated fans keeps compute, storage, SSDs, and airflow under control.
Effortless on every platform
Powered by smart services
MinisCloud OS: Your All-in-One Smart Platform
Seamlessly supports Windows, macOS, iOS, and Android with zero learning curve.
Built-in features include ZFS snapshots, LZ4 compression, multi-user isolation, Docker apps, AI
photo albums, and one-click remote access—fully managed, ready to use.
Windows
Windows
MacOS
MacOS
iOS
iOS
Android
Android
Web
Web
*MinisCloud OS Beta Version · Actively Updated

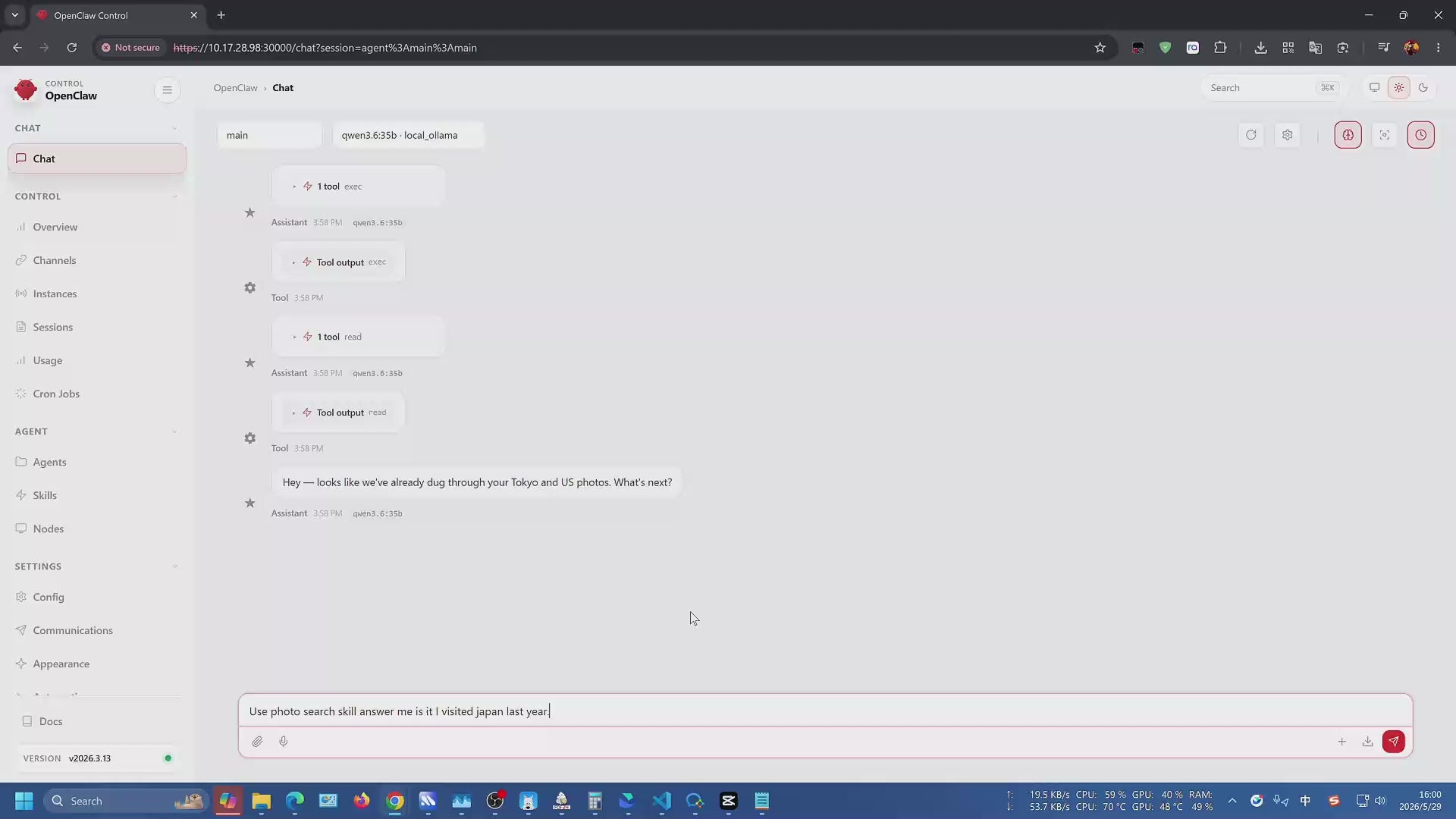

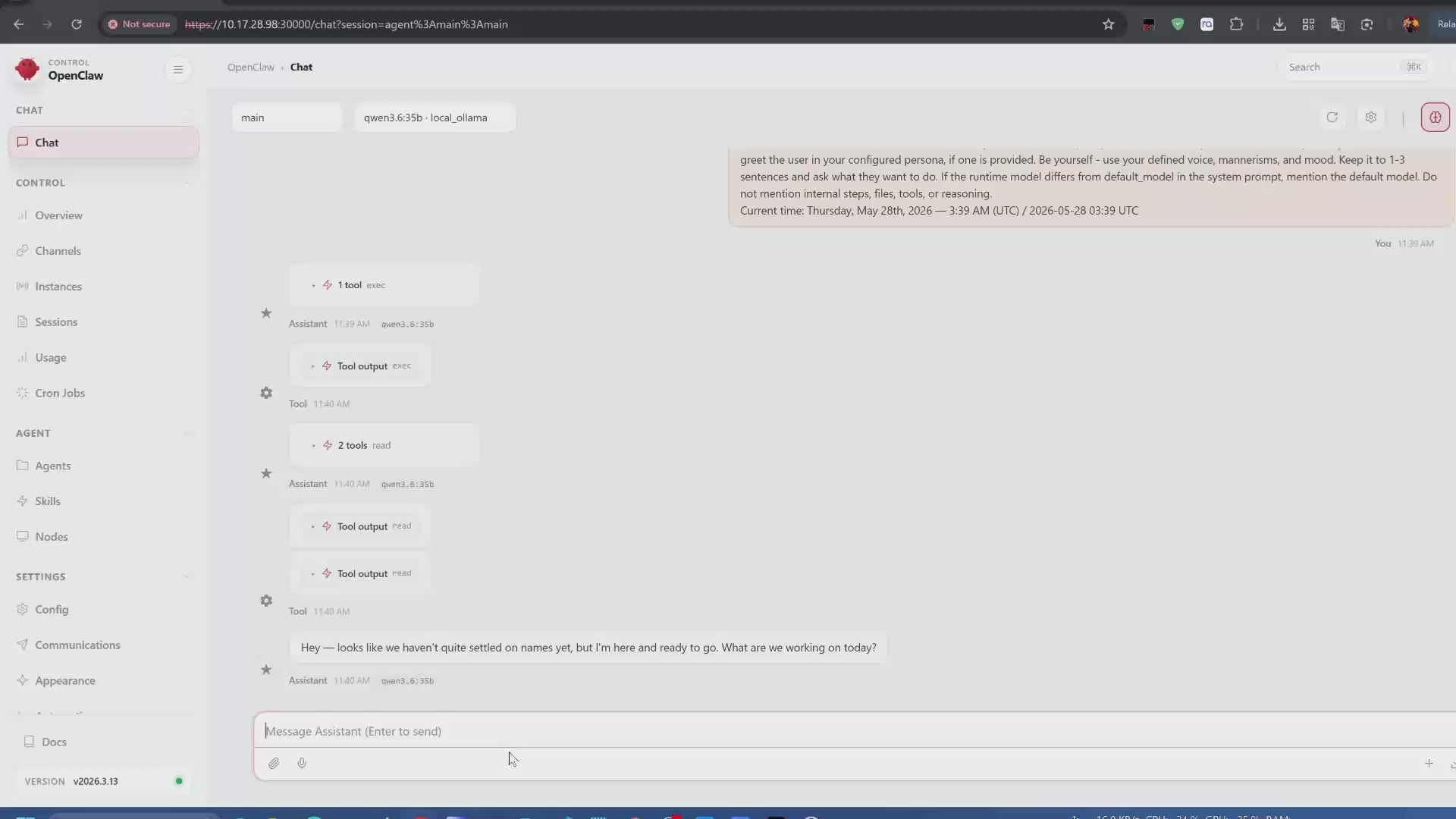

MinisOpenClaw
Your Local AI Agent NAS
Transform your NAS into a private AI system — understand content, answer questions, and streamline workflows, entirely on-device.
MinisPhotos
AI-Powered Private Photo Library
MinisPhotos

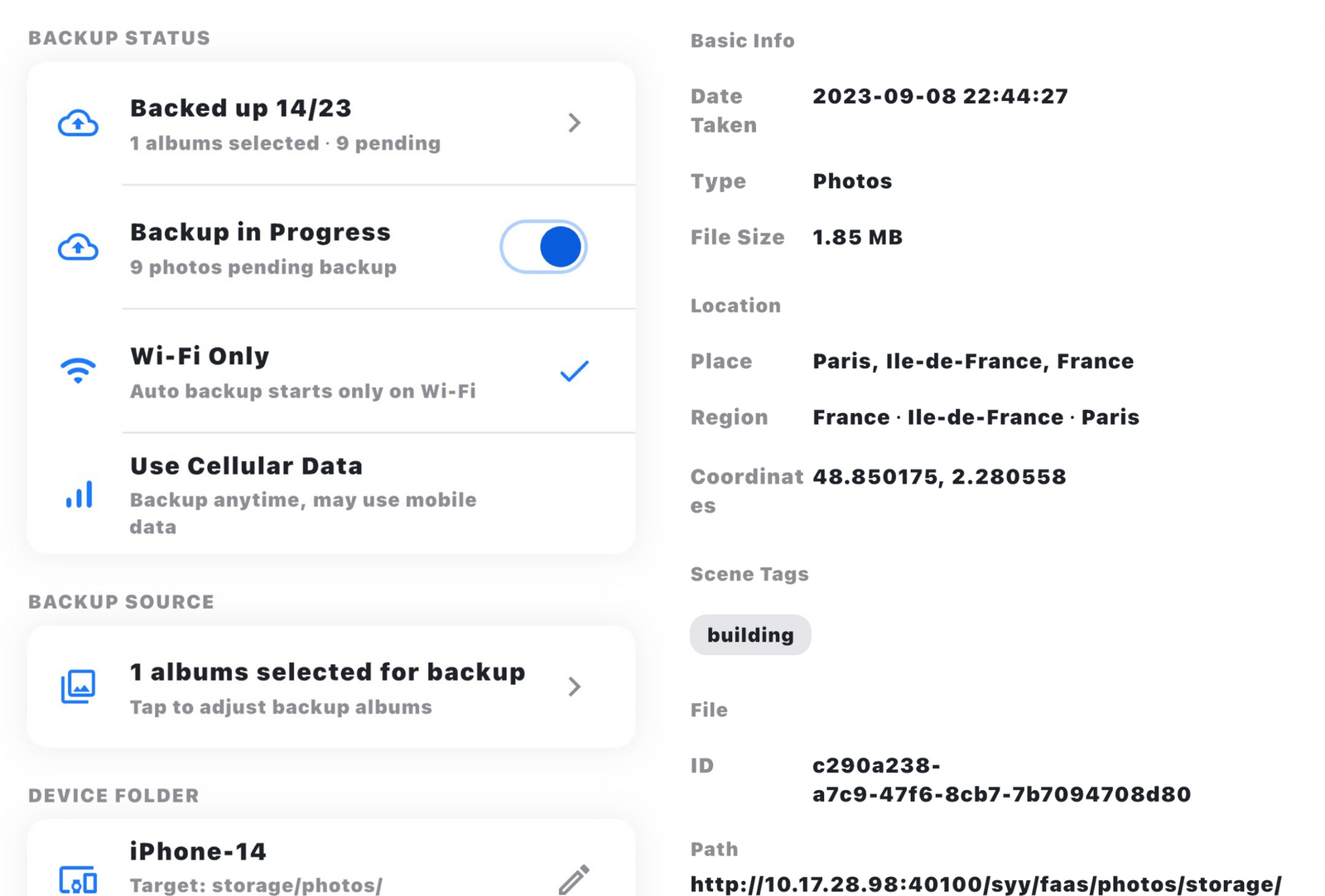

MinisPhotos is an AI-native photo app built for MinisCloud OS. Automatic organization, semantic search, and instant browsing, all stored locally on your NAS.
- MinisPhotos

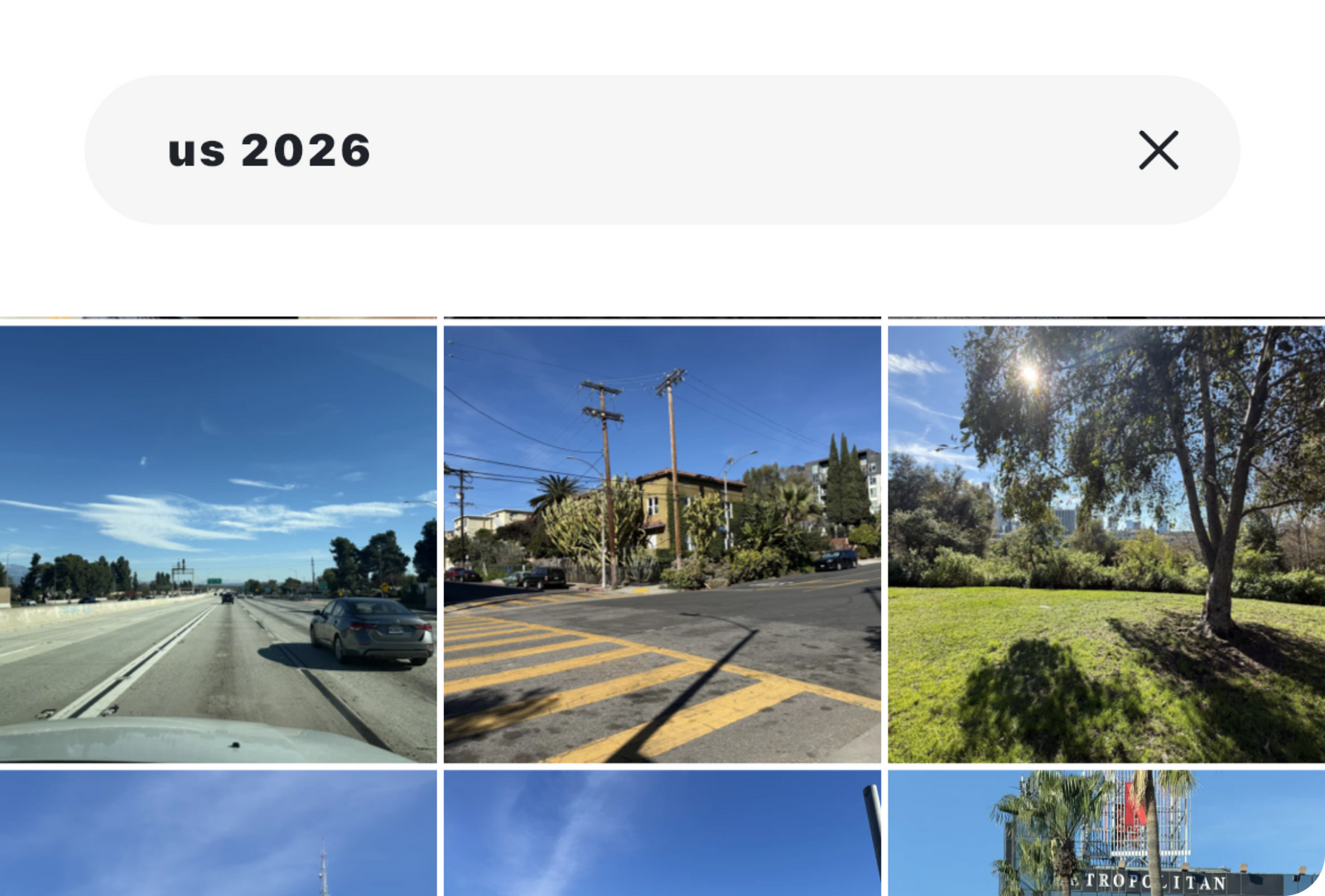

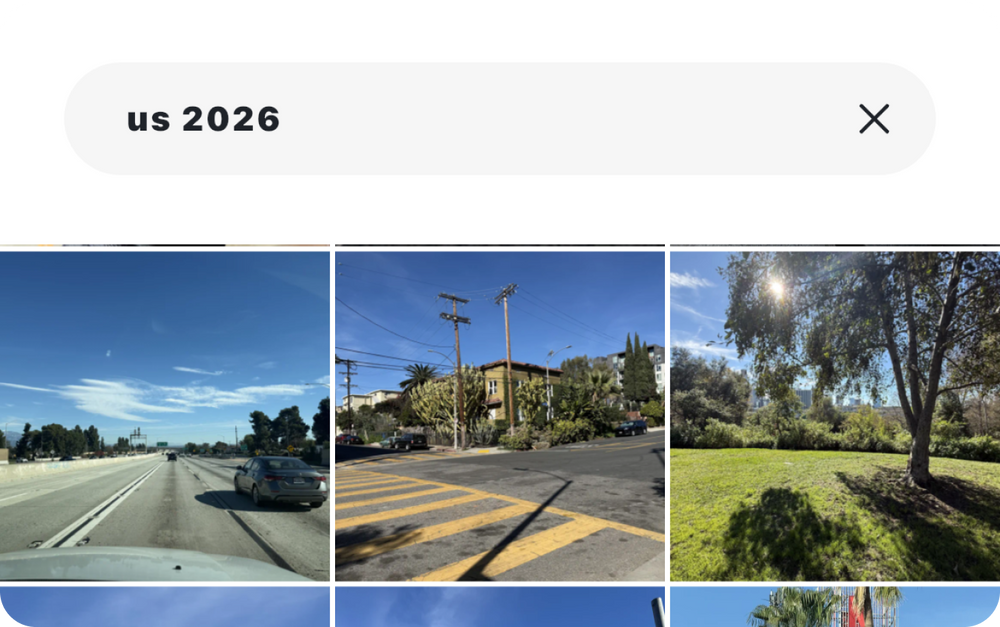

- AI Semantic Search

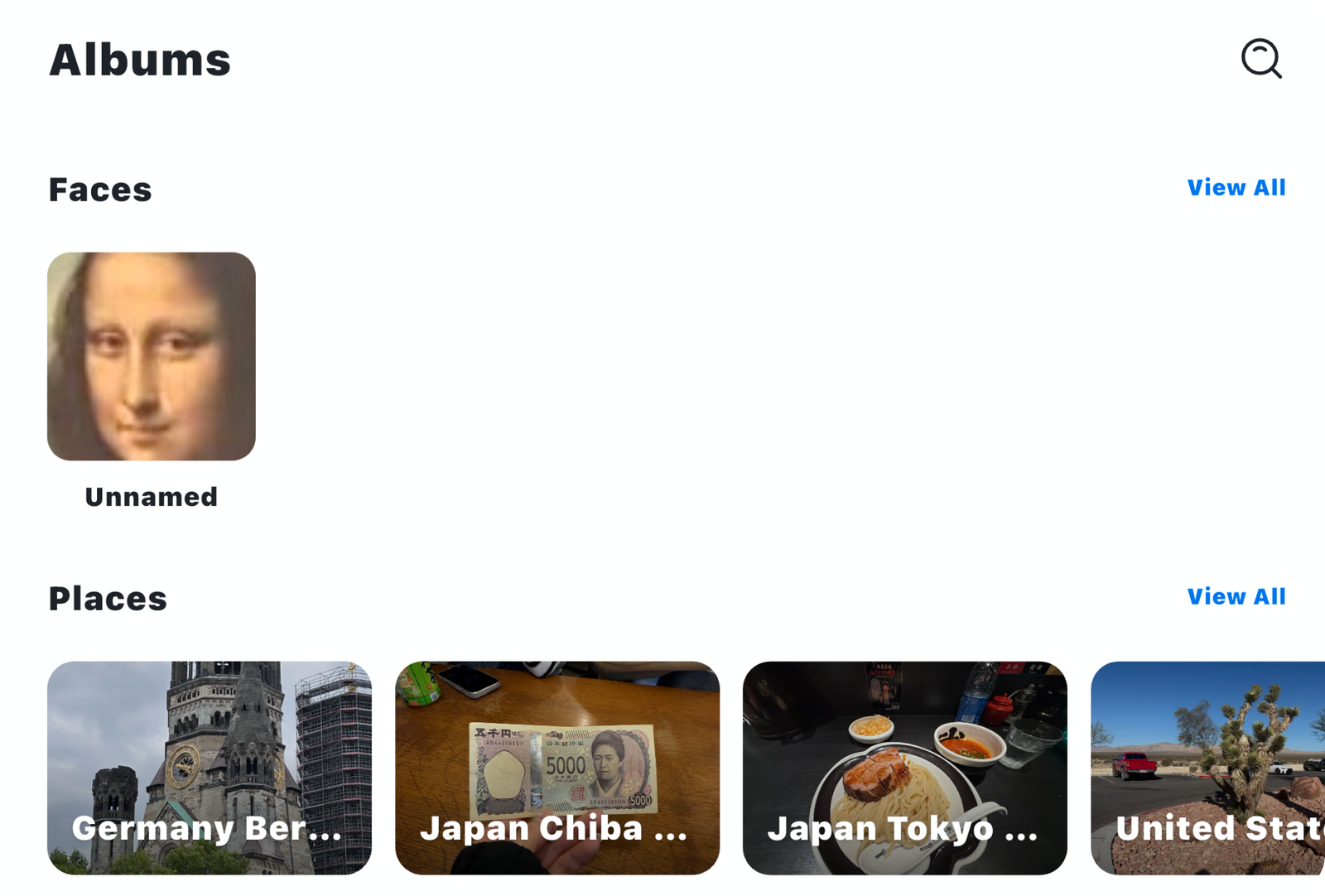

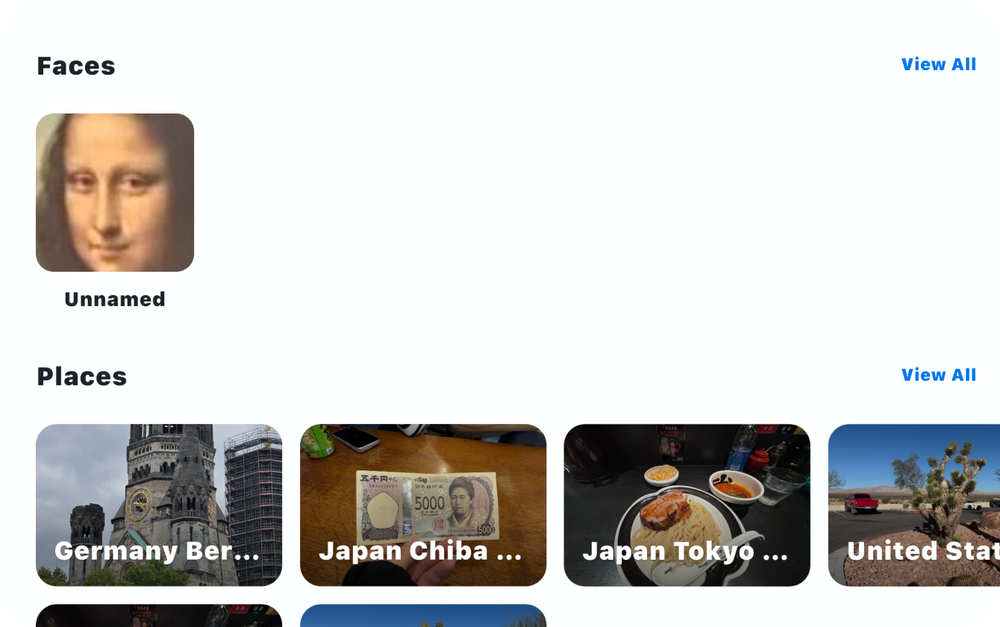

- Automatic Face & Location Grouping

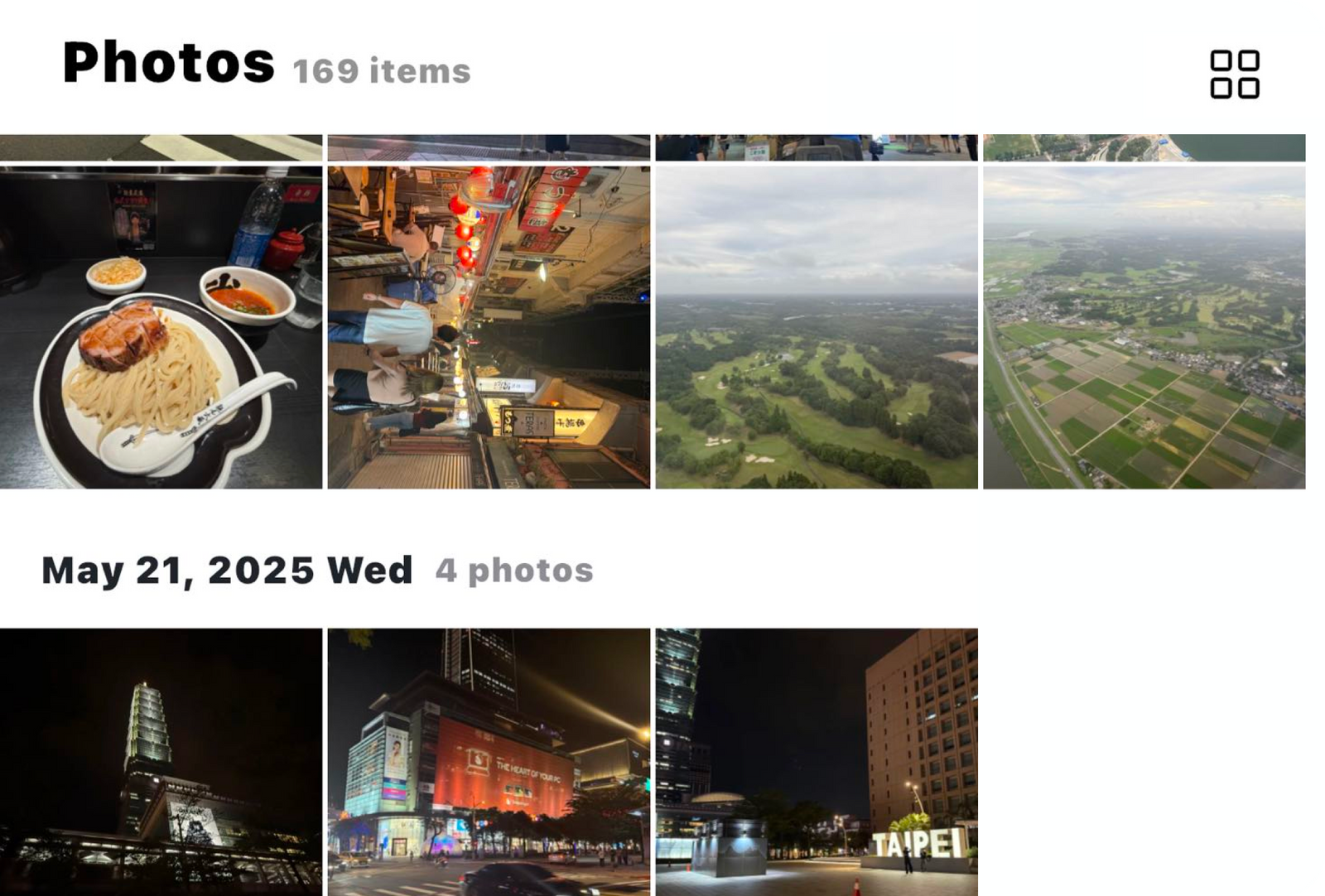

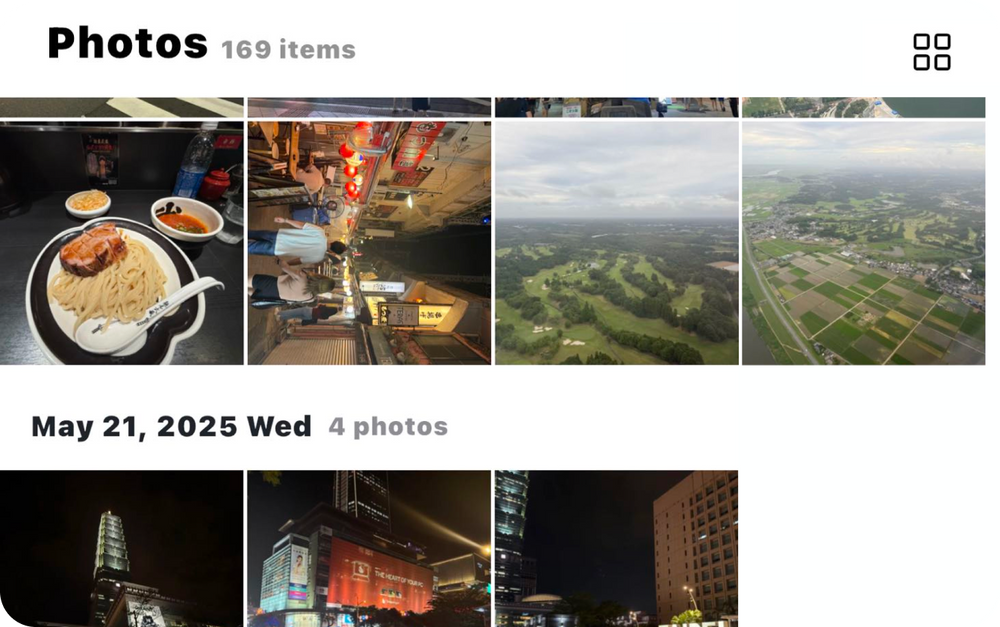

- Instant Browsing, Massive Libraries

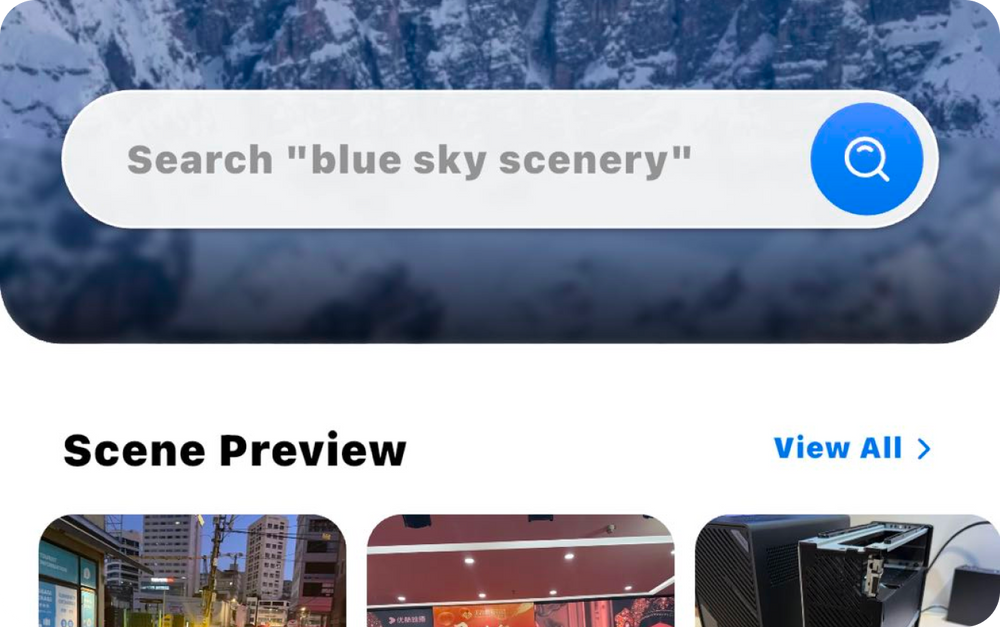

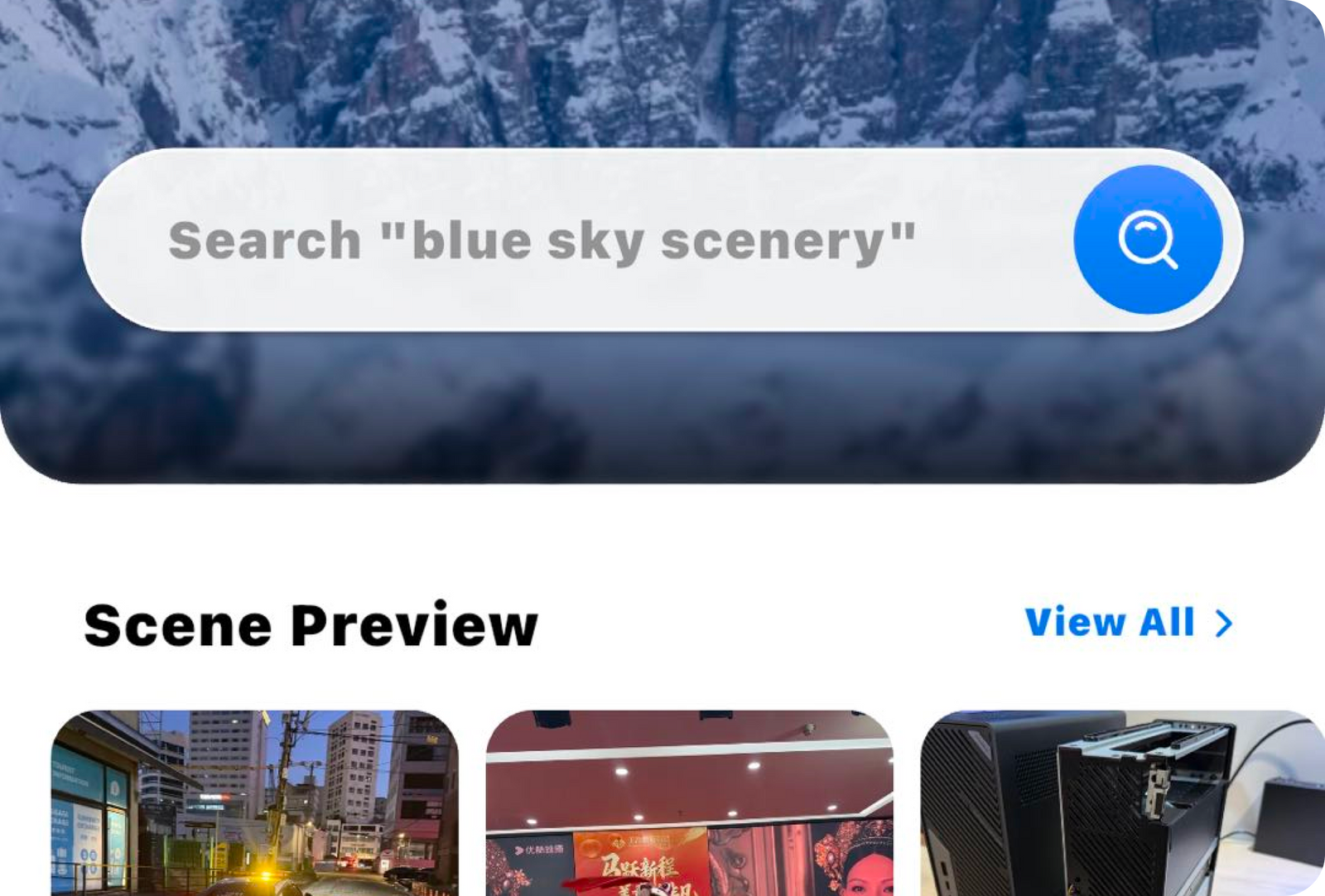

- Agent Ready Architecture

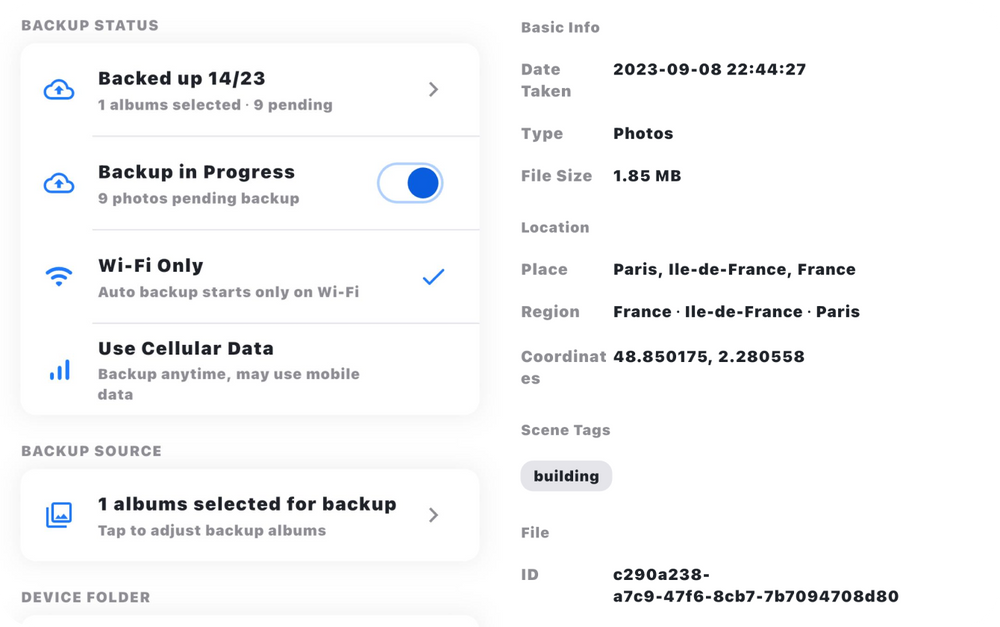

- 100% Local Storage
ZFS snapshots
effortless backups to keep your data safe
Built-in enterprise ZFS file system safeguards your data at every level:
Automatic integrity checks prevent data corruption;
Instant rollback to any point in time with snapshot management for guaranteed data recovery;
Supports RAID 0/1/5/6 with flexible storage strategies, balancing performance and security.
Ultra-Fast Compression
Maximum Storage Efficiency
MinisCloud integrates an LZ4 lossless compression engine, delivering single-core compression speeds exceeding 500 MB/s and decompression speeds up to several GB/s, effortlessly handling large file transfers and backups.
Whether for ZFS snapshots, remote file sharing, or data archiving, enjoy enterprise-grade compression performance while effectively freeing up storage space.
Offline Account System
Privacy Protection
Fully Offline Account System
Enhanced Privacy, No cloud-stored account data—user privacy is fully protected.
All User Data is Isolated by Default
New accounts authorized instantly via QR code for secure, hassle-free access
Multiple RAID Levels
Allows for data recovery even if one hard drive fails.
Fully Offline Account System
Enhanced Privacy, No cloud-stored account data—user privacy is fully protected.
All User Data is Isolated by Default
New accounts authorized instantly via QR code for secure, hassle-free access
Multiple RAID Levels
Allows for data recovery even if one hard drive fails.
Your Data
Your Space, Your Rules
Flexible Access Control with Multi-Level Spaces
Personal, private, and shared spaces are clearly separated-ensuring privacy while enabling smooth collaboration.
Multi-protocol Support
Seamless Public Network
Penetration
Supports multiple protocols and public network traversal for easy file access from anywhere.
Encrypted links enable secure sharing of internal data, ensuring both convenience and privacy.
Lighter And Faster

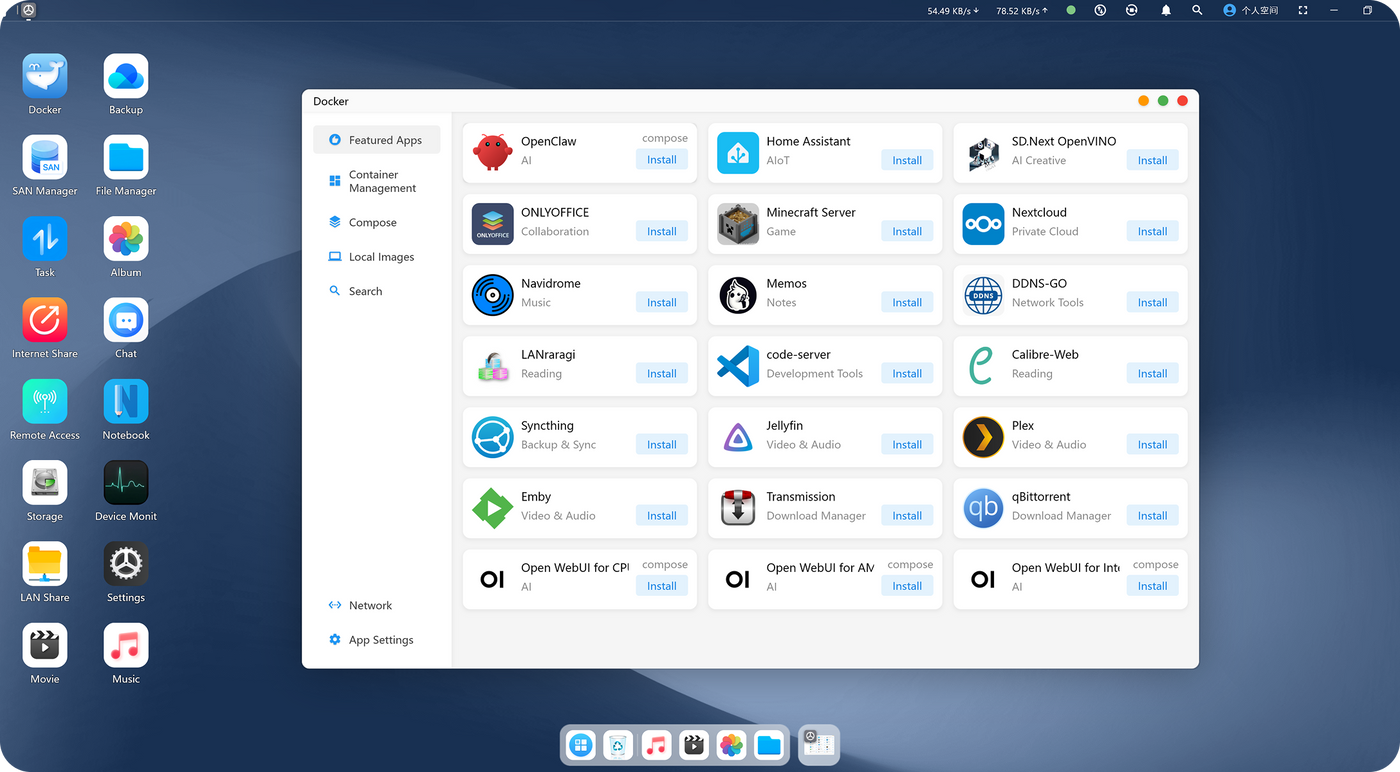

Per-account Docker Container Isolation
Supports namespace isolation, allowing each account to run containers independently with
no data interference. One-click port mapping, accelerated image access, and pre-
configured images enable fast, seamless deployment.
One Click to Backup
Sync Across All Devices
Supports one-click backup and seamless sync across both PC and Mac, with files
accessible anytime, anywhere.
Packing List
N5 MAX
Power Cord
HDMI™ Cable
Network Cable
Drive Bay Key

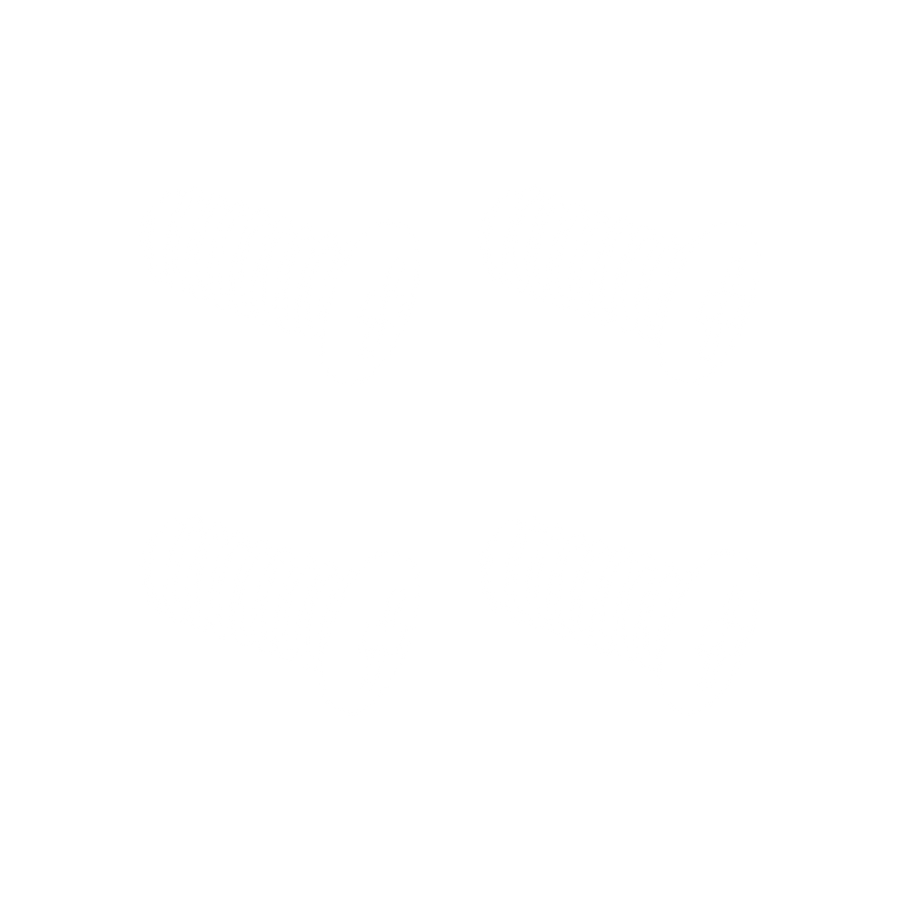

Screw Set
User Manual
N5 MAX Specification
AMD Ryzen™ AI Max+ 395
16 C/32 T
Up to 5.1 GHz, TDP: 70W-90W
AMD Radeon 8060S Graphics
Up to 126 TOPS
LPDDR5x Unified Memory
Max.8533MT/s, up to 64GB
5 × 3.5/2.5 inch SATA 3.0 (Up to 32TB each, 160TB total)
1 × M.2 2280 NVMe (PCIe 4.0 x4, Up to 8TB)
1 × M.2 2230 / 2280 NVMe (PCIe 4.0 x1, Up to 8TB)
3 × M.2 2280 NVMe (PCIe 4.0 x1, Up to 8TB each,24TB total)
CPU Cooling Type:
5 Heat Pipes + PCM (Phase Change Material)
CPU Fan:
2 × 80×15mm Turbo Fans ,max speed up to 4700 RPM
HDD Fan:
2 × 92×25mm axial fans, max speed up to 3700 RPM
SSD Fan:
1 × 60×12mm Turbo Fans, max speed up to 5000 RPM
Noise Level (Balance Mode): Max. 33 dB
Noise Level (Performance Mode): Max. 38 dB
HDMI × 1 (Up to 8K@60Hz/4K@144Hz)
USB4 × 1 (Up to 8K@60Hz/4K@144Hz)
USB4 v2 × 2 (Up to 8K@60Hz/4K@144Hz)

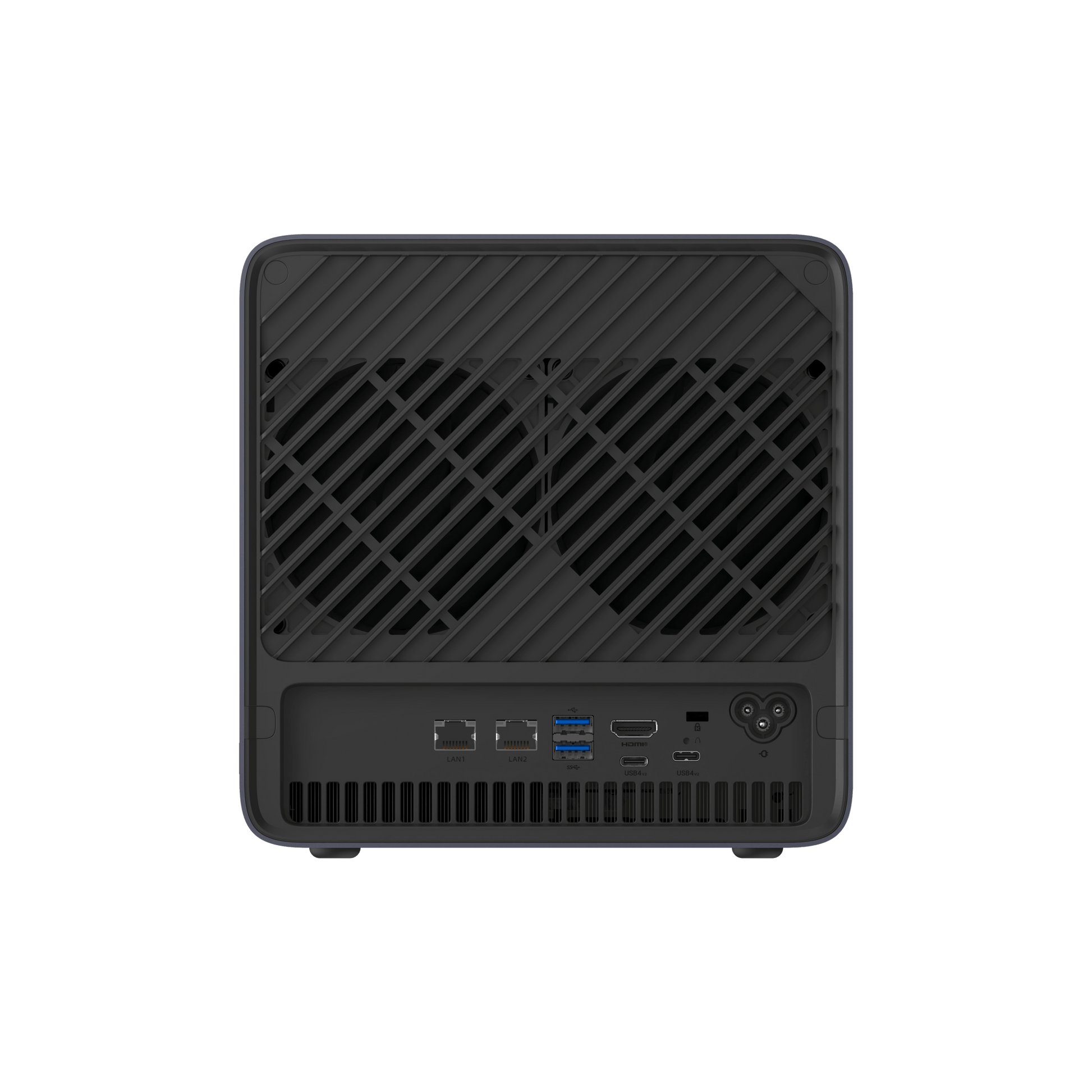

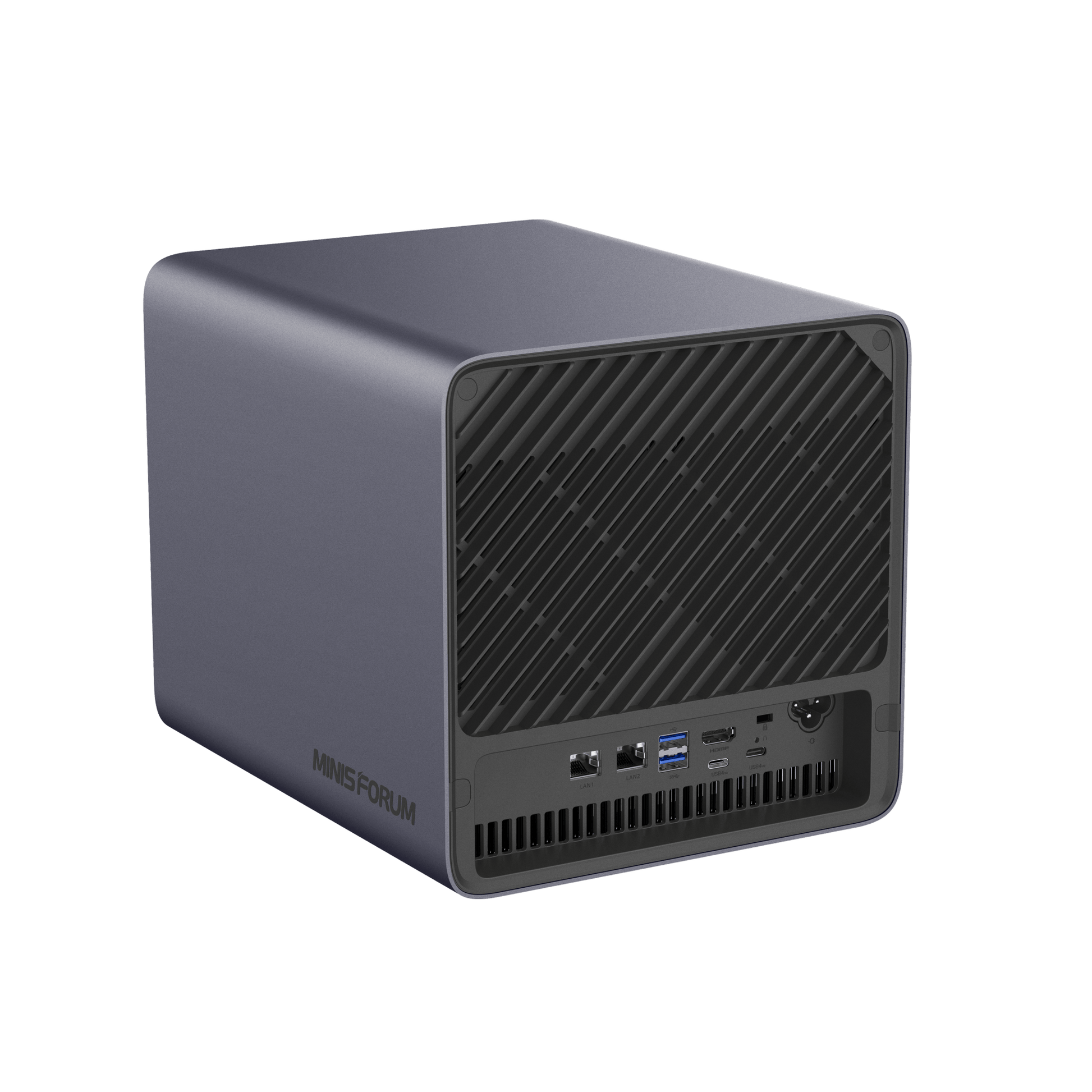

1 × HDMI
1 × USB4
2 × USB4 v2

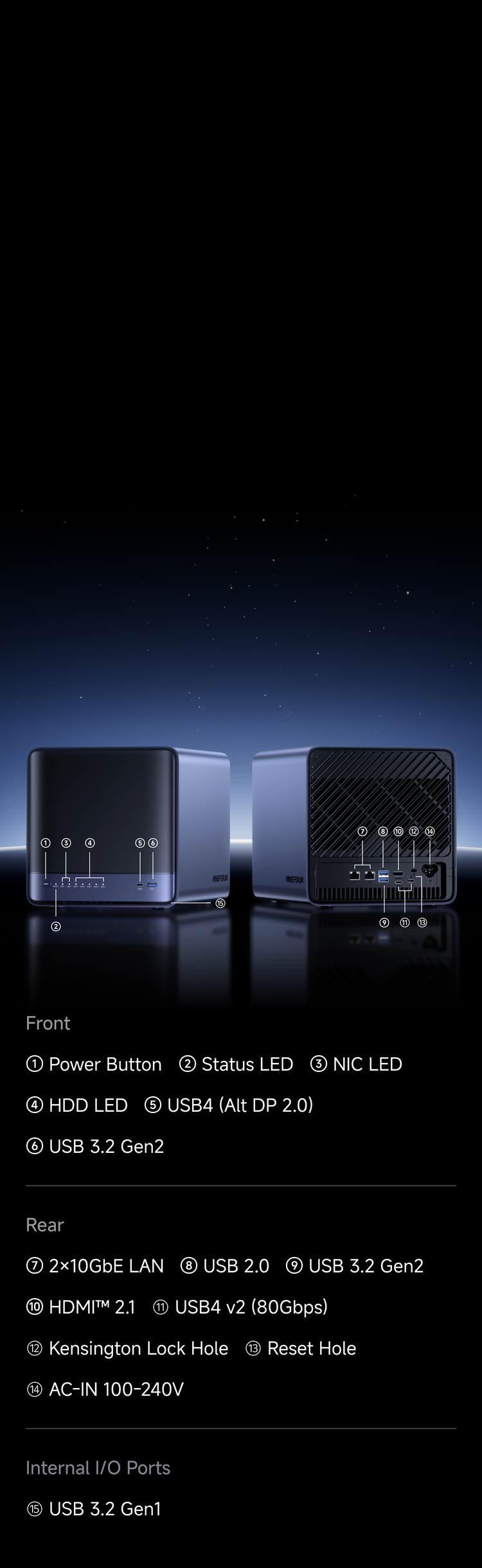

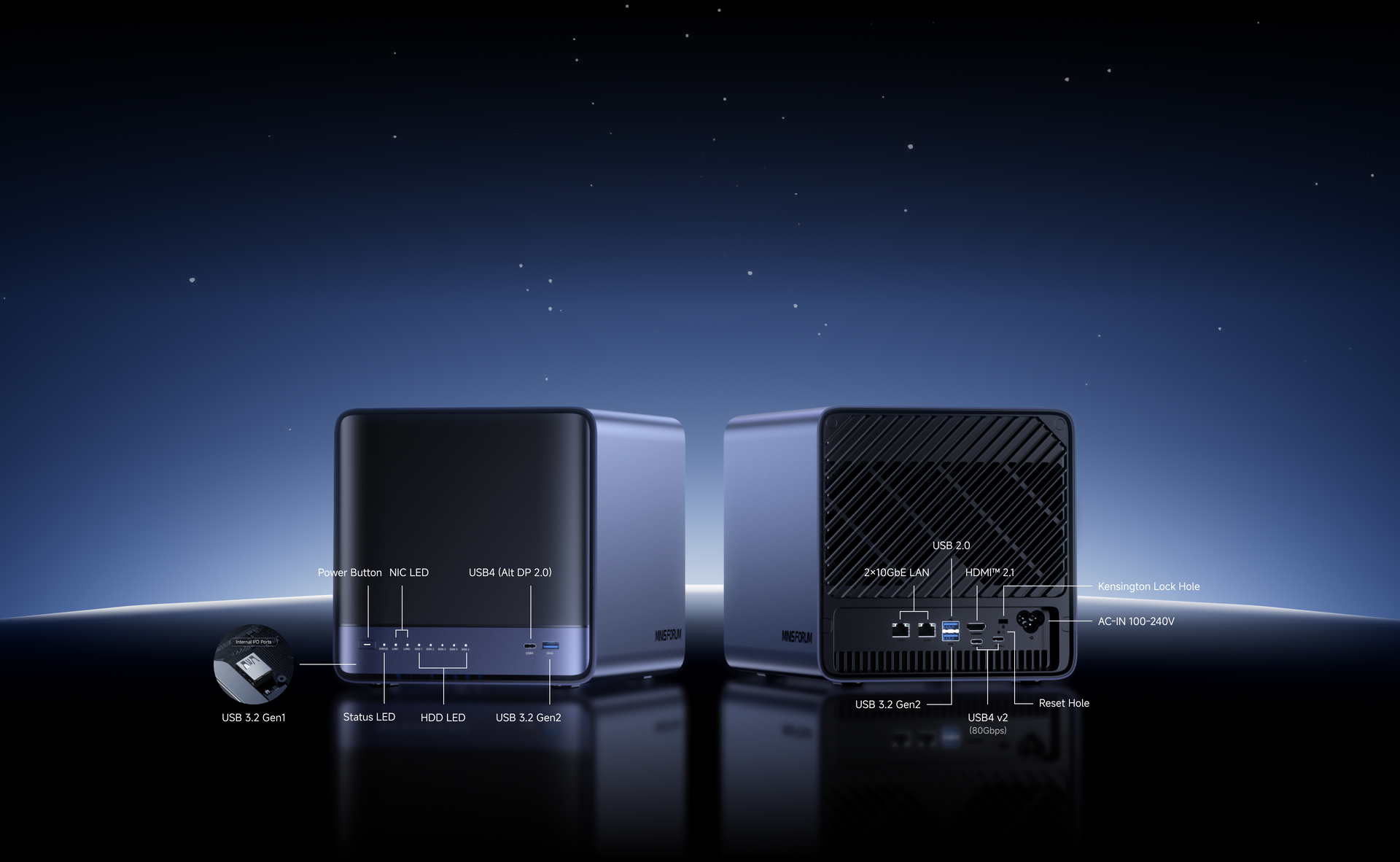

1 × USB4(40Gbps, Alt DP 2.0, PD out 15W)
1 × USB 3.2 Gen2
2 × 10GbE LAN port (RTL8127)
2 × USB4 V2 (80Gbps, Alt DP 2.0, PD out 15W)
1 × USB 3.2 Gen2
1 × USB 2.0
1 × HDMI 2.1 FRL
1 × AC IN
1 × USB 3.2 Gen1
1 × Power Button with LED
1 × Reset Hole
1 × Kensington Lock Hole
1 × Buzzer
1 × Status LED
2 × NIC LED
5 × HDD LED
DC 20V/12.5A 250W
MinisCloud OS / Windows 11 Pro / Linux
199×202.4×252.3 mm
5.8 kg
