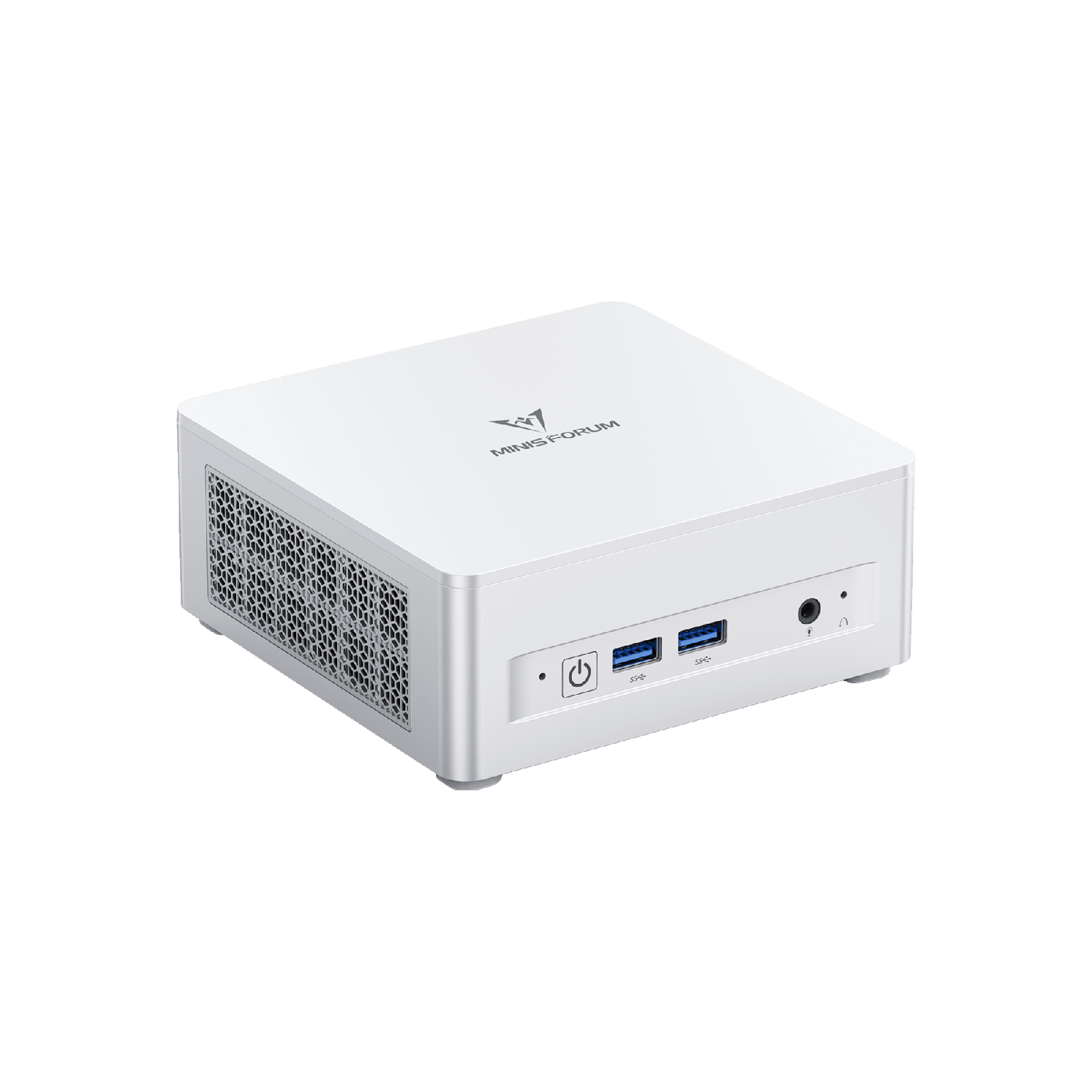

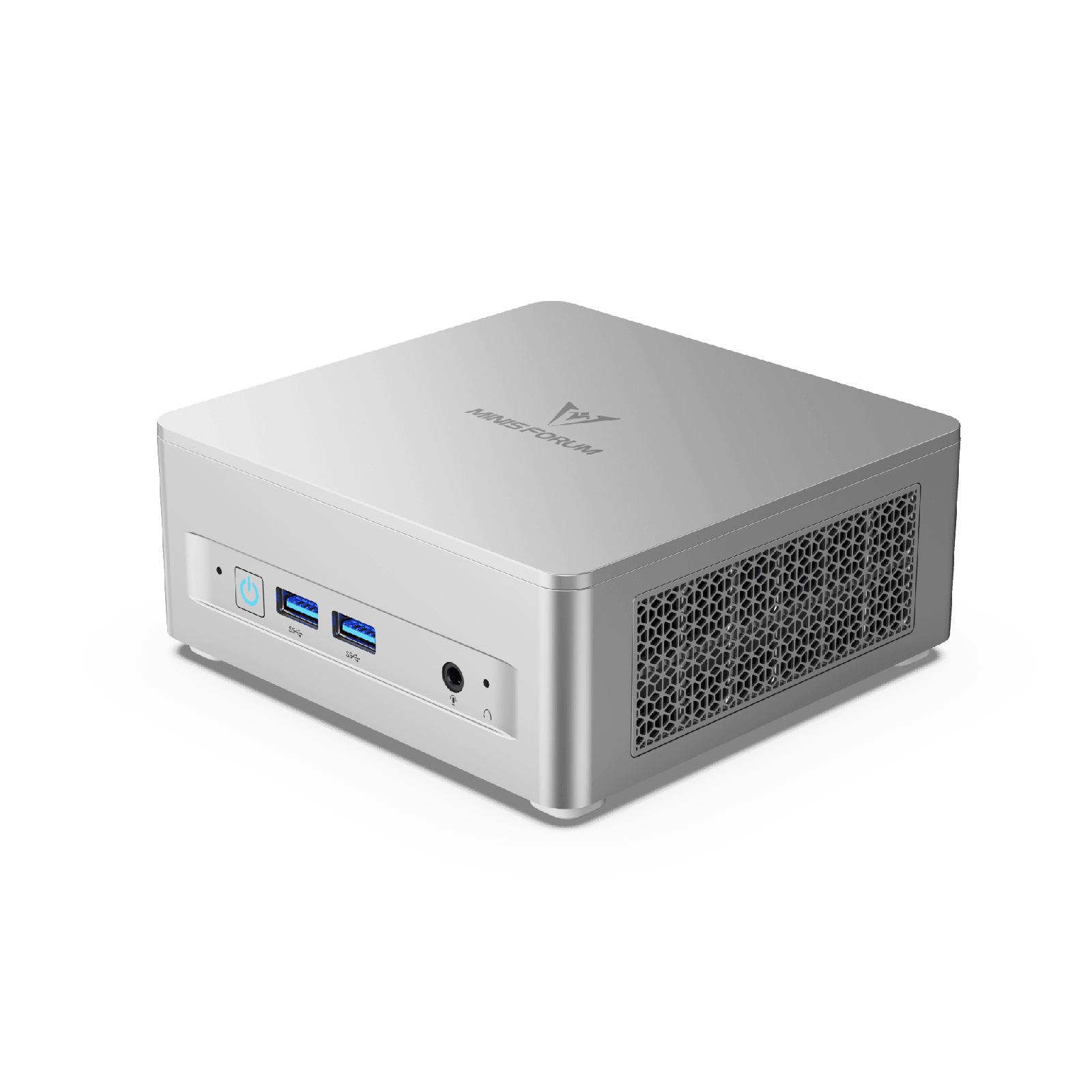

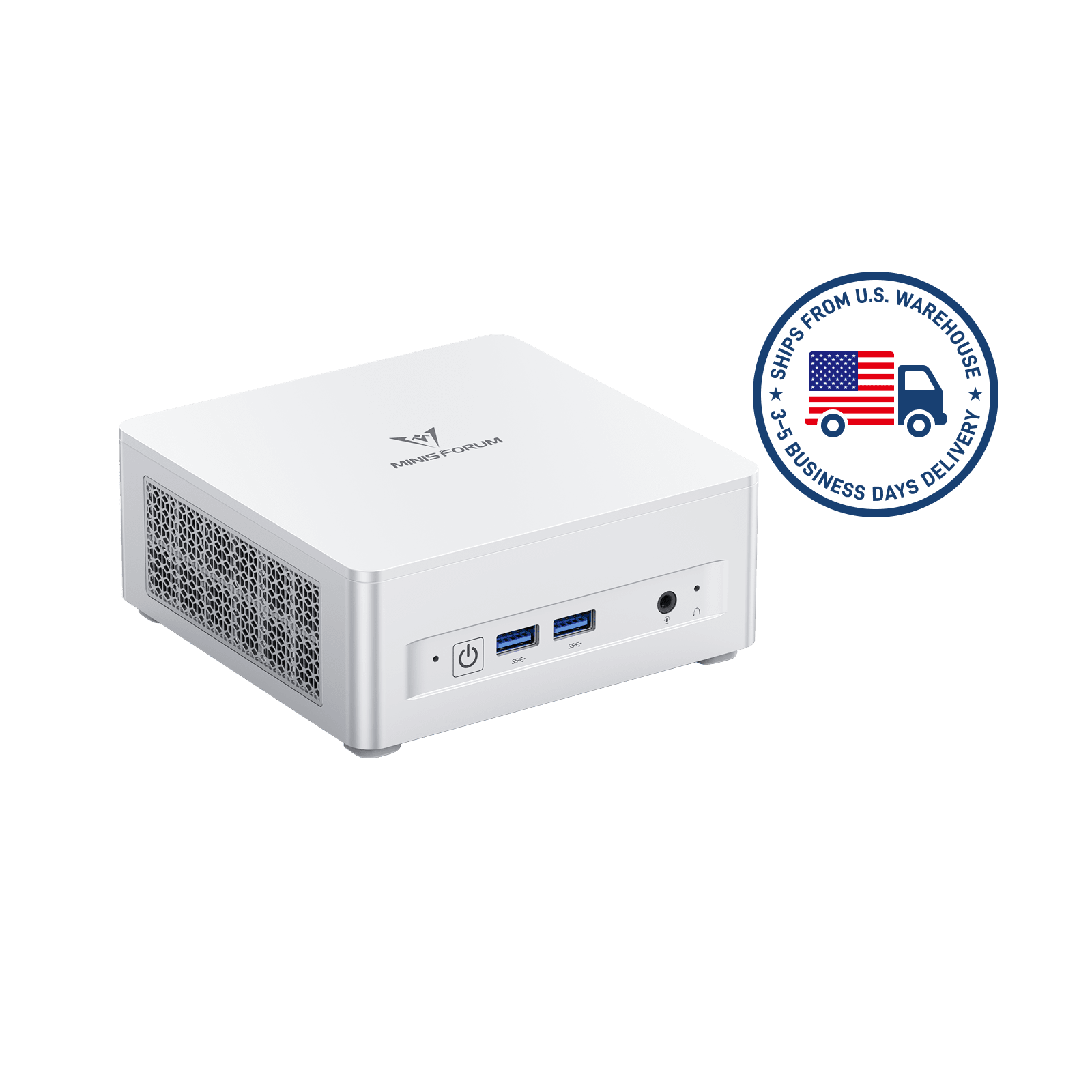

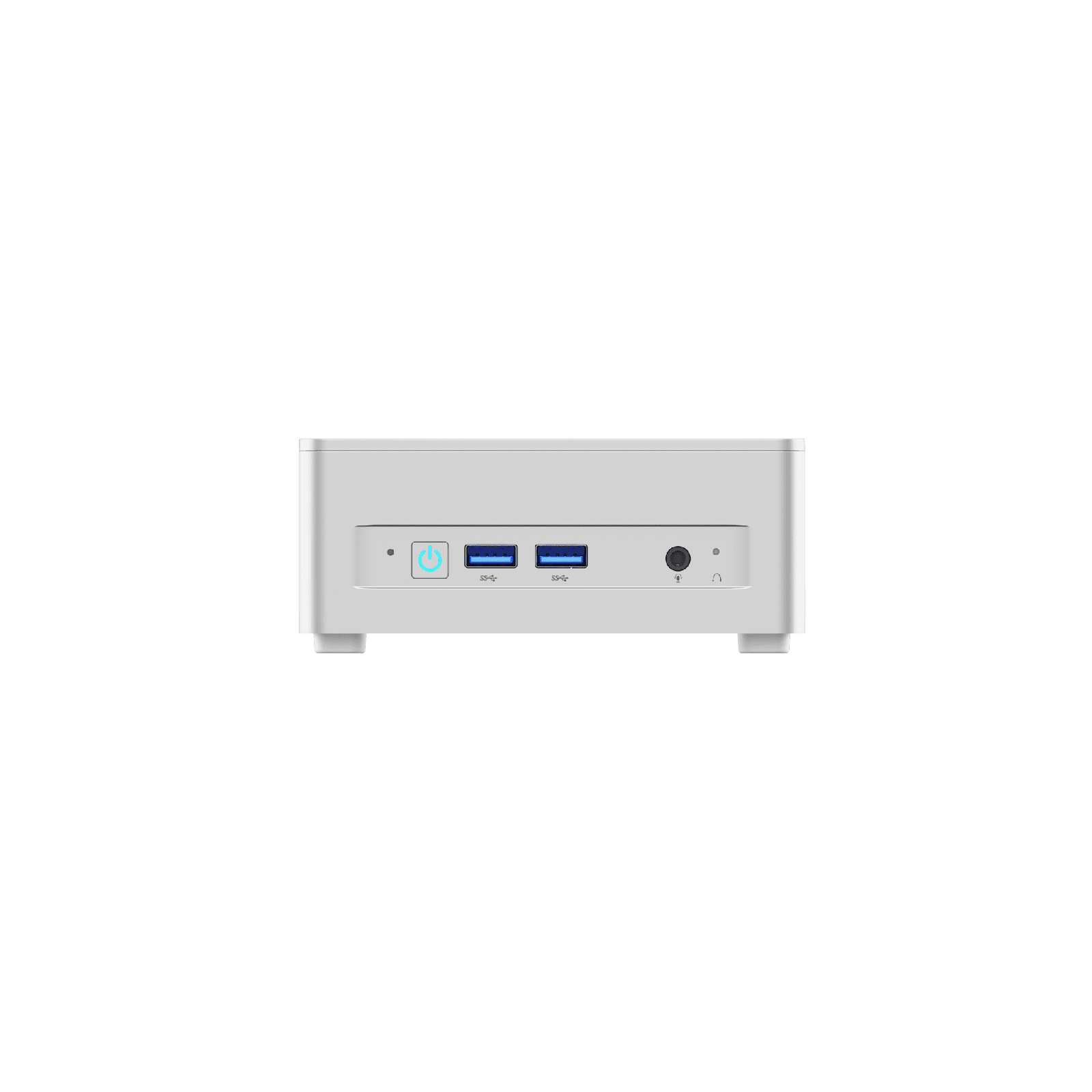

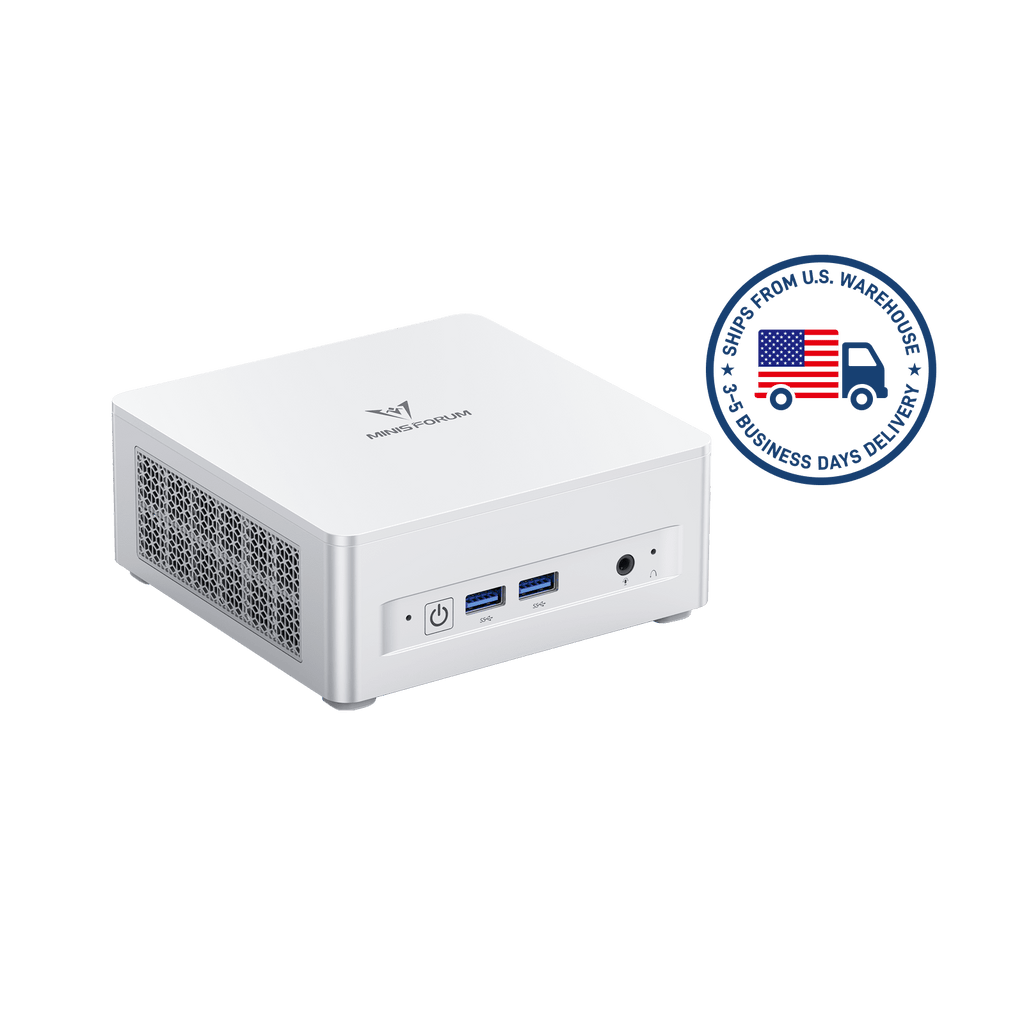

MINISFORUM UM750L Slim
Sale price
$503.00
Regular price
$629.00
Payment Methods:
Trusted Delivery:

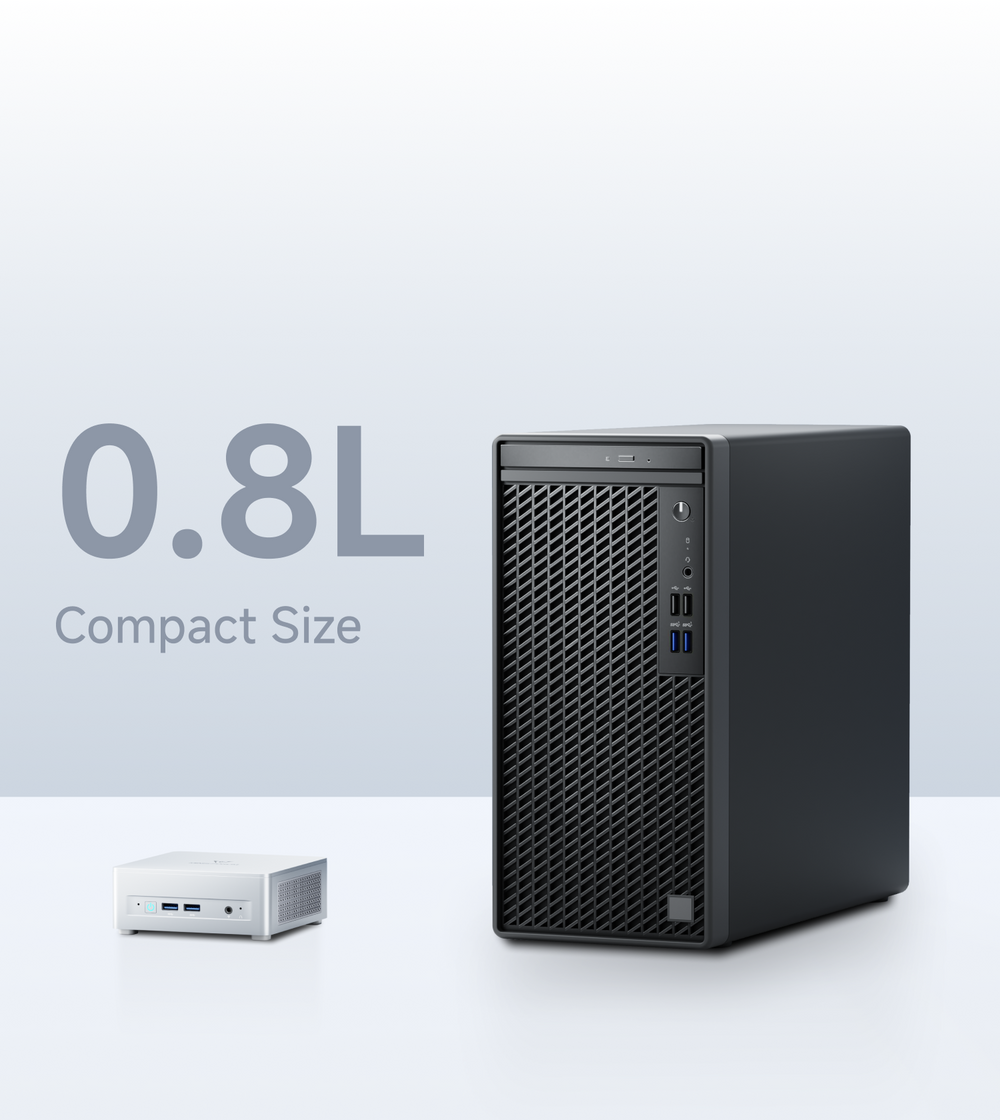

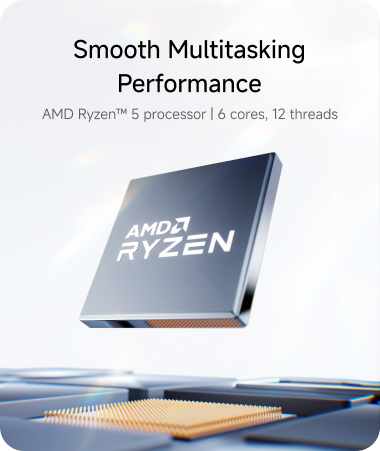

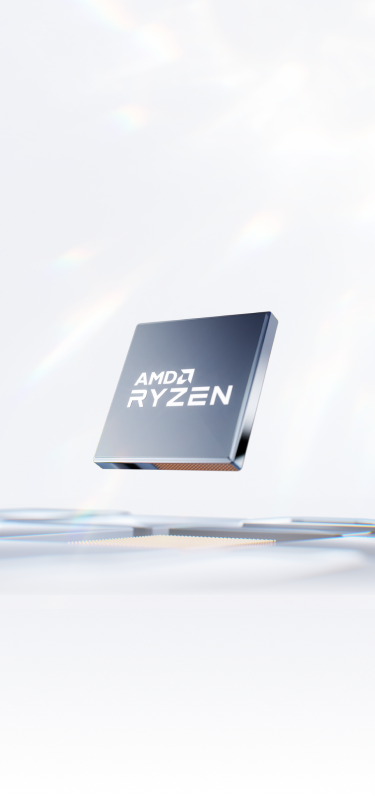

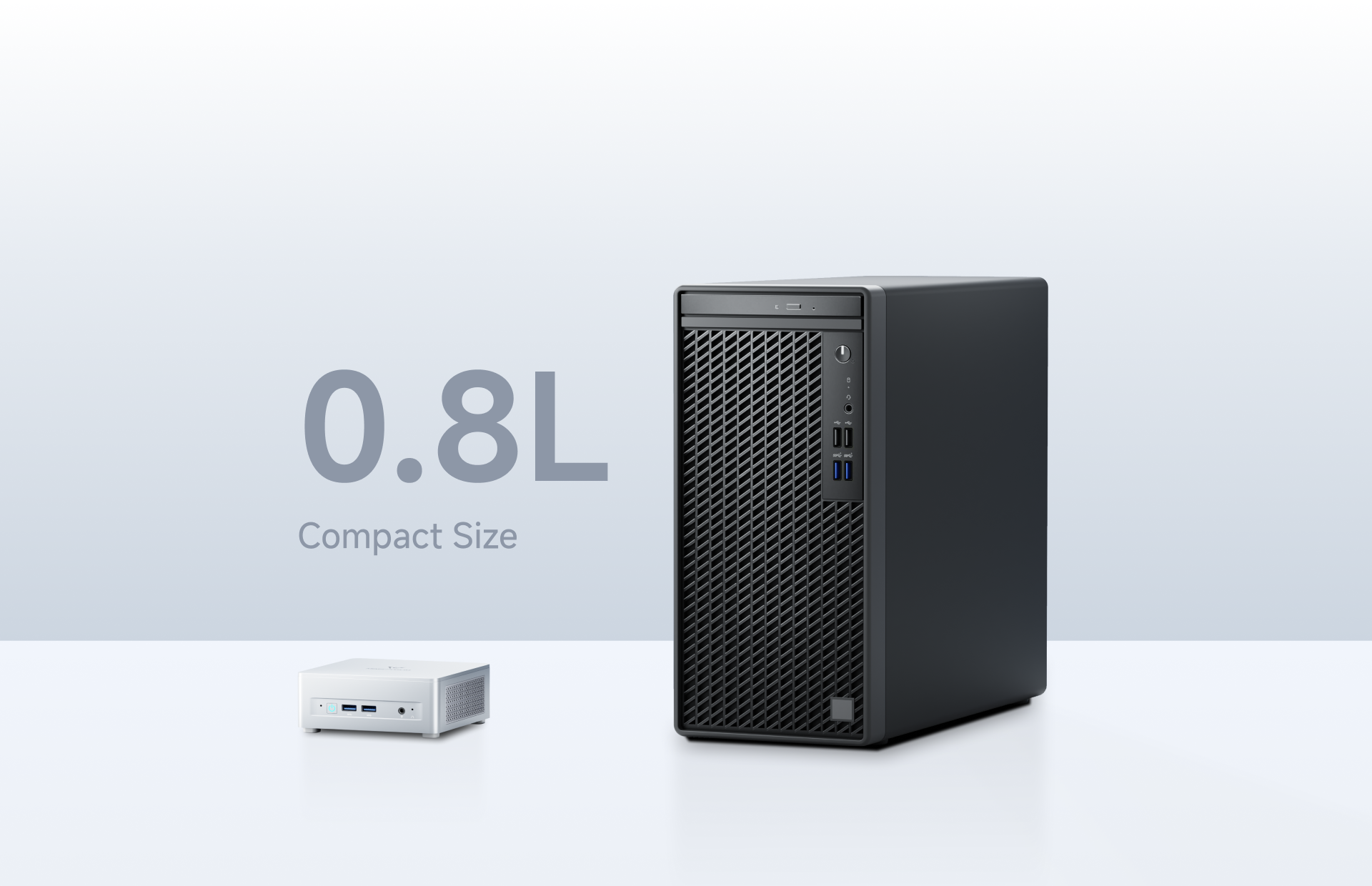

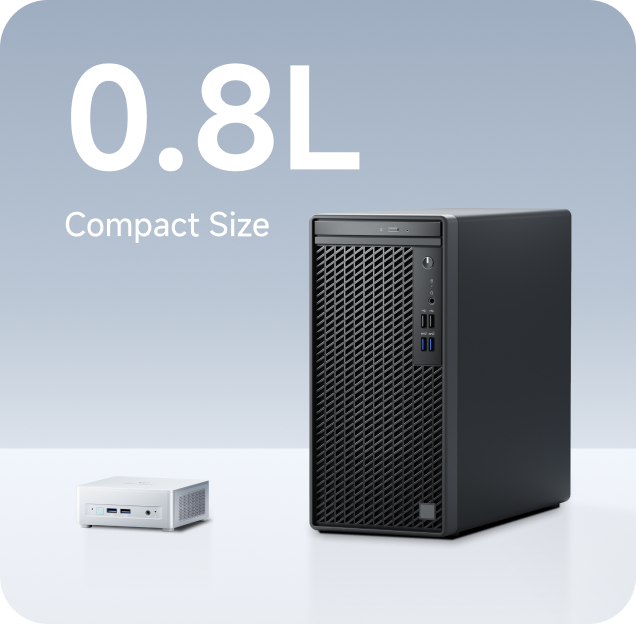

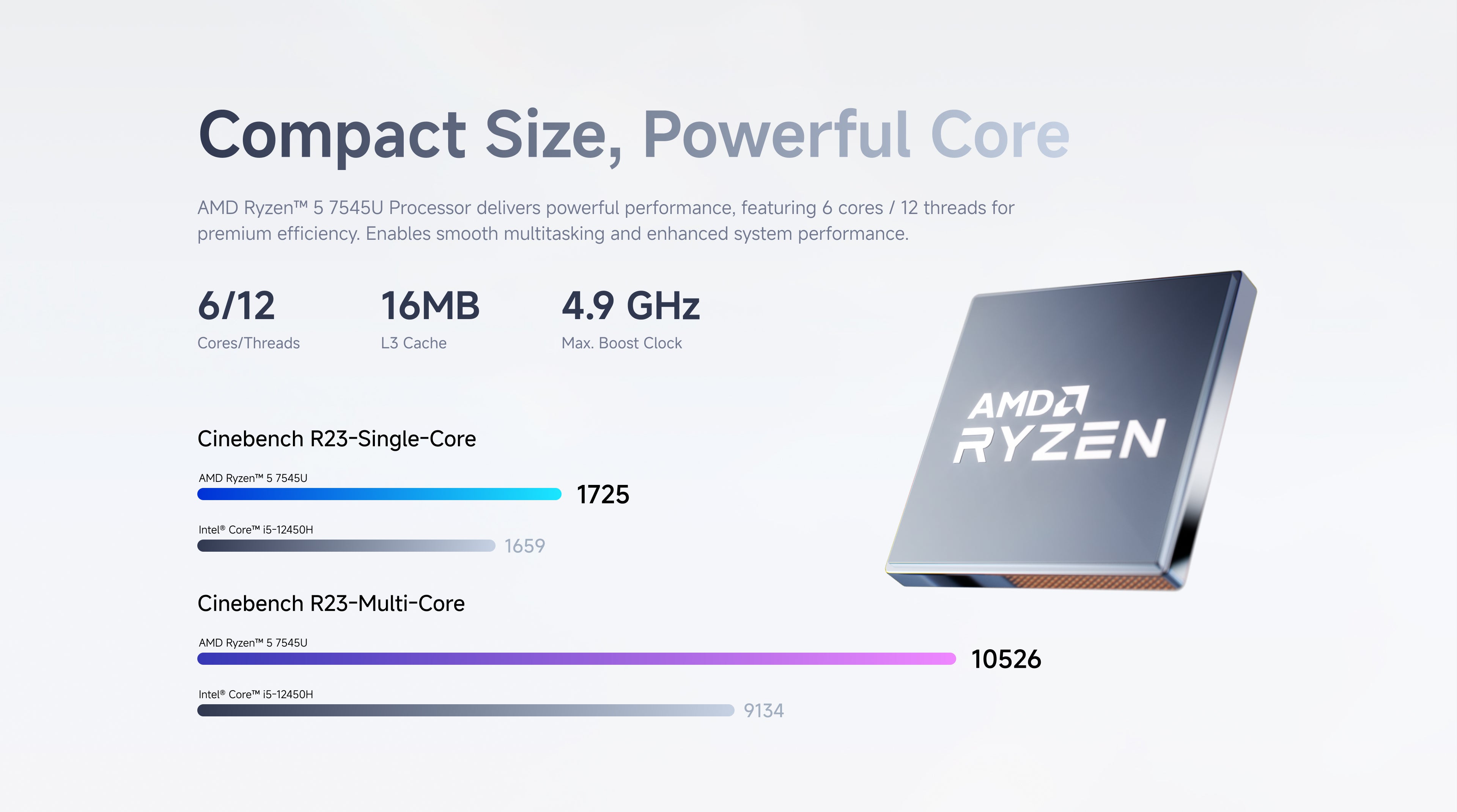

Compact Size, Powerful Core
AMD Ryzen™ 5 7545U Processor delivers powerful performance, featuring 6 cores / 12 threads for premium efficiency. Enables smooth multitasking and enhanced system performance.
8/16
Cores/Threads
16MB
L3 Cache
4.9 GHz
Max. Boost Clock
Integrated Graphics
The integrated AMD Radeon™ GPU delivers exceptional graphics performance for daily visual tasks.
High-speed Memory
LPDDR5 6400MHz blazes past standard 5600MHz, delivering dramatically faster response.
Graphene cooling tech dissipates heat in seconds, unleashing full performance without thermal throttling.
Reduces lag whether running heavy software or multitasking, significantly boosting productivity.
6400MHz
High Speed Memory
High-speed Memory
LPDDR5 6400MHz blazes past standard 5600MHz, delivering dramatically faster response.
Graphene cooling tech dissipates heat in seconds, unleashing full performance without thermal throttling.
Reduces lag whether running heavy software or multitasking, significantly boosting productivity.
6400MHz
High Speed Memory

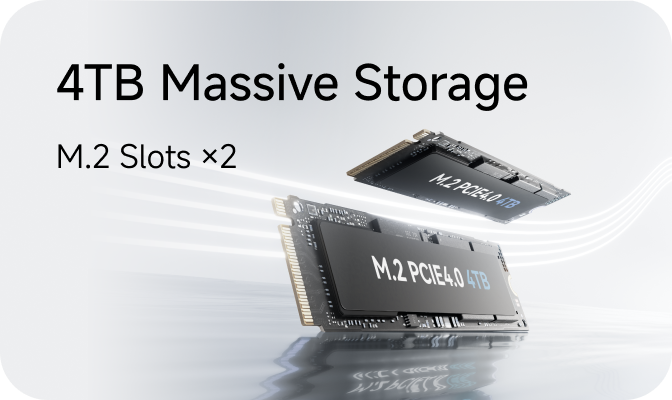

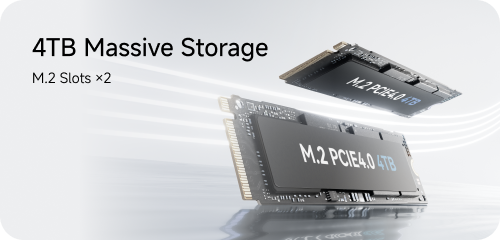

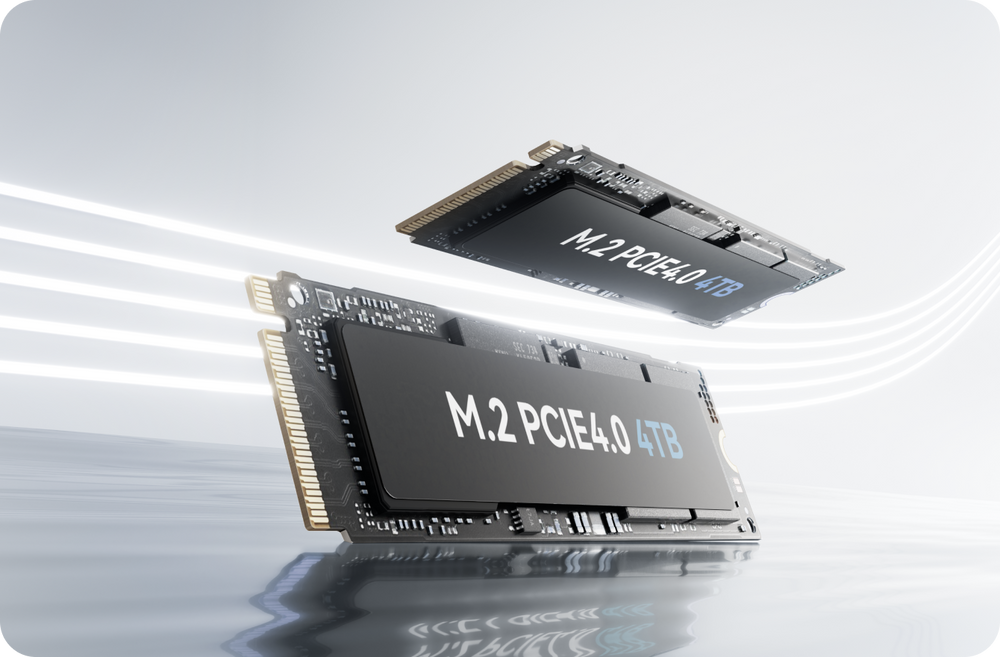

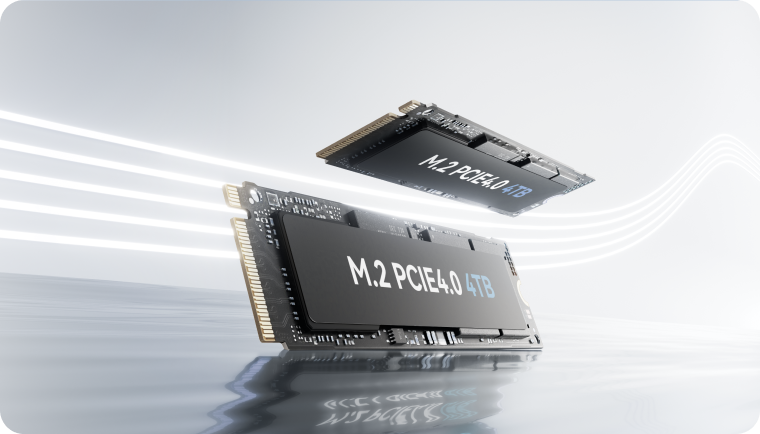

Massive Storage
Supports dual M.2 2280 PCIe 4.0 SSDs for blazing-fast data storage and retrieval, meeting demands for high-capacity, high-speed storage.
4TB
Storage Space
7000MB/s
Data Transfer Speeds
*Actual transmission speed：PCIe 4.0 x4：6700-7300 MB/sPCIe 4.0 x2：3000-3500 MB/s
Massive Storage
Supports dual M.2 2280 PCIe 4.0 SSDs for blazing-fast data storage and retrieval, meeting demands for high-capacity, high-speed storage.
4TB
Storage Space
7000MB/s
Data Transfer Speeds
*Actual transmission speed：PCIe 4.0 x4：6700-7300 MB/sPCIe 4.0 x2：3000-3500 MB/s

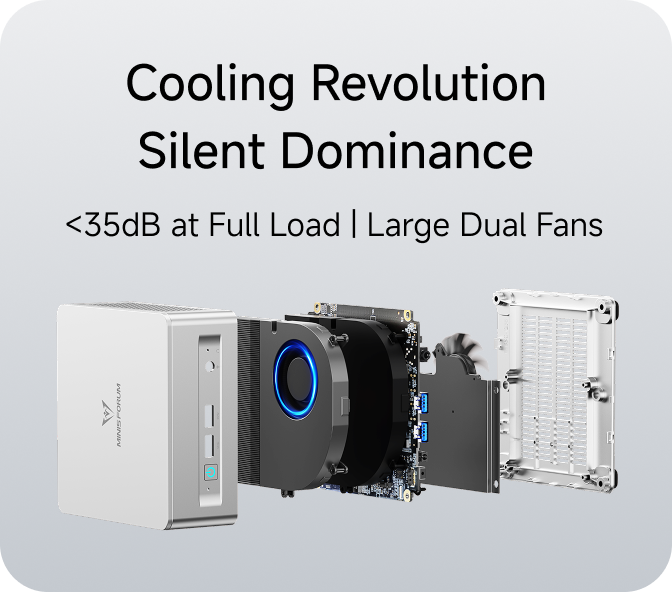

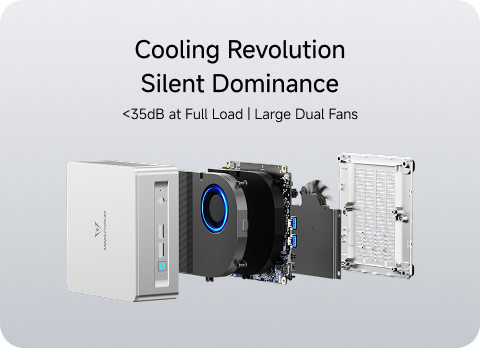

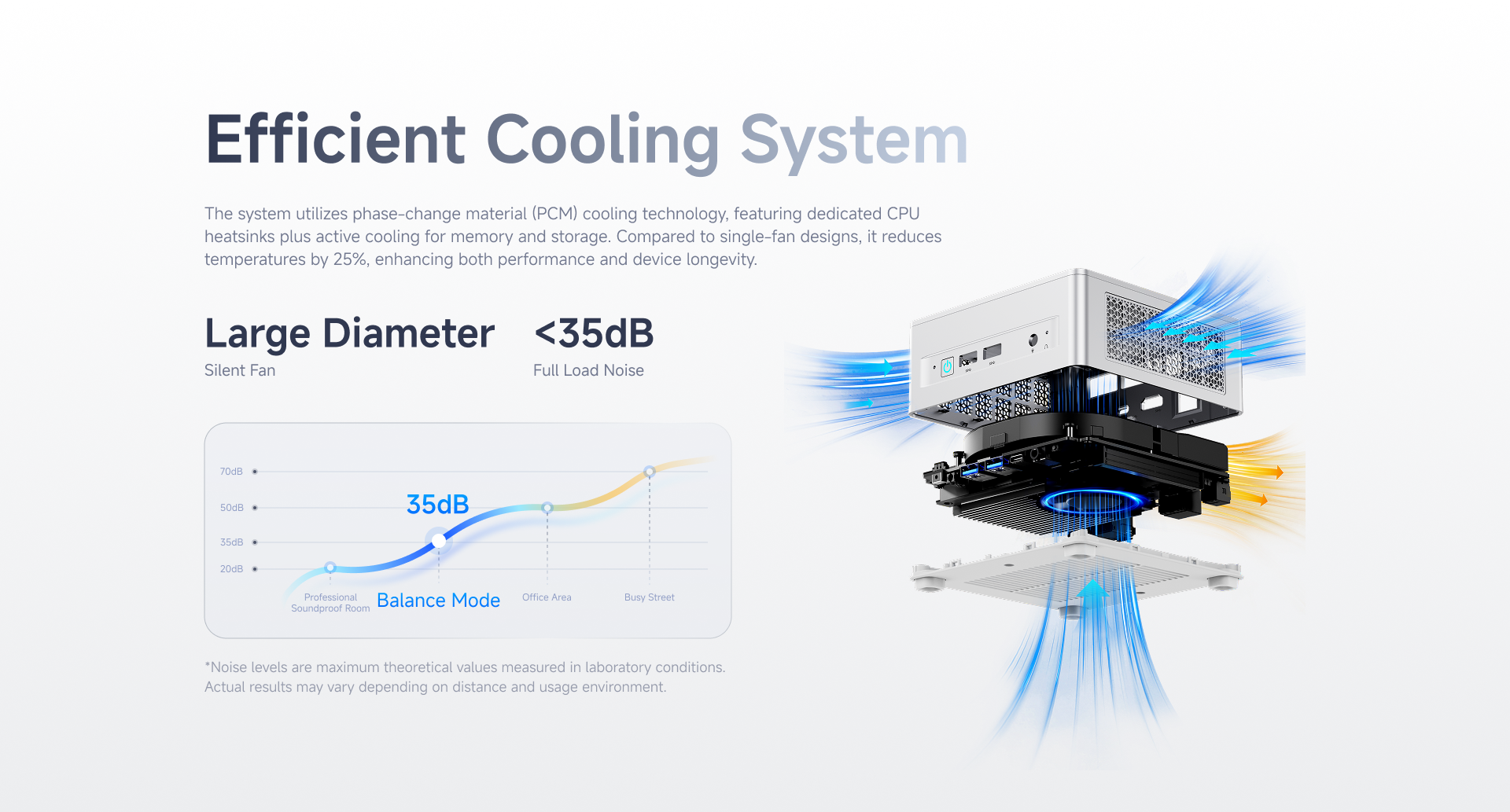

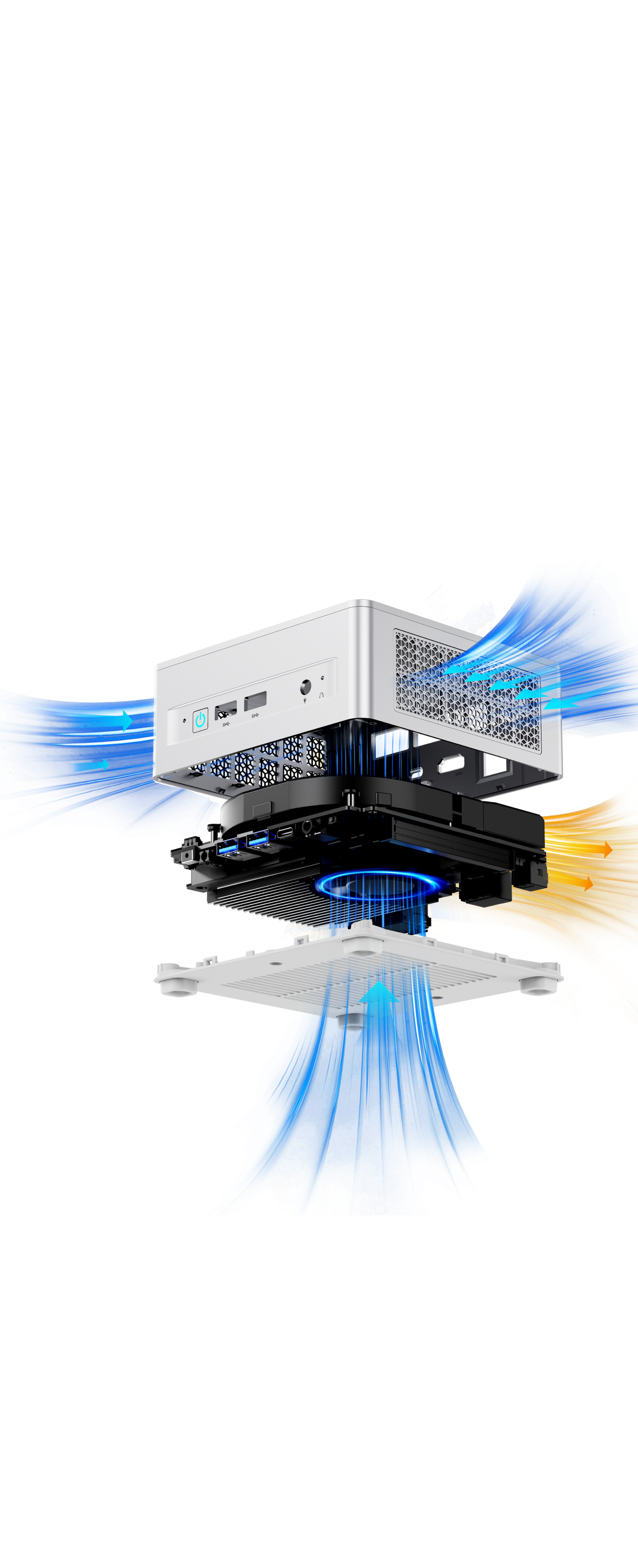

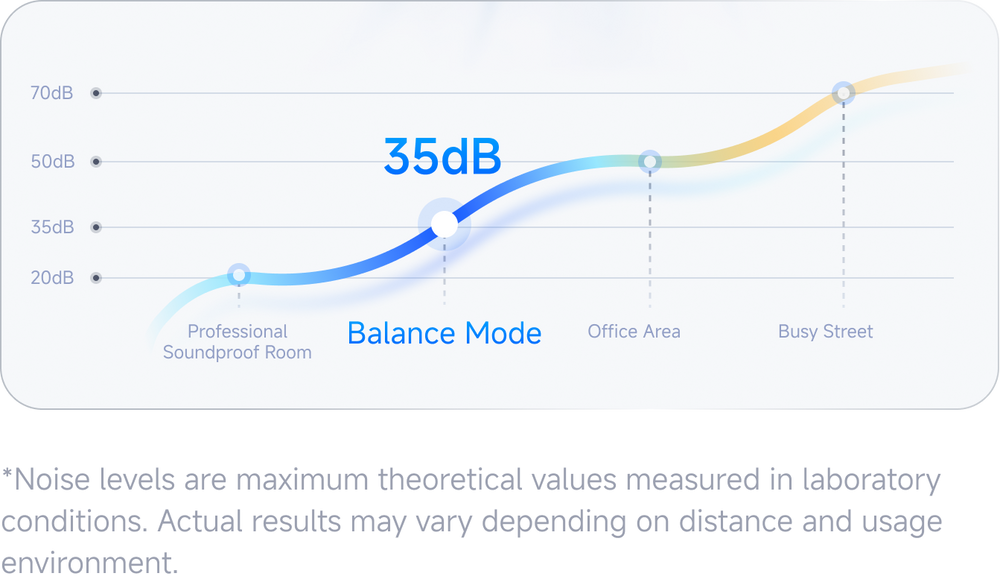

Efficient CoolingSystem
The system utilizes phase-change material (PCM) cooling technology, featuring dedicated CPU heatsinks plus active cooling for memory and storage. Compared to single-fan designs, it reduces temperatures by 25%, enhancing both performance and device longevity.
Large Diameter
Silent Fan
< 35dB
Full Load Noise

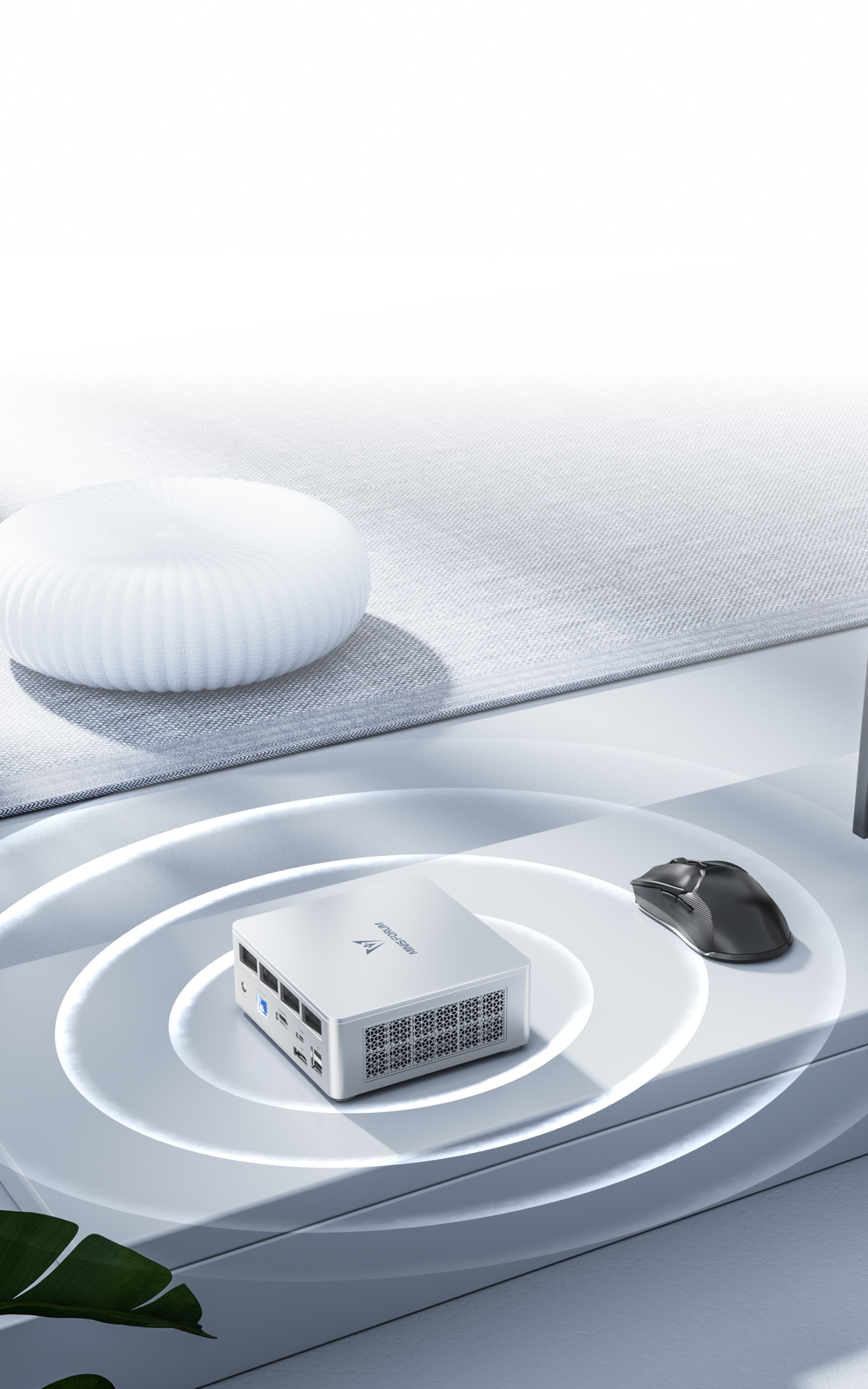

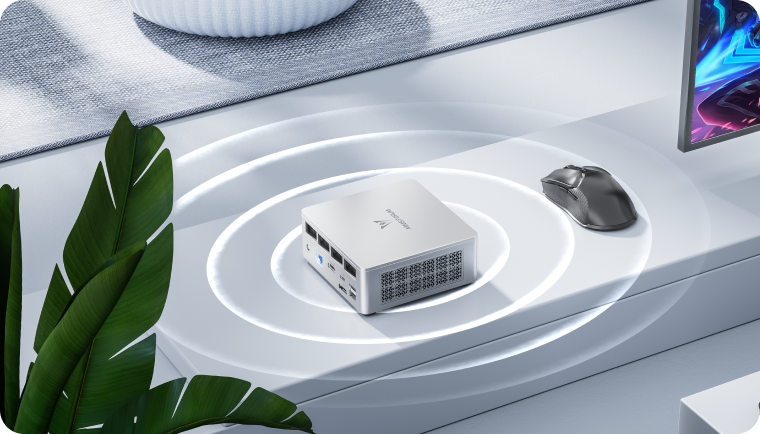

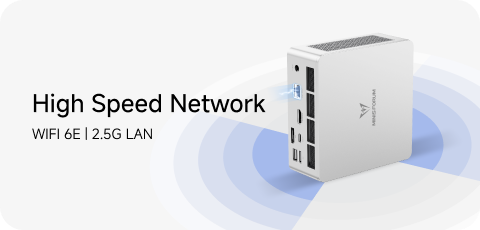

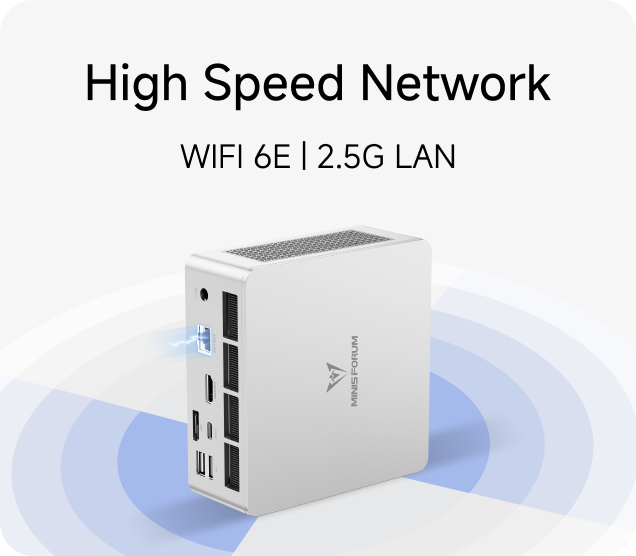

Top-speed Network
Pre-installed with high-speed wired LAN and wireless connectivity for fast, stable networking.
Enjoy seamless networking whether downloading large files, gaming online, or video conferencing.
2.5G Ethernet Port
Theoretical Speed 2500Mbps
WIFI 6E
Maximum Theoretical Speed 9.6Gbps
BT 5.2
Enhanced multi-device stability with reduced Wi-Fi/4G interference
Top-speed Network
Pre-installed with high-speed wired LAN and wireless connectivity for fast, stable networking.
Enjoy seamless networking whether downloading large files, gaming online, or video conferencing.
2.5G Ethernet Port
Theoretical Speed 2500Mbps
WIFI 6E
Maximum Theoretical Speed 9.6Gbps
BT 5.2
Enhanced multi-device stability with reduced Wi-Fi/4G interference

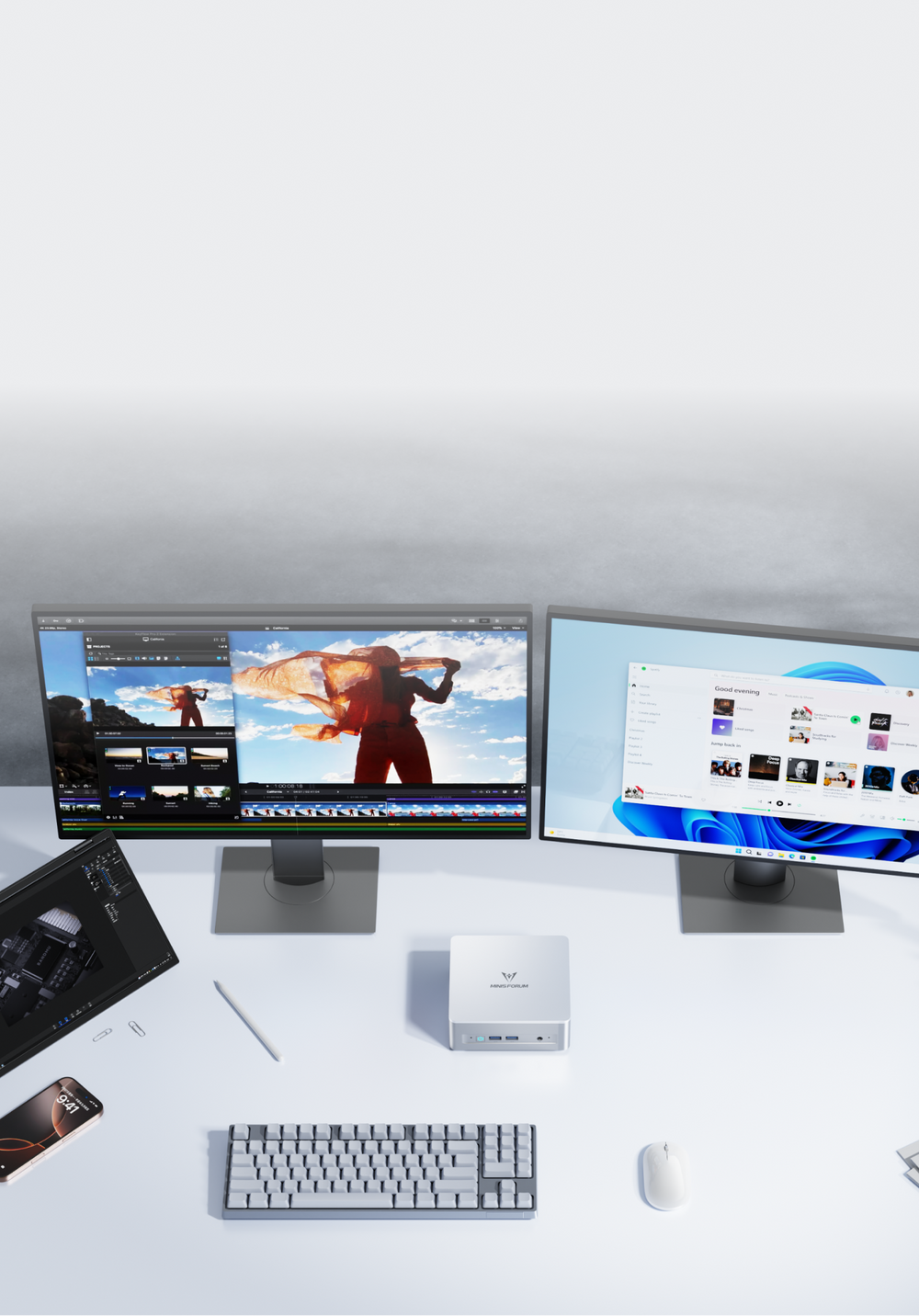

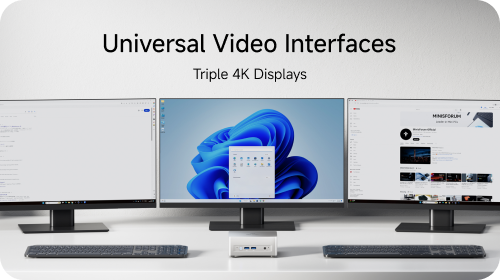

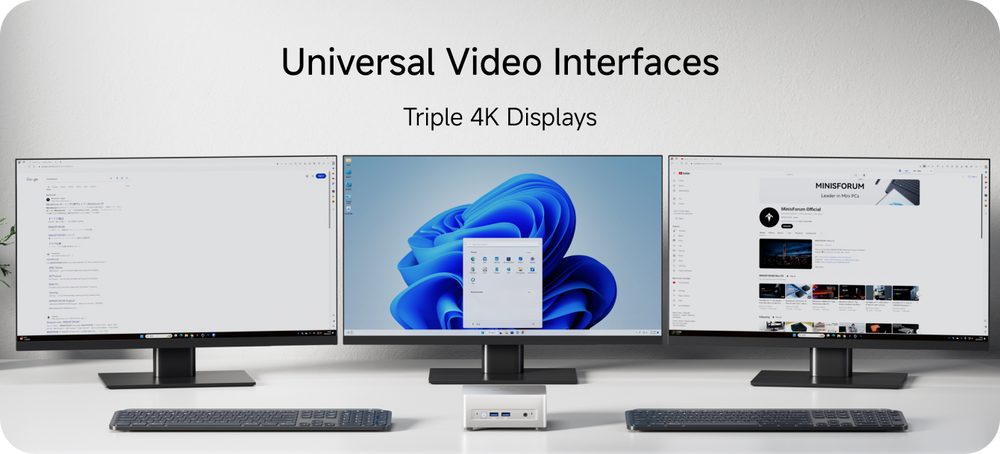

Triple Independent Displays
Connect triple 4K displays simultaneously via USB4, HDMI and DP interfaces for effortless multi-screen productivity that dramatically enhances workflow efficiency.

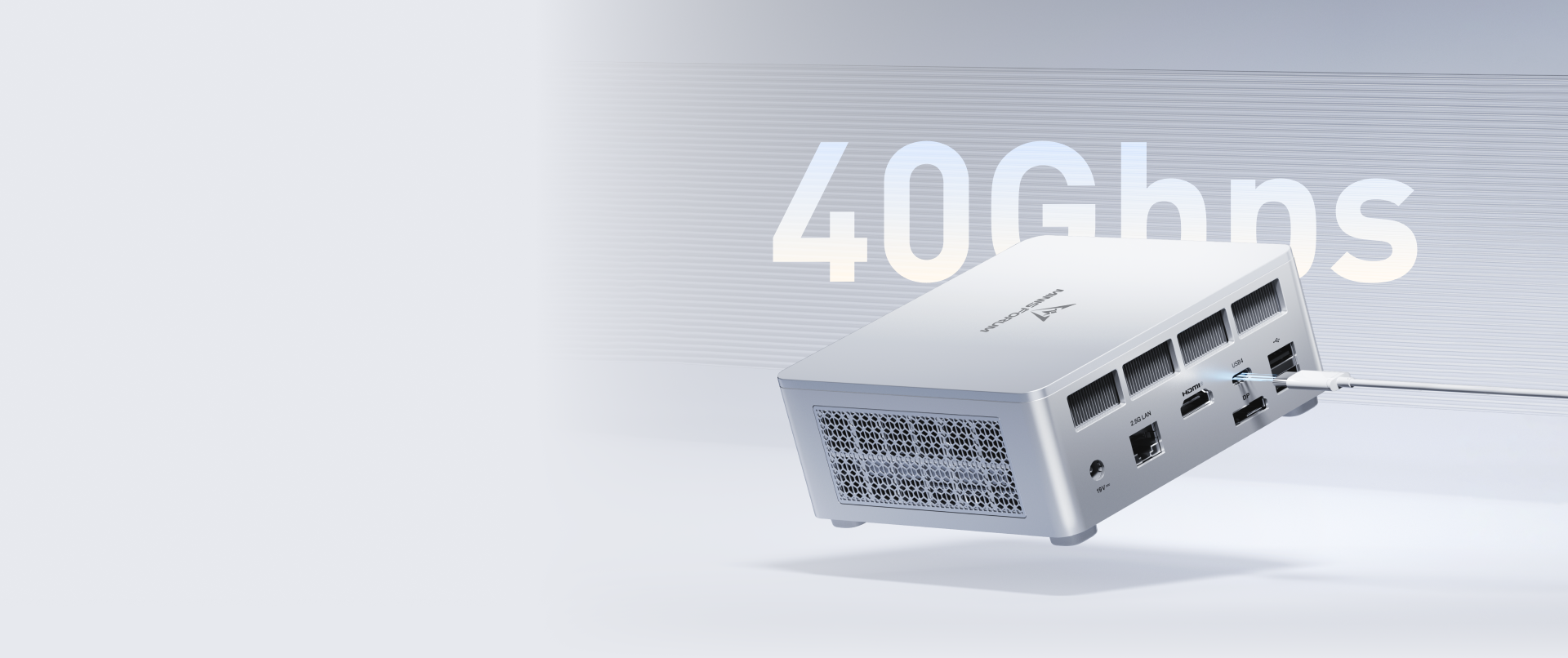

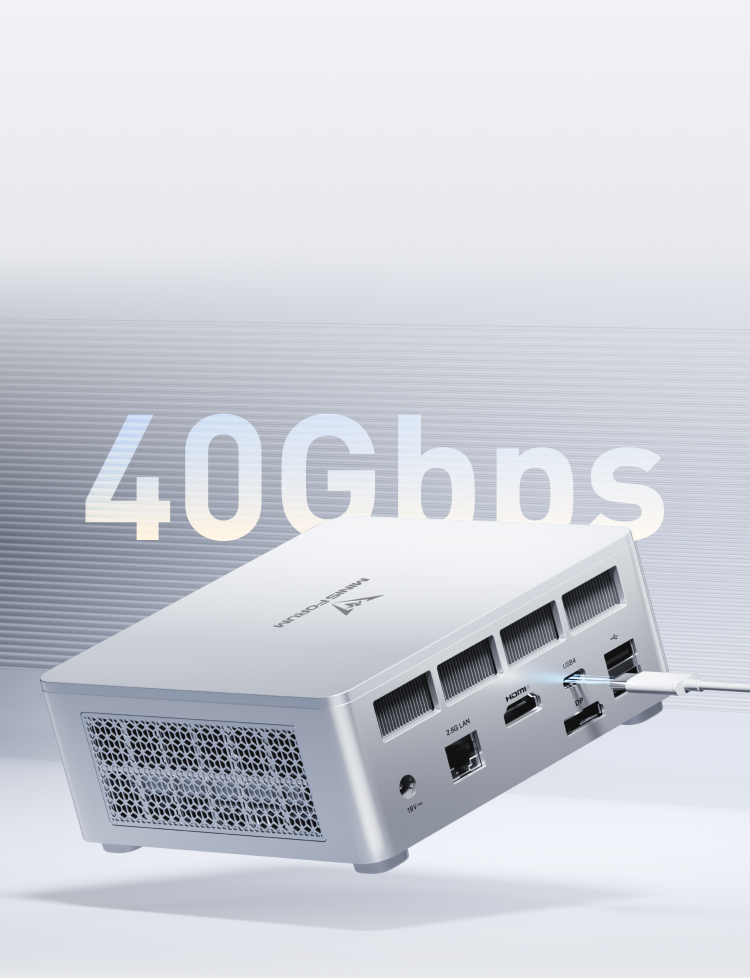

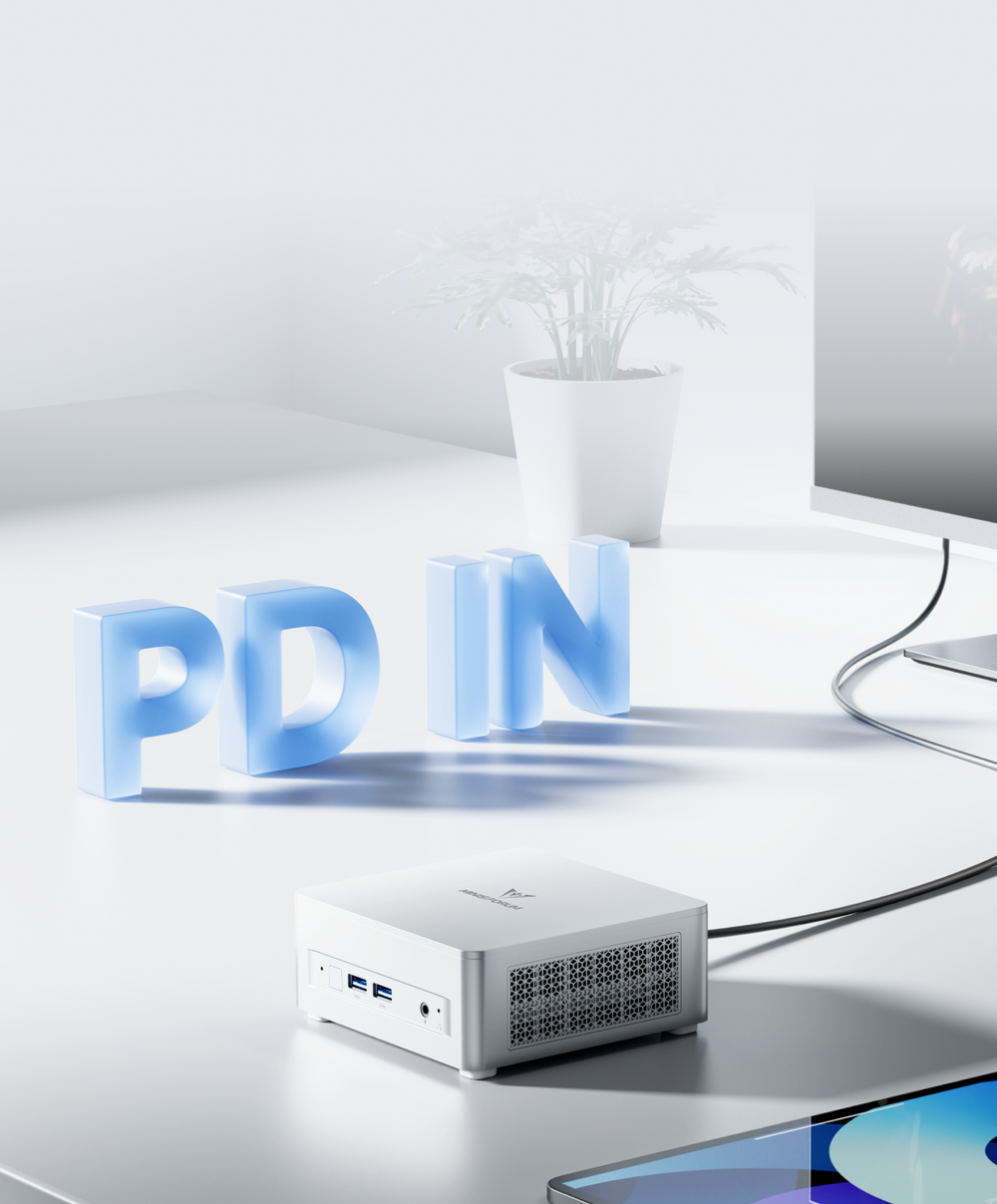

USB4: High-Speed Transfer & Adaptive Power
Full-featured USB4 ports deliver blazing 40Gbps speeds for effortless handling of large files, complex projects, and demanding applications - dramatically boosting productivity.
Supports 65-100W PD input for host power plus 15W output capability, delivering flexible power options for diverse usage scenarios.
PD IN
65-100W
Display Reverse Charging
Video Out
15W PD Out

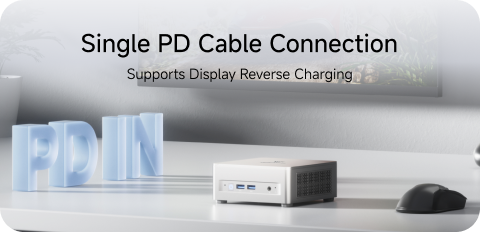

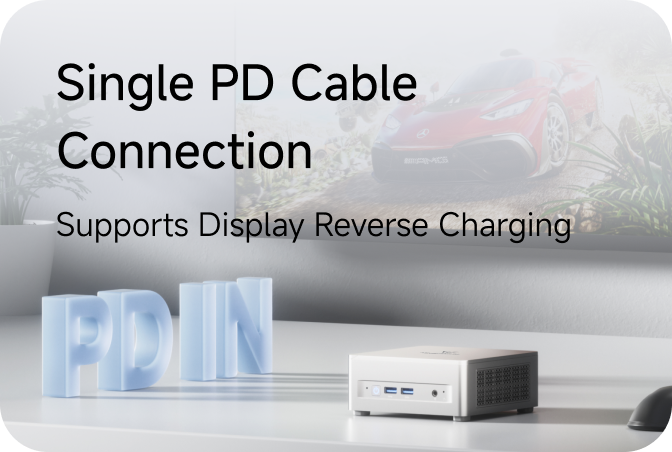

Single PD Cable Connection
Supports 65-100W PD input for host power plus 15W output capability, delivering flexible power options for diverse usage scenarios.
PD IN
65-100W
Display Reverse Charging
Video Out
15W PD Out
Single PD Cable Connection

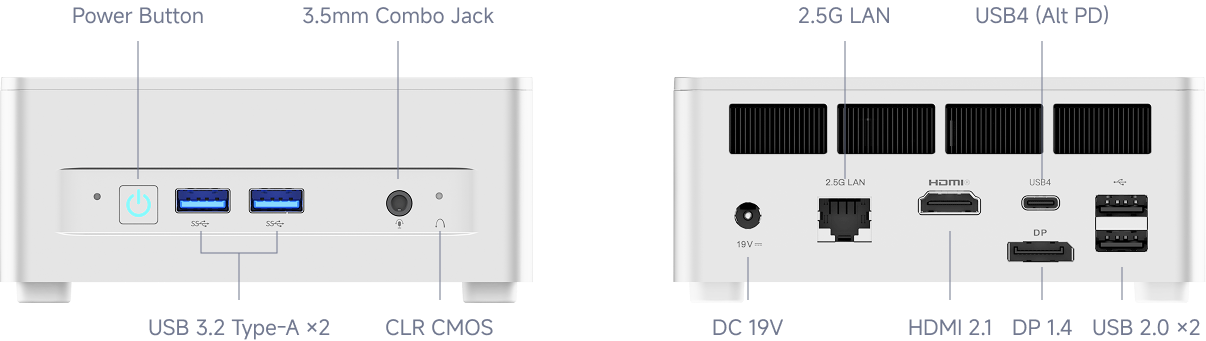

King of Ports
King of Ports

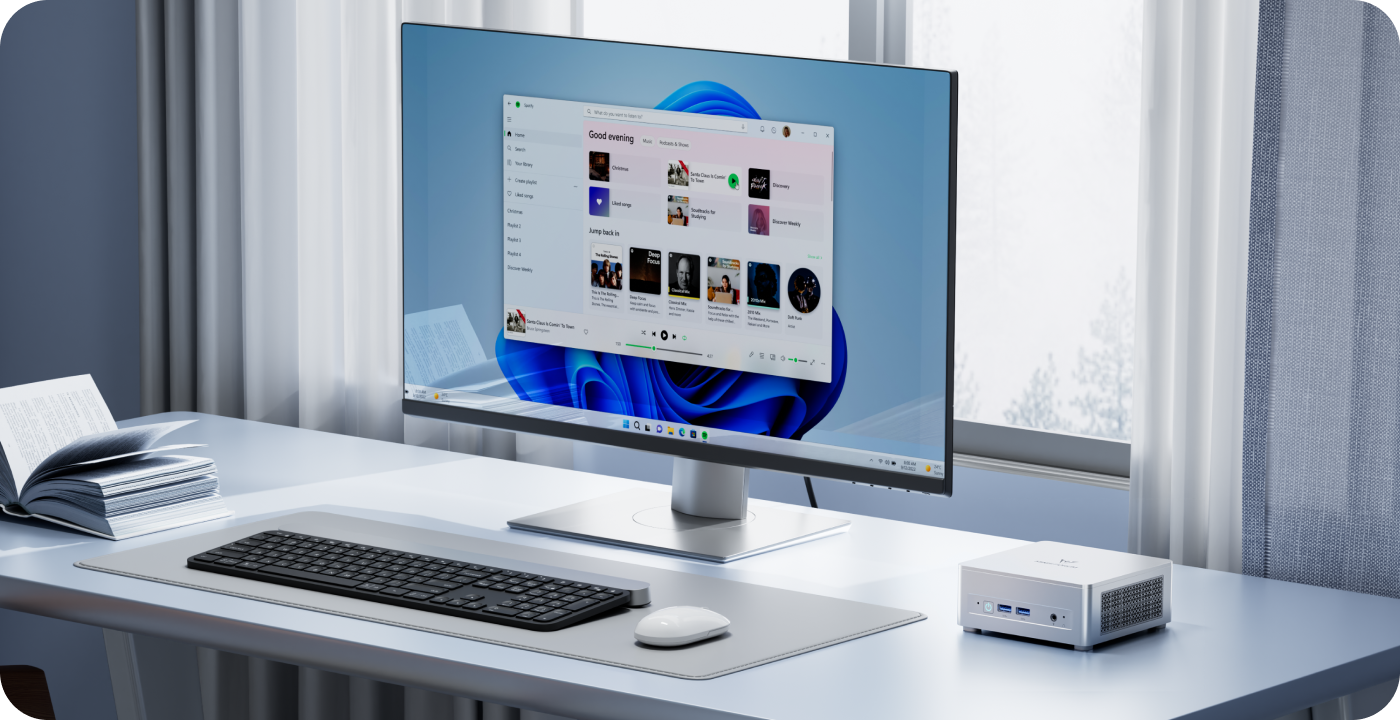

All-in-One Smart Assistant
Pre-installed Windows 11, ready to use out of the box, seamlessly blending work and play.
Delivers exceptional performance and convenience for both demanding workloads and leisure activities.
All-in-One Smart Assistant
Pre-installed Windows 11, ready to use out of the box, seamlessly blending work and play.
Delivers exceptional performance and convenience for both demanding workloads and leisure activities.
All-in-One Smart Assistant
UM750L Slim Spec
CPU
AMD Ryzen™ 5 7545U, 6C/12T, Max Turbo Frequency 4.9 GHz
GPU
AMD Radeon Graphics
Memory
LPDDR5 6400MT/s (OnBoard,Max 32G)
Storage
1× M.2 2280 NVME SSD Slot (Up to 4TB,PCIe 4.0 x4, Located above the WiFi slot)
1× M.2 2280 NVME SSD Slot (Up to 4TB,PCIe 4.0 x2)
Wireless Connectivity
Wi-Fi 6E, Bluetooth® 5.2
Video Output
HDMI ×1 (Up to 4K@120Hz / 8K@60Hz)
DP ×1 (Up to 4K@120Hz / 8K@60Hz)
USB4 ×1 (Up to 4K@120Hz / 8K@60Hz)
Audio Output
HDMI ×1
3.5mm Combo Jack ×1
Audio Input
3.5mm Combo Jack ×1

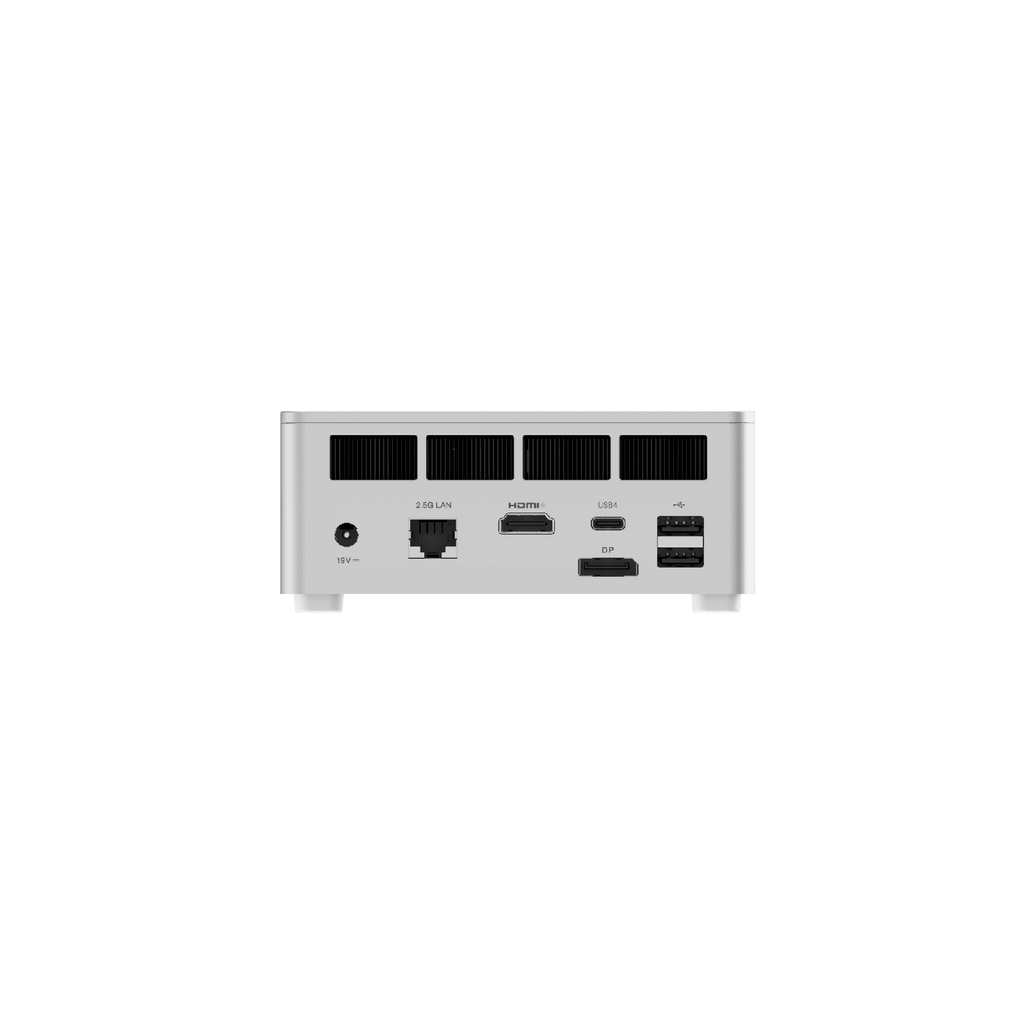

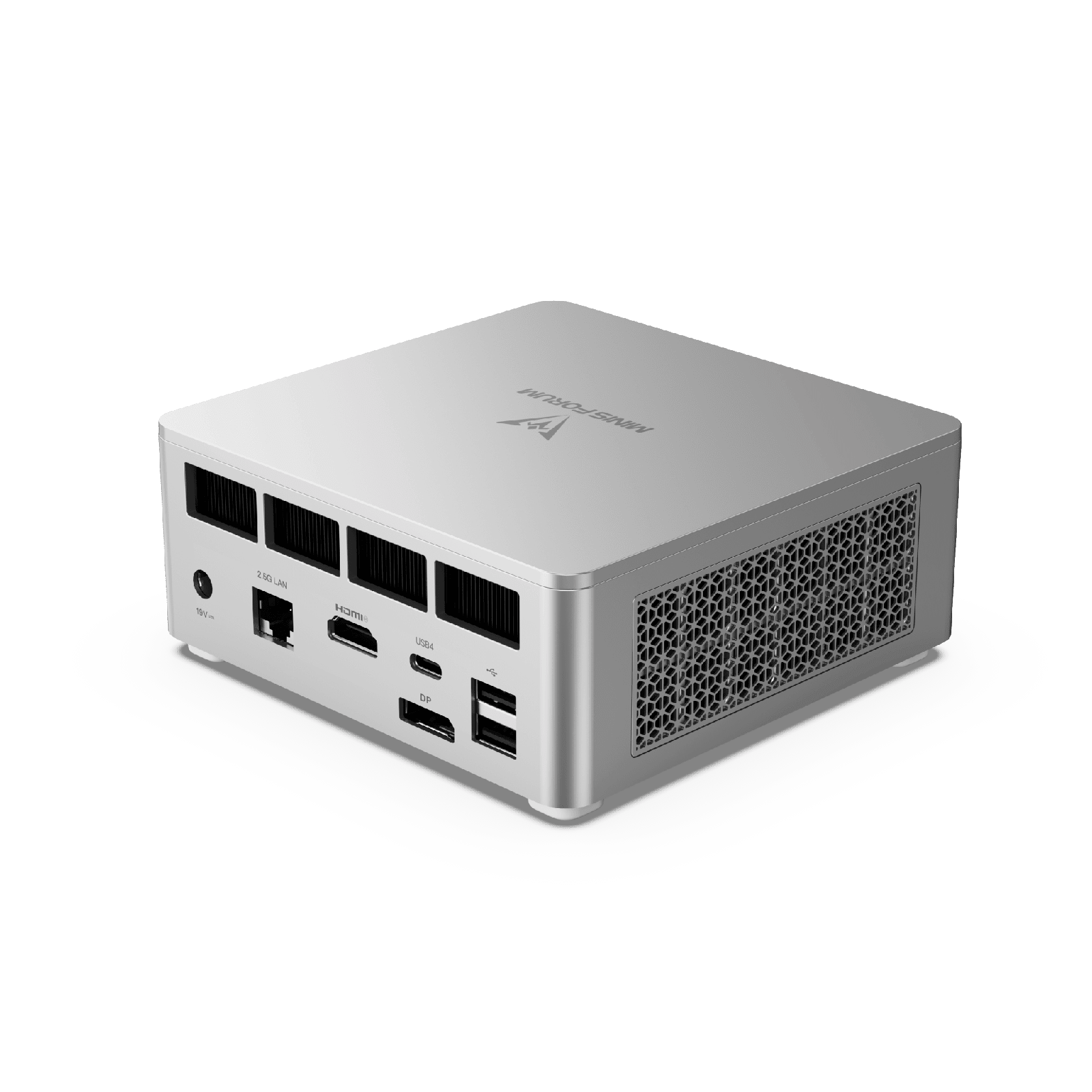

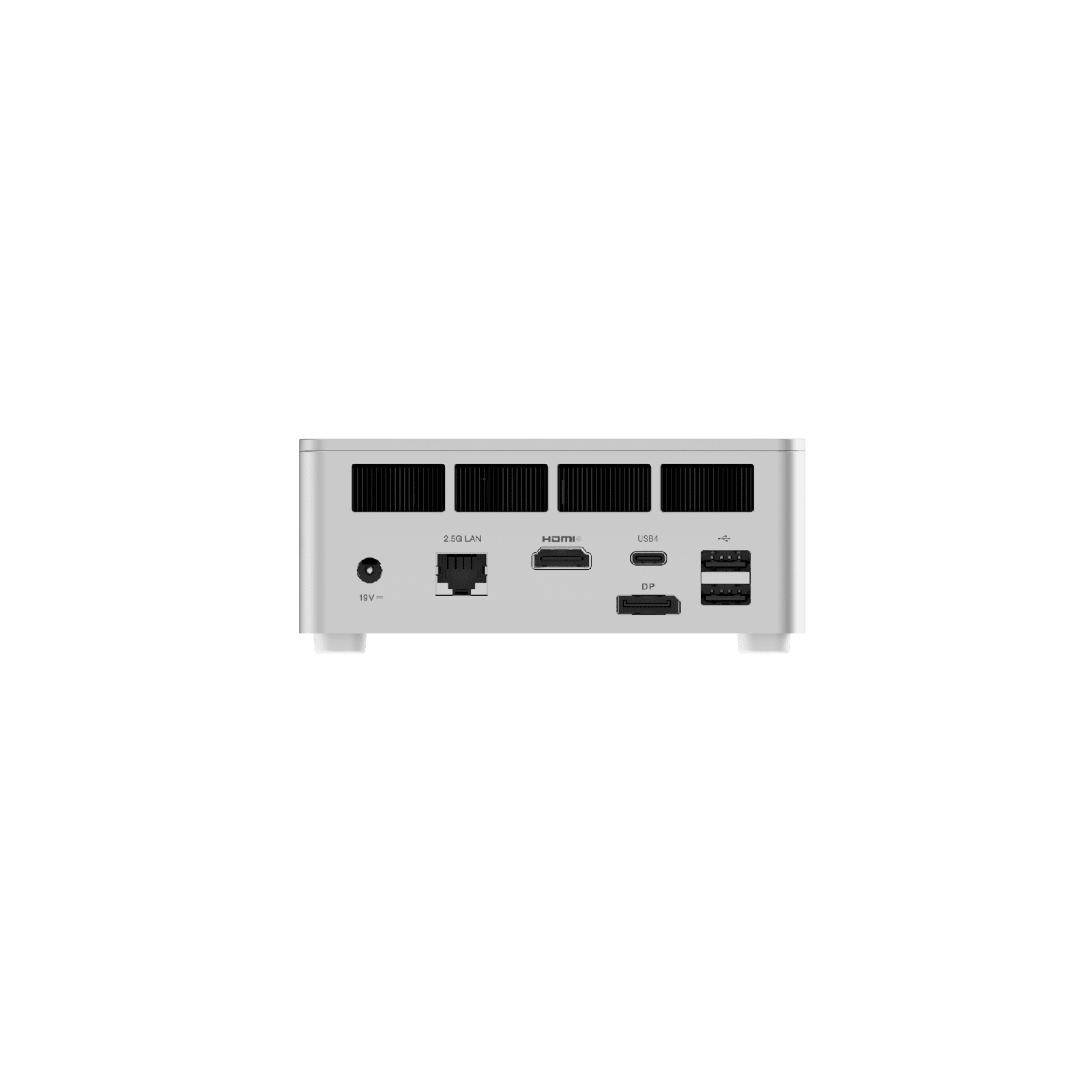

I/O Ports
2.5G LAN Port (RJ45) ×1
USB Type A(USB3.2 Gen2) ×2
USB Type A(USB2.0) ×2
USB4 ×1 (Alt PD, 40Gbps, PD in 65-100W, PD out 15W)
DP 1.4 ×1
HDMI 2.1 FRL ×1
3.5mm Audio Jack ×1
Button/Hole
Power Button ×1
Reset Hole ×1
Power Adapter
DC 19V / 3.42A (5525mm, 65W)
OS Support
Windows 11 Pro

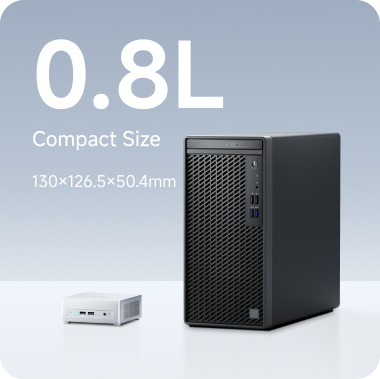

Dimensions
130 × 126.5 × 50.4mm (LWH)
Weight
0.67Kg
