MINISFORUM UM760 Slim
Sale price
$599.00
Regular price
$749.00
Payment Methods:
Trusted Delivery:

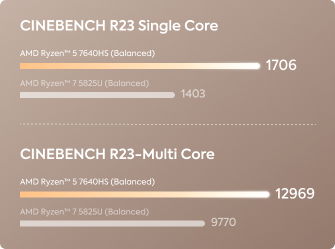

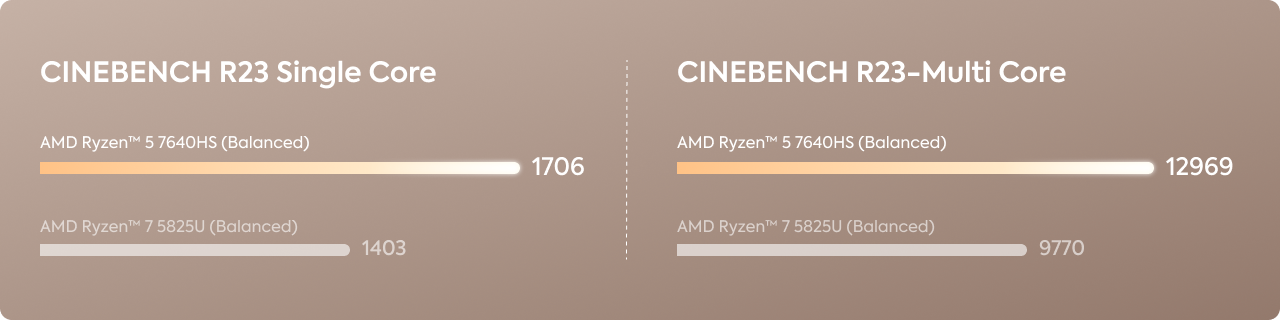

Performance Redefined
The AMD Ryzen™ 5 7640HS, with 6 cores and 12 threads, delivers strong gaming and creative performance. It boosts up to 60W TDP and, with Zen 4 architecture and Ryzen™ AI, improves IPC for efficient multitasking and better overall system performance.
6
Cores
12
Threads
16MB
L3 Cache
5GHz
Max Turbo Frequency
Zen 4
Architecture
The UM760 Slim is built to impress, whether for daily tasks or creative projects. Powered by the AMD Radeon™ 760M, it delivers solid performance and smooth operation, handling all your computing and multimedia needs efficiently.
Blazing Fast DDR5 Memory
Boasting up to 96GB of memory, usually reserved for high-end workstations, this ultra-fast 5600 MHz RAM makes multitasking and multimedia rendering effortless. Seamlessly switch between gaming, streaming, and web browsing with smooth, high-speed performance.
Up to
4800MHz
Dual DDR5 channels
Up to
96GB
Max Support
4TB Massive Storage
Experience lightning-fast load times with the nimble NVMe® SSD, where games and apps launch quicker than ever. Spend less time waiting and more time gaming. With up to 4TB of PCIe® storage, take your games on the go and upgrade easily as your library grows.
Up to
7000MB/s
Speed
Up to
4TB
Storage

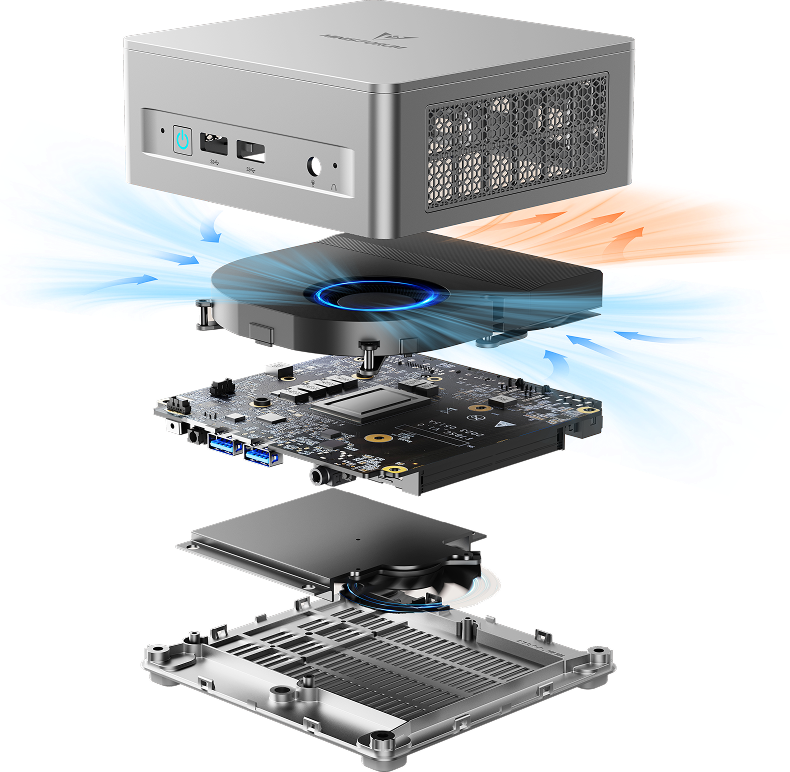

Efficient Cooling System
The compact phase-change cooling system uses advanced thermal materials that quickly shift from solid to liquid for efficient heat dissipation. Paired with a large silent fan and three copper heat pipes, it delivers stable 65W performance, keeping your device cool and quiet whether you're working or gaming. The memory and storage also benefit from active cooling, reducing temperatures by 25% for better heat control and extended lifespan.
Phase-change
Heat Dissipation
Large Diameter
Silent Fan
＜35dB
Noise in Performance Mode
Whisper-Quiet, Powerful Cooling
While delivering powerful cooling, the UM760 Slim prioritizes user experience. Even under heavy cooling, noise levels remain below 35dB, ensuring a quiet environment. Whether you're working or relaxing, you can enjoy a peaceful, comfortable atmosphere without distractions.
Speedy Network
The UM760 Slim features 5G wired network port with link aggregation, delivering a maximum transmission speed of up to 10Gbps for high-bandwidth and high-speed users. It also supports WiFi6E, providing broader signal coverage and a more stable wireless connection.
Effortless Connectivity

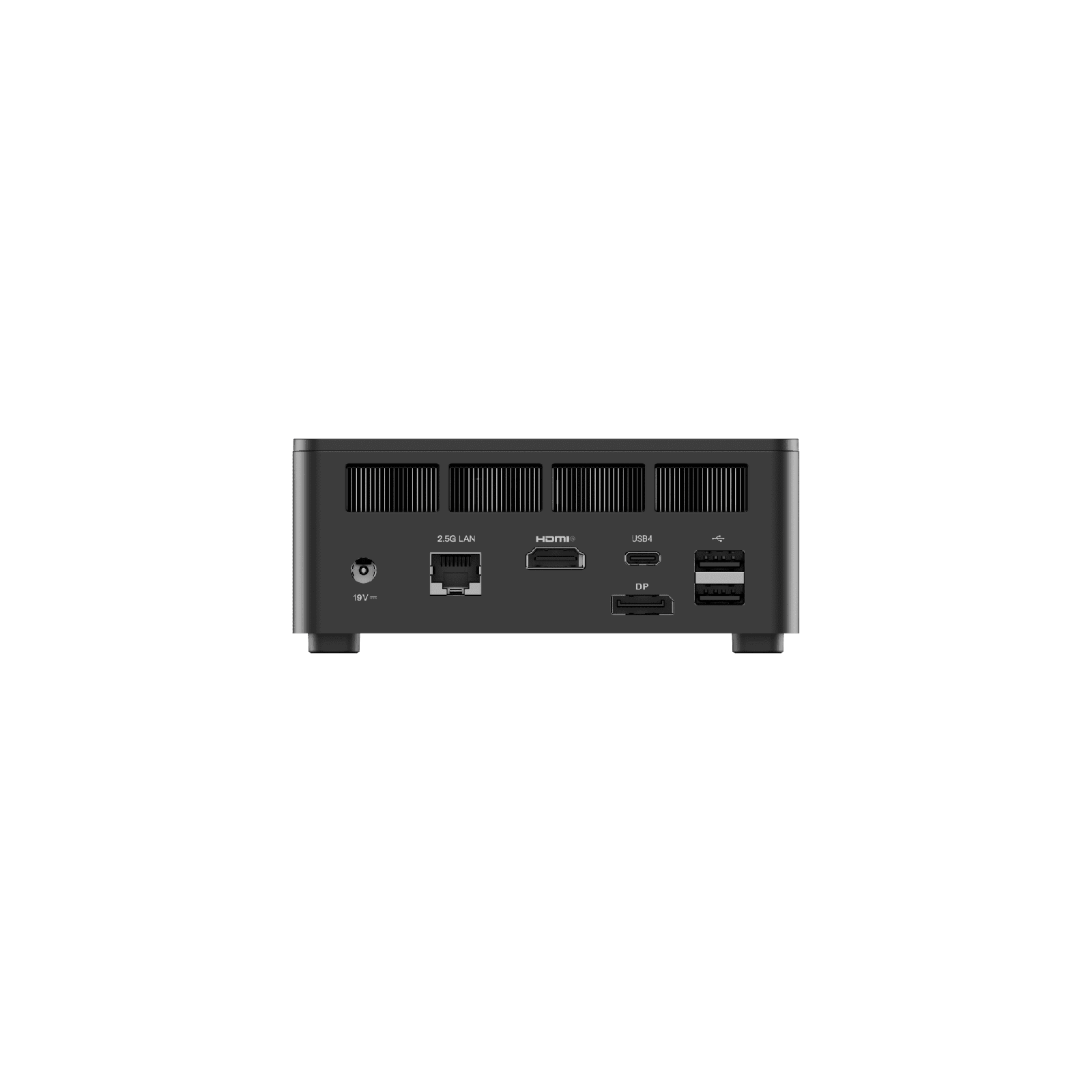

The UM760 Slim provides all the ports you need for seamless device connections. Easily hook up a monitor, mouse, keyboard, speakers, headphones, or even an external desktop graphics card without hassle.
Triple-screen Display
The UM760 Slim empowers seamless multitasking with its high-speed USB4 ports, HDMI 2.1, and DP 1.4 connections. Effortlessly connect up to three 4K displays to supercharge your workflow and boost efficiency.
HDMI2.1
(4K@120hz / 8K@60Hz)
DP1.4
(4K@144Hz)
USB4
(4K@240Hz / 8K@60Hz)

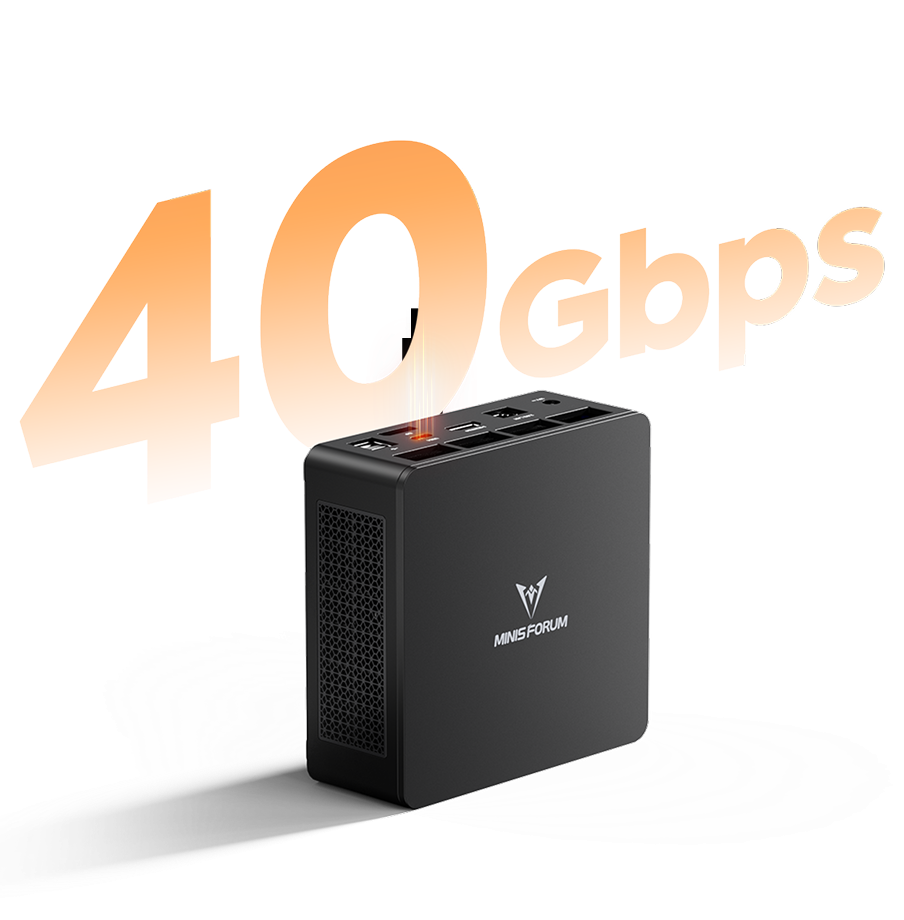

Accelerate Your Workflow With USB4
Supercharge your productivity with the UM760 Slim. Its full-speed USB4 port delivers an astonishing 40Gbps data transfer rate, allowing you to effortlessly handle large files, complex projects, and demanding applications in record time.
Help is always at hand
The UM760 Slim comes pre-installed with Windows 11 and Copilot, allowing you to start working right out of the box. Enjoy the latest operating system and AI-driven productivity tools without any setup delays.

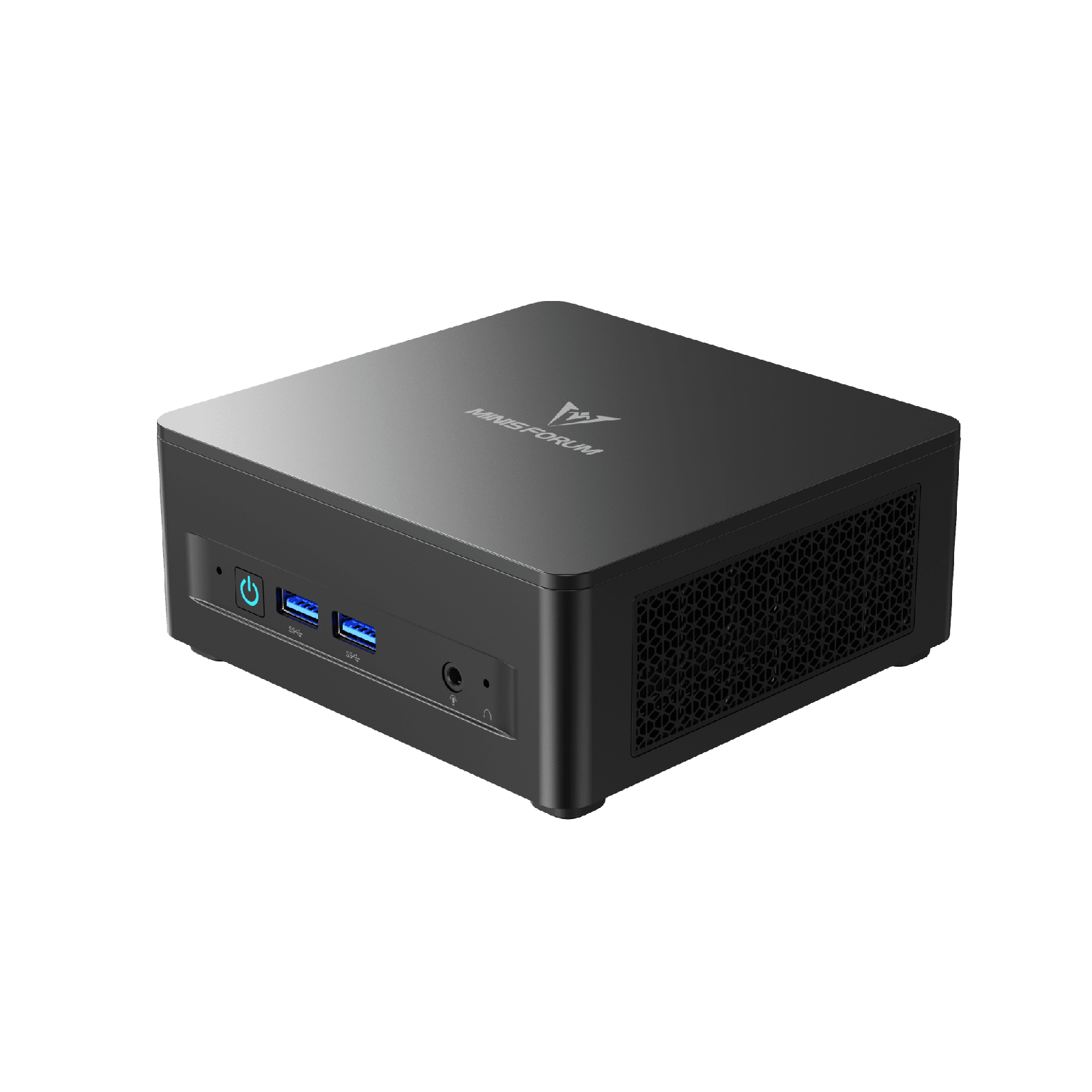

Compact yet Powerful
The UM760 Slim combines compact design with powerful performance and reliability, offering exceptional capabilities in manageability, AI readiness, Wi-Fi sensing, wireless connectivity, and customization. It’s perfectly suited for modern business applications, edge computing, and IoT scenarios.
Package List
UM760 Slim Mini PC
Adapter
Adapter Cable
Wall Mounted Installation
HDMI Cable
User Manual
UM760 Slim Specification
Processor
AMD Ryzen™ 5 7640HS Processor
GPU
AMD Radeon™ 760M
Memory
DDR5 Dual channel (SODIMM Slots×2, Up to 5600MHz, Max 96GB)
Storage
2×M.2 2280 PCIe4.0 SSD
Wireless Connectivity
M.2 2230 WIFI Support (Wi-Fi 6E, Bluetooth 5.2)
Video Output
HDMI2.1 ×1, DP1.4 ×1, USB4 ×1
Audio Output
HDMI ×1, DP ×1, Audio Jack ×1

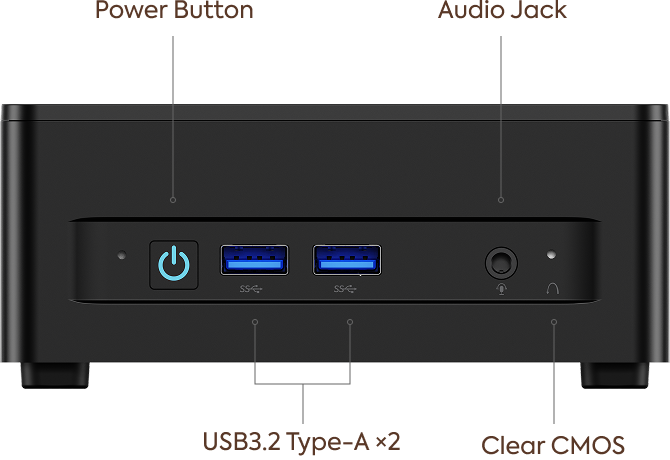

Peripherals Interface
RJ45 2.5G Ethernet Port×1
USB3.2 Gen2 Type-A Port ×2
USB2.0 ×2
USB4 Port ×1 (Alt PD, 65-100W)
HDMI ×1
DP ×1
Audio Jack ×1
Clear CMOS ×1
Dimension
5.12 × 4.98 × 1.98 inches
Weight
1.48lbs
Power
DC 19V (Adapter Included)
System
Windows 11
- UM760 Slim
- UM870 Slim
- UM760 Slim Spec
- UM870 Slim Spec
Performance Redefined
The UM760 Slim is built to impress, whether for daily tasks or creative projects. Powered by the AMD Radeon™ 760M, it delivers solid performance and smooth operation, handling all your computing and multimedia needs efficiently.
Blazing Fast DDR5 Memory
Boasting up to 96GB of memory, usually reserved for high-end workstations, this ultra-fast 5600 MHz RAM makes multitasking and multimedia rendering effortless. Seamlessly switch between gaming, streaming, and web browsing with smooth, high-speed performance.
Up to
5600MHz
Dual DDR5 channels
Up to
96GB
Max Support
4TB Massive Storage
Experience lightning-fast load times with the nimble NVMe SSD, where games and apps launch quicker than ever. Spend less time waiting and more time gaming. With up to 4TB of PCIe® storage, take your games on the go and upgrade easily as your library grows.
Up to
7000MB/s
Speed
Up to
4TB
Storage
Efficient Cooling System
The compact phase-change cooling system uses advanced thermal materials that quickly shift from solid to liquid for efficient heat dissipation. Paired with a large silent fan and three copper heat pipes, it delivers stable 60W performance, keeping your device cool and quiet whether you're working or gaming. The memory and storage also benefit from active cooling, reducing temperatures by 25% for better heat control and extended lifespan.
Speedy Network
The UM760 Slim features 5G wired network port with link aggregation, delivering a maximum transmission speed of up to 10Gbps for high-bandwidth and high-speed users. It also supports WiFi6E, providing broader signal coverage and a more stable wireless connection.
Accelerate Your Workflow
With USB4
Supercharge your productivity with the UM760 Slim. lts full-speed USB4 port delivers an astonishing 40Gbps data transfer rate, allowing you to effortlessly handle large files, complex projects, and demanding applications in record time.
Effortless Connectivity
The UM760 slim offers all the ports you need for smooth device connectivity. Easily connect your monitor, mouse, keyboard, speakers, headphones, or even an external desktop graphics card with no hassle.
Help is always at hand
The UM760 Slim comes pre-installed with Windows 11 and Copilot, allowing you to start working right out of the box. Enjoy the latest operating system and AI-driven productivity tools without any setup delays.
Compact yet Powerful
The UM760 Slim combines compact design with powerful performance and reliability, offering exceptional capabilities in manageability, AI readiness, Wi-Fi sensing, wireless connectivity, and customization. It’s perfectly suited for modern business applications, edge computing, and IoT scenarios.
Package List
UM680/UM760/UM870
Slim Mini PC
Adapter
Adapter Cable
Wall Mounted installation
HDMI Cable
User Manual
Performance Redefined
The AMD Ryzen™ 7 8745H, with its 8 cores and 16 threads, delivers impressive performance for gaming and creative work. It can reach up to 65W TDP, and thanks to the Zen 4 architecture, it boosts IPC for more efficient multitasking and better overall system performance.
Blazing Fast DDR5 Memory
Boasting up to 96GB of memory, usually reserved for high-end workstations, this ultra-fast 5600 MHz RAM makes multitasking and multimedia rendering effortless. Seamlessly switch between gaming, streaming, and web browsing with smooth, high-speed performance.
Up to
5600MHz
Dual DDR5 channels
Up to
96GB
Max Support
4TB Massive Storage
Experience lightning-fast load times with the nimble NVMe SSD, where games and apps launch quicker than ever. Spend less time waiting and more time gaming. With up to 4TB of PCIe® storage, take your games on the go and upgrade easily as your library grows.
Up to
7000MB/s
Speed
Up to
4TB
Storage
Efficient Cooling System
The compact phase-change cooling system uses advanced thermal materials that quickly shift from solid to liquid for efficient heat dissipation. Paired with a large silent fan and three copper heat pipes, it delivers stable 60W performance, keeping your device cool and quiet whether you're working or gaming. The memory and storage also benefit from active cooling, reducing temperatures by 25% for better heat control and extended lifespan.
Speedy Network
Accelerate Your Workflow
With USB4
Supercharge your productivity with the UM870 Slim. lts full-speed USB4 port delivers an astonishing 40Gbps data transfer rate, allowing you to effortlessly handle large files, complex projects, and demanding applications in record time.
Triple-screen Display
The UM870 Slim empowers seamless multitasking with its high-speed USB4 ports, HDMI 2.1, and DP 1.4 connections. Effortlessly connect up to three 4K displays to supercharge your workflow and boost efficiency.
Effortless Connectivity
The UM870 slim offers all the ports you need for smooth device connectivity. Easily connect your monitor, mouse, keyboard, speakers, headphones, or even an external desktop graphics card with no hassle.
Help is always at hand
The UM870 Slim comes pre-installed with Windows 11 and Copilot, allowing you to start working right out of the box. Enjoy the latest operating system and AI-driven productivity tools without any setup delays.
Compact yet Powerful
The UM870 Slim combines compact design with powerful performance and reliability, offering exceptional capabilities in manageability, AI readiness, Wi-Fi sensing, wireless connectivity, and customization. It’s perfectly suited for modern business applications, edge computing, and IoT scenarios.
Package List
UM680/UM760/UM870
Slim Mini PC
Adapter
Adapter Cable
Wall Mounted installation
HDMI Cable
User Manual
UM760 Slim Specification
CPU
Processor
Total Cores
Total Threads
Frequency
Max Turbo Frequency
TDP(Balanced Mode)
AMD Ryzen™5 7640HS
6
12
4.3 GHz
5.0 GHz
54W
GPU
Graphics Cards
AMD Radeon™ 760M
Memory
Memery Type
Max # of Memory Channels
Max Speed Support
Max Capacity Support
DDR5 SO-DIMM
2
5600Mhz
4.3 GHz
Storage
2×M.2 2280 NVME SSD Slot (up to 4TB)(PCIe4.0x4)
Optional SKU SSD Capacity
512G/1TB
Wireless Connectivity
M.2 2230 WIFI Support (Wi-Fi 6E，BlueTooth 5.3)
Video Output
HDMI 2.1 FRL x1
(Up to 8K@60Hz/4K@120Hz in non-DSC Mode)
DP 1.4 x 1
(Up to 4K@120hz 8 bit in non-DSC Mode / 4K@240 Hz 10bit in DSC Mode)
USB4 х 1
Audio Output
HDMI х 1
3.5mm Combo Jack х 1
Audio Input
3.5mm Combo Jack х 1

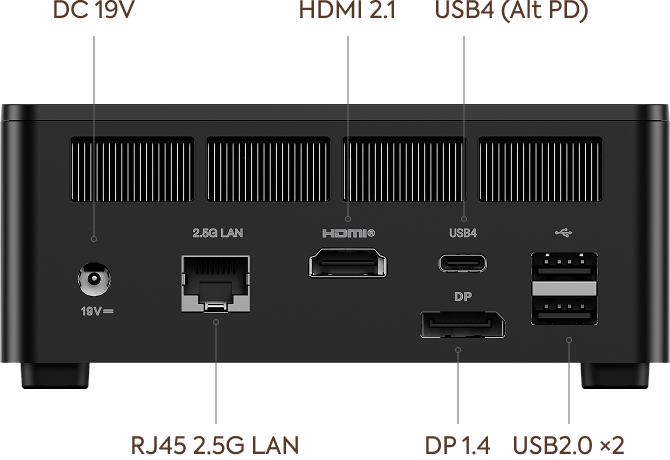

I/O Ports
RJ45 2.5G Ethernet Port х 1
USB Type A(USB3.2 Gen2) х 2
USB Type A(USB2.0) х 2
USB4 х 1(Alt PD)
HDMI 2.1 х 1
3.5mm Audio Jack х 1
Button/Hole
Power Button х 1
Reset Hole х 1
Power Adapter
DC 19V/6.32A 120W
OS Support
Windows 11 Pro
Dimensions
130*126.5*50.4mm(LWH)
Weight
0.67Kg
UM870 Slim Specification
CPU
Processor
Total Cores
Total Threads
Frequency
Max Turbo Frequency
TDP1(Balanced Mode)
TDP2(Performance Mode)
AMD Ryzen™7 8745H
8
16
3.8 GHz
4.9 GHz
54W
65W
GPU
Graphics Cards
AMD Radeont™ 780M
Memory
Memery Type
Max # of Memory Channels
Max Speed Support
Max Capacity Support
DDR5 SO-DIMM
2
5600Mhz
96GB
Storage
2×M.2 2280 NVME SSD Slot (up to 4TB)(PCIe4.0x4)
Wireless Connectivity
M.2 2230 WIFI Support (Wi-Fi 6E，BlueTooth 5.3)
Video Output
HDMI 2.1 FRL x1
(Up to 8K@60Hz/4K@120Hz in non-DSC Mode)
DP 1.4 x 1
(Up to 4K@120hz 8 bit in non-DSC Mode / 4K@240 Hz 10bit in DSC Mode)
USB4 х 1
Audio Output
HDMI х 1
3.5mm Combo Jack х 1
Audio Input
3.5mm Audio Jack х 1
I/O Ports
RJ45 2.5G Ethernet Port х 1
USB Type A(USB3.2 Gen2) х 2
USB Type A(USB2.0) х 2
USB4 х 1(Alt PD)
HDMI 2.1 х 1
3.5mm Audio Jack х 1
Button/Hole
Reset Hole х 1
Power Adapter
DC 19V/6.32A 120W
OS Support
Windows 11 Pro
Dimensions
130*126.5*50.4mm(LWH)
Weight
0.67Kg
- UM680/UM760/UM870 Slim
- UM680 Slim Spec
- UM760 Slim Spec
- UM870 Slim Spec
Performance Redefined
The AMD Ryzen™ 5 7640HS, with 6 cores and 12 threads, delivers strong gaming and creative performance. It boosts up to 60W TDP and, with Zen 4 architecture and Ryzen™ AI, improves IPC for efficient multitasking and better overall system performance.
The UM760 Slim is built to impress, whether for daily tasks or creative projects. Powered by the AMD Radeon™ 760M, it delivers solid performance and smooth operation, handling all your computing and multimedia needs efficiently.
Blazing Fast DDR5 Memory
Boasting up to 96GB of memory, usually reserved for high-end workstations, this ultra-fast 5600 MHz RAM makes multitasking and multimedia rendering effortless. Seamlessly switch between gaming, streaming, and web browsing with smooth, high-speed performance.
Up to
5600MHz
Dual DDR5 channels
Up to
96GB
Max Support
4TB Massive Storage
Experience lightning-fast load times with the nimble NVMe® SSD, where games and apps launch quicker than ever. Spend less time waiting and more time gaming. With up to 4TB of PCIe® storage, take your games on the go and upgrade easily as your library grows.
Up to
7000MB/s
Speed
Up to
4TB
Storage
Efficient Cooling System
The compact phase-change cooling system uses advanced thermal materials that quickly shift from solid to liquid for efficient heat dissipation. Paired with a large silent fan and three copper heat pipes, it delivers stable 60W performance, keeping your device cool and quiet whether you're working or gaming. The memory and storage also benefit from active cooling, reducing temperatures by 25% for better heat control and extended lifespan.
Speedy Network
The UM760 Slim features 5G wired network port with link aggregation, delivering a maximum transmission speed of up to 10Gbps for high-bandwidth and high-speed users. It also supports WiFi6E, providing broader signal coverage and a more stable wireless connection.
Accelerate Your Workflow
With USB4
Supercharge your productivity with the UM760 Slim. lts full-speed USB4 port delivers an astonishing 40Gbps data transfer rate, allowing you to effortlessly handle large files, complex projects, and demanding applications in record time.
Effortless Connectivity
The UM760 slim offers all the ports you need for smooth device connectivity. Easily connect your monitor, mouse, keyboard, speakers, headphones, or even an external desktop graphics card with no hassle.
Help is always at hand
The UM760 Slim comes pre-installed with Windows 11 and Copilot, allowing you to start working right out of the box. Enjoy the latest operating system and AI-driven productivity tools without any setup delays.
Compact yet Powerful
The UM760 Slim combines compact design with powerful performance and reliability, offering exceptional capabilities in manageability, AI readiness, Wi-Fi sensing, wireless connectivity, and customization. It’s perfectly suited for modern business applications, edge computing, and IoT scenarios.
Package List
UM680/UM760/UM870
Slim Mini PC
Adapter
Adapter Cable
Wall Mounted installation
HDMI Cable
User Manual
UM680 Slim Specification
CPU
Processor
Total Cores
Total Threads
Frequency
Max Turbo Frequency
TDP1(Balanced Mode)
TDP2(Performance Mode)
AMD Ryzen™7 6800H
8
16
3.2GHz
4.7GHz
54W
65W
GPU
Graphics Cards
AMD Radeon 680M
Memory
Memery Type
Max Speed Support
Max Capacity Support
DDR5 (SO-DIMM ×2)
4800Mhz
96GB
Storage
2×M.2 2280 NVME SSD Slot (up to 4TB)(PCIe4.0 ×4)
Max Capacity Support
512GB/1TB
Wireless Connectivity
M.2 2230 WIFI Support (Wi-Fi 6E, BlueTooth 5.3)
Video Output
HDMI 2.1 FRL ×1 (Up to 8K@60Hz/4K@120Hz in non-DSC Mode)
DP 1.4 ×1 (Up to 4K@120hz 8 bit in non-DSC Mode / 4K@240 Hz 10bit in DSC Mode)
USB4 ×1
Audio Output
HDMI ×1
3.5mm Combo Jack ×1
Audio Input
3.5mm Combo Jack ×1
I/O Ports
RJ45 2.5G Ethernet Port ×1
USB Type A (USB3.2 Gen2) ×2
USB Type A (USB2.0) ×2
USB4.0 ×1(Alt PD)
HDMI 2.1 ×1
3.5mm Audio Jack ×1
Button/Hole
Power Button ×1
Reset Hole ×1
Power Adapter
DC 19V/6.32A 120W
OS Support
Windows 11
Dimensions
130 × 126.5 × 50.4mm(LWH)
Weight
0.67Kg
UM760 Slim Specification
CPU
Processor
Total Cores
Total Threads
Frequency
Max Turbo Frequency
TDP(Balanced Mode)
AMD Ryzen™5 7640HS
6
12
4.3 GHz
5.0 GHz
54W
GPU
Graphics Cards
AMD Radeon™ 760M
Memory
Memery Type
Max # of Memory Channels
Max Speed Support
Max Capacity Support
DDR5 SO-DIMM
2
5600Mhz
4.3 GHz
Storage
2×M.2 2280 NVME SSD Slot (up to 4TB)(PCIe4.0x4)
Optional SKU SSD Capacity
512G/1TB
Wireless Connectivity
M.2 2230 WIFI Support (Wi-Fi 6E，BlueTooth 5.3)
Video Output
HDMI 2.1 FRL x1
(Up to 8K@60Hz/4K@120Hz in non-DSC Mode)
DP 1.4 x 1
(Up to 4K@120hz 8 bit in non-DSC Mode / 4K@240 Hz 10bit in DSC Mode)
USB4 х 1
Audio Output
HDMI х 1
3.5mm Combo Jack х 1
Audio Input
3.5mm Combo Jack х 1
I/O Ports
RJ45 2.5G Ethernet Port х 1
USB Type A(USB3.2 Gen2) х 2
USB Type A(USB2.0) х 2
USB4 х 1(Alt PD)
HDMI 2.1 х 1
3.5mm Audio Jack х 1
Button/Hole
Power Button х 1
Reset Hole х 1
Power Adapter
DC 19V/6.32A 120W
OS Support
Windows 11 Pro
Dimensions
130*126.5*50.4mm(LWH)
Weight
0.67Kg
UM870 Slim Specification
CPU
Processor
Total Cores
Total Threads
Frequency
Max Turbo Frequency
TDP1(Balanced Mode)
TDP2(Performance Mode)
AMD Ryzen™7 8745H
8
16
3.8 GHz
4.9 GHz
54W
65W
GPU
Graphics Cards
AMD Radeont™ 780M
Memory
Memery Type
Max # of Memory Channels
Max Speed Support
Max Capacity Support
DDR5 SO-DIMM
2
5600Mhz
96GB
Storage
2×M.2 2280 NVME SSD Slot (up to 4TB)(PCIe4.0x4)
Wireless Connectivity
M.2 2230 WIFI Support (Wi-Fi 6E，BlueTooth 5.3)
Video Output
HDMI 2.1 FRL x1
(Up to 8K@60Hz/4K@120Hz in non-DSC Mode)
DP 1.4 x 1
(Up to 4K@120hz 8 bit in non-DSC Mode / 4K@240 Hz 10bit in DSC Mode)
USB4 х 1
Audio Output
HDMI х 1
3.5mm Combo Jack х 1
Audio Input
3.5mm Audio Jack х 1

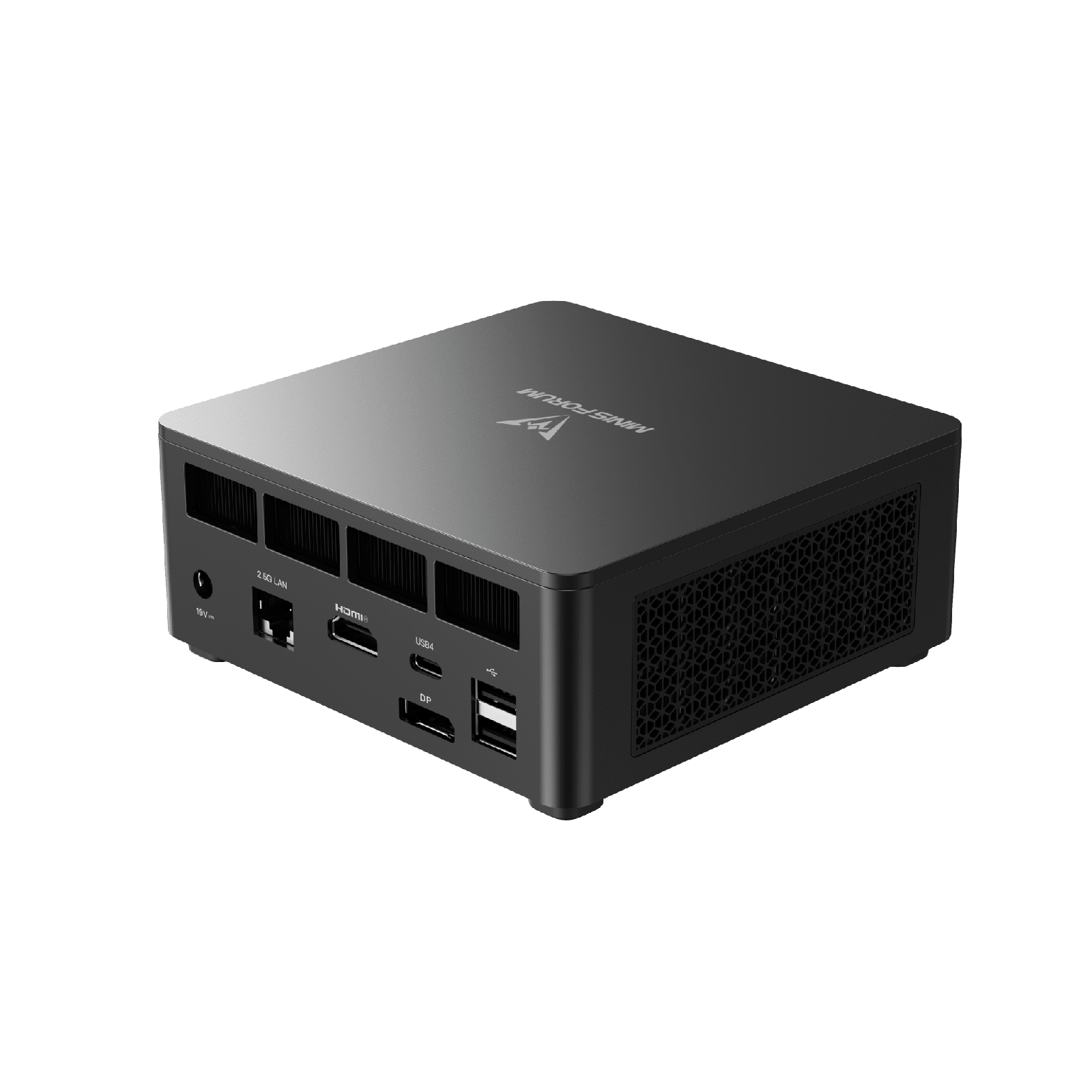

I/O Ports
RJ45 2.5G Ethernet Port х 1
USB Type A(USB3.2 Gen2) х 2
USB Type A(USB2.0) х 2
USB4 х 1(Alt PD)
HDMI 2.1 х 1
3.5mm Audio Jack х 1
Button/Hole
Reset Hole х 1
Power Adapter
DC 19V/6.32A 120W
OS Support
Windows 11 Pro
Dimensions
130*126.5*50.4mm(LWH)
Weight
0.67Kg
