Elitemini B550
Minisforum B550 is a high-performance mini PC specifically designed for gaming enthusiasts. Its excellent heat dissipation allows you to immerse yourself in your work and games without the distraction of noise. The two highlights of B550 are that you can replace its CPU to meet your quest for machine speed, and it can connect to a discrete graphics card via the included dock to reach an excellent graphics quality in demanding games.

Something You Should Notice Before Buying The Minisforum B550: https://store.minisforum.com/blogs/blog

MinisForum B550 Mini PC Set Up Tutorial

Please click➡https://www.youtube.com/watch?v=t3fr0jc1Yt0

How to Install CPU on the Minisforum B550

Please click➡https://www.youtube.com/watch?v=InIDSOBMnBE

Videos Review

Taki Udon

Something You Should Notice Before Buying The Minisforum B550: https://store.minisforum.com/blogs/blog

MinisForum B550 Mini PC Set Up Tutorial

Please click➡https://www.youtube.com/watch?v=t3fr0jc1Yt0

How to Install CPU on the Minisforum B550

Please click➡https://www.youtube.com/watch?v=InIDSOBMnBE

Meet B550
Features
Specification
FAQs

Powerful Processor & Graphics

The features and benefits of B550 depends on the system configuration. The retail package will come with AMD Ryzen™ 7 5700G(8 Cores 16 Threads, max turbo frequency up to 4.6GHz) / AMD Ryzen™ 7 4700G (8 Cores 16 Threads, max turbo frequency up to 4.4GHz) and Radeon™ Graphics (Graphics Frequency 2000 MHz) / Radeon™ Graphics (Graphics Frequency 2100 MHz).

Powerful Processor & Graphics

The features and benefits of B550 depends on the system configuration. The retail package will come with AMD Ryzen™ 7 5700G(8 Cores 16 Threads, max turbo frequency up to 4.6GHz) and Radeon™ Graphics (Graphics Frequency 2000 MHz).

Powerful Processor & Graphics

HM50 features and benefits depend on system configurations,the power of AMD Ryzen™5 4500U(6 Cores 6 Threads,max turbo frequency up to 4.0GHz) and AMD Radeon™ Graphics(Graphics Frequency 1500MHz).Explore endless computing possibilities.

Elitemini B550

AMD Ryzen™ 7 5700G / AMD Ryzen™ 7 4700G
Radeon™ Graphics
DDR4 Dual channel
M.2 2280 SSD Slot × 2
Dual-Band Wi-Fi

DeskMini HM50

AMD Ryzen™5 4500U
AMD Radeon™ Graphics
DDR4 8GB×2 Dual channel
M.2 2280 256GB SATA SSD
2×2.5 inch SATA HDD Slot (SATA 3.0 6.0Gb/s)
M.2 2230 WIFI Support

Testing Environment: CPU-AMD Ryzen™ 7 5700G; Monitor: 1920*1080 60Hz;

Testing Environment:CPU-AMD Ryzen™5 4500U; Monitor: 1920*1080 60Hz; RAM: DDR4 8G x2

CPU DIY

B550's unique CPU DIY mode allows you to replace your machine’s CPU. B550 supports Ryzen 4350G/4600G/4650G/4700G/4750G/5600G/5700G. Please select the most suitable one among the specified CPUs according to your own needs.

Discrete Graphics Card

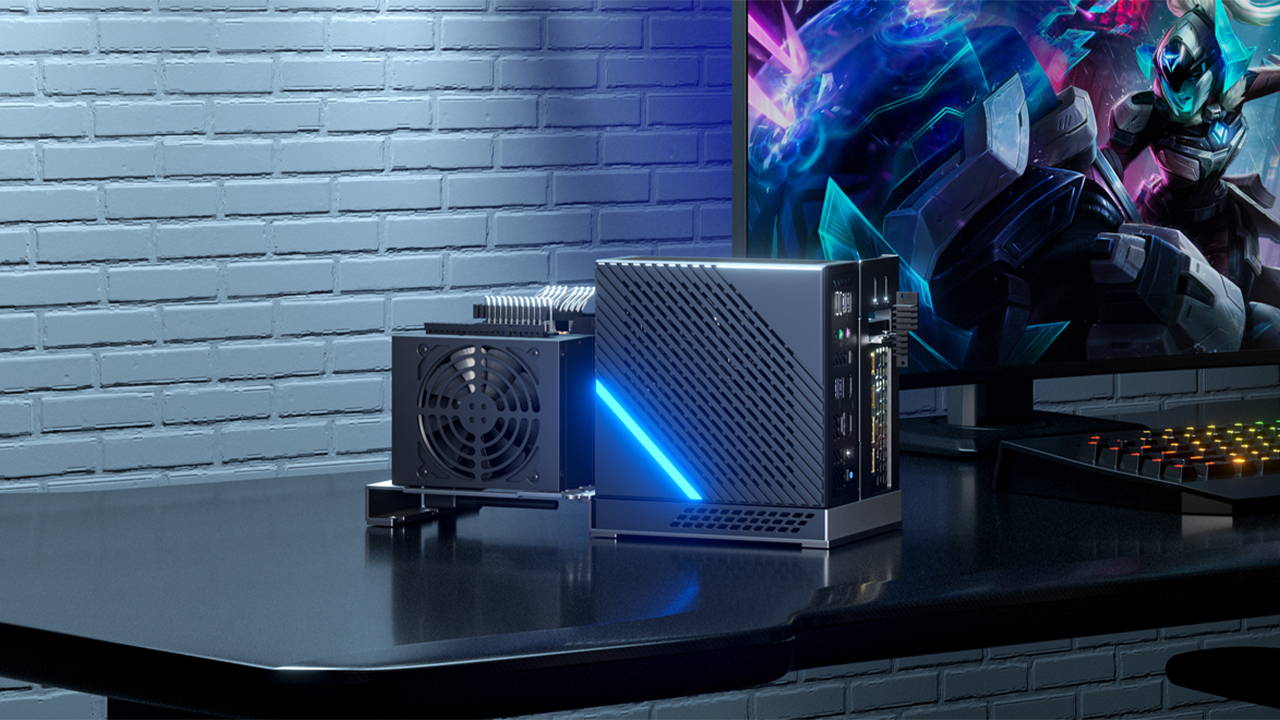

Each B550 comes with one dock to support an external graphics card. The dock supports the vast majority of graphics cards on the market with its thickness less than or equal to 54 mm, and there is no limit to the length and width.
For the specific installation method, please refer to the following motion picture.

Noise & Performance Test

Are you troubled by computer noise loudly and power consumption?

The UM270 is a micro personal computer with a silent design that normal operation only 41.7dB,

full load 45.8dB.It won't disturb others when you working.

In addition, by adopting the Ryzen Mobile APU with excellent power saving performance.

Power consumption reduced approximately 25% compared with the ordinary desktop APU.

Power Supply

There are two ways to power the PC. If you use AMD APU like 5600G or 5700G, there is a standard 19V power brick included in the package and you can use it directly without using the supporting dock. However, if you want to do some DIY and connect it with a dedicated graphics card, you will need to use your own ATX or SFX power supply. By doing so you can use desktop CPU like 5600X in this mini PC and the whole system’s power consumption will be more than 600W. The mini host of B550 has cooling solution which supports 65w TDP.

Upgrade-Friendly

Optional configuration includes barebone / 16GB (8GB x 2) / 32GB (16GB x 2) memory and 256 / 512GB SSD. You can access the inside by removing the four screws that secure the bottom. There are three types of expansion space inside. You can further increase the capacity according to your own needs.

DDR4 dual channel SODIMM slot x 2 (expandable up to 64GB in total)

M.2 2280 PCle 3.0 SSD
(no capacity limits)

2.5 inch SATA HDD Slot
(no capacity limits)

Detail Pictures

Easy to carry

Each standard package includes a suitcase that easily holds your B550 and adapter. Simple and stylish shape.

Product Image

Features & Functions for B550

Triple 4K Displays

B550 has excellent triple display solutions with HDMI *2 and Display Port.

Upgrade-Friendly

Dual-channel DDR4 which supports up to 64GB
M.2 2280 PCle SSD x 2
2.5 inch SATA HDD Slot x 1

Discrete Graphics Card

Each B550 will come with one dock to support an external discrete graphics card.The height of the graphics cards must be less than or equal to 7 cm, and there is no limit to the length and width.

Ports & Button for B550

RJ45 2.5 Gigabit Ethernet Port × 1
USB3.2 Port × 4 (Gen2)
USB-C Port × 1 (Gen2)
HDMI (4K@60Hz) × 2
DisplayPort(4K@60Hz) × 1
3.5mm Headphone Jack(Green)
LINE OUT × 2
Clear CMOS × 1
3.5mm MIC Jack × 1

Powerful AMD Ryzen™ 7 5700G

Product Dimension: 15.8x 16.65 x 6.7 cm
Package Dimension: 24 x 24 x 22.5 cm
Net Weight: 1155g
Package Weight: 3208g

Package Content

B550 × 1
Power Adapter × 1
Power Cable × 1
Power Adapter Cable × 1
HDMI Cable × 1
SATA Cable× 1
10Pin Power Cable
Acrylic Decorative Board × 1
Non-Slip Silicone Pad × 1
Graphics Card Base Adapter × 1
Extension Bracket of Base × 1
Graphics Card Panel × 1
L-Shaped Graphics Card Mounting Bracket× 1
VESA Mount × 1
Suitcasa × 1
Technical Documents × 1

Minisforum B550

Processor

AMD Ryzen™ 7 5700G, 8 Cores/16 Threads
(Total L2 Cache 4MB , Total L3 Cache 16MB , Base Clock 3.8GHz , Up to 4.6GHz)

AMD Ryzen™ 7 4700G, 8 Cores/16 Threads
(Total L2 Cache 4MB , Total L3 Cache 8MB , Base Clock 3.6GHz , Up to 4.4GHz)

GPU

Radeon™ Graphics (Graphics Frequency 2000 MHz) / Radeon™ Graphics (Graphics Frequency 2100 MHz)

Memory

DDR4 Dual channel (SODIMM Slots×2)

Supports a maximum of 64GB(32GB x 2) of DDR4

Storage

M.2 2280 SSD Slot × 2(Support NGFF SATA or NVMe PCIe3.0)

Storage Expansion

2.5 inch SATA HDD Slot×1 (SATA 3.0 6.0Gb/s)

Wireless Connectivity

M.2 2230 WIFI support (Wi-Fi 6 , BlueTooth)

Video Output

① HDMI (4K@60Hz) ×2

② DisplayPort(4K@60Hz)×1

Audio Output

HDMIx2 , DisplayPort , 3.5mm Headphone Jack(Green)

Ports & Buttons

1 * RJ45 2.5 Gigabit Ethernet Port

1 * USB-C(Gen2)

4 * USB3.2 Port (Gen2)

1 * Clear CMOS

2 * HDMI

1 * DisplayPort

1 * MIC

Power

DC 19V / 6.3A (adapter included)

Consumes Power : 119.7W

System

Windows 11 Pro

Product Dimension

15.8x 16.65 x 6.7 cm

Package Dimension

24 x 24 x 22.5 cm

Net Weight

1155g

Package Weight

3208g

Package Content

B550 × 1
Power Adapter × 1
Power Cable × 1
Power Adapter Cable × 1
HDMI Cable × 1
SATA Cable× 1
10Pin Power Cable
Acrylic Decorative Board × 1
Non-Slip Silicone Pad × 1
Graphics Card Base Adapter × 1
Extension Bracket of Base × 1
Graphics Card Panel × 1
L-Shaped Graphics Card Mounting Bracket× 1
VESA Mount × 1
Suitcasa × 1
Technical Documents × 1

Q1. If the Windows OS is still pre-installed after I bought a barebones version?

A: Yes, HM50 is Windows 10 Pro pre-installed.

Q2. Do I need to pay the shipping fee or tax for the product?

A: Hi, taxes are determined by the customs and we cannot control them. If you are worried about the customs, it's advised to buy a tariff insurance. Free shipping is offered to you.

Q3. What's the max RAM and speed of HM50?

A: HM50 max RAM is 64GB -- 2x32GB stick, and Max Boost Clock up to 4.0GHz

Q4. How many monitors does HM50 support?

A: HM50 can connect with 3 monitors at the same time.

Q5. If it comes with a wall mount?

A: Yes. HM50 comes with a vesa, you can fix it on the back of the monitor.

Q1. Do I need to pay the shipping fee or tax for the product?

A: Hi, taxes are determined by the customs and we cannot control them. If you are worried about the tariffs, you can choose the "duty-free shipping" on the checkout page.

Q2. Does the barebone come with Windows preinstalled?

A: No, we cannot pre-install operating system on barebone.

Q3. Do you provide Win11 license?

A: Sorry. We don't provide licenses for B550 barebones.

Q4. If it's Windows OS pre-installed?

A: B550 is Windows 11 Pro pre-installed.

Q5. Does B550 support full PCIe 4.0 for the GPU?

A:Sorry, B550 can only support up to PCIe3.0 for GPU.

Q6. What's the max RAM and speed of B550?

A: The max RAM of B550 is 64GB with speed limit to 3200MHz.

Q7. Will the B550 16GB/32GB RAM option occupy 1 or 2 slots when delivery?

A: B550 16GB/32GB of memory occupies 2 slots.

Q8.Does it come with a fan if I buy without CPU?

A: Yes, it does.

Q9. Is suitcase free?

A: Yes, each standard package includes a suitcase.

Videos Review

Meet B550
Features
Specification
FAQs

Powerful Processor & Graphics

Elitemini B550

AMD Ryzen™ 7 5700G / AMD Ryzen™ 7 4700G
Radeon™ Graphics
DDR4 Dual channel
M.2 2280 SSD Slot × 2
Dual-Band Wi-Fi

Testing Environment: CPU-AMD Ryzen™ 7 5700G; Monitor: 1920*1080 60Hz;

CPU DIY

Discrete Graphics Card

Each B550 comes with one dock to support an external graphics card. The dock supports the vast majority of graphics cards on the market with its thickness less than or equal to 54mm, and there is no limit to the length and width.
For the specific installation method, please refer to the following motion picture.

Power Supply

Upgrade-Friendly

DDR4 dual channel SODIMM slot x 2 (expandable up to 64GB in total)

M.2 2280 PCle 3.0 SSD
(no capacity limits)

2.5 inch SATA HDD Slot
(no capacity limits)

Detail Pictures

Easy to carry

Each standard package includes a suitcase that easily holds your B550 and adapter. Simple and stylish shape.

Product Image

Features & Functions for B550

Triple 4K Displays

B550 has excellent triple display solutions by using HDMI *2 and Display Port.

Upgrade-Friendly

Dual-channel DDR4 which supports up to 64GB
M.2 2280 PCle SSD x 2
2.5 inch SATA HDD Slot x 1

Discrete Graphics Card

Each B550 will come with one dock to support an external discrete graphics card.The height of the graphics cards must less than or equal to 7 cm, and there is no limit to the length and width.

Ports & Button for B550

RJ45 2.5 Gigabit Ethernet Port × 1
USB3.2 Port × 4 (Gen2)
USB-C Port × 1 (Gen2)
HDMI (4K@60Hz) × 2
DisplayPort(4K@60Hz) × 1
3.5mm Headphone Jack(Green)
LINE OUT × 2
Clear CMOS × 1
3.5mm MIC Jack × 1

Powerful AMD Ryzen™ 7 5700G

Product Dimension: 15.8x 16.65 x 6.7 cm
Package Dimension: 24 x 24 x 22.5 cm
Net Weight: 1155g
Package Weight: 3208g

Package Content

B550 × 1
Power Adapter × 1
Power Cable × 1
Power Adapter Cable × 1
HDMI Cable × 1
SATA Cable× 1
10Pin Power Cable

Acrylic Decorative Board × 1

Non-Slip Silicone Pad × 1
Graphics Card Base Adapter × 1

Extension Bracket of Base × 1
Graphics Card Panel × 1
L-Shaped Graphics Card Mounting Bracket× 1
VESA Mount × 1

Suitcasa × 1
Technical Documents × 1

Minisforum B550

Processor

AMD Ryzen™ 7 5700G, 8 Cores/16 Threads
(Total L2 Cache 4MB , Total L3 Cache 16MB , Base Clock 3.8GHz , Up to 4.6GHz)

AMD Ryzen™ 7 4700G, 8 Cores/16 Threads
(Total L2 Cache 4MB , Total L3 Cache 8MB , Base Clock 3.6GHz , Up to 4.4GHz)

GPU

Radeon™ Graphics (Graphics Frequency 2000 MHz) / Radeon™ Graphics (Graphics Frequency 2100 MHz)

Memory

DDR4 Dual channel (SODIMM Slots×2)

Supports a maximum of 64GB(32GB x 2) of DDR4

Storage

M.2 2280 SSD Slot × 2(Support NGFF SATA or NVMe PCIe3.0)

Storage Expansion

2.5 inch SATA HDD Slot×1 (SATA 3.0 6.0Gb/s)

Wireless Connectivity

M.2 2230 WIFI support (Wi-Fi 6 , BlueTooth)

Video Output

① HDMI (4K@60Hz) ×2

② DisplayPort(4K@60Hz)×1

Audio Output

HDMIx2 , DisplayPort , 3.5mm Headphone Jack(Green)

Ports & Buttons

1 * RJ45 2.5 Gigabit Ethernet Port

1 * USB-C(Gen2)

4 * USB3.2 Port (Gen2)

1 * Clear CMOS

2 * HDMI

1 * DisplayPort

1 * MIC

Power

DC 19V / 6.3A (adapter included)

Consumes Power : 119.7W

System

Windows 11 Pro

Product Dimension:

15.8x 16.65 x 6.7 cm

Package Weight:

24 x 24 x 22.5 cm

Net Weight:

1155g

Package Weight:

3208g

Package Content

Q1. Do I need to pay the shipping fee or tax for the product?

A: Hi, taxes are determined by the customs and we cannot control them. If you are worried about the tariffs, you can choose the "duty-free shipping" on the checkout page.

Q2. If the Windows OS is still pre-installed after I bought a barebones version?

A: Due to without RAM & SSD, B550 barebones version couldn't pre-installed Windows OS, but we'll provide the link to download the Win10.

Q3. Do you provide Win10 license?

A: Sorry. We don't provide licenses for B550 barebones.

Q4. What's the max RAM and speed of B550?

A: The max RAM of B550 is 64GB with speed limit to 3200MHz.

Q5. When will B550 ship ?

A: In Early-Apr.

Q1. Do I need to pay the shipping fee or tax for the product?

A: Hi, taxes are determined by the customs and we cannot control them. If you are worried about the tariffs, you can choose the "duty-free shipping" on the checkout page.

Q2. Does the barebone come with Windows preinstalled?

A: No, we cannot pre-install operating system on barebone.

Q3. Do you provide Win11 license?

A: Sorry. We don't provide licenses for B550 barebones.

Q4. If it's Windows OS pre-installed?

A: B550 is Windows 11 Pro pre-installed.

Q5. Does B550 support full PCIe 4.0 for the GPU?

A: Sorry, B550 can only support up to PCIe3.0 for GPU.

Q6. What's the max RAM and speed of B550?

A: The max RAM of B550 is 64GB with speed limit to 3200MHz.

Q7. Will the B550 16GB/32GB RAM option occupy 1 or 2 slots when delivery?

A: B550 16GB/32GB of memory occupies 2 slots.

Q8.Does it come with a fan if I buy without CPU?

A: Yes, it does.

Q9. Is suitcase free?

A: Yes, each standard package includes a suitcase.
