HX90

HX90

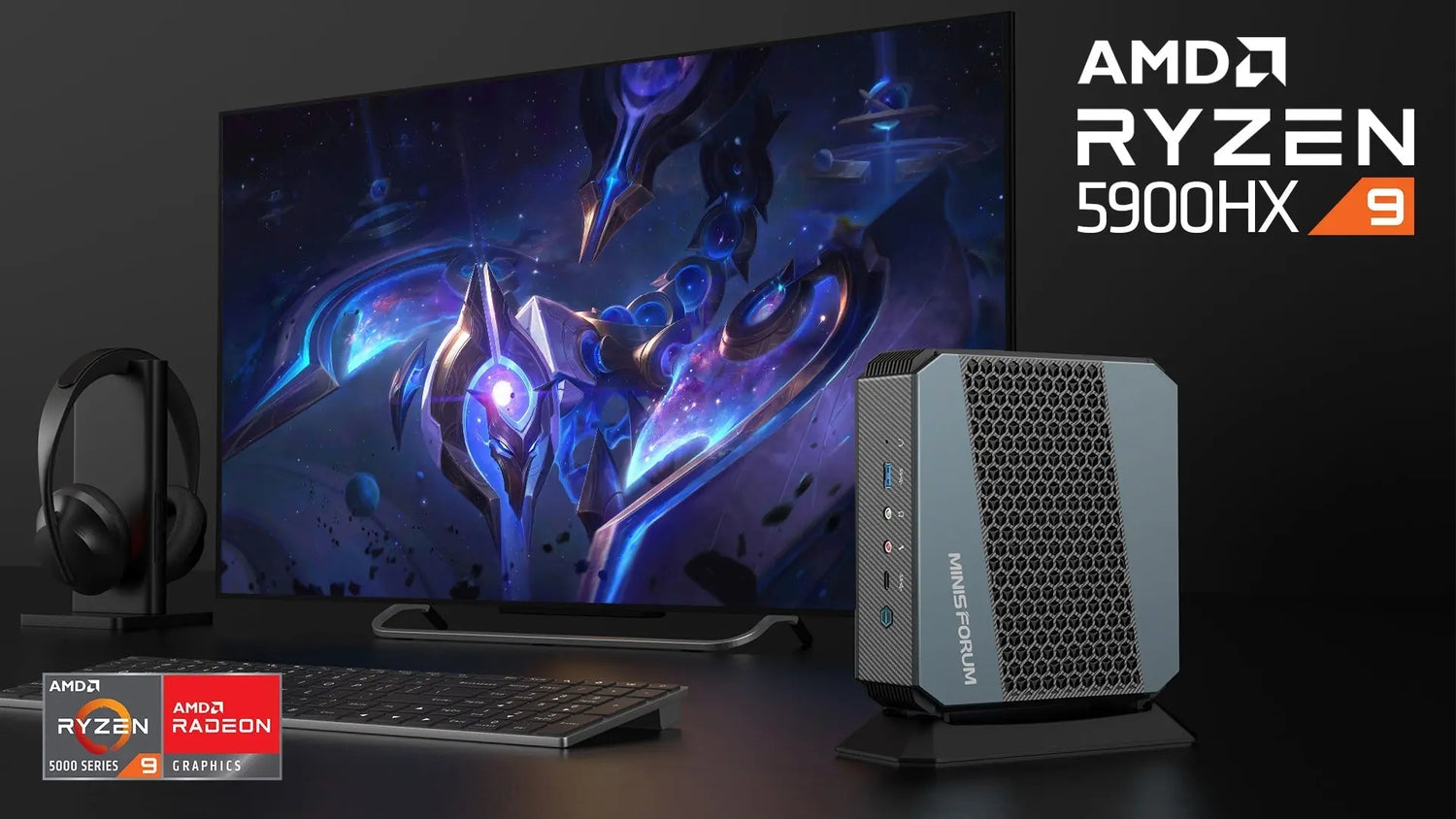

EliteMini HX90 is a new product launched in August by Minisforum.Sold in the official mall of minisforum➡https://store.minisforum.com/products/hx90.
HX90 feature an AMD Ryzen 5000H series processor.
Four type options
  • Without RAM + SSD : $749
  • 16GB RAM + 256GB SSD : $899
  • 16GB RAM + 512GB SSD : $929
  • 32GB RAM + 512GB SSD : $1009

Early-Bird Discount : $100 OFF

Powerful Processor & Graphics

The Ryzen 5000G families are the latest offering to combine AMD’s high-performing Zen 3 cores with tried-and-tested Vega 8 graphics.The AMD Ryzen 9 5900HX, 8 Cores 16 Threads. The base clock 3.3 GHz and Max Boost Clock up to 4.6 GHz (Turbo). The chip is manufactured on the modern 7 nm TSMC process.

Testing Environment:CPU-AMD Ryzen™ 9 5900HX ; Monitor: 1920*1080 60Hz; RAM: DDR4 16G x2

Carbon fibre material
The main structural parts of the HX90 and the black part of the fuselage are injection molded with carbon fiber composite materials. As a high-performance and recyclable new material, Carbon fiber is not only rich in texture and delicate in hand, but also has very high strength, have good thermal conductivity and corrosion resistance.

Liquid Metal Boosts Cooling

The HX90 elevates performance with a premium liquid metal compound on the CPU, and features direct CPU contact, a wide degree of open ventilation, and a smart fan that efficiently spins up when required to effectively transfer heat directly out the system for quiet and cool performance.

Upgrade-Friendly

The latest AMD Ryzen™ 9 5900HX processor offers 8 physical cores (16 logical), initially clocked at 3.3GHz, which may go up to 4.6GHz using Precision Boost. Support for a total of up to 64GB dual-channel DDR4 memory, different types of storage expansions—2.5 inch SATA HDD Slot×2 (SATA 3.0 6.0Gb/s).

Minisforum HX90

Processor

AMD Ryzen™ 9 5900HX , 8 Cores/16 Threads
(Total L2 Cache 4MB , Total L3 Cache 16MB , Base Clock 3.3 GHz , up to 4.6 GHz)

GPU

AMD Radeon™ Graphics (Graphics Frequency 2100 MHz)

Memory

2 × DDR4 3200MHz Dual channel (SODIMM Slots×2)

Supports a maximum of 64GB(32GB x 2) of DDR4

Storage

M.2 2280 PCIe3.0 SSD

Storage Expansion

2.5 inch SATA HDD Slot×2 (SATA 3.0 6.0Gb/s) ,maximum thickness 7mm

Wireless Connectivity

M.2 2230 WIFI Support (Wi-Fi 6,BlueTooth 5.1)

Video Output

① HDMI 2.0 (4K@60Hz) ×2

② DisplayPort(4K@60Hz)×2

Audio Output

HDMI ×2, DisplayPort ×2, LINE OUT ×2

Ports & Buttons

1 * RJ45 2.5 Gigabit Ethernet Port

5 * USB3.0 Port (Gen1)

1 * USB-C Port

1 * Clear CMOS

2 * MIC

Power

DC 19V / 6.3A (adapter included)

Consumes Power : 119.7W

System

Windows 10 Pro / Ubuntu

Product Dimension

195x190x60mm

Product Image
