Latest AMD Ryzen™ 7000 Series CPU
The UM773 SE is equipped with the AMD Ryzen™ 7 7735HS processor. This CPU has 8 cores / 16 threads, and a frequency of 3.2 GHz to 4.75 GHz. It also provides new features like USB4, PCIe4.0 and DDR5(4800MHz).
Minisforum UM773 Lite
Minisforum UM773 Lite
Sale price$279.00 USD
Regular price$709.00 USD (/)
- UM773 ME
- UM773 Lite
- UM773 SE Sakura Edition
- Specification
- FAQ
AMD Radeon™ 680M
The AMD Radeon™ 680M Graphics is integrated in the processor with a 12-core configuration and a maximum frequency of 2200MHz. Based on the RDNA™ 2 architecture, this integrated graphics performs well in both work and mid-range gaming.
Speed Boost with USB4 port
The USB4 port on UM773 SE supports video output up to 8K@60Hz, and the maximum transfer speed can reach up to 40Gbps. In addition, you can power a portable monitor with a single USB-C cable using the USB4 port.
Triple Display Up to 8K@60Hz
Two HDMI ports at the rear of UM773 SE supports video output up to 4K@60Hz. The USB4 (8K@60Hz) port, it supports up to 3 screen outputs in total. It can provide a wider field of view and improve productivity.
Versatile and Reliable
High-efficiency Thermal System
Latest AMD Ryzen™ 7000 Series CPU
The UM773 Lite is equipped with the AMD Ryzen™ 7 7735HS processor. This CPU has 8 cores / 16 threads, and a frequency of 3.2 GHz to 4.75 GHz. It also provides new features like USB4, PCIe4.0 and DDR5(4800MHz).
RDNA™ 2 Integrated Graphics
Versatile and Reliable
Upgrade-friendly
Excellent Thermal Performance
High-speed USB4 Port
Triple 4K@60Hz Displays

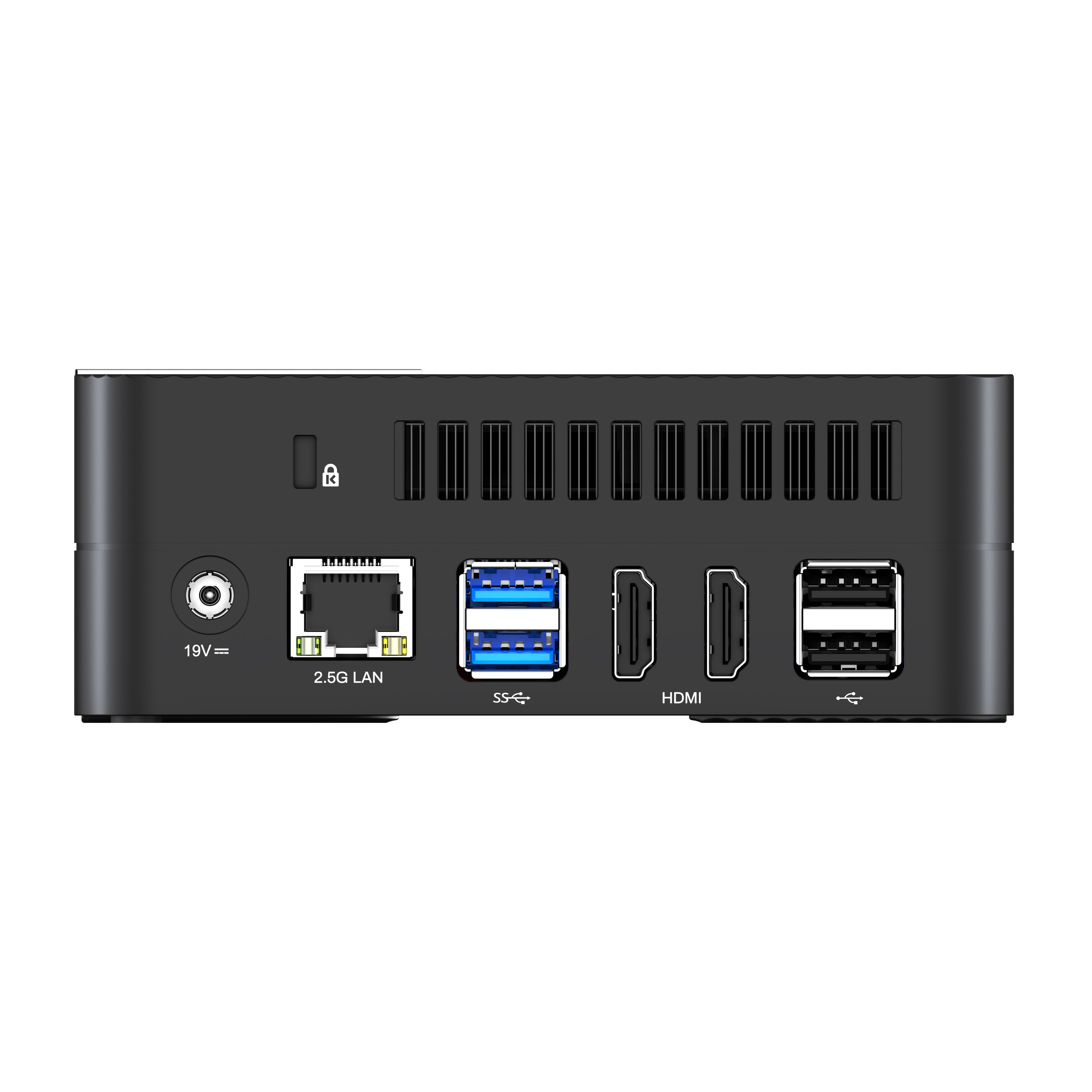

Ports & Buttons
Compact & Portable
Measuring only 128mm*128mm*48.2mm, the UM773 Lite fits perfectly under the monitors, and can be easily packed in the briefcase during trips or commutes.
Latest AMD Ryzen™ 7000 Series CPU
The UM773 SE is equipped with the AMD Ryzen™ 7 7735HS processor. This CPU has 8 cores / 16 threads, and a frequency of 3.2 GHz to 4.75 GHz. It also provides new features like USB4, PCIe4.0 and DDR5(4800MHz).
AMD Radeon™ 680M
The AMD Radeon™ 680M Graphics is integrated in the processor with a 12-core configuration and a maximum frequency of 2200MHz. Based on the RDNA™ 2 architecture, this integrated graphics performs well in both work and mid-range gaming.
Upgrade-friendly
Speed Boost with USB4 port
The USB4 port on UM773 SE supports video output up to 8K@60Hz, and the maximum transfer speed can reach up to 40Gbps. In addition, you can power a portable monitor with a single USB-C cable using the USB4 port.
Versatile and Reliable
Triple Display Up to 8K@60Hz
Two HDMI ports at the rear of UM773 SE supports video output up to 4K@60Hz. The USB4 (8K@60Hz) port, it supports up to 3 screen outputs in total. It can provide a wider field of view and improve productivity.
High-efficiency Thermal System
The UM773 SE adopts liquid metal to improve the thermal performance of the processor. This material has high thermal conductivity and can conduct more heat per unit time and unit area than other thermal materials. The thermal system also includes a 120-blade smart fan, heat pipes, and four air vents, they can elevates UM773 SE performance, keeping the temperature and the noise at a reasonable level.
Minisforum UM773 Lite / UM773 SE
Processor
AMD Ryzen™ 7 7735HS , 8 Cores/16 Threads
Graphics
AMD Radeon™ 680M (Graphics Frequency 2200 MHz)
Memory
DDR5 Dual channel (SODIMM Slots ×2, up to 64GB)
Storage
M.2 2280 PCIe4.0 SSD
Storage Expansion
1×2.5 inch SATA HDD Slot (SATA 3.0 6.0Gb/s)
Wireless Connectivity
M.2 2230 WIFI Support (Wi-Fi，BlueTooth)
Video Output
HDMI (4K@60Hz) ×2
USB4 ×1
Audio Output
HDMI ×2
3.5mm Combo Jack ×1
Ports & Buttons
RJ45 2.5 Gigabit Ethernet Port ×1
USB3.2 Gen2 Type-C ×1 (Data Transfer, Right)
USB3.2 Gen2 Type-A ×2
USB2.0 Type-A ×2
USB4 Type-C ×1 (Left)
HDMI ×2
Clear CMOS ×1
DMIC ×1
3.5mm Combo Jack ×1
Power
DC 19V (adapter included)
System
Windows 11 Home
1. Official Support Page for the UM773 Lite / SE
https://www.minisforum.com/front/support/68/UM773
2. Brand of SSD and RAM in the UM773 Lite / SE
We purchase essential hardware from different brands based on the same technical specifications, including SSDs, Wi-Fi cards, RAM, HDDs, power supplies, etc. Due to the limited resources and brands of RAM and SSD, we choose Samsung, Kingston, Crucial, Adata, Phison, etc. as our RAM and SSD suppliers.
Each piece of hardware has passed a strict quality inspection and met the factory's standards before it is delivered to Minisforum. In addition, there is no difference in the warranty policies of these hardware suppliers.
The hardware brands may vary from batch to batch. Please rest assured that they all meet Minisforum's standards and are all covered by the warranty.
3. Do you have a warranty on the UM773 Lite / SE?
All products purchased on Minisforum's official store are covered by our 2-year warranty. Learn more about our warranty policy.
4. Where do you ship to?
We offer free shipping for the majority of the world.
Available countries and regions:
United States, Saudi Arabia, Canada, Singapore, Cambodia, Thailand, Australia, Nepal, Pakistan, Brunei, Sri Lanka, Japan, Jordan, Myanmar, Laos, Philippines, Mongolia, United Arab Emirates, South Korea, Malaysia, New Zealand, Panama, Indonesia, Mexico, Hong Kong, Macau, Taiwan.
Learn more about our shipping policy.
For customers in Europe, please place your order in our branch stores https://store.minisforum.de/ and https://store.minisforum.uk/.
5. What's the maximum resolution? How many monitors can be connected at the same time?
Up to three monitors can be connected at the same time with a maximum resolution of one 8K@60Hz and two 4K@60Hz.
6. Can I use the USB-C port to power up the UM773 Lite / SE?
The USB-C port on the UM773 Lite / SE can not be used as a power supply port. Please use the DC19V power supply.
7. What's the spec of Wi-Fi and Bluetooth of the UM773 Lite / SE?
Wi-Fi 6E
Bluetooth 5.2
8. Does the UM773 Lite / SE have pre-installed Windows?
Except for the barebones version, all versions come with Windows 11 Home pre-installed. The barebones version does not include RAM and SSD; therefore, it does not have pre-installed Windows 11 Home.
9. How do I install Windows OS for the barebones version?
Please click the link to our support page below to download Windows 11.
Note: Minisforum does not offer Windows OS license keys for the barebones version.
https://www.minisforum.com/front/support
- UM773 ME
- UM773 Lite
- UM773 SE Sakura Edition
- Specification
- FAQ
Latest AMD Ryzen™ 7000 Series CPU
The UM773 SE is equipped with the AMD Ryzen™ 7 7735HS processor. This CPU has 8 cores / 16 threads, and a frequency of 3.2 GHz to 4.75 GHz. It also provides new features like USB4, PCIe4.0 and DDR5(4800MHz).
AMD Radeon™ 680M
The AMD Radeon™ 680M Graphics is integrated in the processor with a 12-core configuration and a maximum frequency of 2200MHz. Based on the RDNA™ 2 architecture, this integrated graphics performs well in both work and mid-range gaming.
Speed Boost with USB4 port
The USB4 port on UM773 SE supports video output up to 8K@60Hz, and the maximum transfer speed can reach up to 40Gbps. In addition, you can power a portable monitor with a single USB-C cable using the USB4 port.
Triple Display Up to 8K@60Hz
Two HDMI ports at the rear of UM773 SE supports video output up to 4K@60Hz. The USB4 (8K@60Hz) port, it supports up to 3 screen outputs in total. It can provide a wider field of view and improve productivity.
Versatile and Reliable
High-efficiency Thermal System
Latest AMD Ryzen™ 7000 Series CPU
The UM773 Lite is equipped with the AMD Ryzen™ 7 7735HS processor. This CPU has 8 cores / 16 threads, and a frequency of 3.2 GHz to 4.75 GHz. It also provides new features like USB4, PCIe4.0 and DDR5(4800MHz).
RDNA™ 2 Integrated Graphics
Versatile and Reliable
Upgrade-friendly
Excellent Thermal Performance
High-speed USB4 Port
Triple 4K@60Hz Displays
Ports & Buttons
Compact & Portable
Measuring only 128mm*128mm*48.2mm, the UM773 Lite fits perfectly under the monitors, and can be easily packed in the briefcase during trips or commutes.
Latest AMD Ryzen™ 7000 Series CPU
The UM773 SE is equipped with the AMD Ryzen™ 7 7735HS processor. This CPU has 8 cores / 16 threads, and a frequency of 3.2 GHz to 4.75 GHz. It also provides new features like USB4, PCIe4.0 and DDR5(4800MHz).
AMD Radeon™ 680M
The AMD Radeon™ 680M Graphics is integrated in the processor with a 12-core configuration and a maximum frequency of 2200MHz. Based on the RDNA™ 2 architecture, this integrated graphics performs well in both work and mid-range gaming.
Upgrade-friendly
Speed Boost with USB4 port
The USB4 port on UM773 SE supports video output up to 8K@60Hz, and the maximum transfer speed can reach up to 40Gbps. In addition, you can power a portable monitor with a single USB-C cable using the USB4 port.
Versatile and Reliable
Triple Display Up to 8K@60Hz
Two HDMI ports at the rear of UM773 SE supports video output up to 4K@60Hz. The USB4 (8K@60Hz) port, it supports up to 3 screen outputs in total. It can provide a wider field of view and improve productivity.
High-efficiency Thermal System
The UM773 SE adopts liquid metal to improve the thermal performance of the processor. This material has high thermal conductivity and can conduct more heat per unit time and unit area than other thermal materials. The thermal system also includes a 120-blade smart fan, heat pipes, and four air vents, they can elevates UM773 SE performance, keeping the temperature and the noise at a reasonable level.
Minisforum UM773 Lite / UM773 SE
Processor
AMD Ryzen™ 7 7735HS , 8 Cores/16 Threads
Graphics
AMD Radeon™ 680M (Graphics Frequency 2200 MHz)
Memory
DDR5 Dual channel (SODIMM Slots ×2, up to 64GB)
Storage
M.2 2280 PCIe4.0 SSD
Storage Expansion
1×2.5 inch SATA HDD Slot (SATA 3.0 6.0Gb/s)
Wireless Connectivity
M.2 2230 WIFI Support (Wi-Fi，BlueTooth)
Video Output
HDMI (4K@60Hz) ×2
USB4 ×1
Audio Output
HDMI ×2
3.5mm Combo Jack ×1
Ports & Buttons
RJ45 2.5 Gigabit Ethernet Port ×1
USB3.2 Gen2 Type-C ×1 (Data Transfer, Right)
USB3.2 Gen2 Type-A ×2
USB2.0 Type-A ×2
USB4 Type-C ×1 (Left)
HDMI ×2
Clear CMOS ×1
DMIC ×1
3.5mm Combo Jack ×1
Power
DC 19V (adapter included)
System
Windows 11 Home
1. Official Support Page for the UM773 Lite / SE
https://www.minisforum.com/front/support/68/UM773
2. Brand of SSD and RAM in the UM773 Lite / SE
We purchase essential hardware from different brands based on the same technical specifications, including SSDs, Wi-Fi cards, RAM, HDDs, power supplies, etc. Due to the limited resources and brands of RAM and SSD, we choose Samsung, Kingston, Crucial, Adata, Phison, etc. as our RAM and SSD suppliers.
Each piece of hardware has passed a strict quality inspection and met the factory's standards before it is delivered to Minisforum. In addition, there is no difference in the warranty policies of these hardware suppliers.
The hardware brands may vary from batch to batch. Please rest assured that they all meet Minisforum's standards and are all covered by the warranty.
3. Do you have a warranty on the UM773 Lite / SE?
All products purchased on Minisforum's official store are covered by our 2-year warranty. Learn more about our warranty policy.
4. Where do you ship to?
We offer free shipping for the majority of the world.
Available countries and regions:
United States, Saudi Arabia, Canada, Singapore, Cambodia, Thailand, Australia, Nepal, Pakistan, Brunei, Sri Lanka, Japan, Jordan, Myanmar, Laos, Philippines, Mongolia, United Arab Emirates, South Korea, Malaysia, New Zealand, Panama, Indonesia, Mexico, Hong Kong, Macau, Taiwan.
Learn more about our shipping policy.
For customers in Europe, please place your order in our branch stores https://store.minisforum.de/ and https://store.minisforum.uk/.
5. What's the maximum resolution? How many monitors can be connected at the same time?
Up to three monitors can be connected at the same time with a maximum resolution of one 8K@60Hz and two 4K@60Hz.
6. Can I use the USB-C port to power up the UM773 Lite / SE?
The USB-C port on the UM773 Lite / SE can not be used as a power supply port. Please use the DC19V power supply.
7. What's the spec of Wi-Fi and Bluetooth of the UM773 Lite / SE?
Wi-Fi 6E
Bluetooth 5.2
8. Does the UM773 Lite / SE have pre-installed Windows?
Except for the barebones version, all versions come with Windows 11 Home pre-installed. The barebones version does not include RAM and SSD; therefore, it does not have pre-installed Windows 11 Home.
9. How do I install Windows OS for the barebones version?
Please click the link to our support page below to download Windows 11.
Note: Minisforum does not offer Windows OS license keys for the barebones version.
https://www.minisforum.com/front/support
- UM773 ME
- UM773 Lite
- UM773 SE Sakura Edition
- Specification
- FAQ
Latest AMD Ryzen™ 7000 Series CPU
The UM773 Lite is equipped with the AMD Ryzen™ 7 7735HS processor. This CPU has 8 cores / 16 threads, and a frequency of 3.2 GHz to 4.75 GHz. It also provides new features like USB4, PCIe4.0 and DDR5(4800MHz).
AMD Radeon™ 680M Integrated Graphics
Speed Boost with USB4 port
The USB4 port on UM773 SE supports video output up to 8K@60Hz, and the maximum transfer speed can reach up to 40Gbps. In addition, you can power a portable monitor with a single USB-C cable using the USB4 port.
Versatile and Reliable
Upgrade-friendly
Excellent Thermal Performance
Triple 4K@60Hz Displays
Complete Connectivity
Latest AMD Ryzen™ 7000 Series CPU
The UM773 Lite is equipped with the AMD Ryzen™ 7 7735HS processor. This CPU has 8 cores / 16 threads, and a frequency of 3.2 GHz to 4.75 GHz. It also provides new features like USB4, PCIe4.0 and DDR5(4800MHz).
AMD Radeon™ 680M Integrated Graphics
Versatile and Reliable
Upgrade-friendly
Excellent Thermal Performance
Triple 4K@60Hz Displays
Compact & Portable
Measuring only 128mm*128mm*48.2mm, the UM773 Lite fits perfectly under the monitors, and can be easily packed in the briefcase during trips or commutes.
Latest AMD Ryzen™ 7000 Series CPU
The UM773 SE is equipped with the AMD Ryzen™ 7 7735HS processor. This CPU has 8 cores / 16 threads, and a frequency of 3.2 GHz to 4.75 GHz. It also provides new features like USB4, PCIe4.0 and DDR5(4800MHz).
AMD Radeon™ 680M
The AMD Radeon™ 680M Graphics is integrated in the processor with a 12-core configuration and a maximum frequency of 2200MHz. Based on the RDNA™ 2 architecture, this integrated graphics performs well in both work and mid-range gaming.
Upgrade-friendly
Speed Boost with USB4 port
The USB4 port on UM773 SE supports video output up to 8K@60Hz, and the maximum transfer speed can reach up to 40Gbps. In addition, you can power a portable monitor with a single USB-C cable using the USB4 port.
Versatile and Reliable
Triple Display Up to 8K@60Hz
Two HDMI ports at the rear of UM773 SE supports video output up to 4K@60Hz. The USB4 (8K@60Hz) port, it supports up to 3 screen outputs in total. It can provide a wider field of view and improve productivity.
High-efficiency Thermal System
The UM773 SE adopts liquid metal to improve the thermal performance of the processor. This material has high thermal conductivity and can conduct more heat per unit time and unit area than other thermal materials. The thermal system also includes a 120-blade smart fan, heat pipes, and four air vents, they can elevates UM773 SE performance, keeping the temperature and the noise at a reasonable level.
Complete Connectivity
The UM773 SE has various types of ports to satisfy different needs.
Minisforum UM773 Lite / UM773 SE
Processor
AMD Ryzen™ 7 7735HS , 8 Cores/16 Threads
Graphics
AMD Radeon™ 680M (Graphics Frequency 2400 MHz)
Memory
DDR5 Dual channel (SODIMM Slots ×2, up to 64GB)
Storage
M.2 2280 PCIe4.0 SSD
Storage Expansion
1×2.5 inch SATA HDD Slot (SATA 3.0 6.0Gb/s)
Wireless Connectivity
M.2 2230 WIFI Support (Wi-Fi，BlueTooth)
Video Output
HDMI (4K@60Hz) ×2
USB4 ×1
Audio Output
HDMI ×2
3.5mm Combo Jack ×1
Ports & Buttons
RJ45 2.5 Gigabit Ethernet Port ×1
USB3.2 Gen2 Type-C ×1 (Data Transfer, Right)
USB3.2 Gen2 Type-A ×2
USB2.0 Type-A ×2
USB4 Type-C ×1 (Left)
HDMI ×2
Clear CMOS ×1
DMIC ×1
3.5mm Combo Jack ×1
Power
DC 19V (adapter included)
System
Windows 11 Home
1. Official Support Page for the UM773 Lite / SE
https://www.minisforum.com/front/support/68/UM773
2. Brand of SSD and RAM in the UM773 Lite / SE
We purchase essential hardware from different brands based on the same technical specifications, including SSDs, Wi-Fi cards, RAM, HDDs, power supplies, etc. Due to the limited resources and brands of RAM and SSD, we choose Samsung, Kingston, Crucial, Adata, Phison, etc. as our RAM and SSD suppliers.
Each piece of hardware has passed a strict quality inspection and met the factory's standards before it is delivered to Minisforum. In addition, there is no difference in the warranty policies of these hardware suppliers.
The hardware brands may vary from batch to batch. Please rest assured that they all meet Minisforum's standards and are all covered by the warranty.
3. Do you have a warranty on the UM773 Lite / SE?
All products purchased on Minisforum's official store are covered by our 2-year warranty. Learn more about our warranty policy.
4. Where do you ship to?
We offer free shipping for the majority of the world.
Available countries and regions:
United States, Saudi Arabia, Canada, Singapore, Cambodia, Thailand, Australia, Nepal, Pakistan, Brunei, Sri Lanka, Japan, Jordan, Myanmar, Laos, Philippines, Mongolia, United Arab Emirates, South Korea, Malaysia, New Zealand, Panama, Indonesia, Mexico, Hong Kong, Macau, Taiwan.
Learn more about our shipping policy.
For customers in Europe, please place your order in our branch stores https://store.minisforum.de/ and https://store.minisforum.uk/.
5. What's the maximum resolution? How many monitors can be connected at the same time?
Up to three monitors can be connected at the same time with a maximum resolution of one 8K@60Hz and two 4K@60Hz.
6. Can I use the USB-C port to power up the UM773 Lite / SE?
The USB-C port on the UM773 Lite / SE can not be used as a power supply port. Please use the DC19V power supply.
7. What's the spec of Wi-Fi and Bluetooth of the UM773 Lite / SE?
Wi-Fi 6E
Bluetooth 5.2
8. Does the UM773 Lite / SE have pre-installed Windows?
Except for the barebones version, all versions come with Windows 11 Home pre-installed. The barebones version does not include RAM and SSD; therefore, it does not have pre-installed Windows 11 Home.
9. How do I install Windows OS for the barebones version?
Please click the link to our support page below to download Windows 11.
Note: Minisforum does not offer Windows OS license keys for the barebones version.
https://www.minisforum.com/front/support
