Minisforum EliteMini HM90
Minisforum HM90 is a high-performance mini PC powered by AMD Ryzen™ 9 4900H processor and AMD Radeon™ graphics, which opens up a world of computing possibilities for your home, office, or anywhere else you need it.
Minisforum EliteMini HM90
Minisforum HM90 is a high-performance mini PC powered by AMD Ryzen ™ 9 4900H processor and AMD Radeon ™ graphics, which opens up a world of computing possibilities for your home, office, or anywhere else you need it.
- Meet HM90
- Features
- Specification
- FAQs & Test Rep
Video Review
Video Review
- AMD Ryzen™ 9 4900H, 8 cores / 16 threads
- AMD Radeon™ Graphics(Graphics Frequency 1750MHz)
- Dual channel DDR4 that supports up to 64 GB
- M.2 2280 256 GB / 512 GB PCIe 3.0 SSD
- 2.5-inch SATA HDD slot x 2 (SATA 3.0 6.0 Gb/s)
- M.2 2230 WIFI Support (Wi-Fi 6，BlueTooth 5.2)
- AMD Radeon™ Graphics(Graphics Frequency 1750MHz)
- 2.5-inch SATA HDD slot x 2 (SATA 3.0 6.0 Gb/s)
- M.2 2230 WIFI Support (Wi-Fi 6，BlueTooth 5.2)
Testing Environment:CPU-; Monitor: 1920*1080 60Hz; RAM: DDR4 8G x2
Testing Environment:CPU-; Monitor: 1920*1080 60Hz; RAM: DDR4 8G x2
HM90 is an ideal multi-scenarios solution with decent performance. It gracefully tackles routine work like editing documents, loading image-heavy pages, and video/picture editing. With HDMI2.0, DisplayPort, USB C 3.0, Wi-Fi 6, and Bluetooth 5.2 features, it enriches your experience in 4K multi-displays, seamless streaming, and fast file transfer.
EliteMini HM90 is an ideal multi-scenarios solution with decent performance. It gracefully tackles routine work like editing documents, loading image-heavy pages, and video/picture editing. With HDMI2.0, DisplayPort, USB C 3.0, Wi-Fi 6, and Bluetooth 5.2 features, HM90 enriches your experience in 4K multi-displays, seamless streaming, and fast file transfer.
HM90 supports Wi-Fi 6 (IEEE 802.11ax), the next-generation communication standard that is 1.4 times faster than its predecessor, and high-speed Bluetooth 5.1. It also has two wired LAN ports for more stable and speedy communication (1 x RJ45 2.5 gigabit ethernet port and 1 x RJ45 1 gigabit ethernet port).
HM90 supports Wi-Fi 6 (IEEE 802.11ax), the next-generation communication standard that is 1.4 times faster than its predecessor, and high-speed Bluetooth 5.1. It also has two wired LAN ports for more stable and speedy communication (1 x RJ45 2.5 gigabit ethernet port and 1 x RJ45 1 gigabit ethernet port).
The liquid metal compound on the CPU boosts the cooling of HM90. In addition, both sides have a mesh structure that is highly breathable, making it easier for the airflow to reach the chassis and quickly dissipate the heat of the computer.
The liquid metal compound on the CPU boosts the cooling of HM90. In addition, both sides have a mesh structure that is highly breathable, making it easier for the airflow to reach the chassis and quickly dissipate the heat of the computer.
By default, HM90 can select 16GB(8GB x 2) / 32GB(16GB x 2) memory and 256/512 GB SSD. After removing the four screws that secure the bottom of the case, you can easily gain access to the internals to increase the capacity and upgrade your kit. Upgradeable configurations are listed as follows:
By default, HM90 can select 16GB(8GB x 2) / 32GB(16GB x 2) memory and 256/512 GB SSD. After removing the four screws that secure the bottom of the case, you can easily gain access to the internals to increase the capacity and upgrade your kit. Upgradeable configurations are listed as follows:
Compact and Portable
HM90 only measures 5.89 x 5.89 x 2.15 in, fits unnoticed behind the monitor, or sits elegantly beside your coffee mug. Using the VESA bracket included in the package, you can recapture more desk space and keep your workplace organized.
Compact and Portable
HM90 only measures 5.89 x 5.89 x 2.15 in, fits unnoticed behind the monitor, or sits elegantly beside your coffee mug. Using the VESA bracket included in the package, you can recapture more desk space and keep your workplace organized.
Features & Functions for HM90
High Definition 4K Triple Displays
HM90 Mini PC brings you ultra-realistic 4K UHD visuals with incredible clarity and maximum productivity in your workflow.

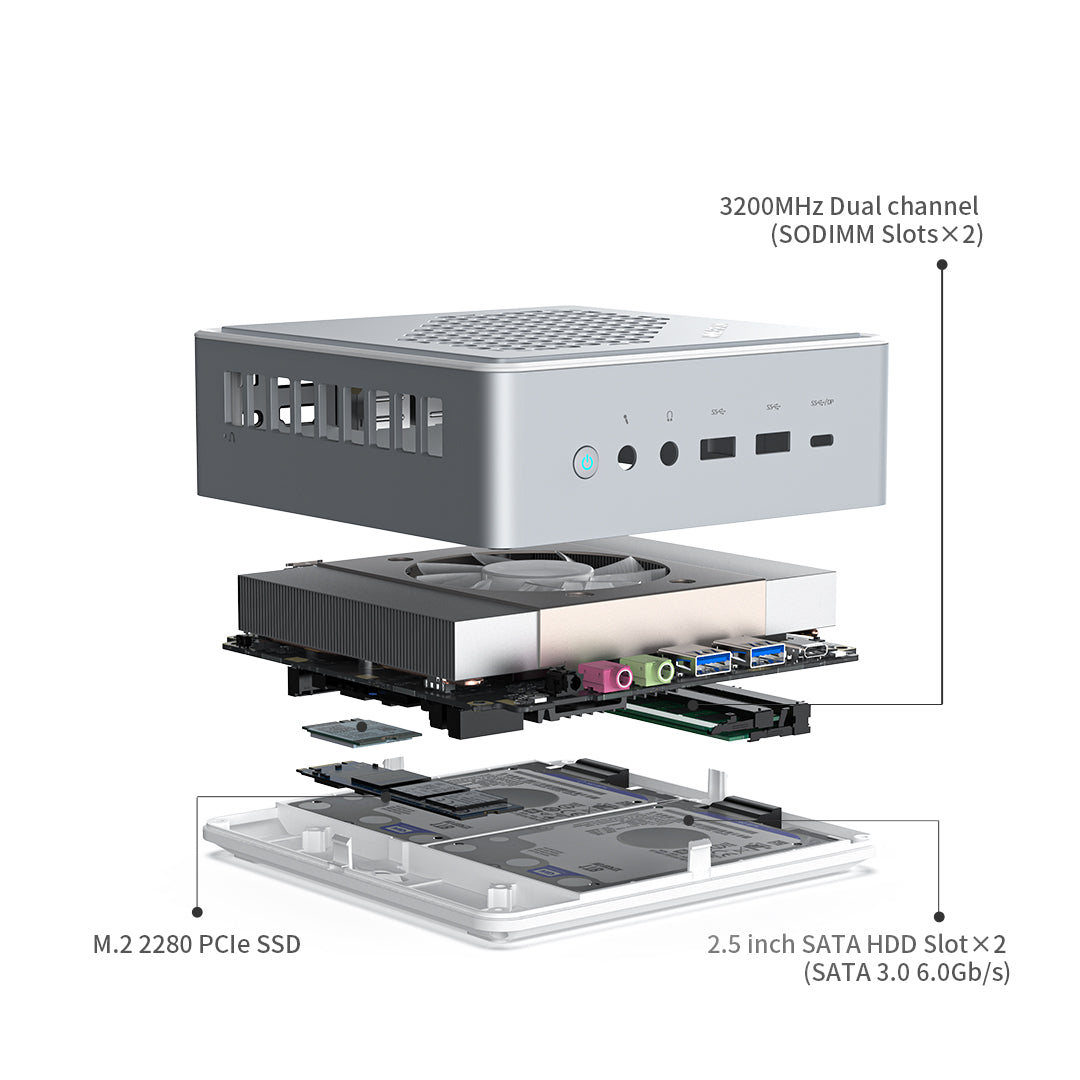

Upgrade-Friendly
DDR4 dual channel SODIMM slot x 2 (expandable up to 64GB)
2.5 inch SATA HDD Slot x 2 (SATA 3.0 6.0Gb/s)
M.2 2280 PCle 3.0 SSD
Fit Anywhere You Want
It is appropriate for multiple scenarios, delivering stable performance and satisfying results.

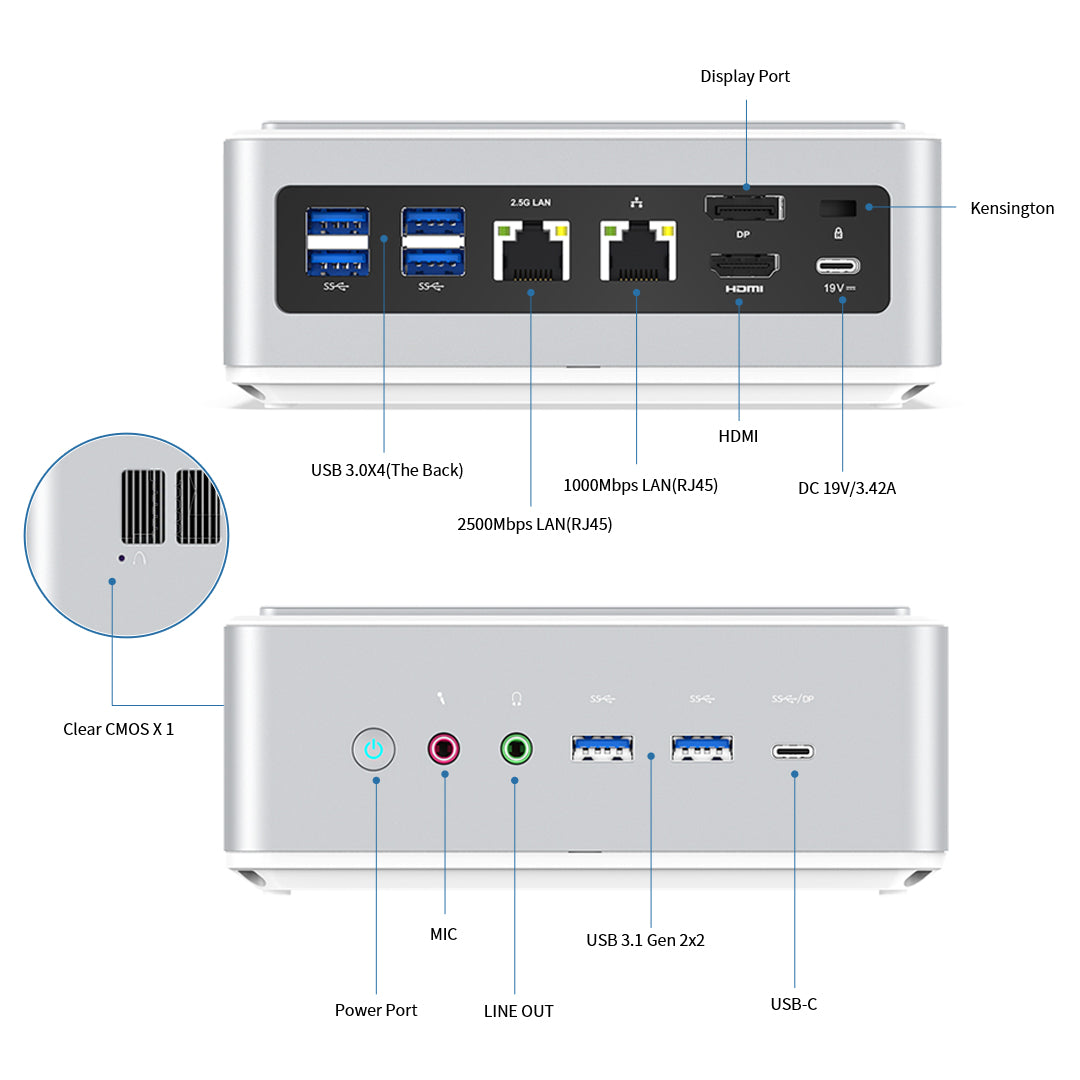

Ports & Button for HM90
- RJ45 Gigabit Ethernet Port × 1
- RJ45 2.5 Gigabit Ethernet Port × 1
- USB3.0 Port Type-A (The Back) × 4
- USB3.1 Port Type-A(Gen2 , In Front)× 2
- USB-C 3.0 × 1
- HDMI 2.0 × 1
- Display Port × 1
- 3.5mm Audio Jack(Green) × 1
- Clear CMOS × 1
- COM PIN(internal) × 1
Compact and Portable Size
HM90 only measures 5.89 x 5.89 x 2.15 inches, it can be easily packed in your briefcase.

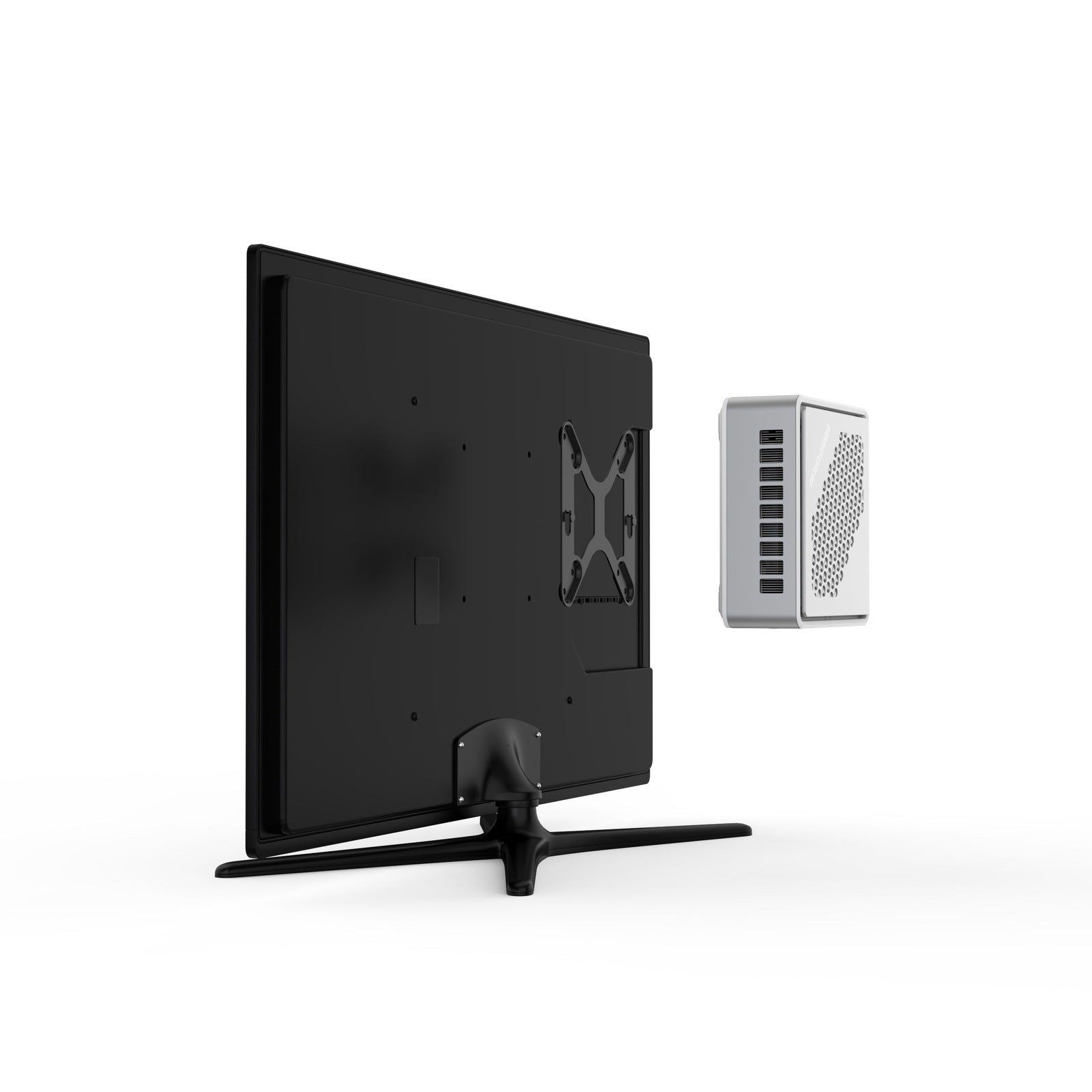

Wall Mount Support
With the VESA bracket, HM90 can be installed behind the monitors to save space and keep your desk neat.
Minisforum DeskMini HM90
Processor
AMD Ryzen ™ 9 4900H, 8 Cores/16 Threads
(Total L2 Cache 4MB , Total L3 Cache 8MB , Base Clock 3.3 GHz , up to 4.4 GHz)
GPU
AMD Radeon™ Graphics (Graphics Frequency 1750 MHz)
Memory
DDR4 8GB/16GB×2 Dual channel
Supports a maximum of 64GB(32GB x 2) of DDR4
Storage
M.2 2280 256/512GB PCIe 3.0 SSD
Storage Expansion
2.5 inch SATA HDD Slot x 2(SATA 3.0 6.0Gb/s), maximum thickness 7mm
Wireless Connectivity
M.2 2230 WIFI Support (Wi-Fi 6，BlueTooth 5.2)
Video Output
① HDMI (4K@60Hz)
② DisplayPort (4K@60Hz)
③ USB-C 3.0 Port(4K@60Hz , In Front)
Audio Output
HDMI 2.0 , DisplayPort, 3.5mm Audio Jack(Green)
Ports & Buttons
1 * RJ45 Gigabit Ethernet Port
1 * RJ45 2.5 Gigabit Ethernet Port
4 * USB3.0 Port Type-A (The Back)
2 * USB3.1 Port Type-A (Gen2 , In Front)
1 * USB-C 3.0
1 * HDMI 2.0
1 * DisplayPort
1 * 3.5mm Audio Jack(Green)
1 * Clear CMOS
1 * COM PIN(internal)
Power
DC 19V/6.3A (adapter included) , via USB-C (power port)
System
Windows 10
Product Dimension
149 x 149 x 55.5mm
Package Weight
Net Weight
Launch Date
October 2021
Package Content
1 * Minisforum DeskMini HM90
1 * Power Adapter
1 * HDMI Cable
1 * Mounting Bracket
1 * User Manual
Q1.What does barebone mean?
A: Barebone is HM90 without RAM & SSD.
Q2. If the Windows OS is still pre-installed after I bought a barebone version?
A: Due to without RAM & SSD, HM90 barebones version couldn't pre-installed Windows OS, but we'll provide the link to download the Win10.
Q3. Do you provide Win10 license?
A: Sorry. We don't provide licenses for HM90 barebones.
Q4. What's the max RAM and speed of HM90?
A: HM90 max RAM is 64GB -- 2x32GB stick, and Max Boost Clock up to 4.2GHz
Q5. How many monitors does HM90 support?
A: HM90 can connect with 3 monitors at the same time.
Q6. Do I need to pay the shipping fee or tax for the product?
A: Hi, taxes are determined by the
Q1.What does barebone mean?
A: Barebone is HM90 without RAM & SSD.
Q2. If the Windows OS is still pre-installed after I bought a barebone version?
A: Due to without RAM & SSD, HM90 barebones version couldn't pre-installed Windows OS, but we'll provide the link to download the Win10.
Q3. Do you provide Win10 license?
A: Sorry. We don't provide licenses for HM90 barebones.
Q4. What's the max RAM and speed of HM90?
A: HM90 max RAM is 64GB -- 2x32GB stick, and Max Boost Clock up to 4.2GHz
Q5. How many monitors does HM90 support?
A: HM90 can connect with 3 monitors at the same time.
Q6. Do I need to pay the shipping fee or tax for the product?
A: Hi, taxes are determined by the
