Minisforum NAB6 Lite
Minisforum NAB6 Lite
Sale price$259.00 USD
Regular price$499.00 USD (/)
- NAB6 Lite
- NAB9
- NAB6
- FAQ
Minisforum NAB6 Lite
NAB6 Lite Processor
Intel Core i5-12600H, 12 Cores/ 16 Threads
(18M Cache, up to 4.50 GHz)
NAB6 Lite Graphics
Intel® Iris® Xe Graphics eligible
Memory
DDR4 8GB×2 Dual channel (SODIMM Slots×2, up to 64GB)
Storage
M.2 2280 512GB PCIe4.0 SSD(up to 2TB)
Storage Expansion
2.5 inch SATA HDD Slot ×1 (SATA 3.0 6.0Gb/s)
Wireless Connectivity
M.2 2230 WIFI Support (Wi-Fi，BlueTooth)
Video Output
① HDMI (4K@60Hz) ×2, ② USB-C(4K@60Hz) ×2
Audio Output
HDMI ×2
Audio Jack ×1
Ports & Buttons
RJ45 2.5 Gigabit Ethernet Port ×2
USB3.2 Gen1 Type-C ×1(Data Only, In Front)
USB3.2 Type-C ×1(DP Only)
USB3.2 Type-C ×1(Alt DP and Data and PD Out)
USB3.2 Gen2 Type-A ×4
HDMI ×2
DMIC ×1
3.5mm Combo Jack ×1
Clear CMOS ×1
Power
DC 19V (adapter included)
System
Windows 11
Work, Stream, and Gaming Anywhere
With even more multitasking power and e-cores, it's time to work and play together. Stream video, multitask, play music, and encode video all while gaming on the go, powered by 13th Gen Intel® Core™ processors.
Kick Your Creativity Up a Notch
Take your creativity to the next level with the 13th Gen Intel® Core™ processors. Accomplish demanding workloads with more performance at your fingertips. When you can do more, you can create more.
Easy to Upgrade
To upgrade the hardware, you only need to press and open the top cover.
DDR4 Dual Channel Memory
Up to 64GB
M.2 2280 NVMe PCIe4.0 SSD
Up to 2 TB
2.5-inch SATA 3.0 HDD
6Gb/s
New Cooling Design
Supports Quad Video Outputs
Plentiful I/O to Meet All Your Needs
Plentiful I/O
RJ45 2.5 Gigabit Ethernet Ports × 2
Ports & Buttons

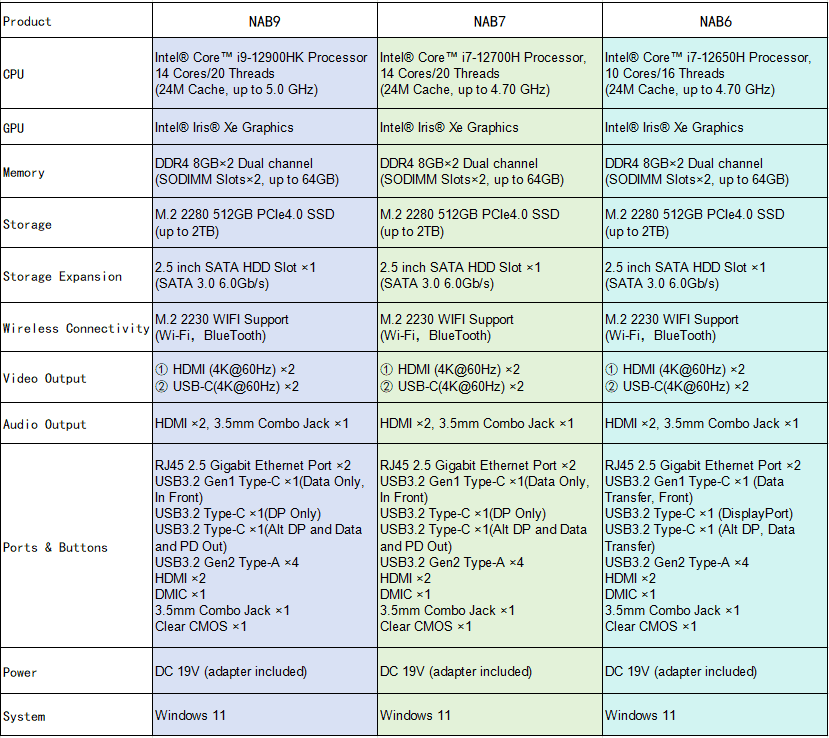

Minisforum NAB9
Processor
Intel® Core™ i9-12900HK Processor, 14 Cores/20 Threads
(24M Cache, up to 5.0 GHz)
Graphics
Intel® Iris® Xe Graphics
Memory
DDR4 8GB×2 Dual channel (SODIMM Slots×2, up to 64GB)
Storage
M.2 2280 512GB PCIe4.0 SSD(up to 2TB)
Storage Expansion
2.5 inch SATA HDD Slot ×1 (SATA 3.0 6.0Gb/s)
Wireless Connectivity
M.2 2230 WIFI Support (Wi-Fi，BlueTooth)
Video Output
① HDMI (4K@60Hz) ×2, ② USB-C(4K@60Hz) ×2
Audio Output
HDMI ×2, 3.5mm Combo Jack ×1
Ports & Buttons
RJ45 2.5 Gigabit Ethernet Port ×2
USB3.2 Gen1 Type-C ×1(Data Only, In Front)
USB3.2 Type-C ×1(DP Only)
USB3.2 Type-C ×1(Alt DP and Data and PD Out)
USB3.2 Gen2 Type-A ×4
HDMI ×2
DMIC ×1
3.5mm Combo Jack ×1
Clear CMOS ×1
Power
DC 19V(Adapter Included)
System
Windows 11
13th Intel H Series Processors
'Intel 7' Technology / Hybrid Architecture / Iris Xe Graphics
Superior Graphics Performance and Processing Power to Support Multitasking
Work, Stream, and Gaming Anywhere
With even more multitasking power and e-cores, it's time to work and play together. Stream video, multitask, play music, and encode video all while gaming on the go, powered by 13th Gen Intel® Core™ processors.
Kick Your Creativity Up a Notch
Take your creativity to the next level with the 13th Gen Intel® Core™ processors. Accomplish demanding workloads with more performance at your fingertips. When you can do more, you can create more.
Easy to Upgrade
To upgrade the hardware, you only need to press and open the top cover.
DDR4 Dual Channel Memory
Up to 64GB
M.2 2280 NVMe PCIe4.0 SSD
Up to 2 TB
2.5-inch SATA 3.0 HDD
6Gb/s
New Cooling Design
Supports Quad Video Outputs
Plentiful I/O to Meet All Your Needs
Plentiful I/O
RJ45 2.5 Gigabit Ethernet Ports × 2
Ports & Buttons
Minisforum NAB6
Processor
Intel® Core™ i7-12650H Processor, 10 Cores/16 Threads
(24M Cache, up to 4.70 GHz)
Graphics
Intel® UHD Graphics for 12th Gen Intel® Processors
(Graphics Frequency 1.40 GHz)
Memory
DDR4 Dual channel
(SODIMM Slots×2, up to 64GB)
Storage
M.2 2280 PCIe4.0 SSD ×1 (up to 2TB)
Storage Expansion
2.5-inch SATA HDD Slot ×1 (SATA 3.0, 6.0Gb/s)
Wireless Connectivity
M.2 2230 WIFI Support (Wi-Fi，BlueTooth)
Video Output
HDMI (4K@60Hz) ×2
USB-C (4K@60Hz) ×2
Audio Output
HDMI ×2
3.5mm Combo Jack ×1
Ports & Buttons
RJ45 2.5 Gigabit Ethernet Port ×2
USB3.2 Gen1 Type-C ×1 (Data Transfer, Front)
USB3.2 Type-C ×1 (DisplayPort)
USB3.2 Type-C ×1 (Alt DP, Data Transfer)
USB3.2 Gen2 Type-A ×4
HDMI ×2
DMIC ×1
3.5mm Combo Jack ×1
Clear CMOS ×1
Power
DC 19V (adapter included)
System
Windows 11
Powered by Intel 12th Gen Core
The NAB6 is equipped with the Intel Core™ i7-12650H processor. This CPU features 10 cores / 16 threads, and has a max turbo frequency of 4.7GHz.
Easy to Upgrade
To upgrade the hardware, you only need to press and open the top cover.
DDR4 Dual Channel Memory
Up to 64GB
M.2 2280 PCIe4.0 SSD
Up to 2 TB
2.5-inch SATA 3.0 HDD
6GB/s
New Thermal System
Packed of I/O
Packed of I/O
2.5 Gbps Ethernet Ports × 2
Quad 4K@60Hz Display
5V3A Power Delivery
1. Official Support Page for NAB6/NPB7/NPB5
https://www.minisforum.com/front/support/75/NAB5/NAB6/NPB7
2. Brand of SSD and RAM in the NAB6/NPB7/NPB5
We purchase essential hardware from different brands based on the same technical specifications, including SSDs, Wi-Fi cards, RAM, HDDs, power supplies, etc. Due to the limited resources and brands of RAM and SSD, we choose Samsung, Kingston, Crucial, Adata, Phison, etc. as our RAM and SSD suppliers.
Each piece of hardware has passed a strict quality inspection and met the factory's standards before it is delivered to Minisforum. In addition, there is no difference in the warranty policies of these hardware suppliers.
The hardware brands may vary from batch to batch. Please rest assured that they all meet Minisforum's standards and are all covered by the warranty.
3. Do you have a warranty on the NAB6/NPB7/NPB5?
All products purchased on Minisforum's official store are covered by our 2-year warranty. Learn more about our warranty policy.
4. Does NAB6/NPB7/NPB5 have a heatsink for SSD?
Please note that:
- NAB6: The barebones version (without RAM and SSD) offers a heatpad for the SSD. Versions with SSD offers an active heatsink (with a fan) for the SSD.
- NPB7/NPB5: All versions offer an active heatsink (with a fan) for the SSD (including the barebones version).
5. What ethernet chipset does NAB6/NPB7/NPB5 have?
The NAB6/NPB7/NPB5 uses Intel i225-v or Intel i226-v.
6. Where do you ship to?
We offer free shipping for the majority of the world.
Available countries and regions:
United States, Saudi Arabia, Canada, Singapore, Cambodia, Thailand, Australia, Nepal, Pakistan, Brunei, Sri Lanka, Japan, Jordan, Myanmar, Laos, Philippines, Mongolia, United Arab Emirates, South Korea, Malaysia, New Zealand, Panama, Indonesia, Mexico, Hong Kong, Macau, Taiwan.
Learn more about our shipping policy.
For customers in Europe, please place your order in our branch stores https://store.minisforum.de/ and https://store.minisforum.uk/.
7. What's the maximum resolution? How many monitors can be connected at the same time?
Up to four monitors can be connected at the same time with a maximum resolution of 4K@60Hz.
8. Can I use the USB-C port to power up the NAB6/NPB7/NPB5?
The USB-C port on the NAB6/NPB7/NPB5 can not be used as a power supply port. Please use the DC19V power supply.
9. What's the spec of Wi-Fi and Bluetooth of NAB6/NPB7/NPB5?
Wi-Fi 6E
Bluetooth 5.2
10. Does it support eGPU?
The NAB6/NPB7/NPB5 does not support eGPU.
11. How do I install Windows OS for the barebones version?
Please click the link to our support page below to download Windows 11.
Note: Minisforum does not offer Windows OS license keys for the barebones version.
https://www.minisforum.com/front/support
