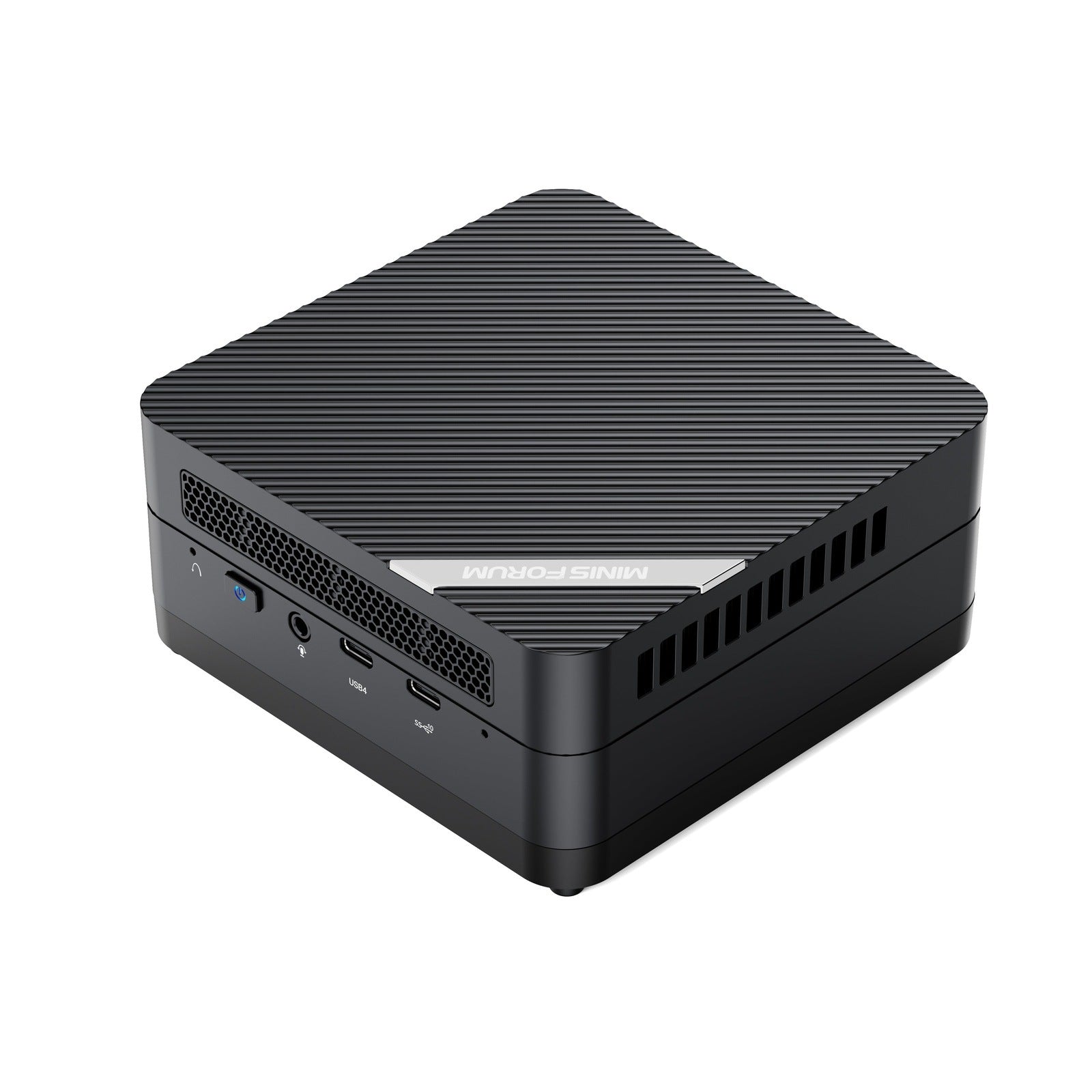

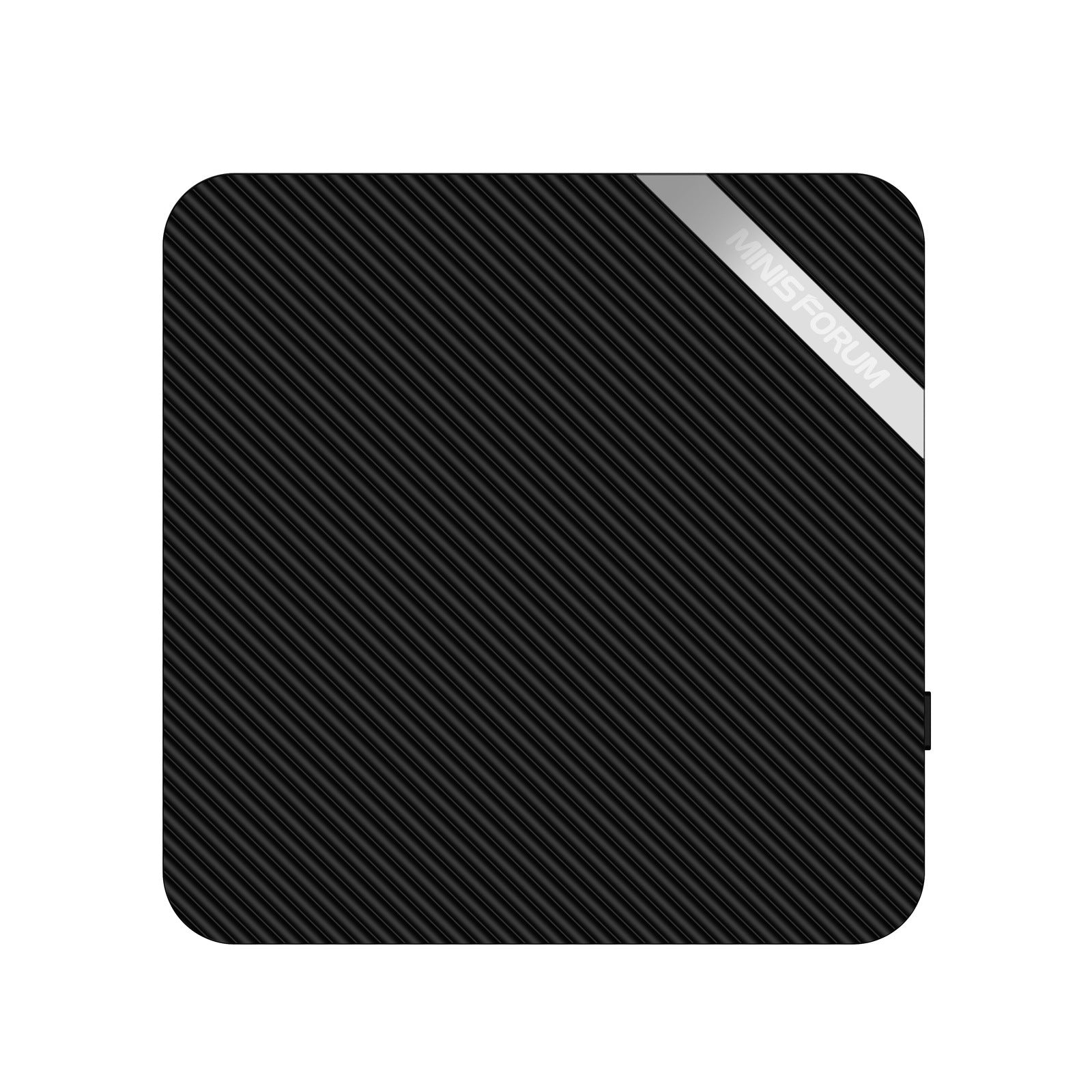

Minisforum UM690S

Sale price$575.00 USD Regular price$719.00 USD
Save $144.00

TYPE: 64GB RAM+1TB SSD
ADAPTER: US
VisaMastercardApple Pay American Express PayPal

The Minisforum UM690S is powered by the Ryzen 9 6900HX and Radeon 680M integrated graphics cards. The UM690S features a state-of-the-art cooling system. The UM690s boasts a dual-fan cooling mechanism, meticulously engineered to optimize thermal performance. This innovation has led to remarkable temperature reductions: the SSD's temperature has dropped from 68°C to a cool 44°C, and DDR1 and DDR2 have seen reductions to 68.25°C and 61°C, respectively.

The Minisforum UM690S is powered by the Ryzen 9 6900HX and Radeon 680M integrated graphics cards. The UM690S features a state-of-the-art cooling system. The UM690s boasts a dual-fan cooling mechanism, meticulously engineered to optimize thermal performance. This innovation has led to remarkable temperature reductions: the SSD's temperature has dropped from 68°C to a cool 44°C, and DDR1 and DDR2 have seen reductions to 68.25°C and 61°C, respectively.

Please note: A slow boot time may be caused by: an unexpected reboot, a CMOS reset, RAM replacement, or SSD replacement. In general, the boot time will resume after one normal reboot.

Superfast AMD CPU

Superfast AMD CPU

AMD Ryzen™ 9 6900HX features 8 Cores and 16 Threads based on the highly-reputed Zen 3+ Architecture. This CPU is able to reach a 4.9Ghz frequency running at its maximum workload. It also integrates the AMD Radeon™ 680M Graphics built on the latest RDNA 2 Architecture. With these groundbreaking improvements, AMD Ryzen™ 9 6900HX delivers staggering performance beyond your imagination.

AMD Ryzen™ 9 6900HX features 8 Cores and 16 Threads based on the highly-reputed Zen 3+ Architecture. This CPU is able to reach a 4.9Ghz frequency running at its maximum workload. It also integrates the AMD Radeon™ 680M Graphics built on the latest RDNA 2 Architecture. With these groundbreaking improvements, AMD Ryzen™ 9 6900HX delivers staggering performance beyond your imagination.

Productivity Boost

Productivity Boost

AMD Ryzen™ 9 6900HX takes a giant leap towards better productivity performance. The optimized CPU tackles resource-hungry tasks like graphic design, 3D rendering and video editing, and delivers satisfying results without lagging or freezing.

AMD Ryzen™ 9 6900HX takes a giant leap towards better productivity performance. The optimized CPU tackles resource-hungry tasks like graphic design, 3D rendering and video editing, and delivers satisfying results without lagging or freezing.

STUNNING TRIPLE DISPLAYS

Max. Resolution Up to 8K@60Hz

UM690 is equipped with one USB4 port for the best-in-class 8K@60Hz display experience. You can connect UM690 to three monitors at the same time via the USB4 port and two HDMI ports. This setup supports a staggering resolution of two 4K@60Hz plus one 8K@60Hz, and pushes multitasking and visual experience to the next level.

STUNNING TRIPLE DISPLAYS

Max. Resolution Up to 8K@60Hz

UM690 is equipped with one USB4 port for the best-in-class 8K@60Hz display experience. You can connect UM690 to three monitors at the same time via the USB4 port and two HDMI ports. This setup supports a staggering resolution of two 4K@60Hz plus one 8K@60Hz, and pushes multitasking and visual experience to the next level.

Advanced USB4 Standard

It is exciting to see that the UM690 features the latest USB4 Type-C port, which supports a maximum transfer speed of 40 Gbps, Alt Mode for DisplayPort, and a maximum resolution of 8K@60Hz. It even allows users to connect UM690 to a portable monitor.

โ—€ 8K@60Hz: 7,680x4,320 Pixels with Staggering Details

โ—€ 40 Gbps: Maximum Speed for Instant Data Transfer

โ—€ Alt Mode: DisplayPort Compatible

โ—€ Portable Monitor: Connect to A Portable Monitor

Advanced USB4 Standard

It is exciting to see that the UM690 features the latest USB4 Type-C port, which supports a maximum transfer speed of 40 Gbps, Alt Mode for DisplayPort, and a maximum resolution of 8K@60Hz. It also allows users to connect UM690 to a portable monitor.

โ—€ 8K@60Hz: 7,680x4,320 Pixels with Staggering Details

โ—€ 40 Gbps: Maximum Speed for Instant Data Transfer

โ—€ Alt Mode: DisplayPort Compatible

โ—€ Portable Monitor: Connect to A Portable Monitor

Upgrade & Build Your Own Set-up

Upgrade & Build Your Own Set-up

The DDR5 dual-channel memory, M.2 2280 PCIe SSD, and 2.5-inch SATA 3.0 HDD are all available for further upgrade and expansion. You can upgrade the memory and storage capacity for better data reading/writing, higher data transfer speed, and more storage space.

The DDR5 dual-channel memory, M.2 2280 PCIe SSD, and 2.5-inch SATA 3.0 HDD are all available for further upgrade and expansion. You can upgrade the memory and storage capacity for better data reading/writing, higher data transfer speed, and more storage space.

360° AIR VENTS

High-efficiency Thermal System

UM690 adopts 4 air vents on the case for fluent airflow. The smart fan inhales cooler air through 2 air vents into the case and blows out hotter air through the other 2 air vents to lower the ambient temperature.

360° AIR VENTS

High-efficiency Thermal System

UM690 adopts 4 air vents on the case for fluent airflow. The smart fan inhales cooler air through 2 air vents into the case and blows out hotter air through the other 2 air vents to lower the ambient temperature.

Smart Fan

Create higher airflow under low RPM

Dual Heat Sink

Transfer large amounts of heat rapidly

Liquid Metal

Better thermal conductivity than thermal paste

Ports & Buttons

Front I/O
Rear I/O
Front I/O
Rear I/O

What's in the Box?

MINI PC
Power Adapter
Power Cord
VESA Bracket
HDMI Cable
Mounting Screw Set
User Manual

Minisforum UM690S

MINISFORUM UM690S

Processor

AMD Ryzen™ 9 6900HX (8 Cores/16 Threads)

GPU

AMD Radeon™ 680M (2400 MHz)

Memory

DDR5 Dual channel(SODIMM Slots×2)

Storage

M.2 2280 PCIe 4.0 SSD

Storage Expansion

2.5 inch SATA HDD Slot x 1 (SATA 3.0, 6.0Gb/s)

Wireless Connectivity

M.2 2230 WIFI Support(Wi-Fi๏ผŒBlueTooth)

Video Output

HDMI x 2 (4K@60Hz)
USB4 x 1 (8K@60Hz)

Audio Output

HDMI
3.5mm Combo Jack

Peripherals Interface

• RJ45 2.5 Gigabit Ethernet Port × 1
• USB 3.2 Gen2 Type-A × 4
• USB 3.2 Gen2 Type-C × 1 (Data Transfer, Front, Right)
• USB4 Type-C × 1 (Front, Left)
• HDMI × 2
• Clear CMOS × 1
• DMIC × 1
• 3.5mm Combo Jack × 1

Power

DC 19V(Adapter Included)

System

Windows 11

1. Official Support Page for UM690S
UM690S: https://www.minisforum.com/front/support/64/UM690

2. Brand of SSD and RAM in UM690
We purchase essential hardware from different brands based on the same technical specifications, including SSDs, Wi-Fi cards, RAM, HDDs, power supplies, etc. Due to the limited resources and brands of RAM and SSD, we choose Samsung, Kingston, Crucial, Adata, Phison, etc. as our RAM and SSD suppliers.

Each piece of hardware has passed a strict quality inspection and met the factory's standards before it is delivered to Minisforum. In addition, there is no difference in the warranty policies of these hardware suppliers.

The hardware brands may vary from batch to batch. Please rest assured that they all meet Minisforum's standards and are all covered by the warranty.

3. Do you have a warranty on UM690S?
All products purchased on Minisforum's official store are covered by our 2-year warranty. Learn more about our warranty policy.

4. Where do you ship to?
We offer free shipping for the majority of the world.
Available countries and regions:
United States, Saudi Arabia, Canada, Singapore, Cambodia, Thailand, Australia, Nepal, Pakistan, Brunei, Sri Lanka, Japan, Jordan, Myanmar, Laos, Philippines, Mongolia, United Arab Emirates, South Korea, Malaysia, New Zealand, Panama, Indonesia, Mexico, Hong Kong, Macau, Taiwan.

Learn more about our shipping policy.

For customers in Europe, please place your order in our branch stores https://store.minisforum.de/ and https://store.minisforum.uk/.

5. What's the maximum resolution? How many monitors can be connected at the same time?
UM690: Up to three monitors can be connected at the same time with a maximum resolution of two 4K@60Hz plus one 8K@60Hz.

6. Can I use the USB-C port to power up UM690?
The USB-C port can not be used as a power supply port. Please use the DC19V power supply.

7. What's the spec of Wi-Fi and Bluetooth of UM480XT, UM690 and UM560XT?
Wi-Fi 6E
Bluetooth 5.2

8. Does UM690 have pre-installed Windows?
Except for the barebones version, all versions come with Windows 11 pre-installed. The barebones version does not include RAM and SSD; therefore, it does not have pre-installed Windows 11.

9. How do I install Windows OS for the barebones version?
Please click the link to our support page below to download Windows 11.
Note: Minisforum does not offer Windows OS license keys for the barebones version.
https://www.minisforum.com/front/support
