MINISFORUM UN100D
MINISFORUM UN100D
Sale price$199.00 USD
Regular price$229.00 USD (/)
Minisforum UN100D
Venus Series UN100D
Intel® N100
LPDDR5 4800MHz
Windows 11 HOME & Wi-Fi 5 & BT 5.1
2 x RJ45 2.5G LAN ports
2.5 inch SATA3.0 HDD slot
TF cart slot

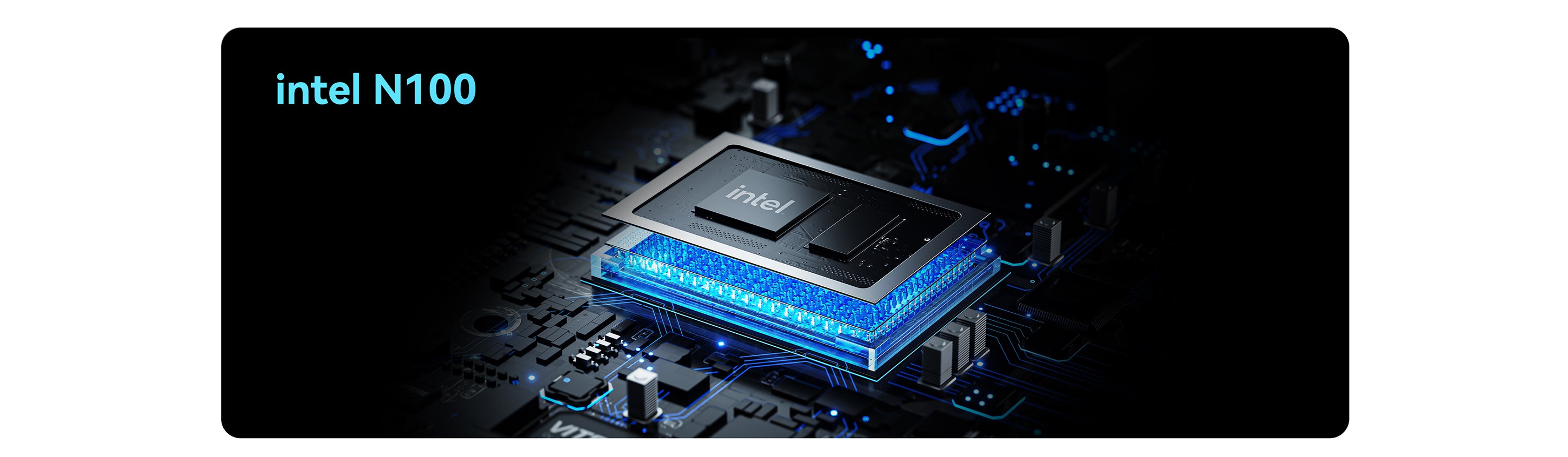

12th generation Alder-Lake N process
The UN100D's onboard Intel® N100 processor offers 4 cores and 4 threads with 6MB of cache. Base clock speed is 1.8 GHz, reaching up to 3.4 GHz on turbo boost. Graphics are built-in Intel® UHD Graphics.
01
Equipped with 1 x HDMI 2.0, 1 x DP1.4, and 1 x USB-C capable of output at 4K/60Hz, together supporting up to 3 screen outputs. It provides a wider field of view and can improve productivity.
02
Alt mode is an extension of USB-C that allows non-USB signals to be transmitted over a USB connection.
If the monitor being used supports USB PD (USB power delivery), the USB-C port can transfer video signals to the monitor and simultaneously power the PC. This can make your desktop environment cleaner.
03
With VESA mounting brackets, it is suitable for all sizes and types of monitors and TVs, making it ideal for attaching a PC to a monitor or TV, saving desktop space, and for offices, conference rooms, clinics, and other locations where you do not want to take up installation space.
01
Equipped with 1 x HDMI 2.0, 1 x DP1.4, and 1 x USB-C capable of output at 4K/60Hz, together supporting up to 3 screen outputs. It provides a wider field of view and can improve productivity.
02
Alt mode is an extension of USB-C that allows non-USB signals to be transmitted over a USB connection.
If the monitor being used supports USB PD (USB power delivery), the USB-C port can transfer video signals to the monitor and simultaneously power the PC. This can make your desktop environment cleaner.
03
With VESA mounting brackets, it is suitable for all sizes and types of monitors and TVs, making it ideal for attaching a PC to a monitor or TV, saving desktop space, and for offices, conference rooms, clinics, and other locations where you do not want to take up installation space.

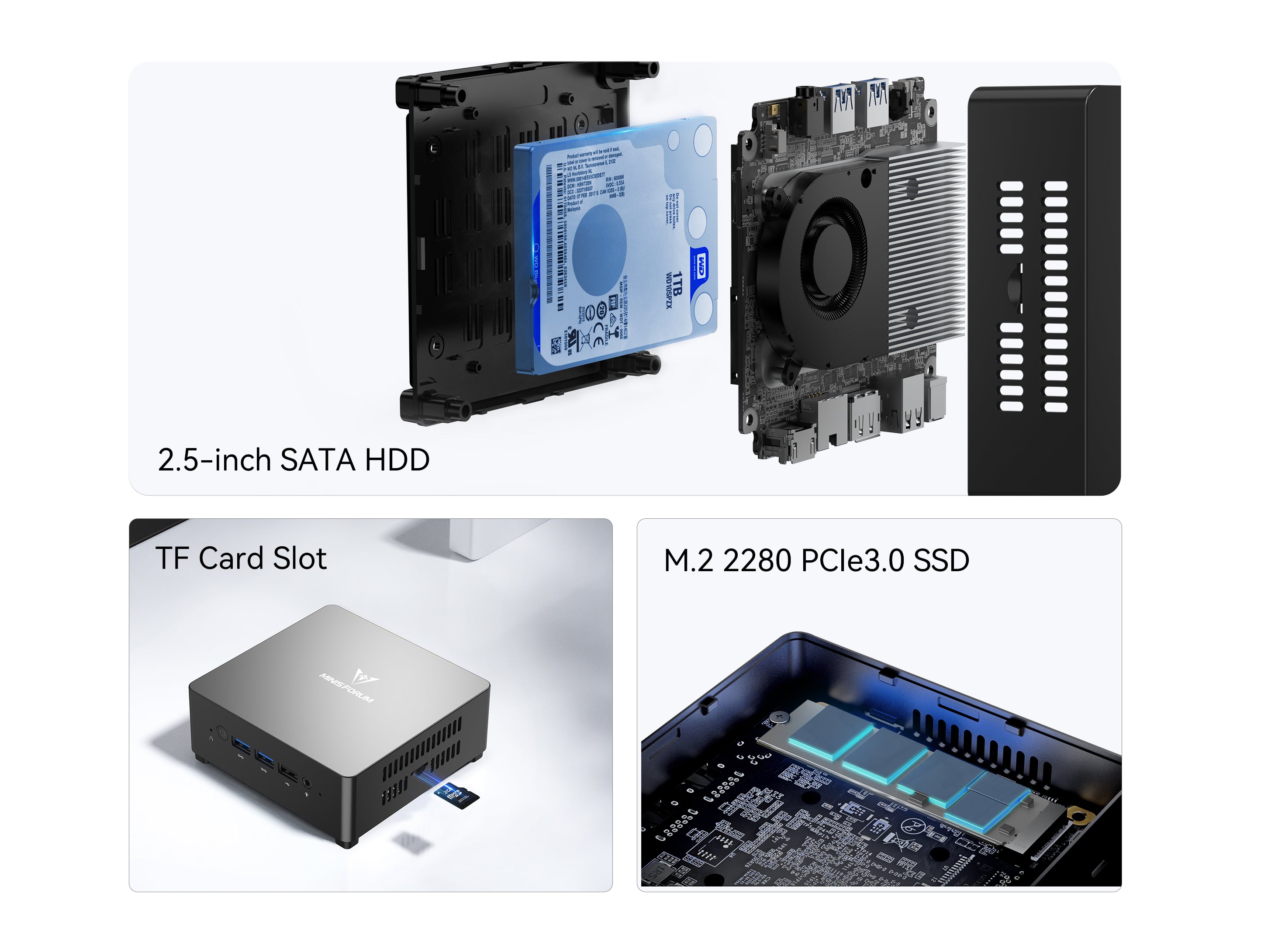

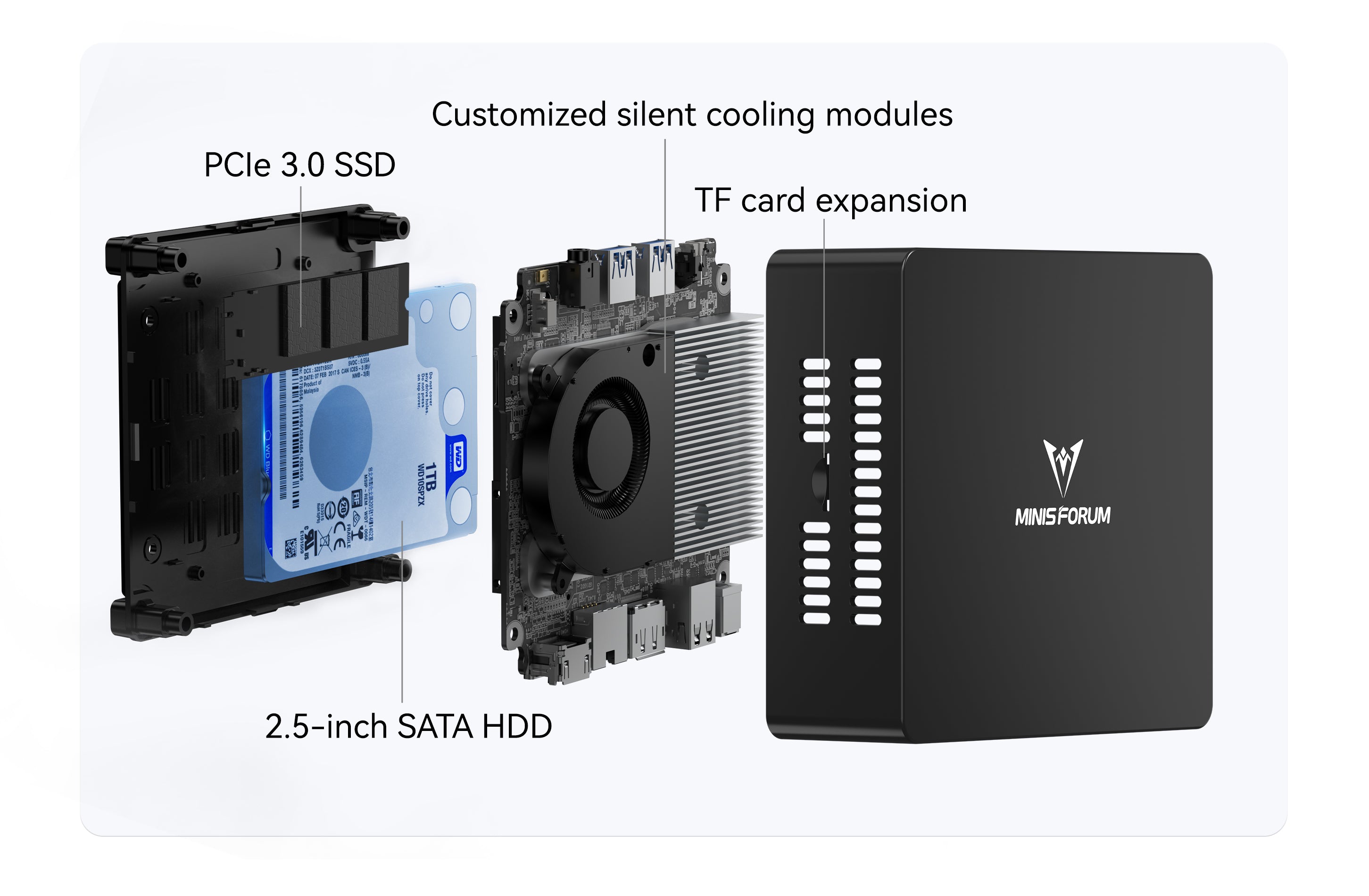

Expandable capacity
1 x TF card slot and 1 x 2.5" SATA HDD slot (no limit, supports up to 7mm).
Increased capacity allows for higher data transfer rates and better data processing performance.
Various connection terminals
Equipped with various types of ports, you can use them to meet your needs.

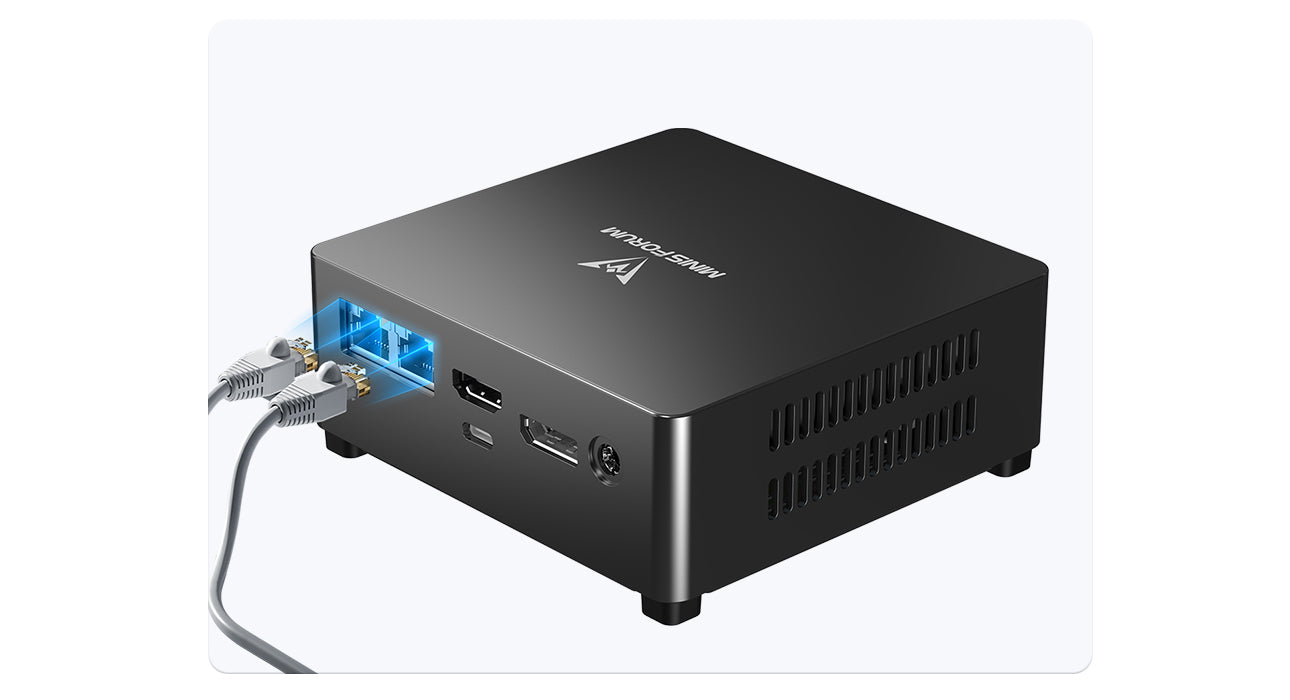

RJ45 2.5G LAN
Equipped with two 2.5G network ports, provides higher network performance, allows you to configure different IP addresses, and provides multi-IP access to the server. You can easily build a server for your home.
Model
MINISFORUM UN100D
CPU
Intel® N100 Processor, 4 Cores/4 Threads
(6M Cache, up to 3.4 GHz)
Graphics
Intel® UHD Graphics
Memory
LPDDR5 Single Channel (OnBoard, 4800Mhz, up to 16GB)
SSD
M.2 2280 PCIe3.0 SSD ×1(PCIe 3.0 ×2 )
Memory expansion
TF Card Slot ×1
2.5 inch SATA3.0 HDD Slot ×1
Wireless connectivity
Onboard Intel® Wireless-AC 9560 (Wi-Fi 5，BlueTooth 5.1)
Video output
HDMI ×1, DisplayPort ×1, USB-C ×1
Audio output
HDMI x1 / 3.5mm combo jack x1
Power supply
DC 12V(Adapter Included)
OS
Windows 11

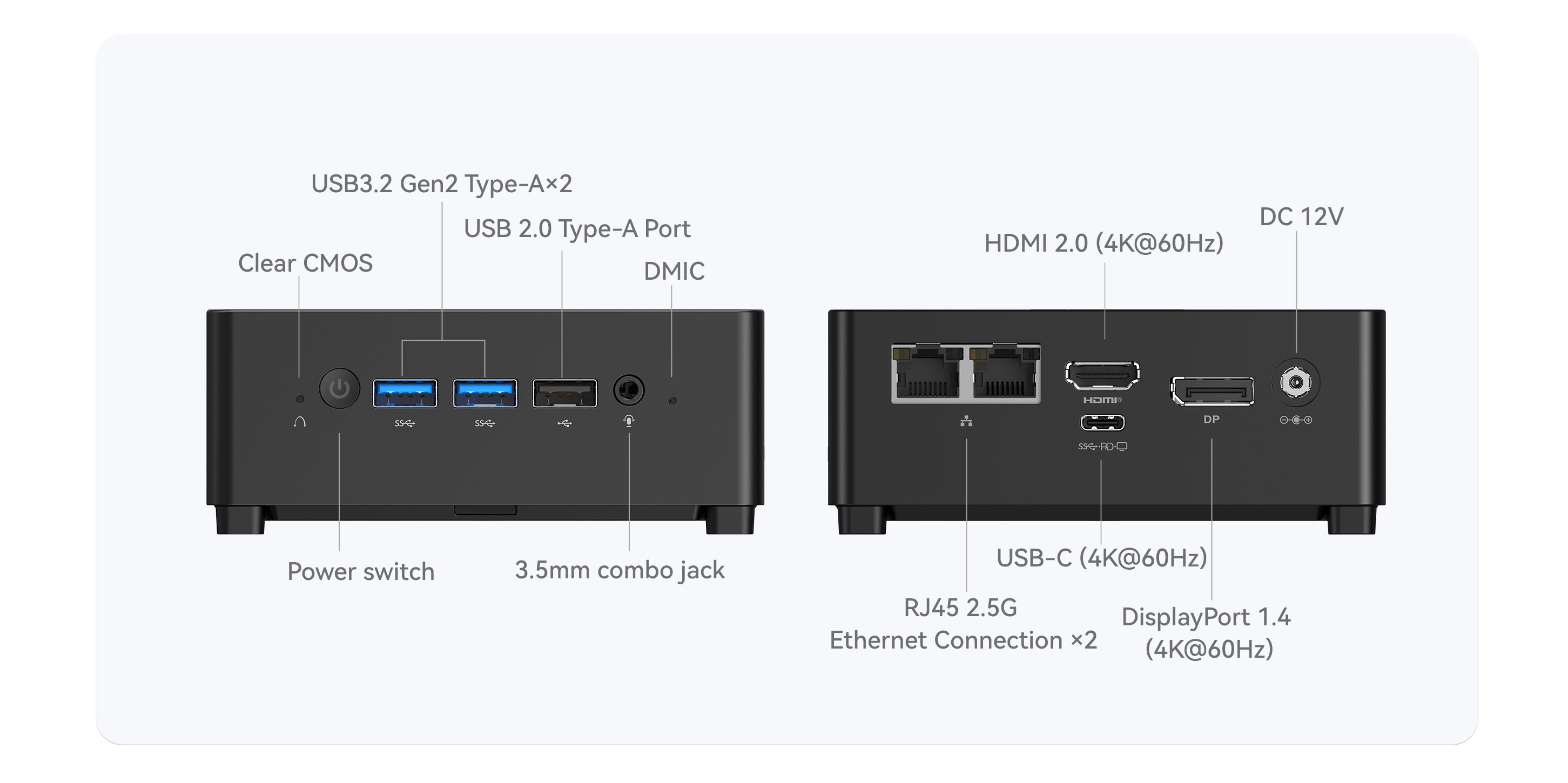

Peripheral interface
RJ45 2.5G Ethernet Port ×2
USB2.0 Type-A Port ×1(In Front)
USB3.2 Gen2 Type-A Port ×2(In Front)
USB3.2 Gen2 Type-C ×1(Alt Data DP and PD)
HDMI ×1
DisplayPort ×1
DMIC ×1
Audio Jack ×1
Clear CMOS ×1
